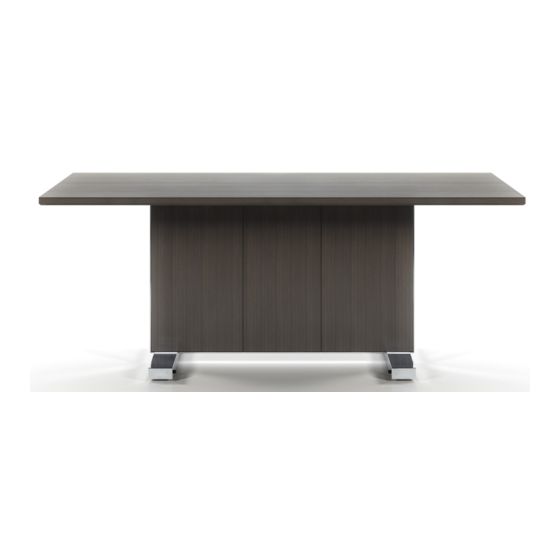

- Page 1 Approach Installation Instructions...
- Page 2 Before Beginning Installation • Read through the entire instruction thoroughly • A minimum of 2 persons is required for this assembly • These instructions reflect typical assemblies. They may not match your specific configuration.
- Page 3 Required Tools • #3 Phillips Head Bit or Driver • 5/16 Allen Wrench • Provided Hardware: HW8017 Bolts HW0543 Screws...
- Page 4 Step 1: Leg to Base • Remove base from packaging and stand on square plates • Remove bolts (12) and washers (12) that are used to fasten legs. • Remove legs from packaging and align holes on center of legs to holes in base.
- Page 5 Step 2: Base to Top • Remove top from packaging, and place onto a shipping blanket to ensure no damage to top. Note: When base is assembled to top, the orientation of the door needs to face the tilt activation lever.
- Page 6 Typical Table Labeling See example on the next page of typical labeling for a grain matched set. Each top will have 2 letters that are used to match the correct sides to their corresponding partners. • “A” will match to the corresponding “A”, “B” will match to the corresponding “B”, and so on..
