Page 1: Installation Instructions

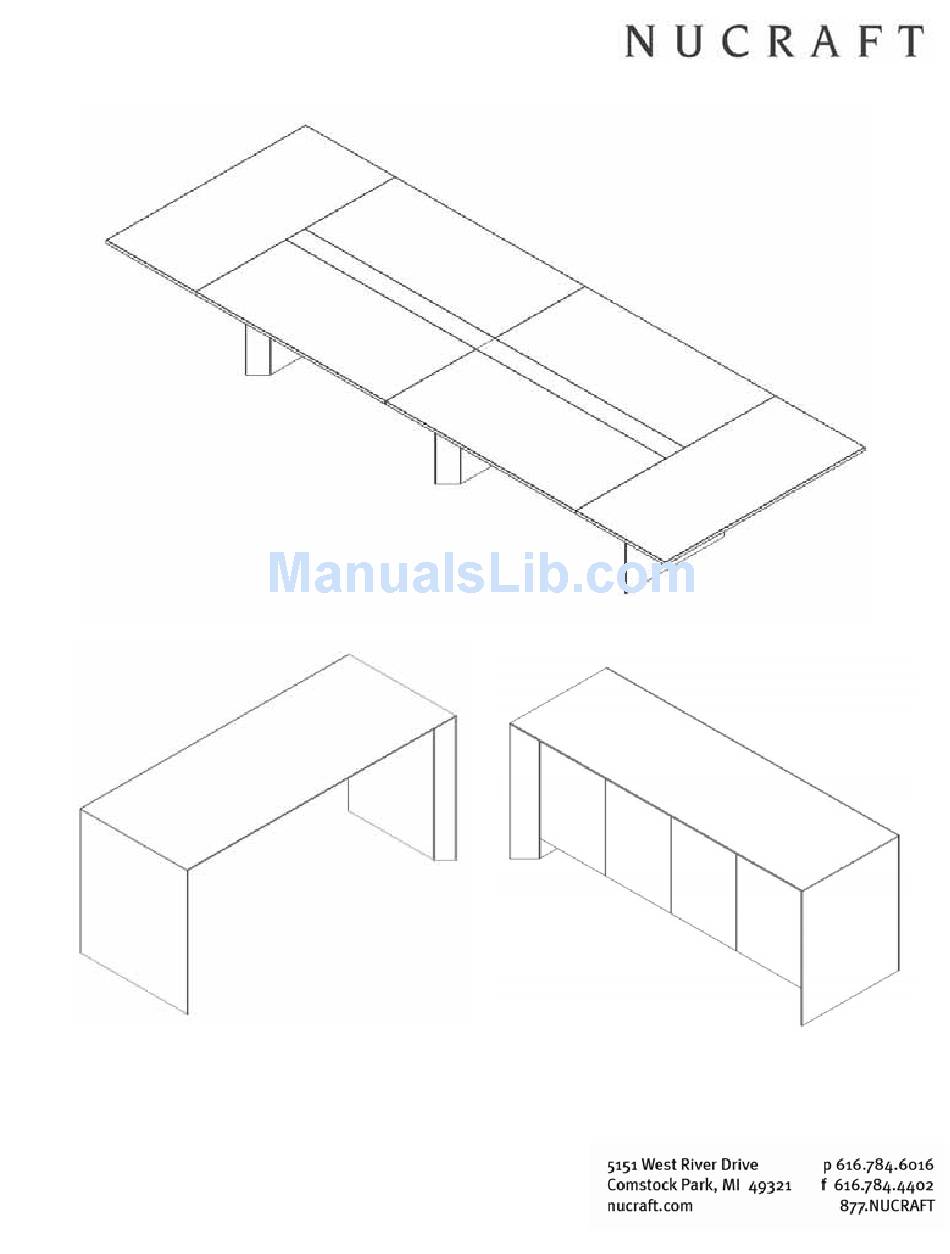

® Tavola Installation Instructions Rev A. – 1/14/2008... -
Page 2: Before Beginning Installation
® Tavola Installation Instructions Nucraft Furniture Company Before Beginning Installation • Read through instructions prior to assembly. • A minimum of 2 people are required to perform this installation. • You will need a 3’ or longer level. Leveling the table, throughout the installation process is very important. - Page 3 ® Tavola Installation Instructions Nucraft Furniture Company Tavola Hardware List #12 X 1”, PH, PHIL, YLW, ZINC – PART# HW1927N TITE JOINT FASTENER – PART# HW0563N #10 X 1.75”, PH, PHIL – PART# HW0615N #10 X .75”, FH, PHIL, BLK, UCUT – PART# HW1359N #10-16 X 1.25”, HX, WH, TEK, ZN –...
- Page 4 ® Tavola Installation Instructions Nucraft Furniture Company TAVOLA RECTANGLE CONFERENCE TABLE 168” X 60” 3-BASE GLASS TOP 4 ...
- Page 5 ® Tavola Installation Instructions Nucraft Furniture Company TAVOLA RECTANGLE CONFERENCE TABLE – EXPLODED VIEW Tavola Conference Typical Parts Description 1. Table base (2 pcs) 2. Glass Ender (2 pcs) 3. Glass Center (4 pcs) 4. 1 ½” Sub top (2 pcs) 5.
- Page 6 ® Tavola Installation Instructions Nucraft Furniture Company TAVOLA CREDENZA 72” W/DOORS VENEER TOP, FRONT & SIDES 6 ...
- Page 7 ® Tavola Installation Instructions Nucraft Furniture Company TAVOLA CREDENZA - EXPLODED VIEW Tavola Credenza Typical Parts Description 1. Credenza Case 2. Credenza Sides (2 pcs) Credenza Top 7 ...
- Page 8 ® Tavola Installation Instructions Nucraft Furniture Company TAVOLA STANDING HEIGHT TABLE 90” VENEER TOP & SIDES 8 ...
- Page 9 ® Tavola Installation Instructions Nucraft Furniture Company TAVOLA STANDING HEIGHT TABLE - EXPLODED VIEW Tavola Standing Height Table Typical Parts Description 1. Standing Height Frame 2. Standing Height Sides (2 pcs) Standing Height Top 9 ...
- Page 10 ® Tavola Installation Instructions Nucraft Furniture Company Assembling Conference Tables 3 Base Tables 1. Place the 2 bases together so that the ends without panels are facing each other. 2. Connect the two bases together with item I (Double Base Spacer) between the straps using hardware item F &...
- Page 11 Tavola Installation Instructions Nucraft Furniture Company Glass Top Tavola Table 1. With glass top Tavola tables an additional insert is attached to the sub top. This is to give the added thickness to the glass. Between each insert an aluminum trim piece will be present.
- Page 12 ® Tavola Installation Instructions Nucraft Furniture Company Assembling Credenzas Assembling Credenza 1. Place the credenza in the room where it will be located as once the credenza is assembled it will be more difficult to move. 2. With the credenza located take the end...
- Page 13 ® Tavola Installation Instructions Nucraft Furniture Company Assembling Standing Height Assembling Standing Height 1. Place the Standing Height table in the room where it will be located as once the table is assembled it will be more difficult to move.
- Page 14 Nucraft Furniture Co. 5151 West River Drive Comstock Park, MI 49321 Questions or Comments Toll Free: 1-877-NUCRAFT ...
