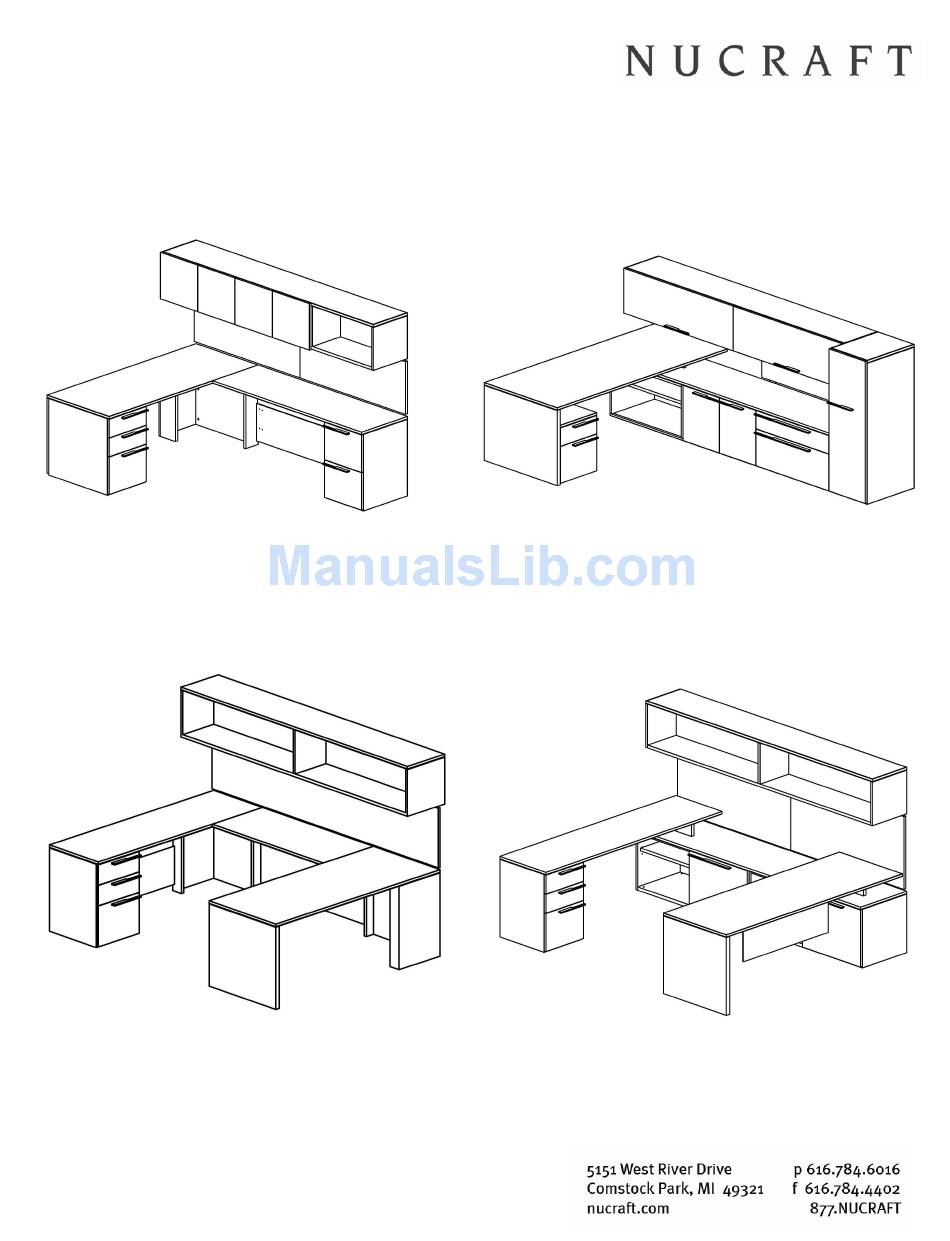

- Page 1 ® Cavara Casegoods Installation Instructions [Creation/Revision Date Here]...
- Page 2 Cavara Installation Instructions Nucraft Furniture Company Before Beginning Installation Read through instructions prior to assembly. • A minimum of two people are required to perform this installation. • You will need a 3’, or longer, level. Leveling the station, or portions of the station, throughout the •...
- Page 3 Cavara Installation Instructions Nucraft Furniture Company Cavara Hardware List Screw, #12 x 1 ¼” Phillips Flat Head (HW0581) Screw, #12 x ¾” Phillips Flat Head (HW0587) Screw, #8 x 1 ¼” Phillips Oval Head (HW0565) Washer, #10 Flat (HW0902) Minifix Connector Pin (HW0456) Minifix Cam Connector (HW0457) Screw, #10 x 5/8”...
- Page 4 Cavara Installation Instructions Nucraft Furniture Company “L” Configuration...
- Page 5 Cavara Installation Instructions Nucraft Furniture Company “L” Configuration Exploded View Cavara CAV-06-L Component Description 1. Desk Worksurface 2. Pedestal 3. Corner Support 4. Access Panel 5. Pedestal 6. Return Worksurface 7. Tack Board 8. Overhead...
- Page 6 Cavara Installation Instructions Nucraft Furniture Company Low “L” Configuration...
- Page 7 Cavara Installation Instructions Nucraft Furniture Company Low “L” Configuration Exploded View Cavara CAV-REC-L Component Description 1. Desk Worksurface 2. Panel Leg 3. Metal Modesty Panel 4. Pedestal 5. Credenza Worksurface 6. Shelf Pedestal 7. Door Pedestal 8. Pedestal 9. Overhead 10.
- Page 8 Cavara Installation Instructions Nucraft Furniture Company “U” Configuration...
- Page 9 Cavara Installation Instructions Nucraft Furniture Company “U” Configuration Exploded View Cavara “U” Component Description 1. Credenza Worksurface 2. Pedestal 3. Corner Support 4. Access Panel 5. Bridge Worksurface 6. Full Height Back Panel 7. Desk Worksurface 8. Corner Support 9. Panel Leg 10.
- Page 10 Cavara Installation Instructions Nucraft Furniture Company Low “U” Configuration...
- Page 11 Cavara Installation Instructions Nucraft Furniture Company Low “U” Configuration Exploded View Cavara Low “U” Component Description 1. Run-Off Worksurface 2. Pedestal 3. Low Credenza Sliding Door Pedestal 4. Low Credenza Sliding Door Pedestal 5. Credenza Worksurface 6. Run-Off Worksurface 7. Panel Leg 8.
- Page 12 Cavara Installation Instructions Nucraft Furniture Company Standoff to Worksurface 1. Place Standoff in pocket in underside of Worksurface. 2. Attach Standoff to Worksurface using #12 x 3/4” Flat Head Screws (item B). 3. The standoff is designed to rest on low credenza tops, no hardware needed.
- Page 13 Cavara Installation Instructions Nucraft Furniture Company Pedestal to Worksurface 1. Locate pedestal on Worksurface 2. Attach pedestal Worksurface using (4) #10 washers (item D) and (4) #8 Oval Head Screws (item C). 3. Attachment holes are located in the corners of the pedestal top as shown.
- Page 14 Cavara Installation Instructions Nucraft Furniture Company Mounting of Access Panel The access panel is pre-assembled with mounting clips and magnets. The mounting clips on the lower half of the panel slide onto the metal brackets that are pre-attached to the desk components.
- Page 15 Cavara Installation Instructions Nucraft Furniture Company Mounting of Cantilever Overhead Insert metal stanchions into hat sections on back of credenza and align the scribe or pencil mark to the top of the Worksurface. Hang tack board onto horizontal bars that are mounted onto the stanchions.
- Page 16 Cavara Installation Instructions Nucraft Furniture Company d. Adjust the glide until the case is level. Mounting of Wall Overhead Proper hardware and attachment of the wall cleats to the wall is the responsibility of the installer. Each cleat needs to be installed to support 100 pounds per lineal foot of overhead.
