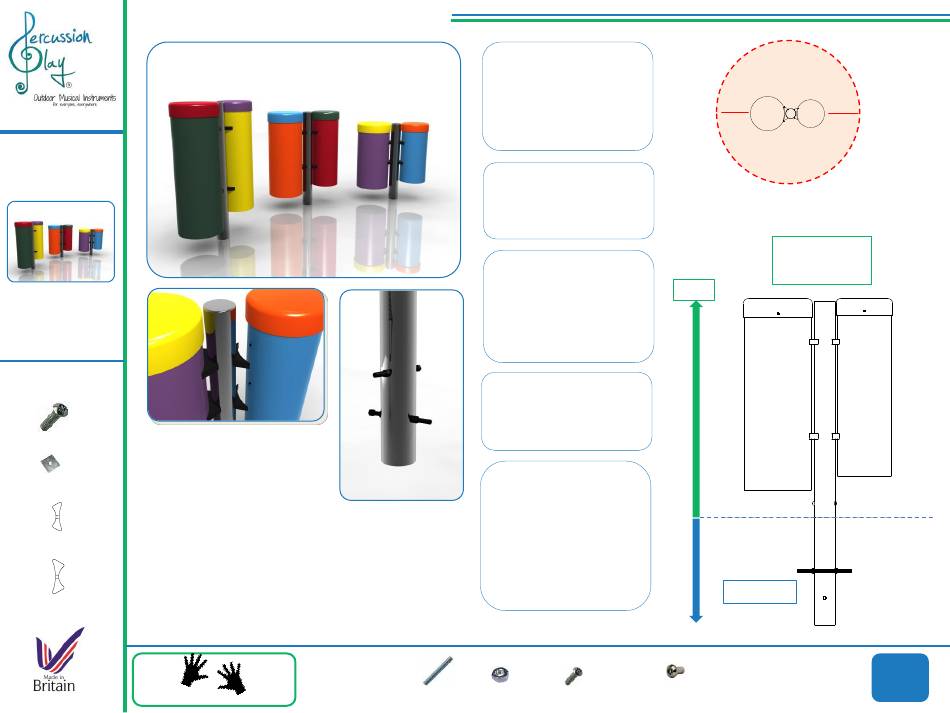

Percussion Play Ground Fixed Installation Instructions

Installation Instructions

Ground Fixed

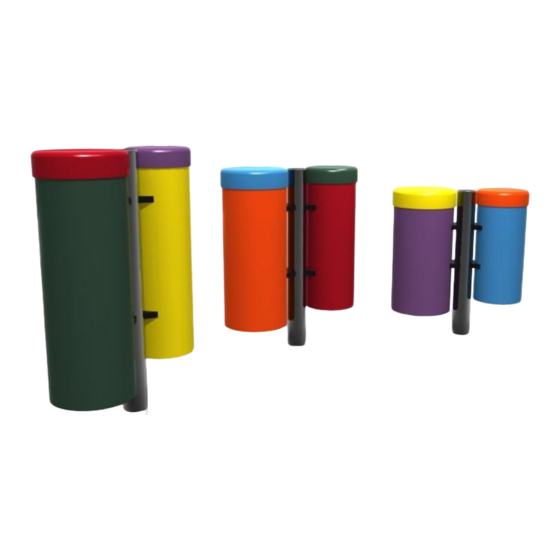

Congas
Page 1 of 3
Instrument
Components:
x4
M10x30 Security Screw
x4
M10x50x3 Square washer
x2
200 Mount
x2
Weight of heaviest part
Weight of heaviest part
250 Mount
Weight of heaviest part
Played with hands
BS EN 1176
(1.1)
3.8kg (Large drum Small Congas)
4.5kg (Large drum Medium Congas)
5.2kg (Large drum Large Congas)
Ground Fix
Components:
M10x200 Bolt
1. Attach the steel leg to
each of the congas with the
M10x30 security screws,
square washers and HDPE
mounts. (1.1) (See
Assembly Guide)
2. Attach Ground Fixing
posts to legs(1.2) (See
Ground Fix Post Installation
Sheet)
3.Excavate1 hole for the
Steel leg 200mm diameter
by 400mm deep, in desired
(1.2)
location upon decision from
customer.
4. Locate (lower) legs into
hole making sure they are
vertical and level prior to
concreting in place.
5. Once happy with location
of the Instrument, fill hole
using rapid hardening
concrete. Be sure to
compact concrete around
legs and leave to dry
according to manufactures
guidelines.
x2
x4
x1
M10 Nut M10x70 Security Screw
1.5m
1.5m
Small – 600mm
Medium – 700mm
Large- 800mm
S,M,L
Ground Surface
400mm
Spares available form
x1 percussionplay.co.uk
or from
your local distributor
M10 Barrel Nut
Install Instrument
with 1.5m free
space (from widest
point) around it.
10 Kg
15 Kg
20 Kg
