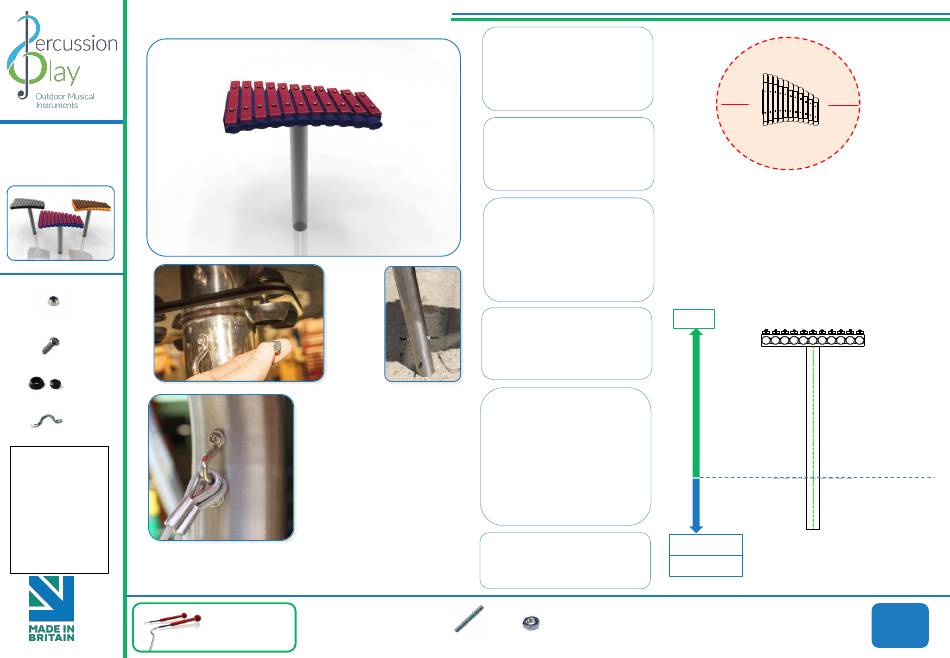

Percussion Play Cadenza Installation Instructions

Installation Instructions

Ground Fixed

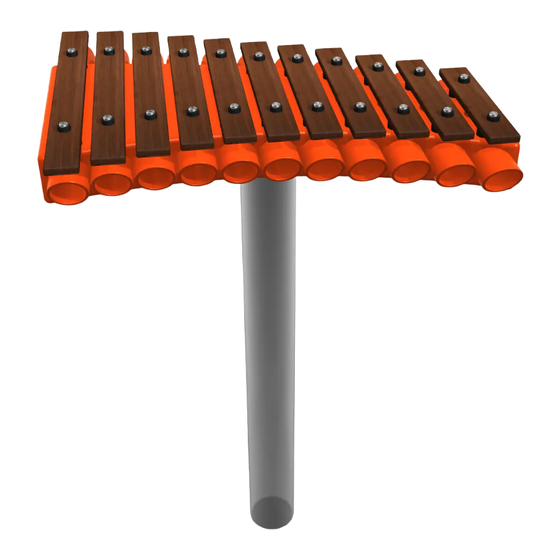

Cadenza
Page 1 of 3
Components:
x4
M8 Nyloc Nut
x2
M6x20 Security Screw
x4
2 Part Cover Cap
x1
M6 Saddle Strap
Metric
Conversion:
250mm/ 10"
400mm/ 15 3/4"
550mm/ 21
21/32"
700mm/ 27 9/16"
850mm/ 33
15/32"
1.5m/ 59"
Weight of heaviest part
BS EN 1176
(1.1)
(1.3)
7kg (Cadenza)
Ground Fix
Pair Small Red
Beaters X1
Components:
1. Attach the steel legs to the
base of the instrument with
the M8 Nyloc Nuts and 2 part
security caps. (1.1) (See
Assembly Guide)
2. Attach Ground Fixing posts
to legs(1.2) (See Ground Fix
Post Installation Sheet)
3.Excavate 1 hole for the
Steel legs 250mm diameter
by 400-550mm deep
depending on Key stage, in
desired location upon
(1.2)
decision from customer.
4. Locate (lower) legs into
holes making sure they are
vertical and level prior to
concreting in place.
5. Once happy with location
of the Instrument, fill holes
using rapid hardening
concrete. Be sure to compact
concrete around legs and
leave to dry according to
manufactures guidelines.
6. Attach the 1 pair of beater
to the saddle strap on the leg.
(1.3)
x2
x4
M10x200 Bolt M10 Nut
1.5m 1.5m
KS1 – 700mm
KS2 – 850mm
KS1,2
Ground Surface
KS2 - 400mm
KS1 - 550mm
Spares available from
percussionplay.com or from your
local distributor
Install Instrument
with 1.5m free space
(from widest point)
around it.
14 Kg
