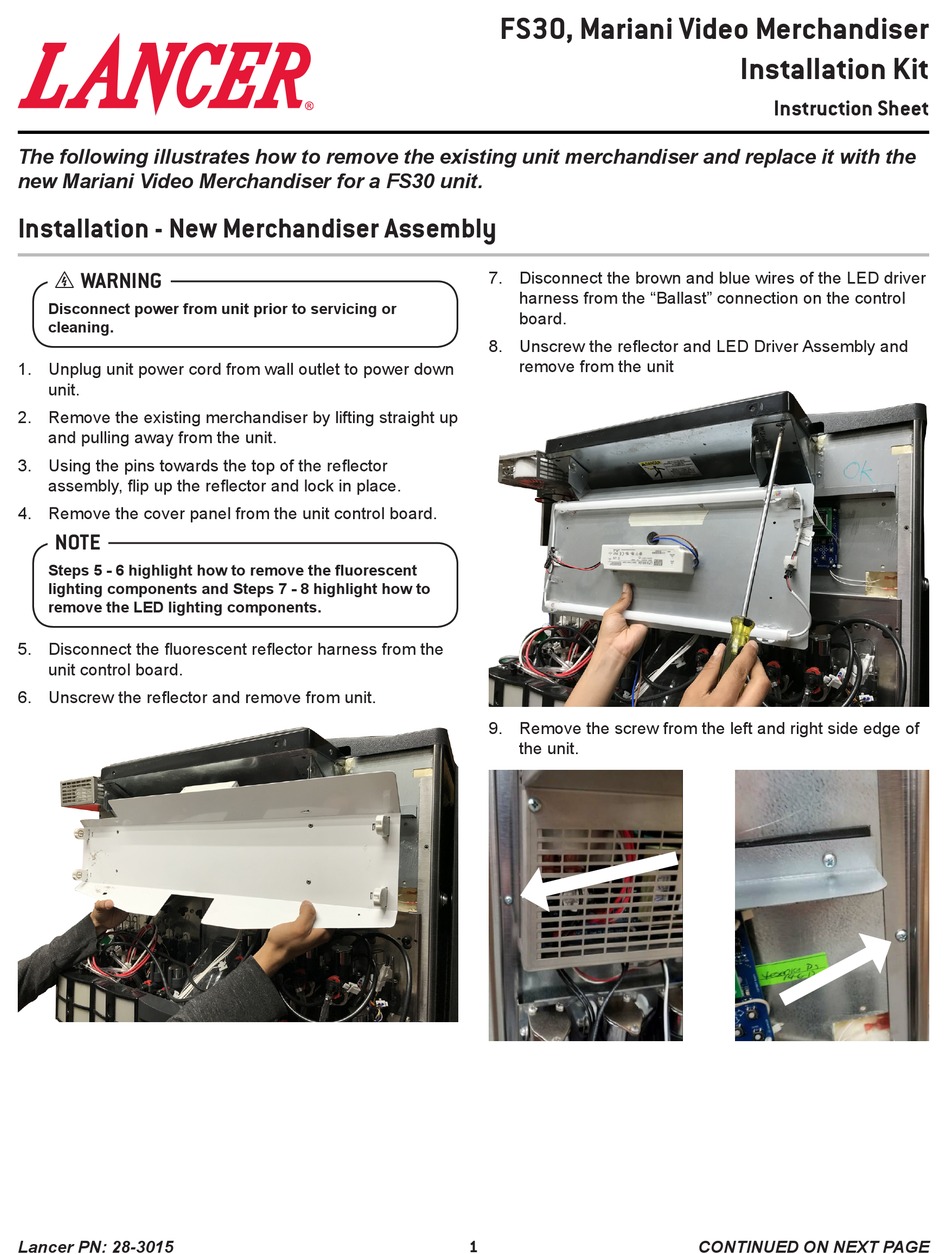

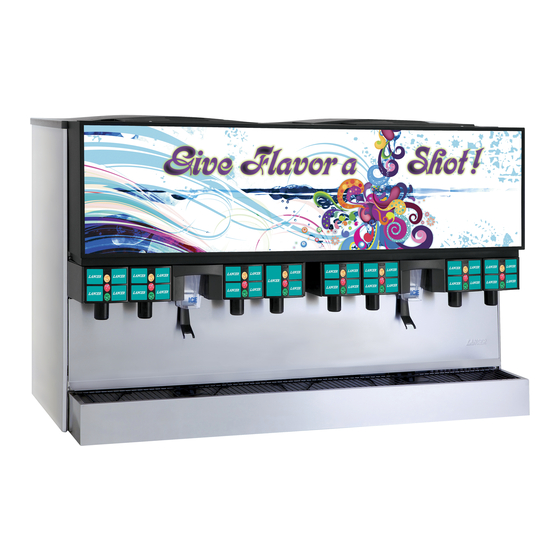

lancer FS30 Instruction Sheet

The following illustrates how to remove the existing unit merchandiser and replace it with the
new Mariani Video Merchandiser for a FS30 unit.
Installation - New Merchandiser Assembly
F WARNING
Disconnect power from unit prior to servicing or
cleaning.
1. Unplug unit power cord from wall outlet to power down
unit.
2. Remove the existing merchandiser by lifting straight up
and pulling away from the unit.
3. Using the pins towards the top of the reflector
assembly, flip up the reflector and lock in place.
4. Remove the cover panel from the unit control board.
NOTE
Steps 5 - 6 highlight how to remove the fluorescent
lighting components and Steps 7 - 8 highlight how to
remove the LED lighting components.
5. Disconnect the fluorescent reflector harness from the
unit control board.
6. Unscrew the reflector and remove from unit.
Lancer PN: 28-3015
FS30, Mariani Video Merchandiser
7. Disconnect the brown and blue wires of the LED driver
harness from the "Ballast" connection on the control
board.
8. Unscrew the reflector and LED Driver Assembly and
remove from the unit
9. Remove the screw from the left and right side edge of
the unit.
1
Installation Kit
Instruction Sheet
CONTINUED ON NEXT PAGE
