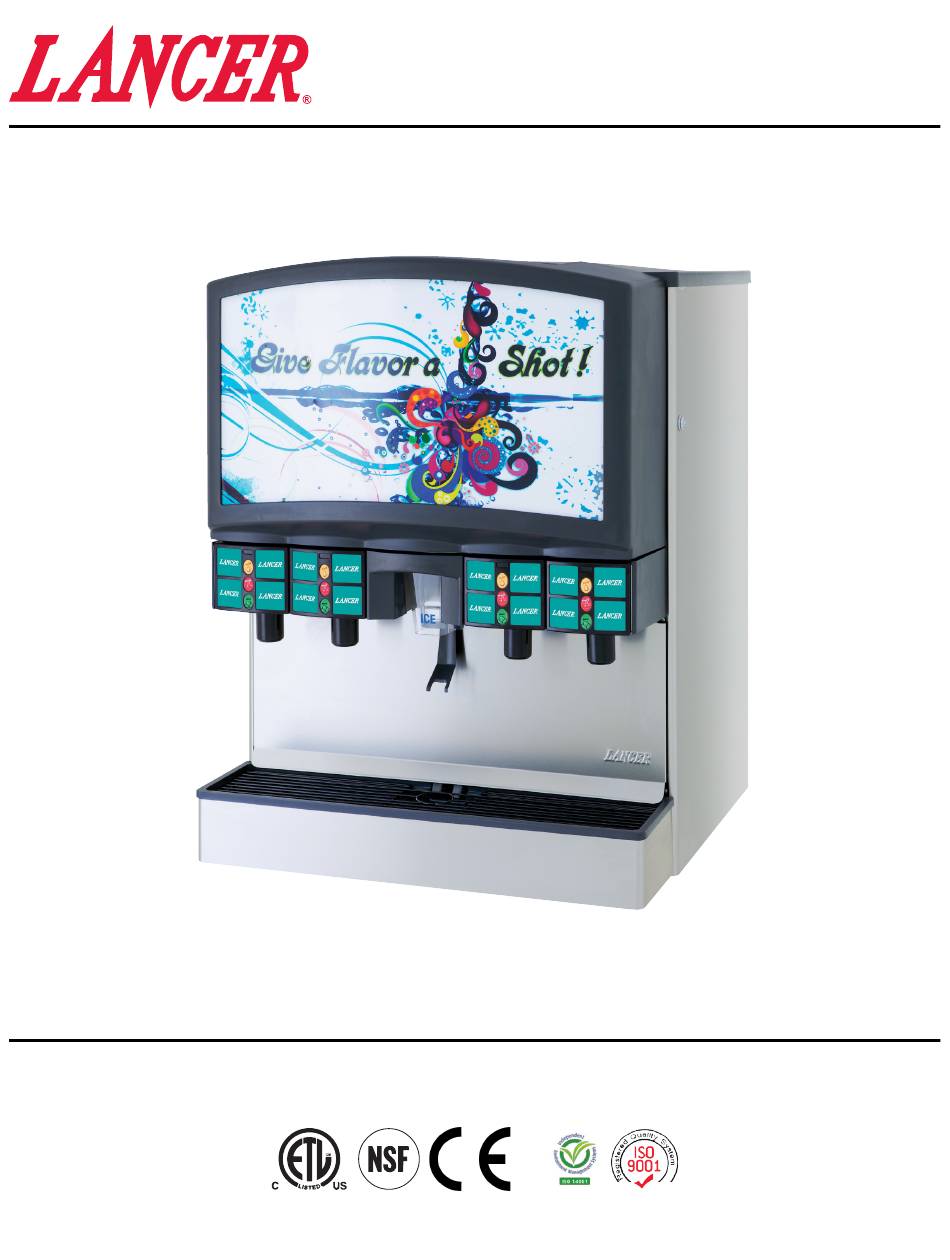

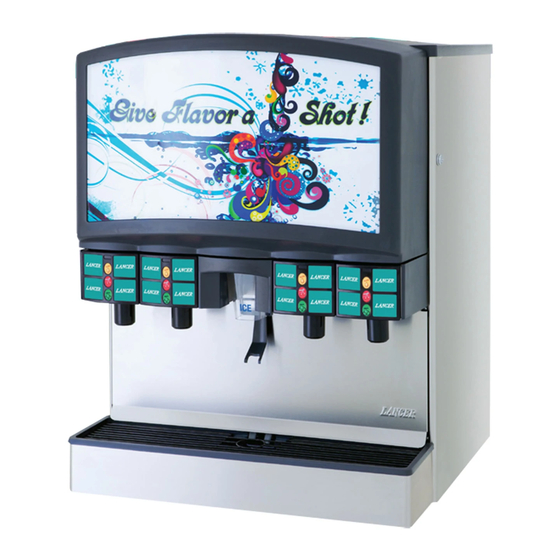

Flavor Select (FS) 30
Ice Beverage Dispenser
Operation Manual
Lancer Corporation
Tech Support/Warranty: 800-729-1550
6655 Lancer Blvd.
email: custserv@lancercorp.com
®
San Antonio, Texas 78219
web: lancercorp.com
FS30
800-729-1500
Lancer PN: 28-0558/07
Revision: March 2018
"Lancer" is the registered trademark of Lancer © 2018 by Lancer, all rights reserved.
