Moto

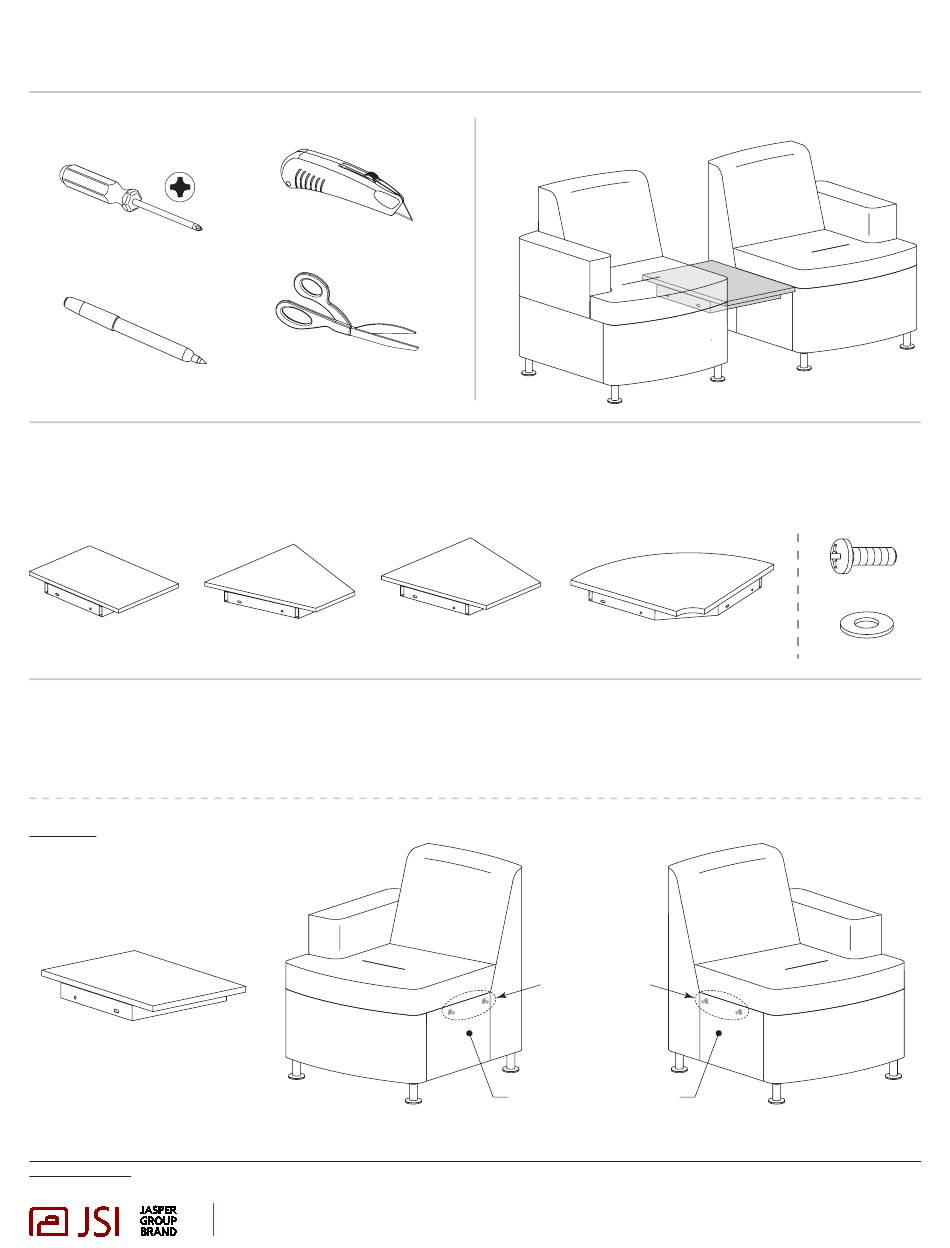

Recommended Tools
#3 Phillips Screw Driver
Marker
Package Contents
Moto linking tables are available in four different shapes. Your package will contain one of the linking tables below. The illustrations
in these instructions show using the rectangular linking table, however all table shapes use the same method of attachment. Please
adjust accordingly.
Rectangular
Moto seating units have factory installed T-Nuts located on both sides of the frame which are used to attach linking tables. These
T-Nuts are concealed when the chair is upholstered. After you determine which side of the chairs get the linking table, you will need to
locate the hidden T-Nuts by feeling through the upholstery with your fingers. The following installation instructions will show a rectangu-
lar linking table being attached between a Right and Left chair.
Step 1
Determine which Side of the Chairs
the Linking Table will be Attached
Rectangular
Linking Table
Notice To Installers: Failure to comply with installation instructions will compromise the safety, durability and performance of this product, which may risk injury to the user of this
product and/or diminish the product life cycle. Jasper Group assumes no liability in these instances.
Utility Knife
Scissors
30 ° Wedge
Right Chair
jsifurniture.com
812.482.3204
800.457.4511
812.482.1548
° Wedge
22
1
/
2
T-Nuts beneath
upohlstery
Linking Table will go on
inside of Right and Left
Seating Units
225 Clay Street / PO Box 231
O
Jasper, Indiana 47546
F
Installation Instructions
Linking Tables
Quarter Round
Page 1 of 4
(4) Bolts
(4) Washers
Left Chair
Form No. INST-MT005
5/1/16
Advertisement
Related Manuals for JSI Moto
Summary of Contents for JSI Moto
-
Page 1: Installation Instructions
(4) Washers Moto seating units have factory installed T-Nuts located on both sides of the frame which are used to attach linking tables. These T-Nuts are concealed when the chair is upholstered. After you determine which side of the chairs get the linking table, you will need to locate the hidden T-Nuts by feeling through the upholstery with your fingers. - Page 2 Installation Instructions Moto Page 2 of 4 Linking Tables Step 2 (continued) Locate T-Nut Fasteners beneath Upholstery T-Nut • Carefully flip chair on it’s back. • Use fingers to locate two T-Nuts holes beneath upholstery. These T-Nuts will be used to attach the linking table.
- Page 3 Installation Instructions Moto Page 3 of 4 Linking Tables Step 4 (continued) Repeat Steps 1, 2, and 3 for Remaining Chair • Determine which side of chair linking table will be attached. • Carefully flip chair on it’s back. • Locate T-Nuts holes beneath upholstery and cut fabric away to fully expose T-Nuts.
- Page 4 Installation Instructions Moto Page 4 of 4 Linking Tables Step 6 (continued) Flip Chairs Upright • Carefully flip chairs upright and move to desired location. Notice To Installers: Failure to comply with installation instructions will compromise the safety, durability and performance of this product, which may risk injury to the user of this product and/or diminish the product life cycle.
