Vision-Wall Mounted Floating Shelf
Recommended Tools
Installation
1.
Determine location & mounting height of the shelf. Figure A
2.
Bore holes for mounting concealed bracket. Figure B
3.
Using Ø1/4" bit, bore holes for drywall anchors. Figures B & C
4.
Using a level, assure bored holes are horizontal.
5.
Insert Drywall Anchors into bored holes. Figure C
6.
Attach Concealed Brackets to Drywall Anchors using provided
screws. Figure D
Figure C
8/26/2022
Figure A
Form No. INST-VS0015
Figure B
Figure D
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for JSI Vision-Wall Mounted Floating Shelf
Summary of Contents for JSI Vision-Wall Mounted Floating Shelf

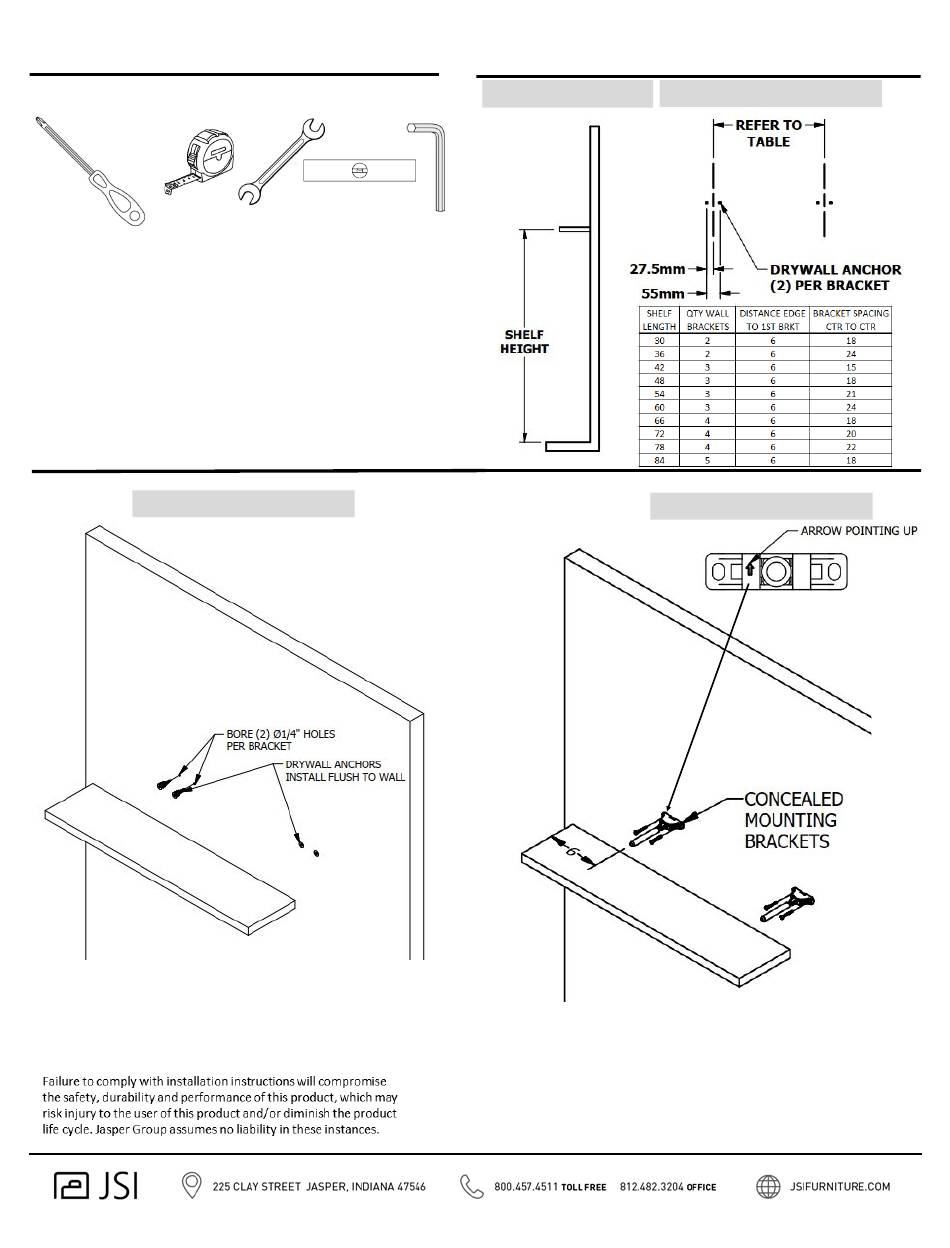

- Page 1 Vision-Wall Mounted Floating Shelf Figure A Figure B Recommended Tools Installation Determine location & mounting height of the shelf. Figure A Bore holes for mounting concealed bracket. Figure B Using Ø1/4” bit, bore holes for drywall anchors. Figures B & C Using a level, assure bored holes are horizontal.
- Page 2 INST-VS00__ Install Instructions Figure E Recommended Tools Installation Insert shelf onto concealed mounting brackets leaving room for adjustments. Figure E 8. Adjust Horizontally until centered. Figure F 9. Using wrench, turn concealed pin to adjust for tilt. Figure G 10. When adjustments are complete, tighten locking screw on bottom side of concealed bracket to retain settings.
