Package Contents
Chair

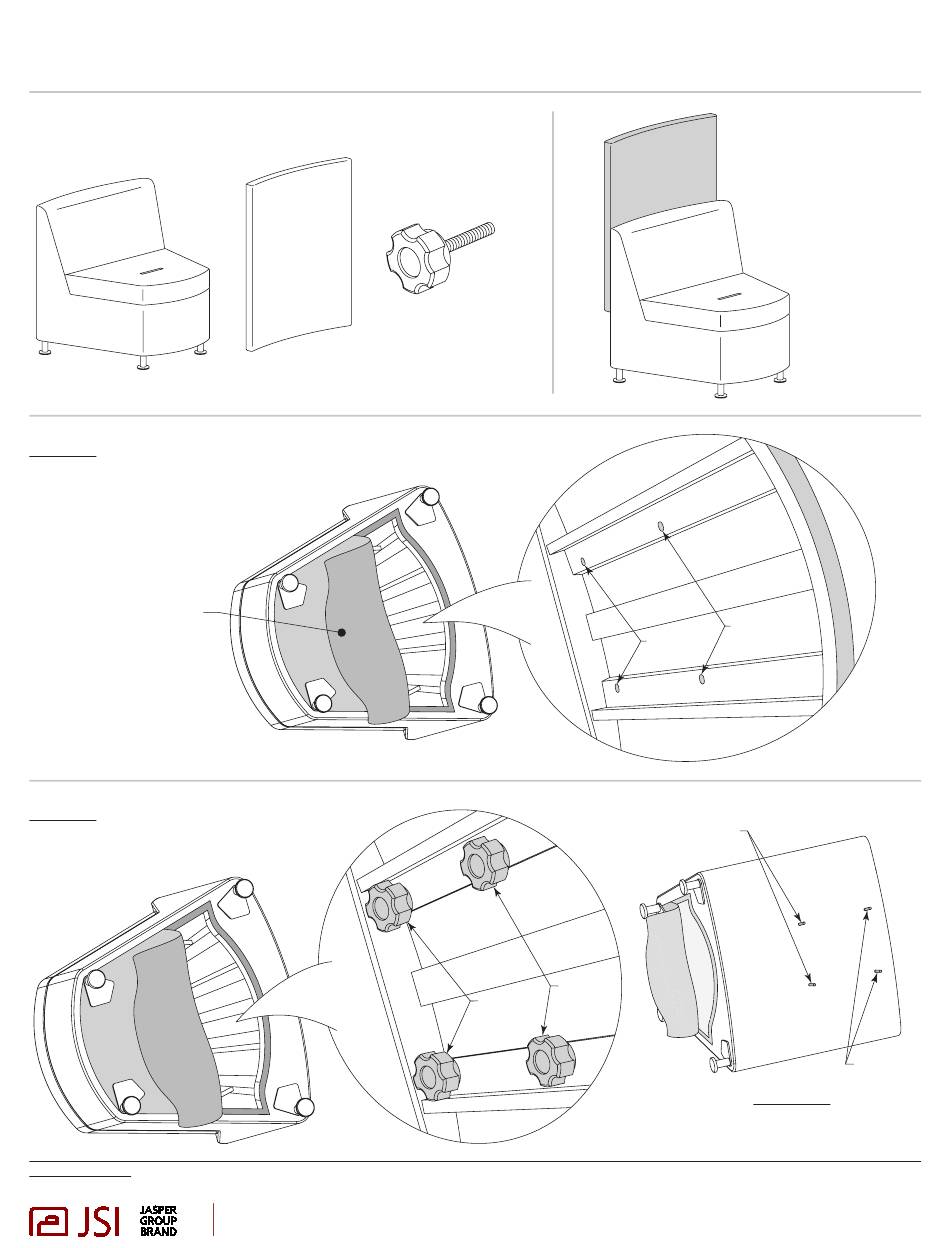

Step 1
Locate Bolt Slots on Inside of Chair
• Carefully lay unit over on it's side.
• Pull open bottom cover flap and locate
the upper and lower slots on inside
back cavity.
Pull open bottom
cover for access to
inside back cavity
Step 2
Insert Knob Bolts from Inside of Chair
• Insert all 4 knob bolts into slots as shown:
Notice To Installers: Failure to comply with installation instructions will compromise the safety, durability and performance of this product, which may risk injury to the user of this
product and/or diminish the product life cycle. Jasper Group assumes no liability in these instances.
Privacy Screen
jsifurniture.com
812.482.3204
800.457.4511
812.482.1548
Knob Bolts
(Qty. 4)
Lower
Bolts
Upper
Bolts
225 Clay Street / PO Box 231
O
Jasper, Indiana 47546
F
Installation Instructions
Privacy Screen
Lower
Upper
Slots
Slots
Lower
Bolts
Back View
Page 1 of 2
Upper
Bolts
Form No. INST-MT003
5/1/16
