Moto

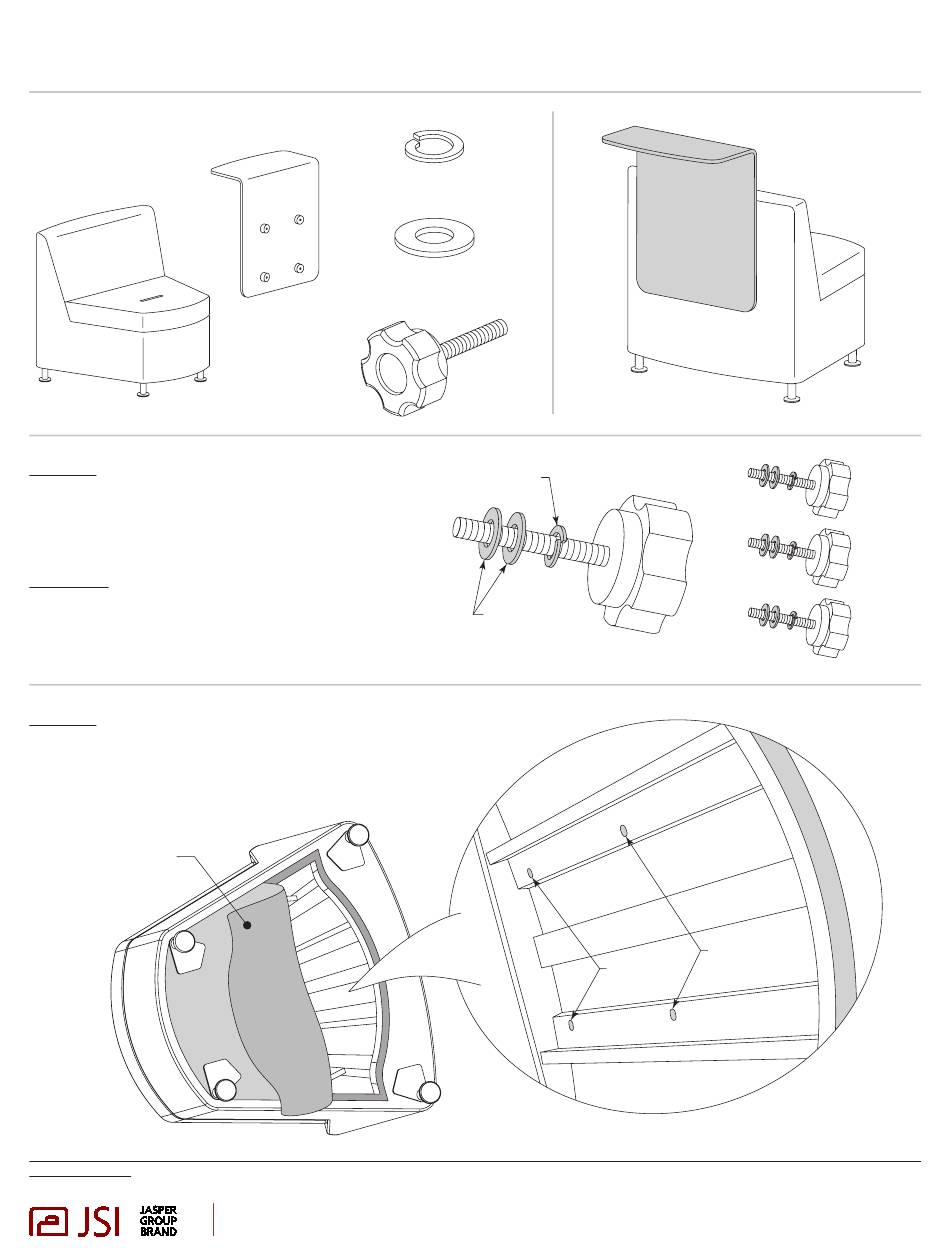

Package Contents
Chair
Step 1
Insert Washers onto Hand-Knob Bolts
• Insert (1) one lock washer and (2) two flat washers
onto each knob as shown.
Warning: Failure to use all three washers
on each knob bolt will bulge out the face
of the shelf and result in damage to the
product.
Step 2
Locate Bolt Slots on Inside of Chair
• Carefully lay unit over on it's side.
• Pull open bottom cover flap and locate the upper and lower
slots on inside back cavity.
Pull open bottom
cover for access to
inside back cavity
Notice To Installers: Failure to comply with installation instructions will compromise the safety, durability and performance of this product, which may risk injury to the user of this
product and/or diminish the product life cycle. Jasper Group assumes no liability in these instances.
Lock Washers
Flat Washers
Rear Shelf
jsifurniture.com
812.482.3204
800.457.4511
812.482.1548
(Qty. 4)
(Qty. 8)
Knob Bolts
(Qty. 4)
(1) Lock Washer
(2) Flat Washers
225 Clay Street / PO Box 231
O
Jasper, Indiana 47546
F
Installation Instructions
Lower
Upper
Slots
Slots
Page 1 of 3
Rear Shelf
Form No. INST-MT001
5/1/16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for JSI Moto
Summary of Contents for JSI Moto
-
Page 1: Installation Instructions
Installation Instructions Moto Page 1 of 3 Rear Shelf Package Contents Lock Washers (Qty. 4) Flat Washers (Qty. 8) Rear Shelf Knob Bolts (Qty. 4) Chair Step 1 (1) Lock Washer Insert Washers onto Hand-Knob Bolts • Insert (1) one lock washer and (2) two flat washers onto each knob as shown. - Page 2 Installation Instructions Moto Page 2 of 3 Rear Shelf Step 3 (continued) Insert Knob Bolts from Inside of Chair • Insert all four knob bolts into slots as shown: Push lower bolts entirely through back of chair. Insert upper bolts into wood slat, do not push through entire back of chair.
- Page 3 Installation Instructions Moto Page 3 of 3 Rear Shelf Step 4b Align upper bolts (continued) with inserts and Attach Rear Shelf to Upper Knob Bolts begin to thread. • Insert upper knob bolts into corresponding inserts on rear shelf and thread loosely.
