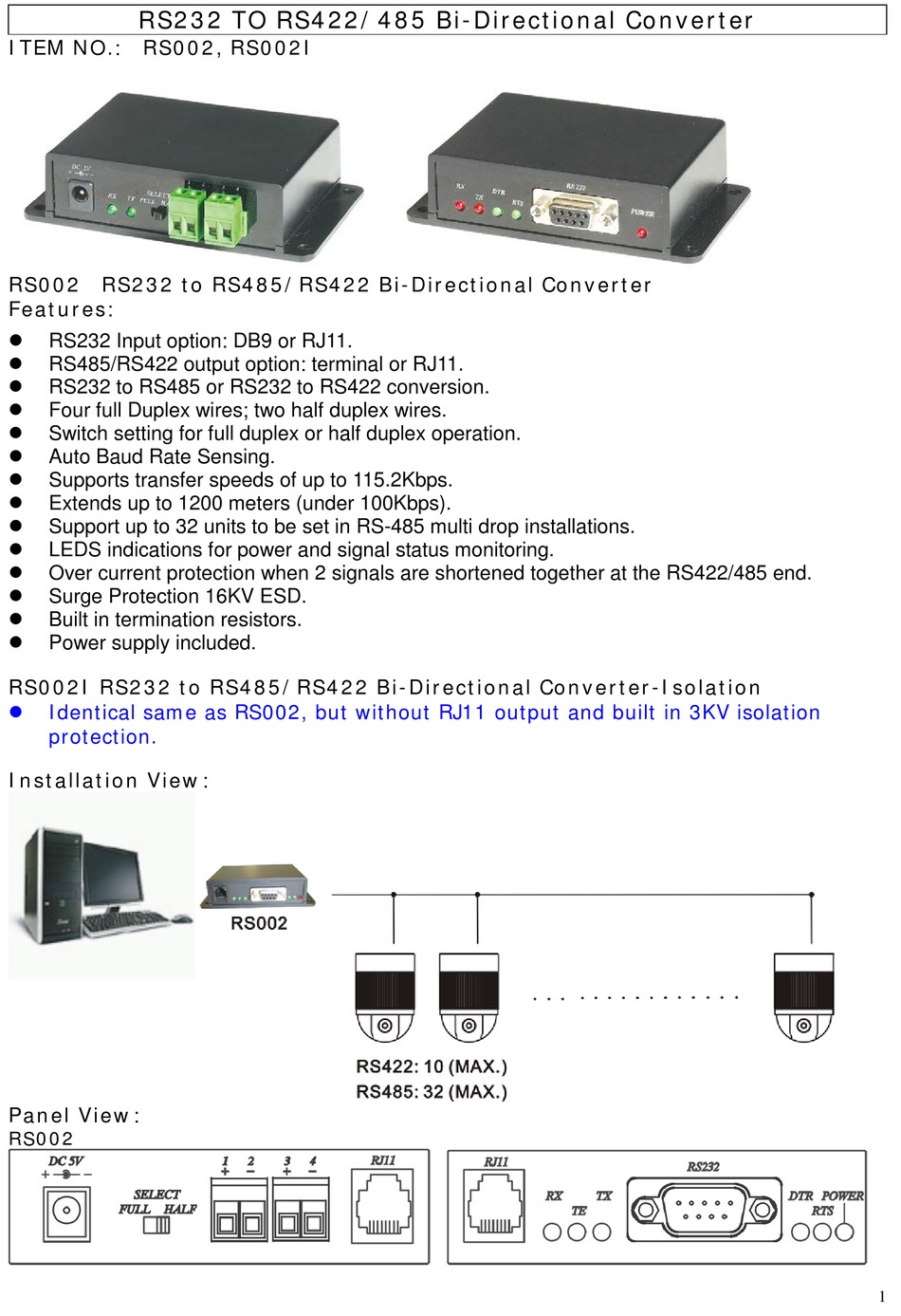

SC&T RS002 Manual

RS232 TO RS422/485 Bi-Directional Converter
ITEM NO.: RS002, RS002I

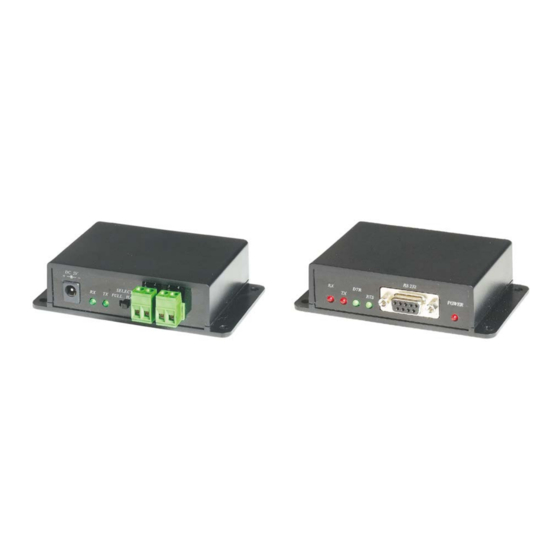

RS002 RS232 to RS485/RS422 Bi-Directional Converter
Features:

RS232 Input option: DB9 or RJ11.

RS485/RS422 output option: terminal or RJ11.

RS232 to RS485 or RS232 to RS422 conversion.

Four full Duplex wires; two half duplex wires.

Switch setting for full duplex or half duplex operation.

Auto Baud Rate Sensing.

Supports transfer speeds of up to 115.2Kbps.

Extends up to 1200 meters (under 100Kbps).

Support up to 32 units to be set in RS-485 multi drop installations.

LEDS indications for power and signal status monitoring.

Over current protection when 2 signals are shortened together at the RS422/485 end.

Surge Protection 16KV ESD.

Built in termination resistors.

Power supply included.
RS002I RS232 to RS485/RS422 Bi-Directional Converter-Isolation
Identical same as RS002, but without RJ11 output and built in 3KV isolation

protection.
Installation View:

Panel View:

RS002
1
