Standard Single Track or Double Track Sectional Garage Door Method

INSTALLING THE WALL MOUNT BRACKET (See page 5 for component identification)

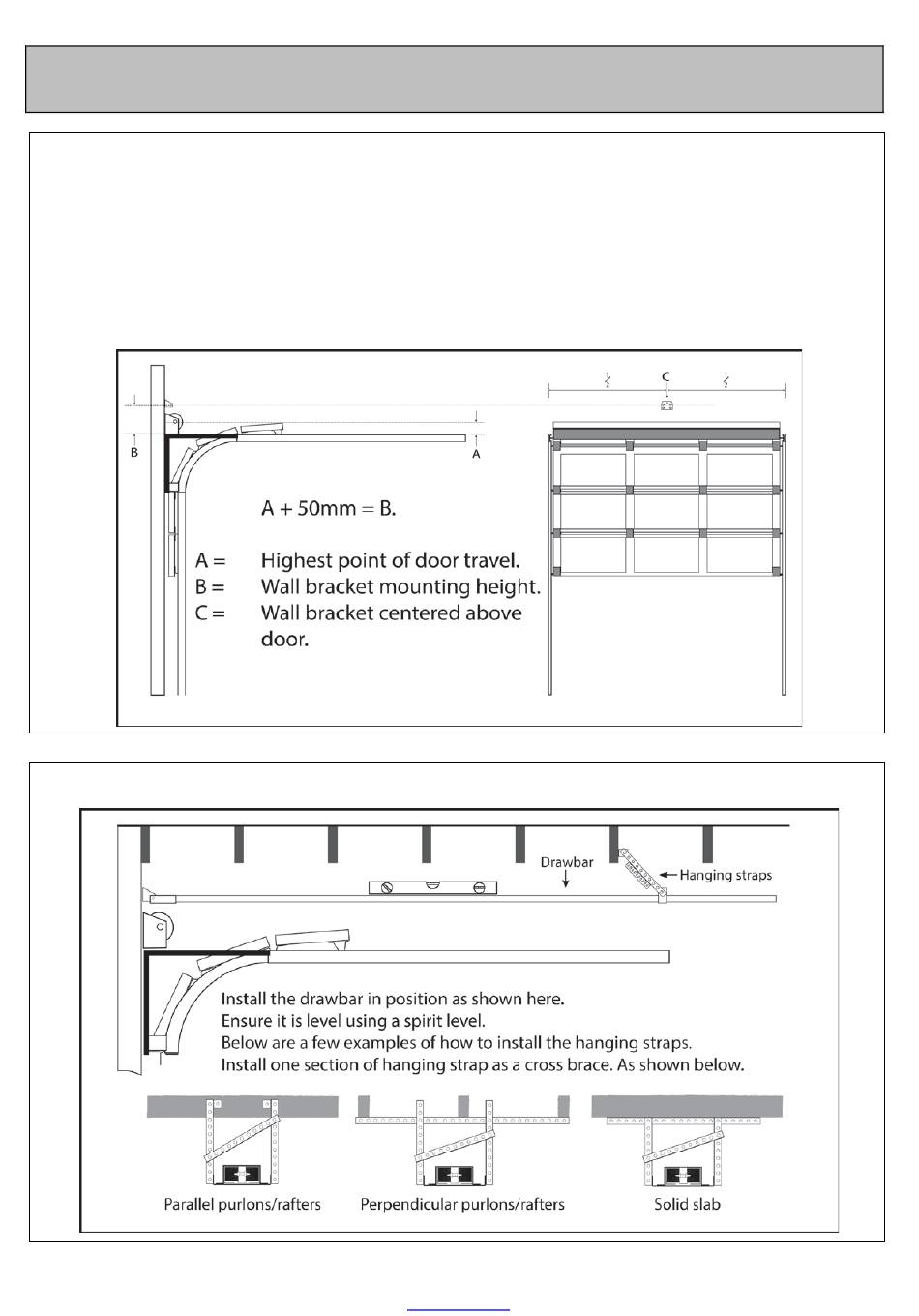

The diagram below shows how to determine the mounting height and position of the wall mount bracket,
in the case of a standard single track or double track overhead sectional garage door system.
NB!!! The wall mount bracket is one of the components that take the majority of the load in a garage door
automation system. Extra care needs to be taken to ensure the bracket is securely fastened and that
whatever the bracket is fastened to, can withstand force equal to the force of the door when the spring
balancing of the door is removed (snapped)
INSTALLING THE DRAWBAR AND HANGING STRAPS (See page 5 for component identification)
