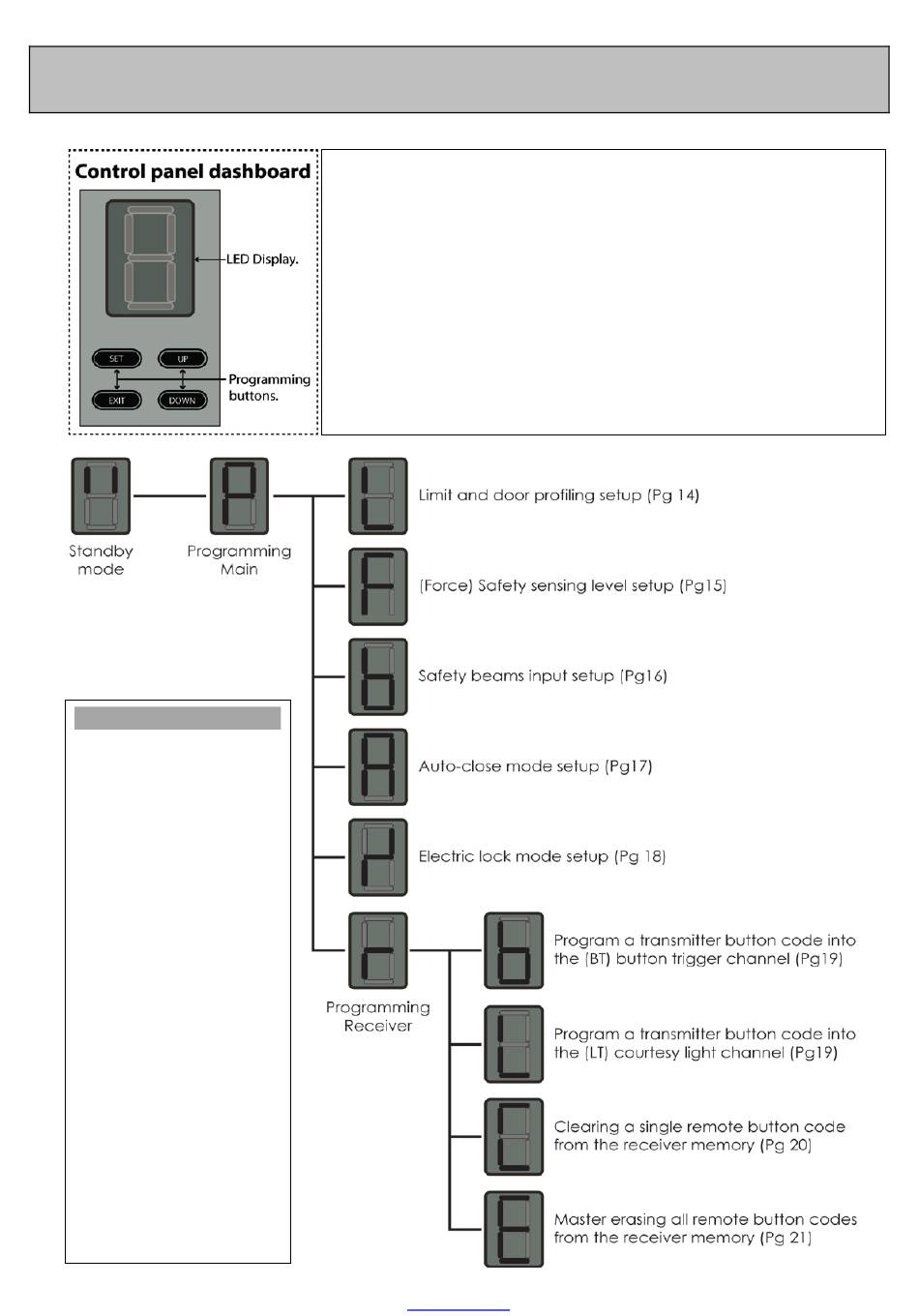

CONTROL PANEL DASHBOARD AND PROGRAMMING MENU SUMMARY

EXIT BUTTON

To exit a setup option
•
without changing the
current setting for that
option, press and
release the "EXIT"
button. The menu will
exit back one level.
Note 1: If the "EXIT"
•
button is pressed
before completing
the Limit and door
profile setup, no limit
and door profile
settings will be in
memory. You must
complete this setup
to operate the door.
(See "P" symbol
displayed in the
Trouble shooting
table on page 31)
ET DC BLUE ADVANCED INSTALLER 2012.025.12.05.2014
(How to navigate the menu options)
NOTE! Before attempting to execute the instructions, read the
complete instruction table, for a setup option. Some steps require a
response before a safety timeout expires and you may still be
reading the next step when the timeout expires.
To enter the Programming menu from Standby mode, press and
•
hold the "SET" button until the buzzer beeps twice.
Once in the Programming menu, use the up and down buttons to
•
scroll between options.
For further instruction on changing settings, refer to the instruction
•
tables on the page indicated for each option.
