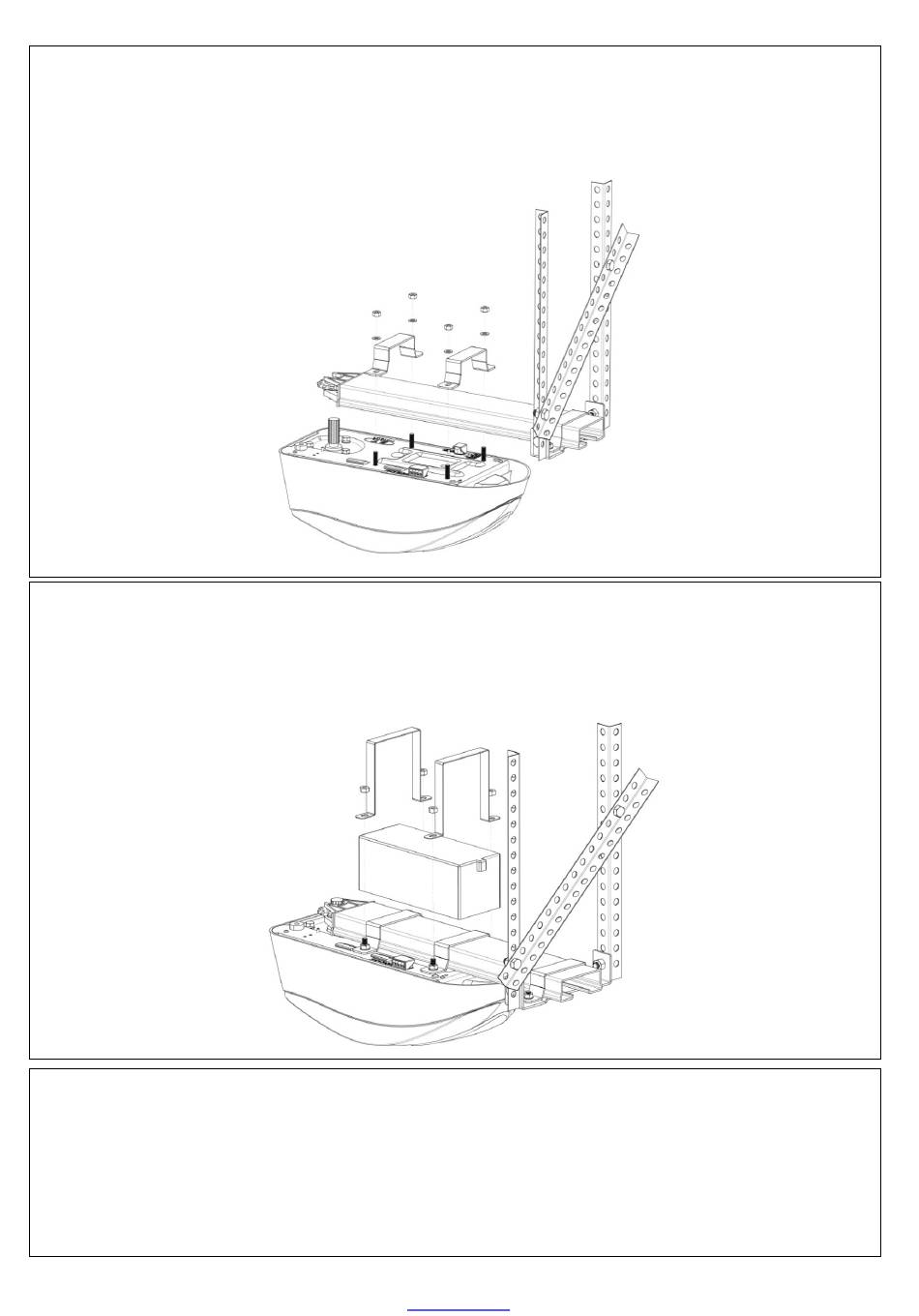

ATTACHING THE MOTOR-HEAD TO THE DRAWBAR (See page 5 for component identification)
Insert the splined motor drive shaft into the splined sprocket at the back-end of the drawbar. Swivel the
motor-head around so that the motor mounting straps are able to fit over the drawbar and onto the
mounting studs on the motor-head. Fasten the drawbar mounting straps onto the motor-head using the 4
M6 machine nuts and M6 flat washers.
ATTACHING THE BATTERY TO THE DRAWBAR (See page 5 for component identification)
Making use of the extended length mounting straps and 4 of the M6 Nylock nuts fasten the battery atop
the drawbar as shown below. Remove the sticker covering the battery plug socket on the motor-head
and insert the battery lead plug. The battery plug is moulded in such a way as to only be inserted in one
direction. Ensure the plug is in firmly.

SUPPLYING HOUSEHOLD POWER TO THE MOTOR-HEAD

The DC BLUE ADVANCED © comes supplied with an IEC and SANS compliant 220Vac power cord, 1,5m in
length. Plug the sealed non-serviceable 3 pin 15Amp plug into a certified 15Amp plug socket that is
installed outside of the workings of the garage door system, yet still within reach of the power cord. Ensure
the there is no strain on the cord once installed. Also ensure that nothing will catch or snag the power
cord when the garage door is moving or when people or cars pass below the system.
