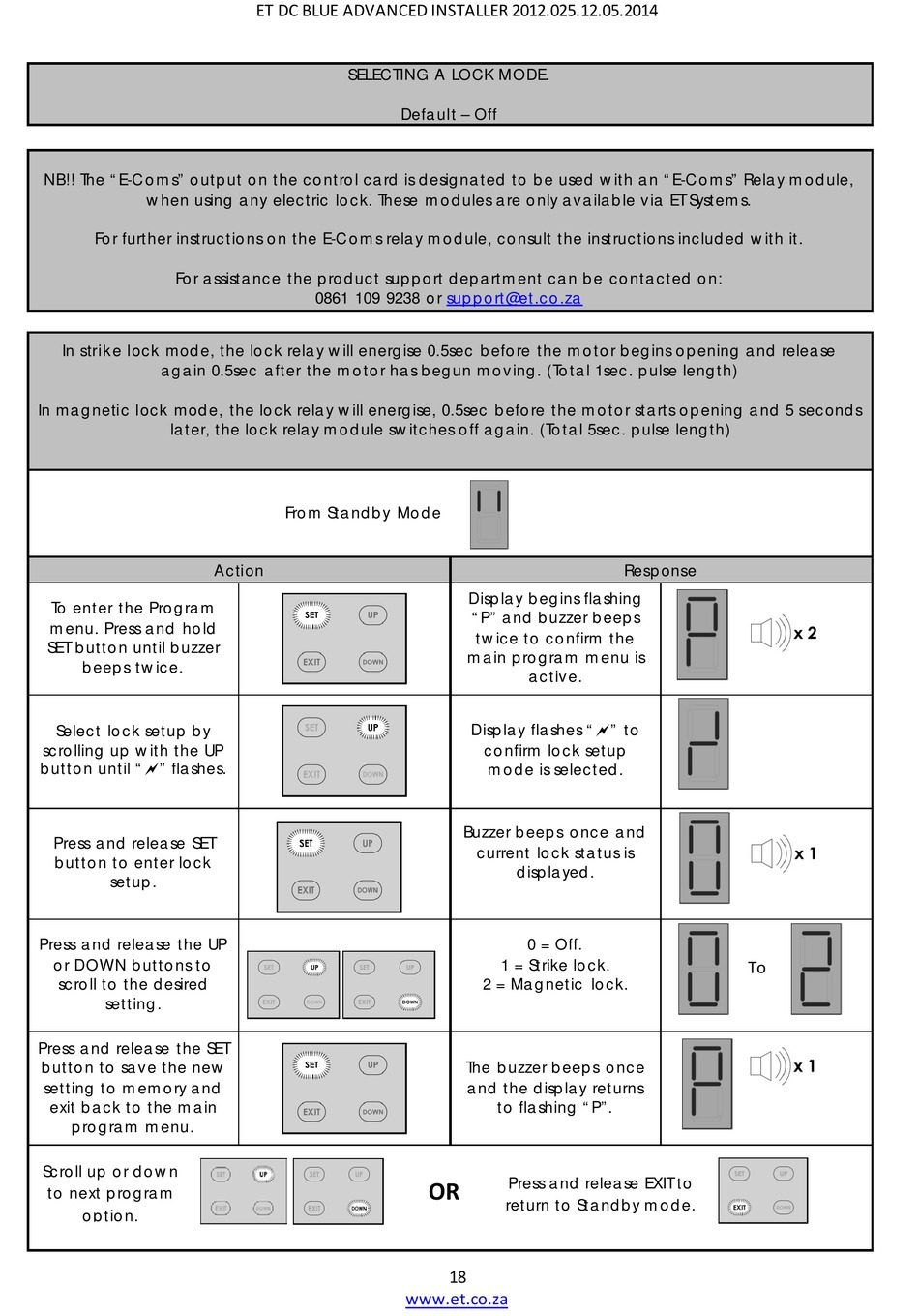

E.T. Systems DC BLUE ADVANCED Installer's Instructions page 18

NB!! The "E-Coms" output on the control card is designated to be used with an "E-Coms" Relay module,
when using any electric lock. These modules are only available via ET Systems.
For further instructions on the E-Coms relay module, consult the instructions included with it.
For assistance the product support department can be contacted on:
In strike lock mode, the lock relay will energise 0.5sec before the motor begins opening and release
again 0.5sec after the motor has begun moving. (Total 1sec. pulse length)
In magnetic lock mode, the lock relay will energise, 0.5sec before the motor starts opening and 5 seconds
later, the lock relay module switches off again. (Total 5sec. pulse length)
To enter the Program
menu. Press and hold
SET button until buzzer
beeps twice.
Select lock setup by
scrolling up with the UP
button until "" flashes.
Press and release SET
button to enter lock
setup.
Press and release the UP
or DOWN buttons to
scroll to the desired
setting.
Press and release the SET
button to save the new
setting to memory and
exit back to the main
program menu.
Scroll up or down
to next program
option.
ET DC BLUE ADVANCED INSTALLER 2012.025.12.05.2014
SELECTING A LOCK MODE.
0861 109 9238 or
From Standby Mode
Action
Default – Off
support@et.co.za
Display begins flashing
"P" and buzzer beeps
twice to confirm the
main program menu is
active.
Display flashes "" to
confirm lock setup
mode is selected.
Buzzer beeps once and
current lock status is
displayed.
0 = Off.
1 = Strike lock.
2 = Magnetic lock.
The buzzer beeps once
and the display returns
to flashing "P".
Press and release EXIT to
OR
return to Standby mode.
