Advanced triggers via the remote (BT) button trigger and (LT) courtesy light trigger
Example 4. Using the remote (BT) button trigger and (LT) courtesy light to lock out any opening triggers
Door must be closed
Press and hold remote
courtesy light button.
Release button when
buzzer begins to sound.
After +/- 5 seconds.
Whilst buzzer is still
sounding, Press and
release the remote
trigger button, to
activate Holiday lock-
out.
Any attempt to operate
the door normally.
Press and hold remote
courtesy light button.
Release button when
buzzer begins to sound.
After +/- 5 seconds.
Whilst buzzer is still
sounding, Press and
release the remote
trigger button, to de-
activate Holiday lock-
out.
ET DC BLUE ADVANCED INSTALLER 2012.025.12.05.2014

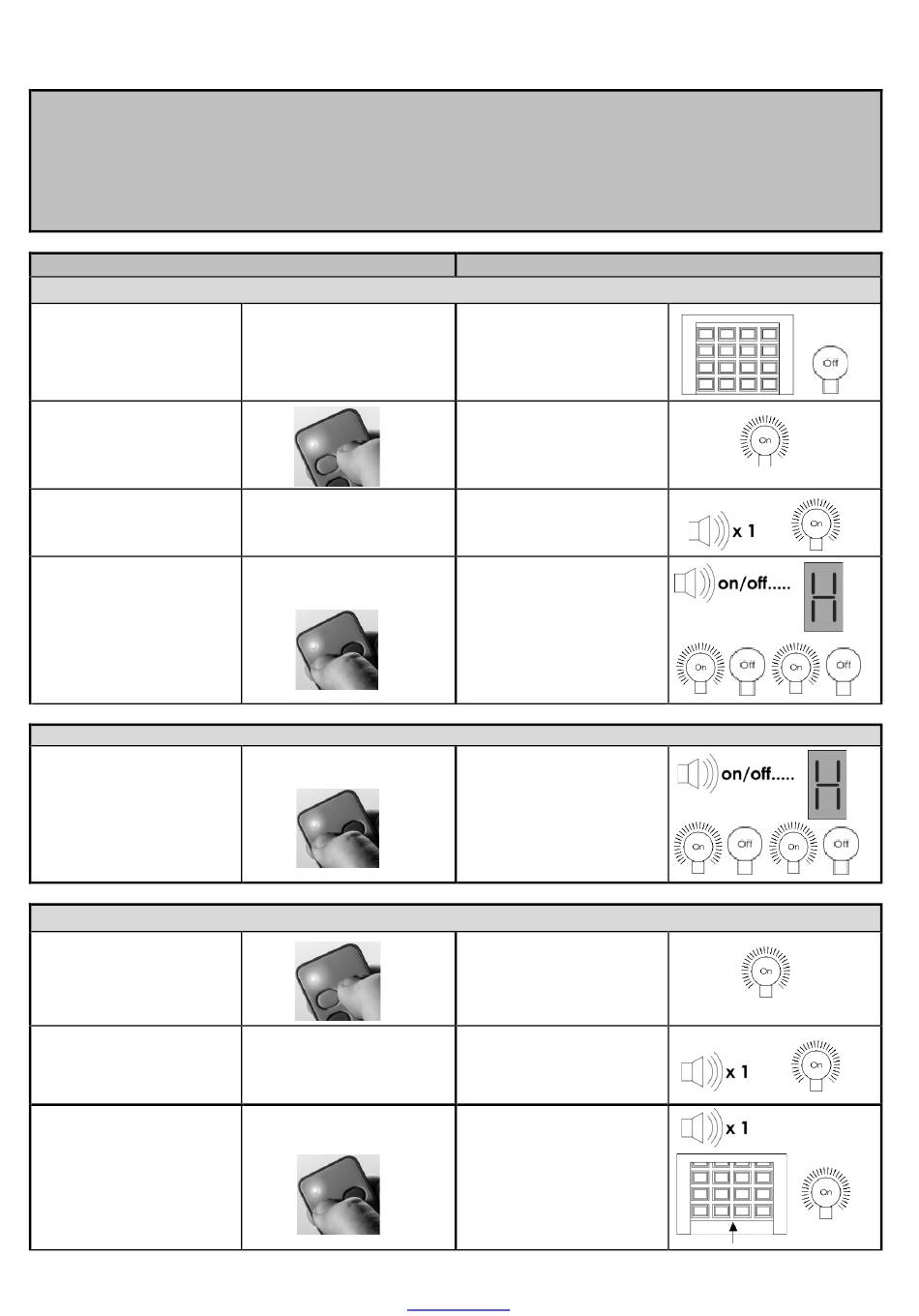

ADVANCED OPERATING FEATURES
(HOLIDAY LOCK-OUT MODE)
Action
TO ACTIVATE
Door in the closed
position.
Courtesy light off.
Courtesy light switches
on.
Buzzer tones for 5
seconds. Courtesy light
remains on.
Buzzer beeps, light
flashes rapidly and
display shows "H" to
indicate Holiday lock-out
is active.
TO CONFIRM
Buzzer beeps, light
flashes rapidly and
display shows "H" to
indicate Holiday lock-out
is active.
TO DE-ACTIVATE
Courtesy light switches
on.
Buzzer tones for 5
seconds. Courtesy light
remains on.
Buzzer beeps once,
courtesy light remains on
and the door begins
opening as Holiday lock-
out de-activates.
