Description of the device

Features

The LED Tube Basic Controller is designed for the more demanding user:
• 5 DMX Channels
• Controllable DMX or Stand-alone controller.
• 4000 Tubes can be controlled
• 38 programs
• DMX IN and DMX OUT.

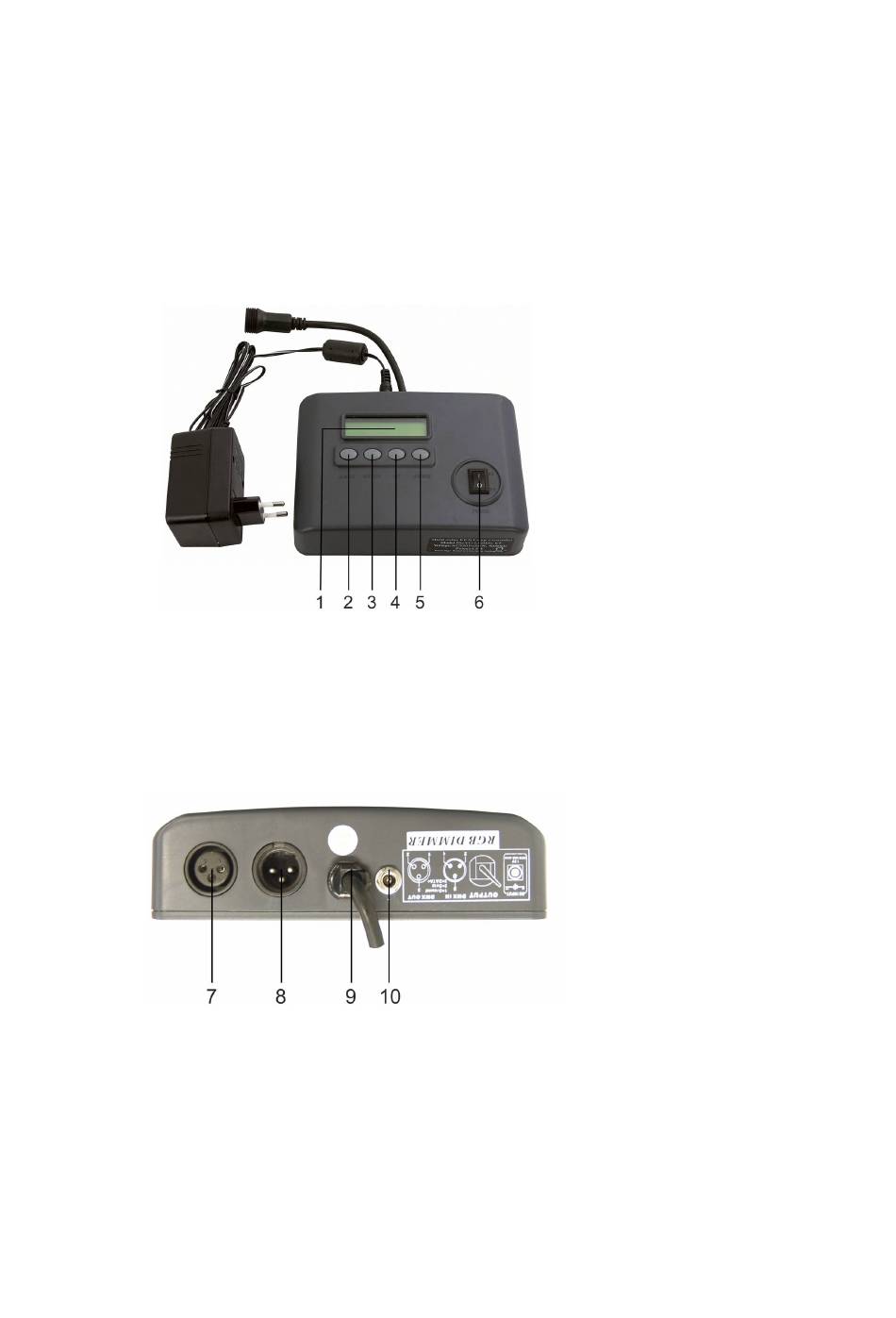

Overview

1) LCD Display
2) Mode: Change the pre-programmed modes.
3) Set Up: Change the settings of the pre-programmed modes (Speed, Flash, Colors)
4) Adjust
Up: Increase the DMX address or program options.
5) Adjust Down: Decrease the DMX address or program options.
6) ON / OFF

Backside

7) 3 pin DMX IN connector: XLR male socket used to receive DMX signals.
8) 3 pin DMX OUT connector: XLR female socket used to send DMX signals.
9) Output to LED Tube
10)
Power 12V DC
5
Fig. 1
Fig. 2
