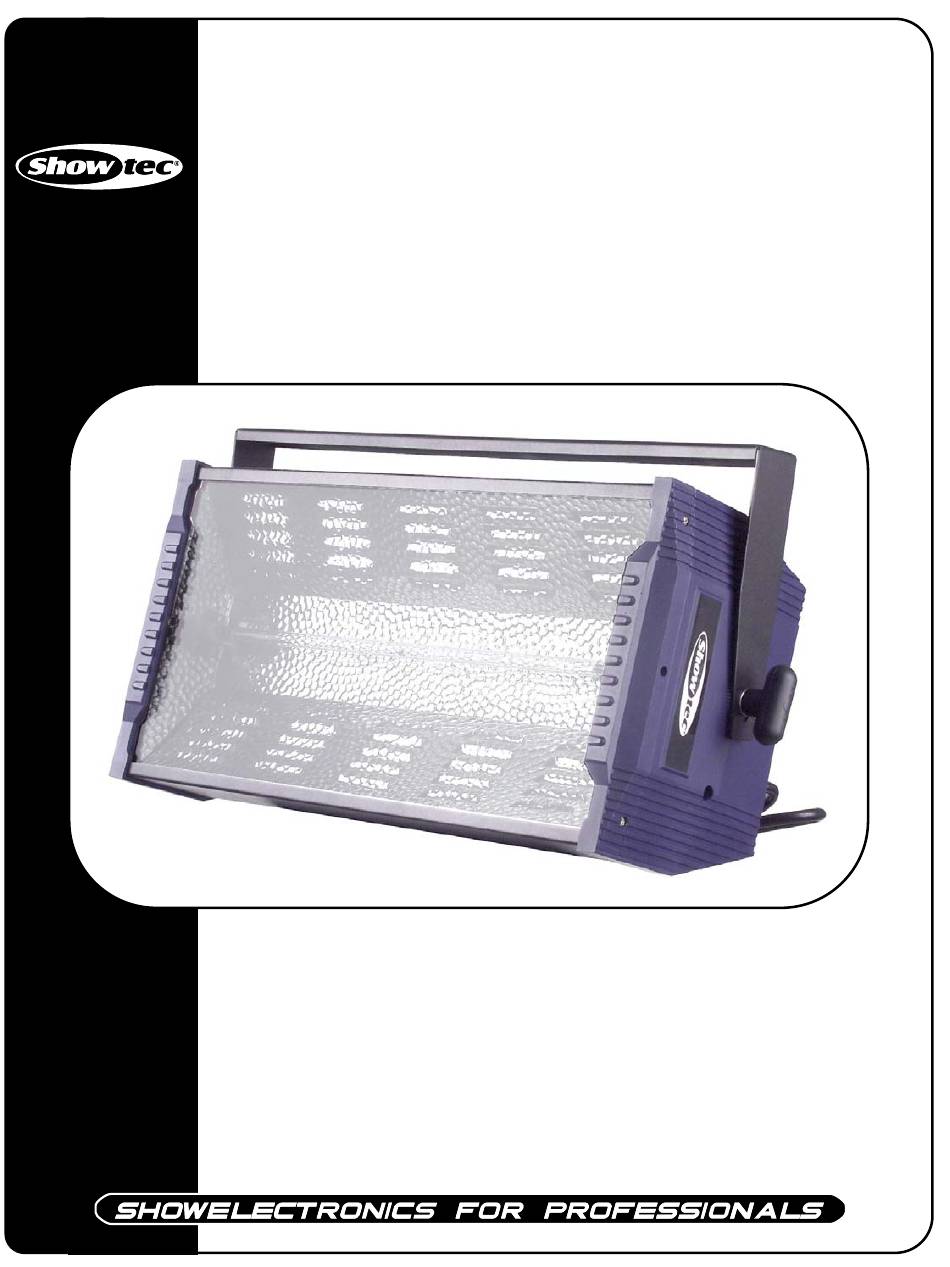

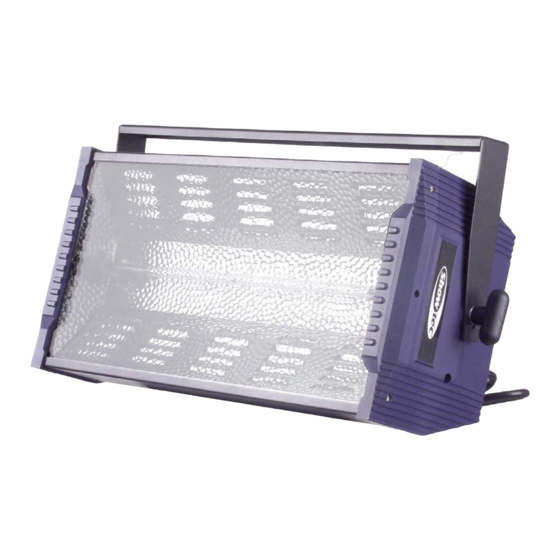

- Page 1 Titan Strobe ORDERCODE 40222...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Titan Strobe brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Titan Strobe Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Rigging…………………………………………………………………………………………………………. Description..…................……….………………………………… Features and Overview ………………………………...….……………….………….………………….…. Backside…………………………………………………...…...….……………….…………………...….…. Installation................…...…………………………………….….. Installing the Lamp ............………………………………………..………… Set Up and Operation..............……..……………………………….… DMX Dip Switch Setting.......………………………………………………………………………. Maintenance...................………..………….…….……………… Changing the Lamp................…………………….………………… Replacing the Fuse................…………………….………………… Troubleshooting................………………….………………….….. No Light.........…………………………………...………………….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
This device is only allowed for an installation via the mounting bracket. • The user is responsible for correct positioning and operating of the Titan Strobe. The manufacturer • will not accept liability for damages caused by the misuse or incorrect installation of this device. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the strobe is lowered from the ceiling or high joists, professional trussing systems have to be used. •... -
Page 7: Description
Description of the device Features The Showtec Titan Strobe is a dimmable, DMX-controlled strobe light with a high output. • 1800W flash • DMX-control via standard DMX-controller • Strobe-effect with adjustable speed (1 - 15 flashes/sec.) • Lamp PX-1800W • Fuse 16A / 250V •... -
Page 8: Installation
Installation Installing the Lamp The Showtec Titan Strobe uses the PX-1800 (ordercode 82692) lightbulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 9: Dmx Dip Switch Setting
DMX products must have their own "address" to receive DMX signals. Addresses on the Showtec Titan Strobe are set by flipping the appropriate DMX dip switches. You need to know that DMX address settings are the sum of the dip switch values. - Page 10 B. In Self-test mode, please follow the table below for any desired chase: C. In MANUAL of self-test mode, speed and dimmer are classified as 16 levels respectively, and are specified as :...
-
Page 11: Maintenance
Maintenance The Showtec Titan Strobe requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe glass clean with glass cleaner and a soft cloth. -
Page 12: Product Specifications
Minimum distance to lighted object: 0.8m Extra’s: Blinder Function with DMX for Titan Strobe (processor Update) ordercode SPBOT759 *: Versions for other lamps may be produced. Please check the specification label on your product. Design and product specifications are subject to change without prior notice. - Page 13 2005 Showtec.
