Code 14
Reserved.
•
Reserved for future options.
Code 17
External BATT MOD setting.
•
Parameter 3 setting: Sets the number of external BATT
MOD.
0-7: the setting allows values between 0-7. The de-
–
fault setting is 0.
Code 18
Battery capacity for correct calculation of backup.
•
Parameter 2 setting:
Indicates battery capacity. The following values can
–
be selected: 7, 9, 10, 12, 17, 26, 40, 65, 100 Ah.
Parameter 3 setting:
Indicates number of parallel battery branches. It
–
can be set to between 1 and 6.
USER MANUAL

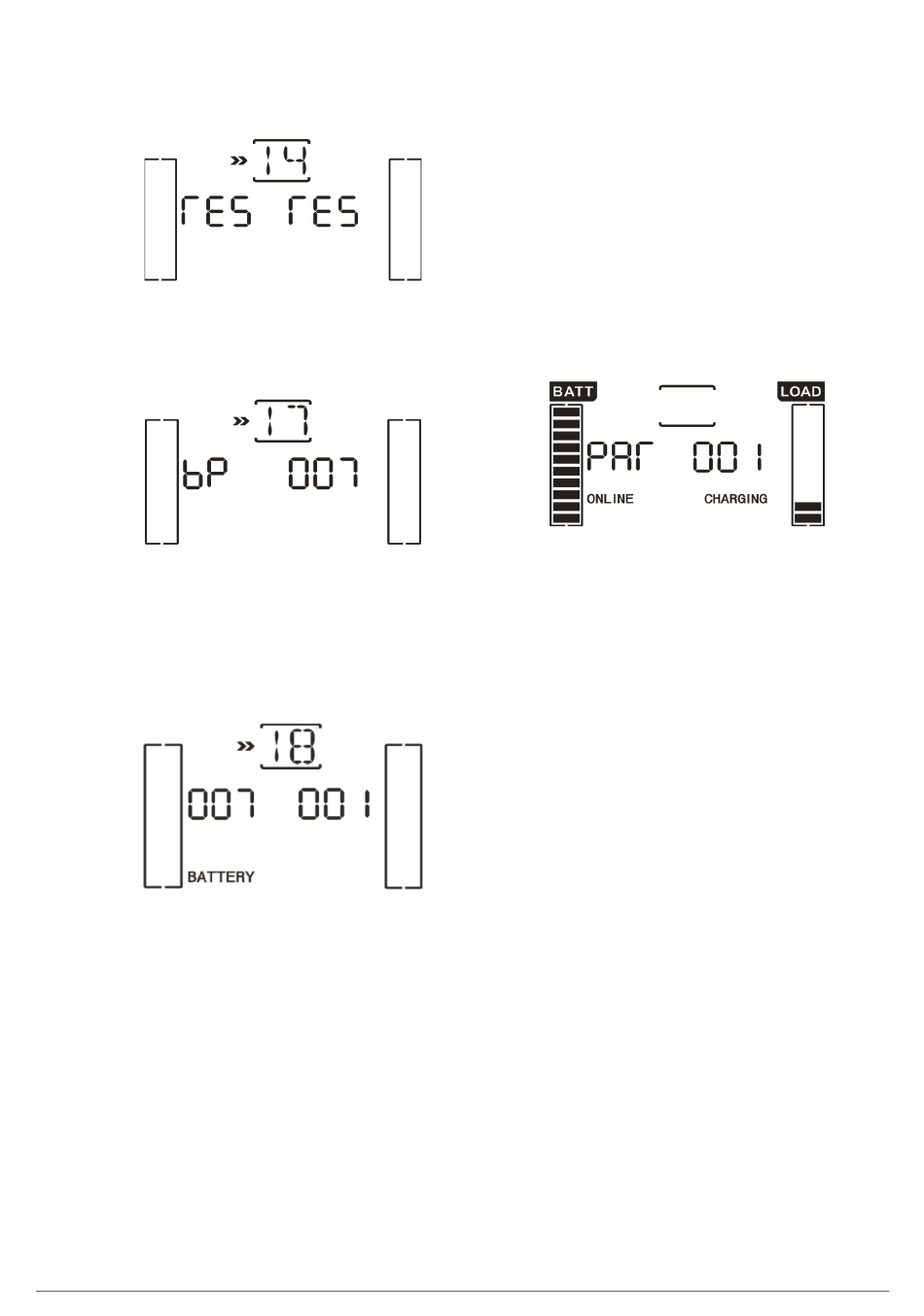

Fig. 39.
Fig. 40.
Fig. 41.
7.5. OPERATING MODE / DESCRIPTION OF STATE.
Table 10 shows the screens displayed on the LCD of the control
panel [state] for the different operating modes.
If the UPS is in normal operation, three screens will be dis-
1.
played to represent the input and output voltage, the input
and output frequency, and the output load.
In correctly configured parallel UPS systems, the acronym
2.
'PAR' will be displayed in the place of the parameter 2
variable and the number corresponding to the device of the
system in parallel in parameter 3. The 'MASTER' UPSs will
be assigned as '001' by default and the slaves '002' and
'003' respectively. The assigned numbers can be modified
dynamically during operation.
Fig. 42. Parallel system screen.
SLC TWIN PRO2 T UL UNINTERRUPTIBLE POWER SUPPLIES (UPS)
33
