SEA USER 2-24V Manual

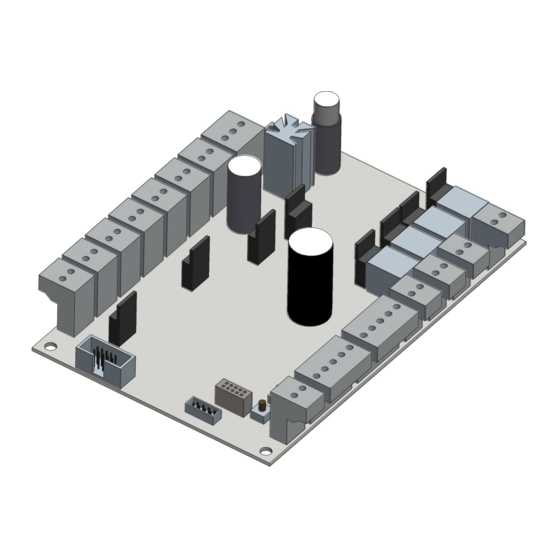

Electronic control unit for swing operators 24 v d.c.
Hide thumbs

Advertisement

Table of Contents

®
Sistemi Elettronici
di Apertura Porte e Cancelli
Italiano
International registered trademark n. 804888
English
USER 2 - 24V
Français
Español
23024015/16
Deutsch
APPARECCHIATURA ELETTRONICA 24Vdc PER CANCELLI AD ANTE BATTENTI
ELECTRONIC CONTROL UNIT FOR SWING OPERATORS 24 V D.C.
ARMOIRE ELECTRONIQUE 24 V dc POUR PORTAILS A BATTANTS
TARJETA ELECTRONICA 24Vdc PARA CANCELA ABATIBLES
ELEKTRONISCHE 24Vdc STEUERUNG FÜR SCHWINGTORE
SEA s.r.l.
Zona Ind.le S. Atto - 64020 S. Nicolò a Tordino (TE)
Tel. 0861.588341 - Fax 0861.588344
www.seateam.com
e-mail: seacom@seateam.com
67410755
REV 05 - 01/2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USER 2-24V and is the answer not in the manual?

Questions and answers

Related Manuals for SEA USER 2-24V

Summary of Contents for SEA USER 2-24V

  • Page 1 ELECTRONIC CONTROL UNIT FOR SWING OPERATORS 24 V D.C. ARMOIRE ELECTRONIQUE 24 V dc POUR PORTAILS A BATTANTS TARJETA ELECTRONICA 24Vdc PARA CANCELA ABATIBLES ELEKTRONISCHE 24Vdc STEUERUNG FÜR SCHWINGTORE SEA s.r.l. Zona Ind.le S. Atto - 64020 S. Nicolò a Tordino (TE) Tel. 0861.588341 - Fax 0861.588344 www.seateam.com e-mail: seacom@seateam.com...
  • Page 2 ® USER 2 - 24V Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 CONNESSIONI / CONNECTIONS / CONNEXIONS CONEXIONES / VERBINDUNGEN (70W Max) (70W Max) 24Vdc Accessori Max 200 mA 24Vdc Accessories Max 200 mA 24Vdc Accessoires Max 200 mA 24Vdc Accesorios Max 200 mA 24Vdc Zubehör Max 200 mA 67410755...
  • Page 3 ® USER 2 - 24V Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 CONNESSIONI / CONNECTIONS / CONNEXIONS CONEXIONES / VERBINDUNGEN 1 2 3 4 5 1 2 3 4 5 CALM Connettore modulo ricevente / Connettore alimentazione 24Vdc / Connettore modulo display / Receiver module connector /...
  • Page 4 ® USER 2 - 24V English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 INDICE COMPONENTS’ DESCRIPTION ....................21 GENERAL INFORMATION ......................22 START, STOP, PEDESTRIAN START, ANTENNA, PHOTOCELL CONNECTIONS....23 ENCODER, LIMIT SWITCH, ELECTRIC LOCK, WARNING LAMP, EDGE.......24 POWER SUPPLY AND MOTORS ARM - ALPHA - BETA CONNECTIONS......25 SELFLEARNING WORKING TIMES ..................26 SETTINGS’...

  • Page 5: Description Of The Components

    ® USER 2 - 24V English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 DESCRIPTION OF THE COMPONENTS CALM LED2 LED3 LED6 LED10 LED4 LED12 LED5 LED7 LED15 LED11 LED14 LED16 LED13 LED17 LED22 MENU LED18 M1 = Motor 1 power supply LED1 = Fuse breaking signal M3 = Battery card connection...

  • Page 6: General Information

    ® USER 2 - 24V English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 GENERAL INFORMATION GENERAL CHARACTERISTICS The USER 2 24V control unit has been designed to manage one or two low voltage swing gate operators with or without electronic limit switches.
  • Page 7 ® USER 2 - 24V English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 START - STOP - PEDESTRIAN START - ANTENNA - PHOTOCELL Photocell 1 Connection When the ray of the photocell is crossed, and the automation is in phase of closing it reverses its movement.
  • Page 8 ® USER 2 - 24V English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 ENCODER - LIMIT SWITCH Encoder (Function not activated) The encoder is a device that allows to reveal possible obstacles during the opening and the closing of the gate. When this device intervenes in opening it causes the inversion of the movement for around a second, if it intervenes in closing it causes the total reopening.
  • Page 9 ® USER 2 - 24V English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 POWER SUPPLY - MOTORS ARM-ALPHA-BETA 24Vdc 230V 115V HT ELETTRO- Flipper IDRAULICO ALPHA STD Motor 2 Output for Motor 2 connection M+ = OPEN/CLOSED BETA M- = CLOSED/OPEN Flipper...
  • Page 10 ® USER 2 - 24V English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 SELFLEARNING WITH DEFAULT PARAMETERS To learn the times with the default settings, it is sufficient to press the Menu button once and to hold pressed the SET bouton until the departure of the motors in closing.
  • Page 11 ® USER 2 - 24V English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 SELECTION OF THE SETTINGS 7KHDG M XVW P HQ W VRI W KHFRQ W U RO XQ L W DU HH[ HFXW HG W KU RXJKW KHEXW W RQ V"0 ( 1 8 " DQ G "SET” . 3 U HVVL Q J W KH "MENU”...

  • Page 12: External Receiver

    ® USER 2 - 24V English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 EXTERNAL RECEIVER Connection of a radio receiver For the connection of the receiver refer to the relative instructions manual. RADIO TRANSMITTER SELF LEARNING WITH RECEIVER ON BOARD OF CONTROL UNIT WARNING: Make the radio transmitters programming before you connect the antenna and insert the receiver into the special CMR connector (if available) with turned off control unit.

  • Page 13: Function Logic

    ® USER 2 - 24V English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 FUNCTION LOGIC SEMI AUTOMATIC LOGIC A start impulse opens the gate. A second impulse during opening stops the mouvement. With the gate opened a start impulse is necessary for its re-closing. A start commande during the closing reverses the movement.
  • Page 14 ® USER 2 - 24V English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 DISPLAY PARAMETERS ADJUSTMENT The accessory PALM USER allows to keep under control all the parameters of the control unit and it results essential for the initial setting of some parameters, which are: pre-flashing, photocell self-testing, photocell in opening, anti-intrusion, torque motore1 and 2, deceleration speed, learning speed, acceleration, deceleration, leaf stroke, number of cycles, pedestrian opening.
  • Page 15 ® USER 2 - 24V English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 DISPLAY PARAMETERS ADJUSTMENT NOTE: For the respect of the valid European ruels on the safety of the electric gates, it is recommended to not adjust the parameters torque Max 1 and torque Max 2 on the value 100%.

  • Page 16: Connection Of Batteries

    ® USER 2 - 24V English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 CONNECTION OF BATTERIES FUNCTION NOT YET AVAILABLE BATTERY CARD AND SOLAR PANEL 2Ah min. 2Ah min. Battery 1 Battery 2 Insert two 12V batteries connected in series. ALARMS INDICATIONS The flashing sequence is signalled at every opening and closing of the automation on the warning lamp.
  • Page 17 ® USER 2 - 24V English Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 TROUBLE SHOOTING Advises Make sure all Safety LED are turned ON All not-used N.C. contacts must have jumpers Problem Found Possibile Cause Solution Motor doesn’t a.) Check the connections or the...
  • Page 18 NOTE:THE MANUFACTURER IS NOT CONSIDERED RESPONSIBLE FOR ANY DAMAGE CAUSED BY IRREGULAR, WRONG OR UNREASONABLE USE. SEA reserves the right to make any required modification or change to the products and/or to this manual without any advanced notice obligation. 67410755...

This manual is also suitable for:

2302401523024016
