3.3.3.2 Peak load pump
3.3.3.3 PID-Controller
3.3.4

Pump parameter

3.3.4.1 Number of pumps
3.3.4.2 Pump change
Installation and operating instructions Wilo-CC-System
Description
*
**
***

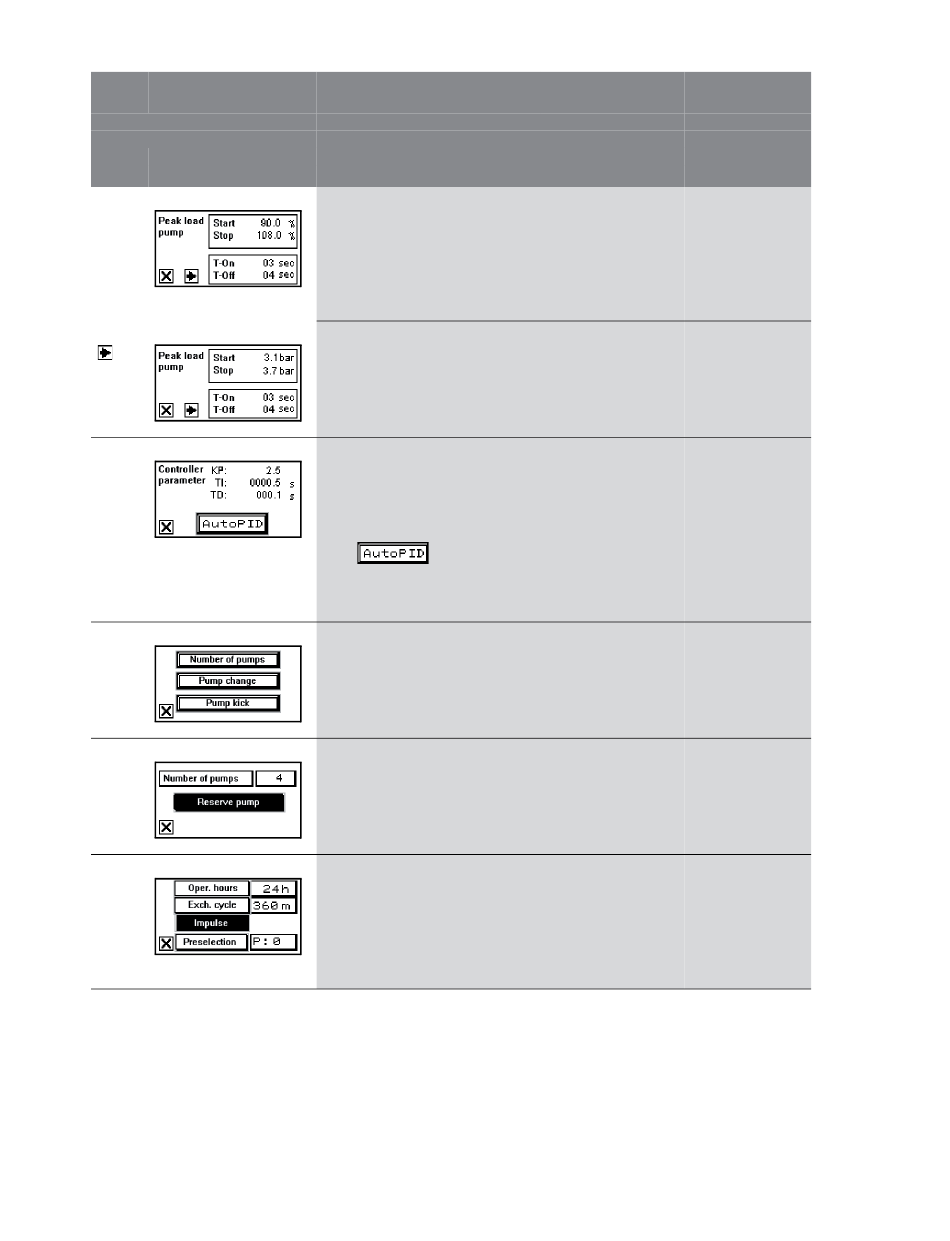

* (Page 1)
Display/setting of switching
on and off pressure, time
delays for switching on and off
for the peak load pumps
(All settings in % of 1. setpoint)
* (Page 2)
Display/Adjustment of switch-
ing on and off-pressures and
time delays for peakload
pumps (
All settings in bar)
* Adjustment of proportional
action coefficient, integral
action time and derivative
action time of PID-controller
Ability of automatic adaption
to installation with the softkey:
* Call of menues for the setting
of number of pumps and the
parameters for pumpchange
and pumpkick
* Setting of the number of
pumps (1...6)
* Fixing of the changing mode
for pumpchange (running
hours, when switching on,
cyclic) and the times for
changings.
Ability to pre-select the
baseload pump
Parameter settings/
Functions
changeable by
User 1 and higher: *
User 2 and higher: **
Service: ***
p [%] **
SLon
p [%] **
SLoff
t [s] **
SLon
t [s] **
SLoff
none
Proportional action **
coefficient k
P
**
Integral action time t
I
[s] **
Derivative action time ***
t [s]
D
AutoPID
none
Number of pumps **
with/without reserve **
pump
Operating hours [h] **
Cycle time for pump **
change [min]
**
No. of preselected
pump
English
Factory-
settings
75
110
3
3
-
2,5
0,5
0,1
-
-
Installation
specific
Installation
specific
24
360
0
37
