Main Menue Pump 1; Operation Mode Pump; Operation Data Pump (Running Hours Day/Overall, Switch- Ing Actions); Info Pump - Wilo -CC-System Installation And Operating Instructions Manual

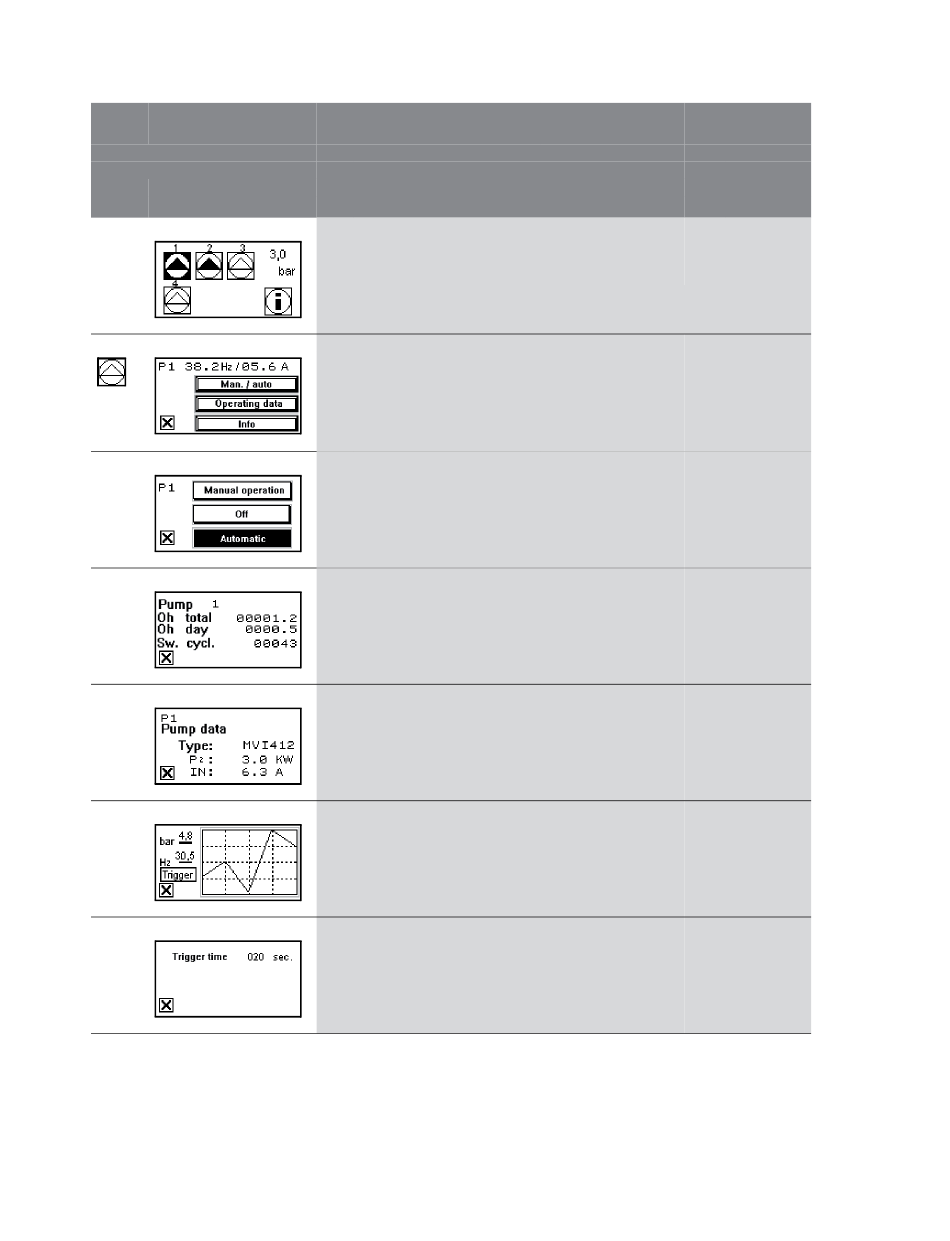

Table 2, Menue description
Menue Display
-No.
visible for
User 1 and higher:
Call User 2 and higher:
by: Service:
0 Main menue
1 Pump 1...6
1.1

Operation mode Pump

1.2 Operation data Pump
1.3

Info Pump

2 Diagram
0,00
bar
2.1 Triggerein settings
Installation and operating instructions Wilo-CC-System
Description
*
**
***
Display of operationmodes of
pumps and actual systempres-
sure valueCall of pumpsettings,
diagram and main menue
* Call of operation mode setting,
operationdata and information
about pump 1...6 (number:
installation specific)In case of
the FC-operated pump actual
values of current and fre-
quency are being displayed
* Adjustment of opeartionmode
of pumps: Hand (on line), Auto-
matic (on line or FC-driven -
depends on controller) or OFF
(no starting of pump via con-
trol)
* Display of overall running hours
(since commissioning) and
running hours at the day,
switching actions (Number of
"On"-switchings)
* Display of pump information:
Type, output power P and
2
nominal current I . Input of
N
pump data when commission-
ing, Data will be copied from
pump 1 to pump 2...6
* Diagramm for displaying of
systempressure and FC-fre-
quency values over time axis-
Call of triggersettings and
simulationmode
* Setting of time base (trigger-
time) of diagram
Parameter settings/
Functions
changeable by
User 1 and higher: *
User 2 and higher: **
Service: ***
none
none
Operation mode **
none
Pump type **
Output power P [kW] **
2
Nominal current I [A] **
N
keine
Trigger time [s] *
English
Factory-
settings
-
-
Automatic
-
Installation
specific
-
0 s
33
