Hearth & Home SRV2384-070 Log Placement Instructions

Log Set Assembly: SRV2384-070, SRV2385-070
Models: NNXT3933IF-B, NNXT3933ILF-B
NNXT4236IF-B, NNXT4236ILF-B
See Table 1 for corresponding log set and individual logs
for each size Novus model.
SIZE
ASSEMBLY SRV2384-070
LOG 1 SRV2384-071
LOG 2 SRV2380-072
LOG 3 SRV2384-073
LOG 4 SRV2380-074
LOG 5 SRV2384-075
LOG 6 SRV2384-076
Table 1.
CAUTION: Logs are fragile, handle with care.

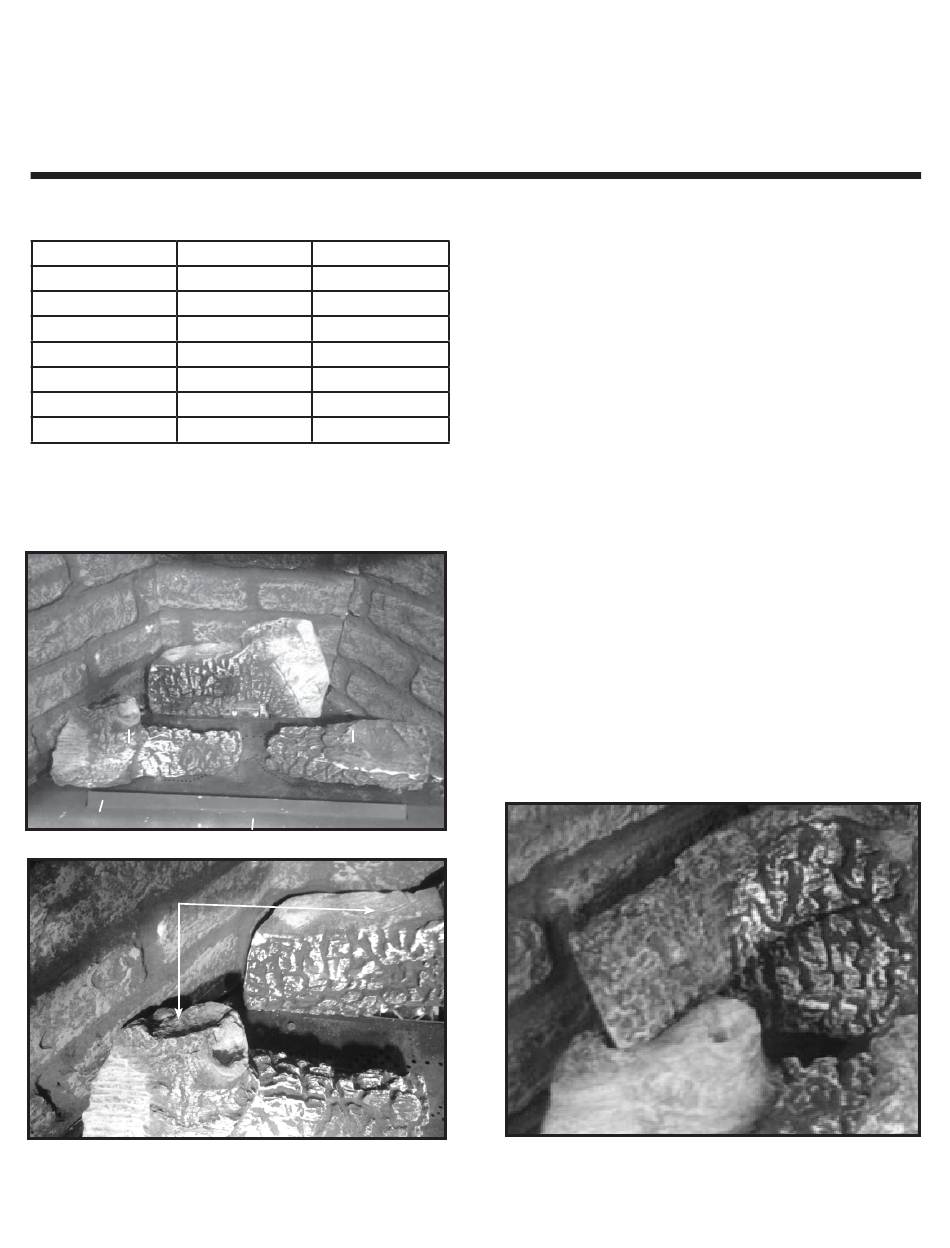

The log set is shipped from the factory with three logs
already in place on the hearth pan. See Figure 1.
2 2
Figure 1. Log Set Shown as Shipped

FLAT SPOTS FOR LOG #4

FLAT SPOTS FOR LOG #4
2 2
Figure 2. Locations of Flat Spots for Log #4
LOG #4: Place Log #4 into position by setting the left end of Log #4 into the fl at spot on Log #2 and then resting the right
end, or nose, of Log #4 on the fl at spot on Log #1. Figure 2 shows locations of fl at spots. Figure 3 shows Log #4 installed.
3933 4236
SRV2385-070
SRV2384-071
SRV2381-072
SRV2385-073
SRV2380-074
SRV2385-075
SRV2385-076
1 1
3 3
1 1
Heatilator • SRV2384-070, SRV2385-070 Log Instructions • 2384-935 Rev. B • 1/17
LOG PLACEMENT INSTRUCTIONS
2 2
Figure 3. Log #4 in Position
4 4
1 1
1
