EUROCOM M660N Service Manual page 33

5. Gently pull the two release latches (
arrows (Figure c).
6. The RAM module(s) will pop-up
12
d.
7. Pull the latches to release the second module if necessary.
8. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
9. The module will only fit one way as defined by its pin alignment. Make sure the module is seated as far into the slot
as it will go. DO NOT FORCE IT; it should fit without much pressure.
10. Press the module down towards the mainboard until the slot levers click into place to secure the module.
11. Replace the bay cover and the screws (see
12. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
All manuals and user guides at all-guides.com
& ) on the sides of the memory socket in the direction indicated by the
10 11
( )
Figure d , and you can then remove it
c.
11
10
10
11
12
12
page 2 - 8).
.

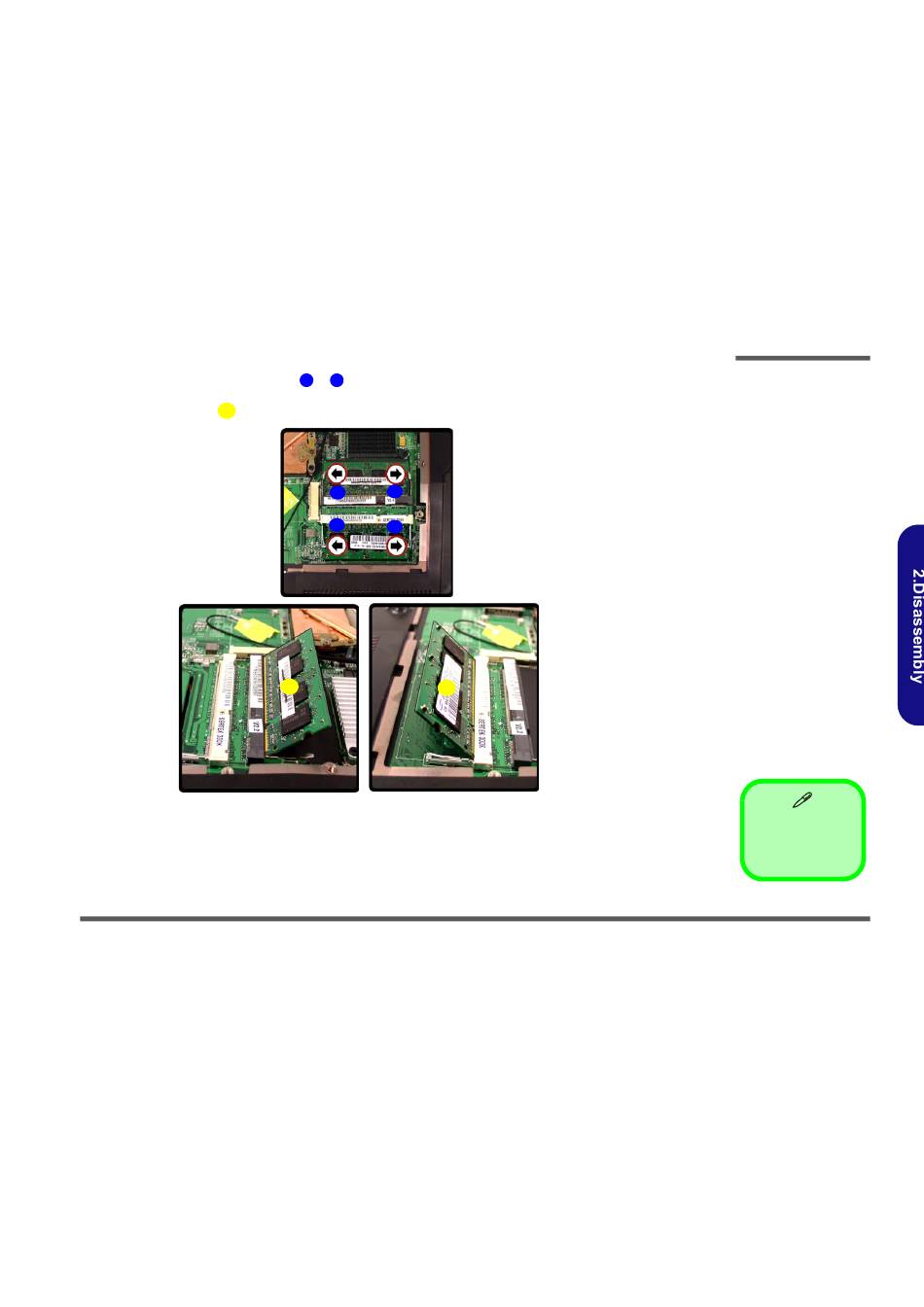

Removing the System Memory (RAM) 2 - 9
Disassembly
Figure 5
Memory Removal
Sequence
c. Pull the release
latch(es).
d. Remove the module(s).
12 Ram Module(s)
