Procedure to communicate with a power controller:
1) if used direct USB connection:
- Connect the USB cable between the computer
and the micro USB connector on the power
controller's keypad
- if necessary, Wait for the USB driver to install.
2) if used RS-485 connection connect the power
controller terminal to computer RS485 port. Usually
the standard pc do not have a RS485 port so a
USB-to-485 converter is required.

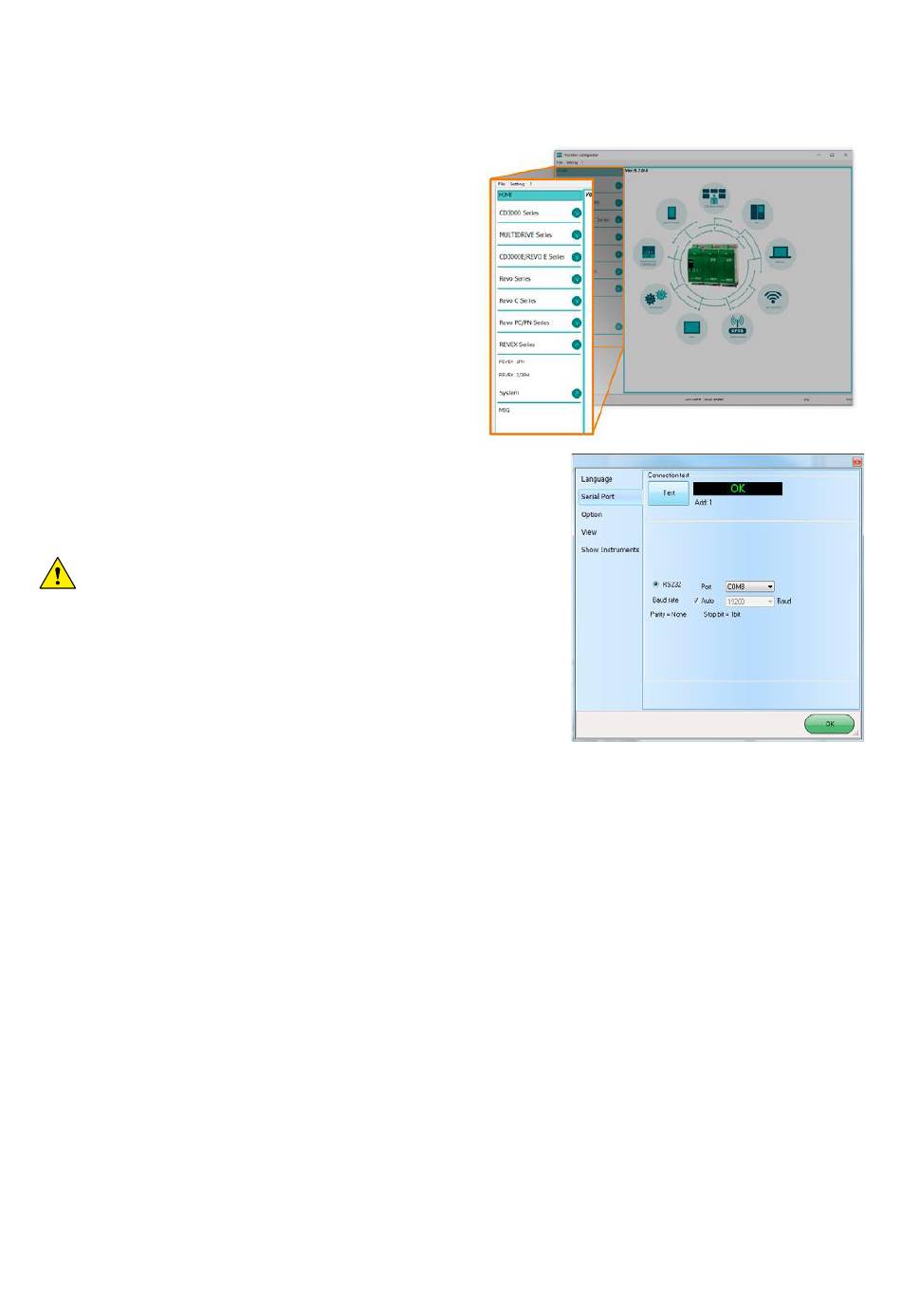

3) Launch the Confi gurator software an select
- REVEX 1PH: for single phase
- REVEX 2/3PH: for 2 or 3 phase power controller
4) Choose Serial Port
menu
5) In value Port, select the connected COM port to the
power controller (see the note below)
6) To verify communications, click
7) Click OK
NOTE! to determine which port is connected to the power
controller, you can:
•
in the Windows¨ Device Manager under Ports (COM & LPT), looking
for the COM port named "LPC USB VCOM Port (COMx)" where x is
the port number
•
On confi gurator software:
- open the software without connect the unit and see the available
com port on con port window setting,
- close the com setting window,
- connect the USB cable to the power controller (wait for the USB driver to install if necessary),- open the
com setting window and see the added com number and select it.
From the Setting -> Serial Port
Test
