REVEX
2PH from 60A to 90A

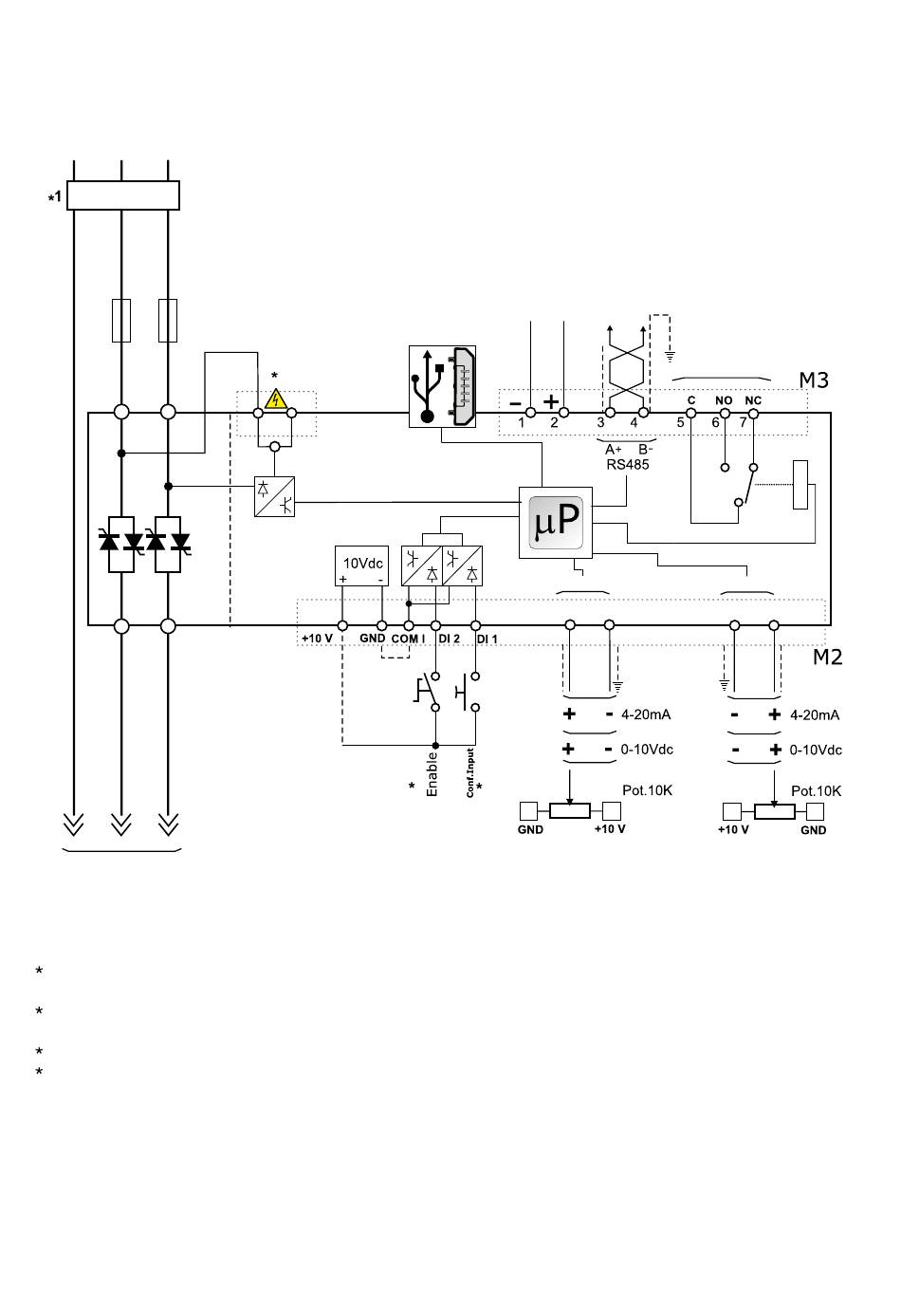

8.2 Schematic
L2
L3
L1
BRANCH CIRCUIT
PROTECTION
Extra
Extra
Rapid
Rapid
Fuse
Fuse
L3
L1
T3
T1
TO LOAD
NOTE:
1 The user installation must be protecting by electromagnetic circuit breaker or by fuse isolator.
The Fuse must be branch circuit protection.
2 Connect on the phase not controlled by the thyristor, L2 on Schematic above.
Both terminals are connected internally and may be possible to use any one of them.
3 For SSR input connection follow next page schematic.
4 IMPORTANT! Starting Strategy (Enable):
1: Feed the unit with L1-L2-L3 power voltage supply
2: Feed the auxiliary supply
3: Close the Enable contact to start with the regulation.
M1
2
Internal
connection
SYNC.
14
8
Auxiliary
Voltage 24Vdc
MICRO USB 2.0
Analog Input 1
9
10
11
12
4
3
8
Analog Inp.1
Analog SetPoint
22
User's manual
Function:
Thermal
SC/HB/CL
Analog Input 2
13
13
15
14
14
Analog Inp.2
Reference
Ext.FeedBack
Ext.Current Limit
8
