REVEX
2PH from 60A to 90A
7
Installation
Before to install, make sure that the Thyristor unit have not
damages.
If the product has a fault, please contact the dealer from which
you purchased the product. Verify that the product is the same
thing as ordered.
The Thyristor unit must be always mounted in vertical position to
improve air cooling on heat-sink.
Maintain the minimum distances (
as represented, this area must be free from obstacle (wire,
copper bar, plastic channel).

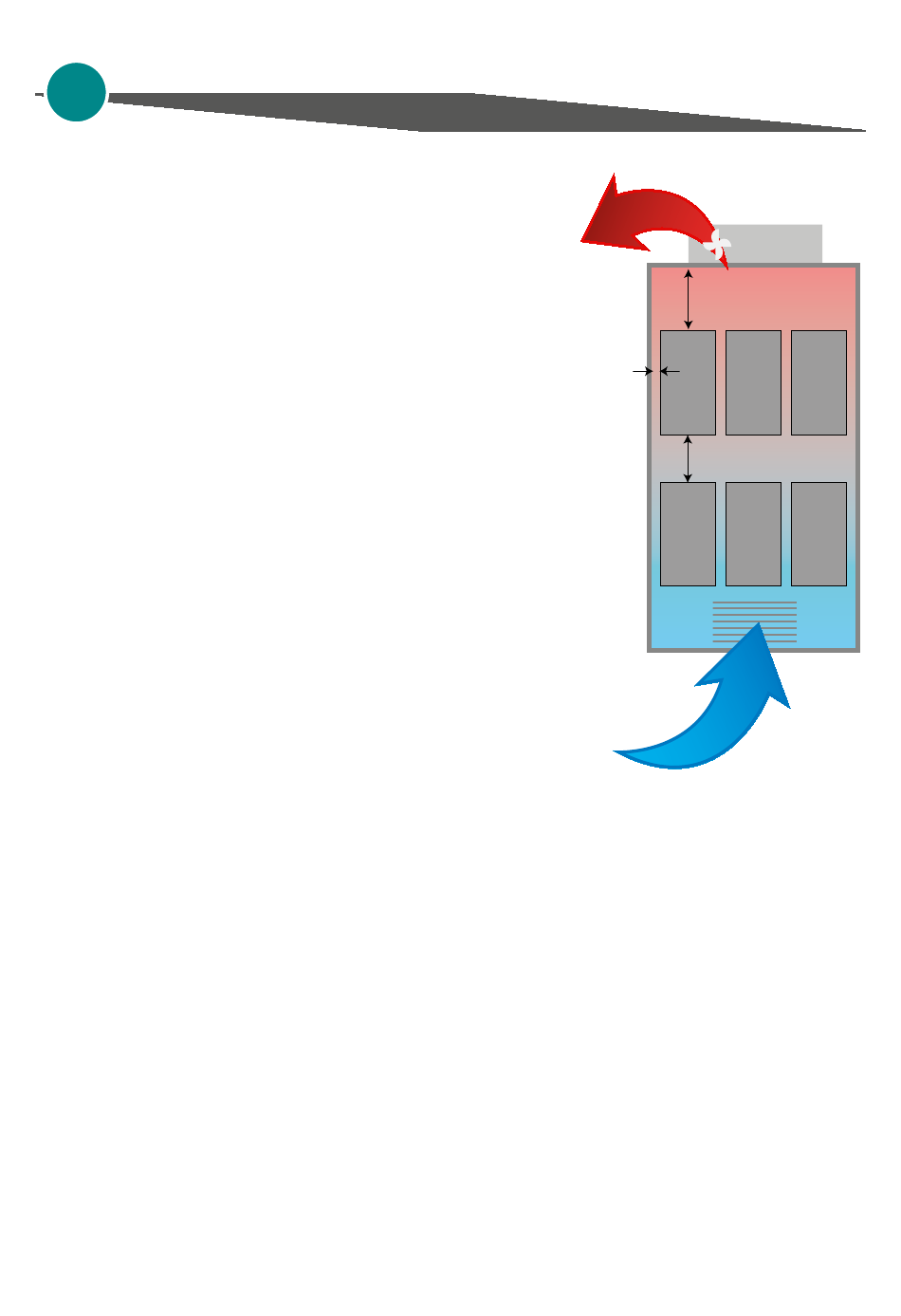

When more unit has mounted inside the cabinet maintain the air
circulation like represented in figure without obstacle for the air
flow.
Is necessary to install a fan to have better air circulation as
calculated previously.
The V Air flow must be equal or more than the value calculated.
If the cabinet fan mounted by the customer have an air flow lower than the correct value the warranty
will decay.
*
) in vertical and in horizontal
18
User's manual
AIR FLOW OUT (V)
FAN
in aspiration
30 cm
2 cm
20 cm
AIR FLOW IN (V)
Air Grid
