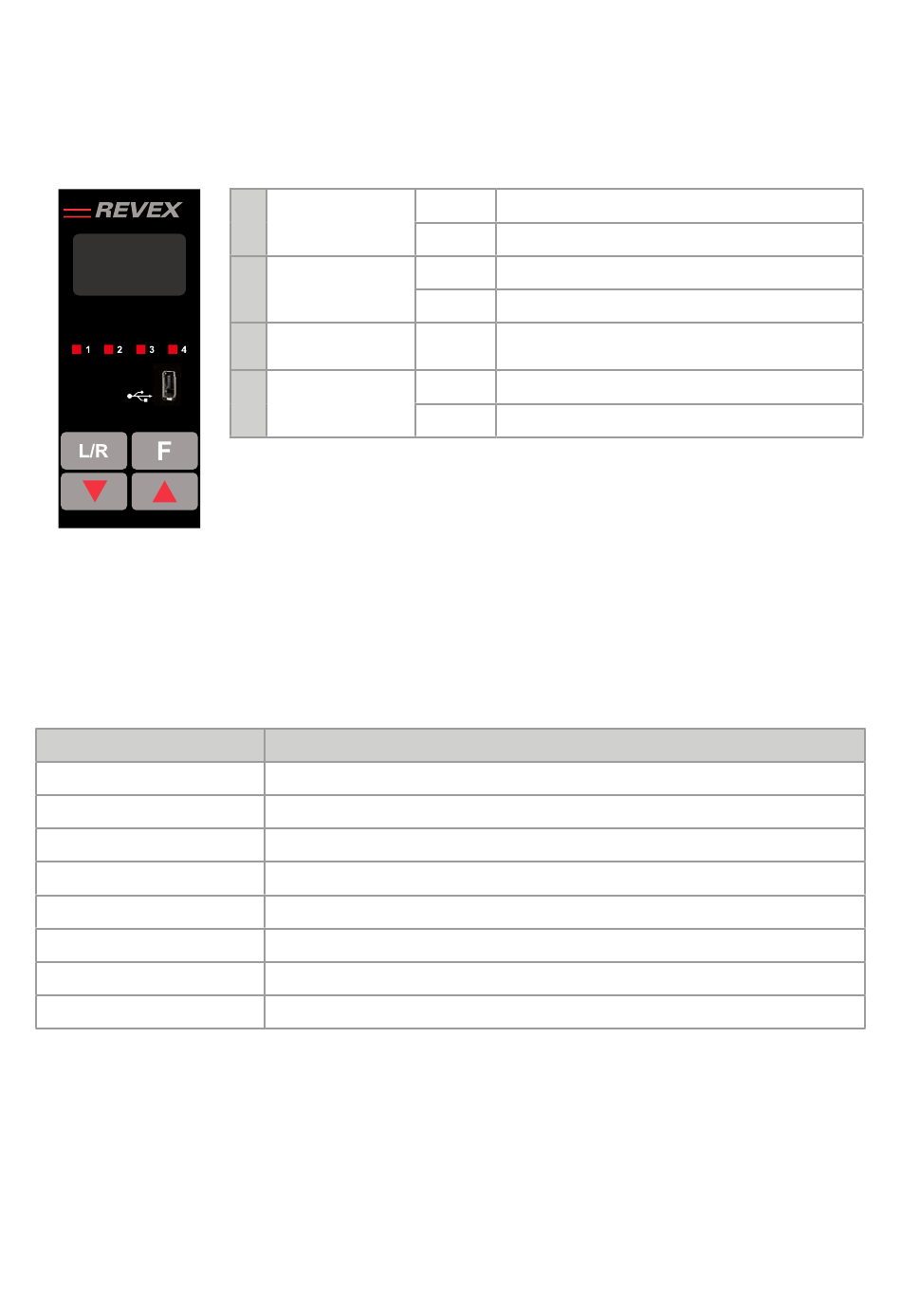

9.2 Control Panel Led

The four indicators on the control panel show the general state of the power controller.
Aux High
SP 100%

9.3 Displayed alarms

Alarm or message
Heater Break
Aux High
Aux Low
Watchdog
Line Loss
SD Card Error
Short Circuit
SCR Over Temp
1
Local/Remote
2
Enable
3
Communications
4
Alarm
Description
Heater Break
Aux voltage too high
Aux voltage too low
Communication Watchdog error
Line power not detected
SD card error
Short Circuit on SCR
Thermal Switch over temperature
Flashing Power output set locally or via communications
Off Power output set remotely (via analog input)
On Output enabled
Off Output disabled
Flashing Active communications
On Active alarm
Off No alarm
