REVEX
2PH from 60A to 90A

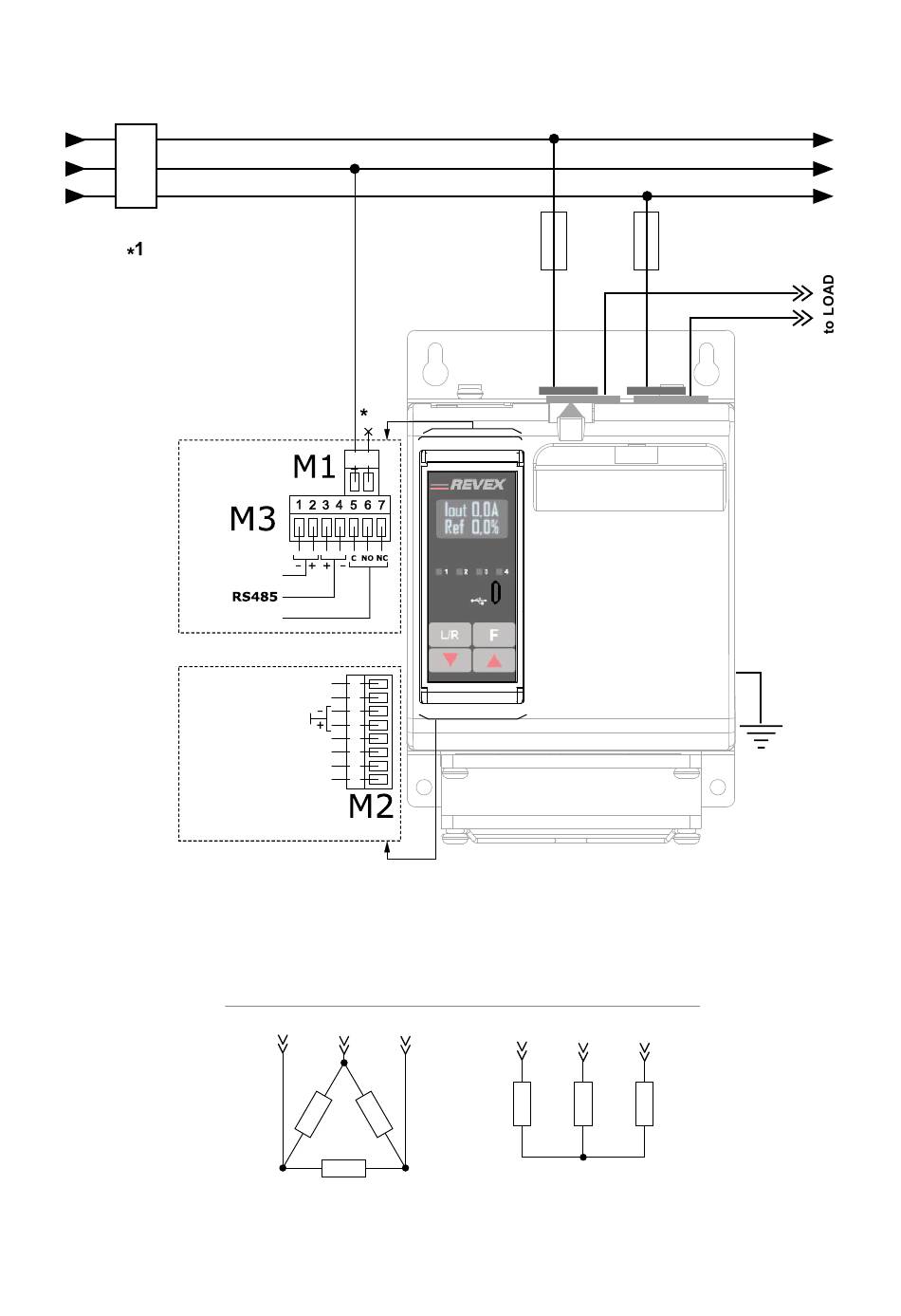

8.3 Connection Diagram

L1
L2
L3
BRANCH CIRCUIT
PROTECTION
TOP VIEW
24V dc supply
Relay Out.
DOWN VIEW
NOTE:
*
1 The user installation must be protecting by electromagnetic circuit breaker or by fuse isolator.
The Fuse must be branch circuit protection.
2 Both terminals are connected internally and may be possible to use any one of them. Supply Voltage (to the
*
load), use an external transformer as designated.
2
N.C.
SYNC.
A B
Analog Input 2
15
14
+10V
13
Analog Input 1
12
Di1 Config.
11
DI2 Enable
10
9
COM I
GND
8
T1
T2
T3
Delta
T1
L1
Load Type
T1
T2
Star
25
User's manual
L1
L2
L3
T3
L3
T3
