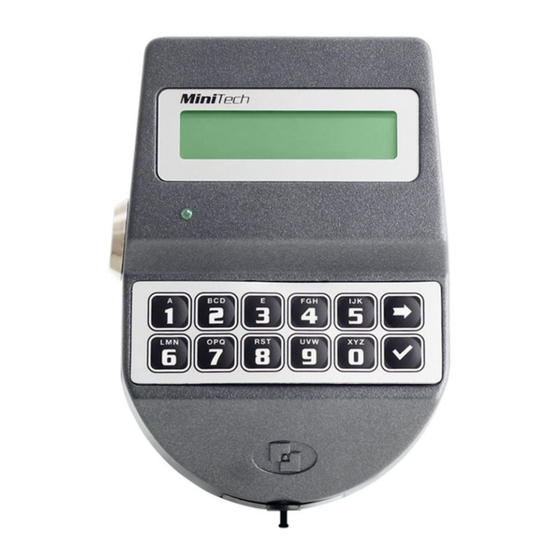

MiniTech
User Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MiniTech and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tecnosicurezza MiniTech

Summary of Contents for Tecnosicurezza MiniTech

  • Page 1 MiniTech User Instructions...

  • Page 2: Company

    Founded in 1983 with the aim of providing a complete range of professional products, Tecnosicurezza is now a consolidated reality in the field of locks and security systems for safes. The experience gained in over 35 years of activity in the security sector has allowed the designing and manufacturing of high technology and reliability systems, which continue to receive the approval of an increasingly demanding clientele.

  • Page 3: Table Of Contents

    User instructions MiniTech Table of contents COMPANY TABLE OF CONTENTS IMPORTANT NOTES! GENERAL INFORMATION OVERVIEW FUNCTIONS LOCK OPENING (01) (02-49): ANAGER AND USERS (50-59): VERRIDE USERS CODE CHANGING USER MANAGEMENT LOCK SETUP ETUP WITH ALLAS KEY ETUP WITH OPENING WITH DYNAMIC CODES...
  • Page 4 User instructions MiniTech PENING PERIODS ERIFY OR DELETE VALUES UDIT OWNLOAD THE AUDIT ON A ALLAS KEY VENTS CHECK ON HANGE ASTER CODE ANGER ANAGEMENT – E YNAMIC CODES NABLING ISABLING OCK RECLOSURE MODE CONTACTS 4 di 22 IU_ MiniTech_04...

  • Page 5: Important Notes

    User instructions MiniTech Important notes • Before installing this product, please read carefully the installation and operating instructions. • Locks have been designed to correctly operate in a temperature range from -5°C to + 50°C and and in an environment with non-condensing humidity between 25% and 90%.

  • Page 6: General Information

    User instructions MiniTech General information Using your keypad • Press any button to power up the keypad. LCD which shows: ENTER CODE X X – X X X X X X If more locks are installed, LCD shows: SELECT LOCK Enter the lock number to select it.
  • Page 7 User instructions MiniTech • If a wrong code is entered, LCD displays the message: WRONG CODE • To open or access the menu in dual mode (if set), enter the first ENTER 2° CODE X X – X X X X X X code.

  • Page 8: Overview Functions

    • an ALKALINE 9V battery located in the battery compartement below the keypad; • an internal battery box provided by Tecnosicurezza (6 ALKALINE 1.5 batteries); • A power adapter (ref. N1212) with power supply interface (ref. T6005/W or T6005) both provided by Tecnosicurezza.

  • Page 9: Lock Opening

    Some options/characteristics reported in this user manual, can only be used if previously enabled through the setup software. Thus, please refer to the user manual IU_Minitech_setup_XX. Please contact Tecnosicurezza for further information. Lock opening Manager (01) and users (02-49): Power up the keypad and enter an opening code. LCD shows: OPEN Open the lock within 3 seconds.

  • Page 10: User Management

    User instructions MiniTech User management USERS MANAGEMENT Power up the keypad. Press and hold . LCD shows: 0 1 – X X X X X X Enter Manager code. 02 03 04 05 06 Press to scroll users list or enter user ID.

  • Page 11: Opening With Dynamic Codes

    User instructions MiniTech PC LINK Press , LCD shows: Start the programming on the Setup software or press to exit. If the operation is successfully performed, LCD shows the firmware version and few seconds later the keypad switches OFF. Pease refer to the user manual IU_Minitech_setup_XX for further information.

  • Page 12: Test Mode

    User instructions MiniTech UNBLOCK SYSTEM To unblock the lock press and hold . LCD shows: X X – X X X X X X Enter the requested code. LCD shows: OPERATION DONE Depending by the lock setup, you may be required to enter the Master code.

  • Page 13: Audit

    Download the audit on a Dallas key Events can be downloaded through a Dallas key provided by Tecnosicurezza, specifically programmed with the software Tecnosicurezza DMT Audit. For further information, refer to the user manual IU_DMT_Audit_XX.

  • Page 14: Download Audit On Pc

    PC. For further information refer to the user manual IU_DMT_Audit_XX or contact Tecnosicurezza. Download audit on PC Events can be downloaded through a USB interface provided by Tecnosicurezza. LOCK AUDIT Power up the keypad. Press and old . LCD shows: 0 1 –...

  • Page 15: Time Delay

    User instructions MiniTech Time delay SET TIME DELAY Power up the keypad. Press and hold . LCD shows: 01 – X X X X X X Enter Manager code. LCD shows the current values for time delay and TIME DELAY OPEN WINDOW 01 open window.

  • Page 16: Weekly Time Lock Settings - Adding New Values

    User instructions MiniTech Weekly time lock settings – Adding new values WEEKLY TIME LOCK Enter Time Lock menu and press . LCD shows: SETTING ADD NEW VALUES Press . LCD shows: hh:mm FRI Press . LCD shows the current day of the week.

  • Page 17: Closing Periods (Off Days) - Add New Values

    User instructions MiniTech Closing periods (OFF days) – Add new values Closing periods are time intervals in which is possible to close the lock even when a time lock is enabled. It is possible to schedule up to 60 closing periods. Each one of them has a maximum time length of 14 days.

  • Page 18: Opening Periods - Add New Values

    User instructions MiniTech Opening periods - Add new values Opening periods are time intervals in which is possible to open the lock even when a time lock is enabled. It is possible to schedule up to 60 opening periods. Each one of them has a maximum time length of 14 days.
  • Page 19 X X X X X X X X Manager Management This menu can only be used if previously enabled through the setup software. Thus, please refer to the user manual IU_Minitech_setup_XX. Please contact Tecnosicurezza for further information. MANAGER Enter Master menu. Press until the LCD shows: MANAGEMENT ✓...
  • Page 20 AUTOMATIC and MANUAL mode. Press to confirm. With MANUAL, lock can be closed by pressing and holding for 2 seconds. With AUTOMATIC instead, lock automatically re-closes after the time set with MiniTech Setup. 20 di 22 IU_ MiniTech_04...
  • Page 21 User instructions MiniTech NOTES IU_MiniTech_04 21 di 22...
  • Page 22 Contacts GLOBAL HEADQUARTERS USA HEADQUARTERS SPAIN HEADQUARTERS Tecnosicurezza SpA Tecnosicurezza Inc. Tecnosicurezza Sa Via Cesare Battisti, 276 50, Thomas Lane C/Menor, 4 - Nave 10 37057 San Giovanni Lupatoto Pol.
