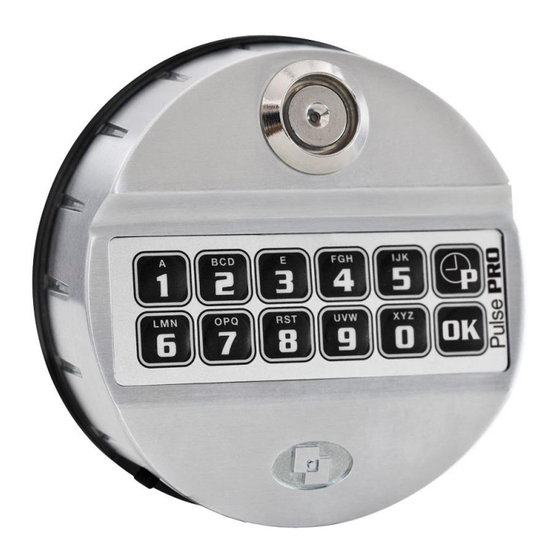

High security lock for safes
Hide thumbs Also See for Pulse PRO:
Table of Contents

Advertisement

Quick Links

Download this manual
Pulse PRO
High security lock for safes
USER INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pulse PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Tecnosicurezza Pulse PRO

Summary of Contents for Tecnosicurezza Pulse PRO

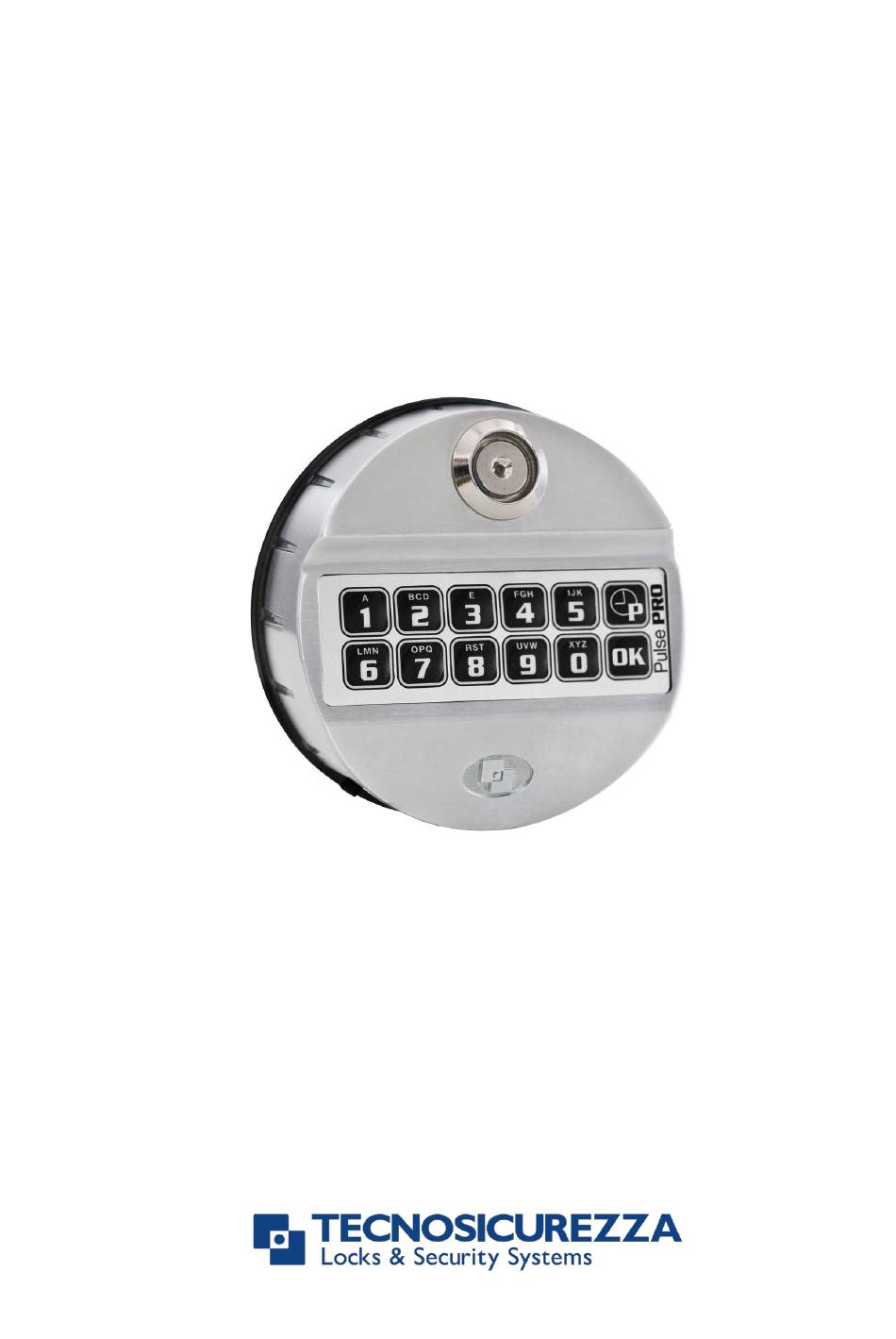

  • Page 1 Pulse PRO High security lock for safes USER INSTRUCTIONS...

  • Page 3: Table Of Contents

    Contents Information about Pulse PRO .................. 4 Before use ......................8 Pre-setup mode ..................... 8 How to select a configuration ................. 8 Open the lock with a standard user ................. 9 Managers and users open the lock with time delay if enabled........9 Open the lock with an override user ................

  • Page 4: Information About Pulse Pro

    Information about Pulse PRO Using your keypad Automatic power savings: if no operation is performed for 5 seconds the keypad will automatically switch off. If a wrong operation is made, wait 5 seconds until the keypad switch off. Functions Press and hold the button corresponding to the needed function.
  • Page 5 It can’t manage the Master codes. ERC code, random code provided by Tecnosicurezza: 98 – x x x x x x x x. ERC code, random code provided by Tecnosicurezza: 99 – x x x x x x x x.
  • Page 6 The lock stores the last 5.500 operations with time, date, user and operation. Last 1.200 events can be downloaded by an i-Button with the function 7. All the events can be downloaded directly from the lock to a PC using a Tecnosicurezza USB device. Keypads signals Double beep if valid code/operation.
  • Page 7 Recommendations In order to recognize which model of lock is used (analog or digital lock), a lock must be connected to the keypad before to connect a power source. It is strongly recommended to immediately change the factory codes. For security reasons, do not chose codes which could be easy to guess (e.g. 1 2 3 4 5 For your new code, do not use any personal data like birthdays or any other data, that could be derived by knowledge of your person.

  • Page 8: Before Use

    Before use When a lock is new, time & date must be set before use otherwise a long bad sound is emitted on every opening. Please be advised that Time & Date can be set also in Pre- setup mode but only if Date format already set.

  • Page 9: Open The Lock With A Standard User

    Open the lock with a standard user Managers and users open the lock with time delay if enabled. Enter a valid opening code. Double beep and the lock open. If time delay enabled, beep and LED flashes at two seconds intervals. To stop time delay counting press Open window is indicated by beep and LED at 1 second intervals.

  • Page 10: User Activation (Function 1)

    User activation (function 1) Bolt open is requested before installing an override user. If dual mode enabled, enter valid code after the Manager code. If option Manager management enabled, the Master is enabled to perform this operation too but only for Manager codes. Press and hold until double beep.

  • Page 11: Battery Test (Function 4)

    Battery test (function 4) The battery test gives information about the power level of the last opening. Press and hold until double beep. Double beep if battery level good. Long beep if low battery level. Lock/keypad test (function 5) The lock/keypad test gives information about the correct communication between lock and keypad and the status of each button.
  • Page 12 BOLT OUTPUT/HOLD-UP. Enter special function Factory set as “Bolt output” hold-up bolt output enabled. Single beep if enabled, double beep if enabled. hold up bolt output Press 0 to enable or 1 to enable . Double beep and LED goes off. Factory set as “Door alarm”...

  • Page 13: User Status (Function 7)

    Long beep, blocked. Audit (function 7) Download the audit on the Dallas key configured through the Pulse PRO Audit software or directly on a PC with a Tecnosicurezza USB interface. Download the audit on a Dallas key to obtain the last 1.200 operations.

  • Page 14: Lock Configuration (Function 8)

    Download from the keypad directly to a PC: First activate the “Download extended audit” on the Audit software, then select the number of events which must be downloaded and press “Download”. Press and hold until double beep. LED remains ON. Enter a Manager code or a Master code.

  • Page 15: Time Delay (Function 9)

    Time delay (function 9) Time delay can always be increased. In order to set up a lower time delay than the current already set, lock must be open. If lock not opened, a counting of the time delay will be started after the procedure, and the new values will be stored only at the end. Press and hold until double beep.

  • Page 16: Reset Mode (Erc Function)

    Reset mode (ERC function) The ERC or emergency rescue code operation can be performed using an ERC code programmed by Tecnosicurezza only if requested. The ERC function is useful in any case in which all the codes have been lost and there is no possibility to open the lock.
  • Page 17 01 bringing it to its standard code (01-010101). Custom configurations, which can be set through the Pulse PRO setup software, are available since Configuration number 90 to Configuration number 98.
  • Page 18 10 USERS Manager Configuration Manager Configuration management Manager Master number management Manager Master number 10 Users 10 Users in dual mode ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓...
  • Page 19 10 USERS + 1 OVERRIDE USER, Dual combination Manager Configuration Manager Configuration management Manager Master number management Manager Master number 10 Users + 1 Override user in dual 10 Users + 1 Override user. All with all users users in dual combination ✓...
  • Page 20 50 USERS Manager Configuration Manager Configuration management Manager Master number management Manager Master number 50 Users 50 Users in dual mode ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓...
  • Page 21 50 USERS + 10 OVERRIDE USERS, Dual combination Manager Configuration Manager Configuration management Manager Master number management Manager Master number 50 Users + 10 Override users in 50 Users + 10 Override users. dual with all users All users in dual combination ✓...
  • Page 22 Page 22 of 24 IU_PulsePRO_06...
  • Page 24 Certified ISO 9001 : 2008 TECNOSICUREZZA s.r.l. Via Cesare Battisti, 276 – 37057 S. Giovanni Lupatoto (VR) – Italy Tel. +39 045 826 64 70 - Fax +39 045 826 64 69 mail: info@tecnosicurezza.it...
