PR electronics 2202 Manual

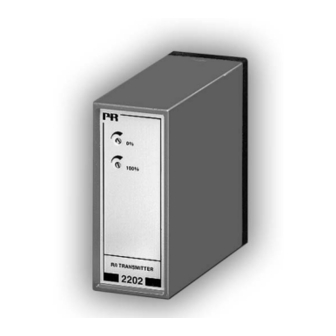

R/i transmitter
Hide thumbs Also See for 2202:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
2 2 0 2
R / I t r a n s m i t t e r
N o . 2 2 0 2 V 1 0 7 - U K
F r o m s e r . n o . 9 6 0 3 9 1 0 0 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2202 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR electronics 2202

Summary of Contents for PR electronics 2202

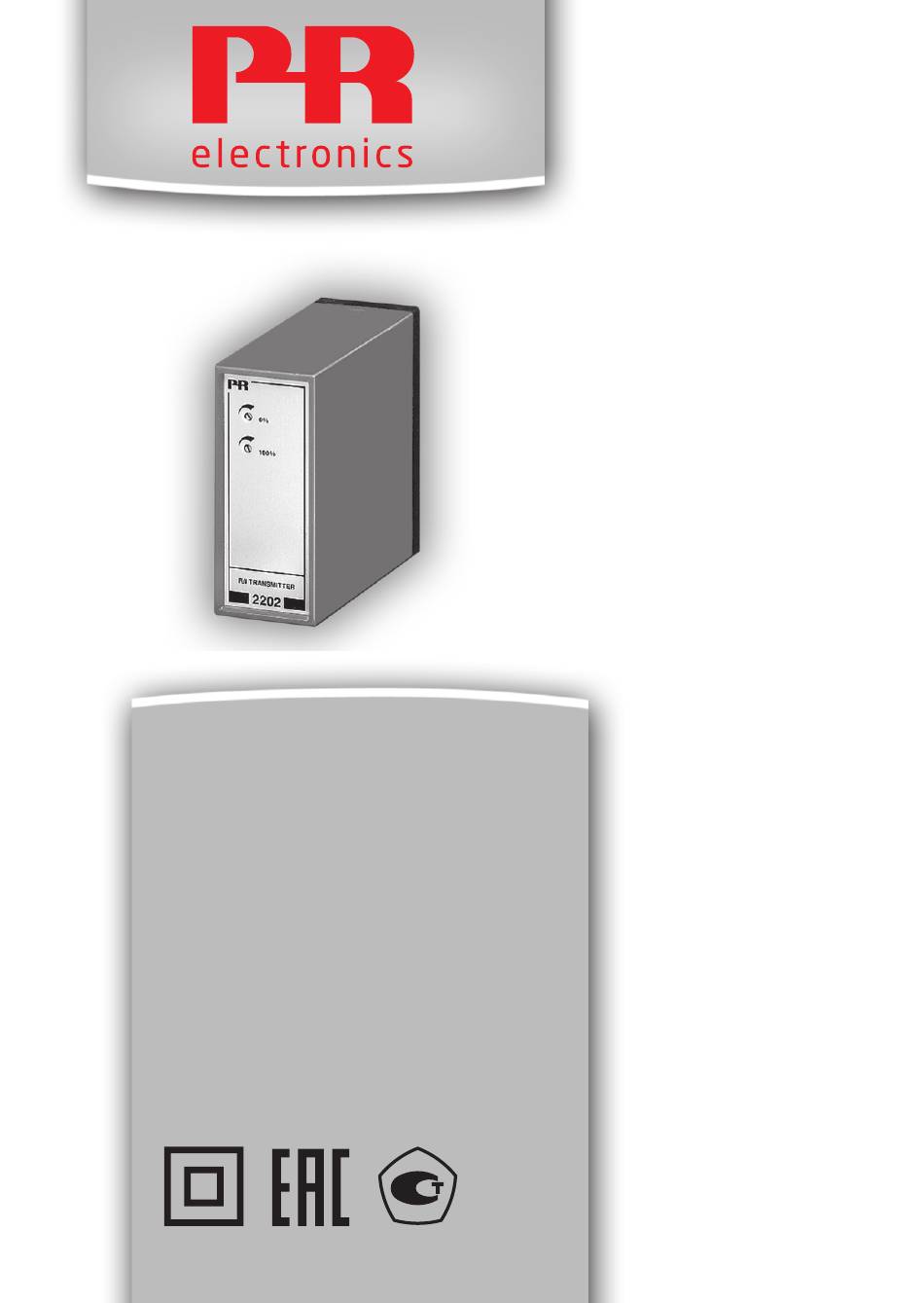

  • Page 1 2 2 0 2 R / I t r a n s m i t t e r N o . 2 2 0 2 V 1 0 7 - U K F r o m s e r . n o . 9 6 0 3 9 1 0 0 1...
  • Page 2 Vores motto »Signals the Best« er indbegrebet af denne filosofi – og din garanti for kvalitet. PR electronics A/S offers a wide range of analog and digital signal conditioning devices for industrial automation. The product range includes Isolators, Displays, Ex Interfaces, Temperature Transmitters, and Multifunctional Devices.

  • Page 3: Table Of Contents

    Type 2202 CONTENTS Warning ....................... Symbol identification ................Safety instructions ................. How to dismantle system 2200 ............Application ....................Technical characteristics ..............General ......................Input ......................Output ......................Electrical specifications................ Order: 2202 ....................Block diagram ................... Voltage output ..................2202V107-UK...

  • Page 4: Warning

    General mounting, connection and disconnection of wires. Troubleshooting the device. Repair of the device and replacement of circuit breakers must be done by PR electronics A/S only. WARNING To keep the safety distances, devices with two built-in relays must not be connected to both hazardous and non-hazardous voltages on the same device’s relay contacts.

  • Page 5: Symbol Identification

    Should there be any doubt as to the correct handling of the device, please contact your local distributor or, alternatively, PR electronics A/S www.prelectronics.com 2202V107-UK...
  • Page 6 When disconnected, the device may be cleaned with a cloth moistened with distil- led water. LIABILITY To the extent the instructions in this manual are not strictly observed, the custom- er cannot advance a demand against PR electronics A/S that would otherwise exist according to the concluded sales agreement. 2202V107-UK...

  • Page 7: How To Dismantle System 2200

    HOW TO DISMANTLE SYSTEM 2200 The back panel of the device is detached from the housing by way of a screw-driver as shown in picture 1. On a device with knobs, these may have to be removed before the PCB can be taken out as shown in picture 2.

  • Page 8: Technical Characteristics

    R/I TRANSMITTER 2202 • Input for Pt100, Ni100 or Ohm • Sensor cable compensation • Linearised analogue output • 24 VDC or universally supplied • Individual 0 and 100% adjustment • DIN rail mounting on a standard 11-pole relay socket Application Electronic temperature measurement with a Pt100...Pt1000 or a Ni100...Ni1000...

  • Page 9: Output

    Internal consumption, 2202 _ _ P (universally supplied) ..........≤ 1.4 W Isolation, test / operation (2202 _ _ P) ..3.75 kVAC / 250 VAC Signal / noise ratio ..........Min. 60 dB Signal dynamics, input ........... 17 bit Signal dynamics, output ........

  • Page 10: Order: 2202

    Current limit ............... ≤ 28 mA Observed authority requirements: Standard: EMC 2004/108/EC ..........EN 61326-1 LVD 2006/95/EC (2202 _ _ P) ......EN 61010-1 EAC TR-CU 020/2011..........EN 61326-1 Of span = Of the presently selected range Order: 2202 Type...

  • Page 11: Block Diagram

    Comp. + Lin.R EEPROM JP 1 JP 2 0% 100% Input - Gnd. 2202 For 2-wire connection pins 6 and 7 must be short-circuited in the socket. Voltage output 0/0.2...1 VDC JP1 ON 0/2...10 VDC JP2 ON Short-circuit pins 3 and 2, V+ = 2, V- = 1...
  • Page 12 Displays Programmable displays with a wide selection of inputs and outputs for display of temperature, volume and weight, etc. Feature linearization, scaling, and difference measurement functions for programming via PReset software. Ex interfaces Interfaces for analog and digital signals as well as HART signals between sensors / I/P converters / frequency signals and control systems in Ex zone 0, 1 &...
  • Page 13  www.prelectronics.com  sales-uk@prelectronics.com  www.prelectronics.com  sales-us@prelectronics.com  www.prelectronics.cn  sales-cn@prelectronics.com  www.prelectronics.be  sales-be@prelectronics.com Head office Denmark www.prelectronics.com PR electronics A/S sales-dk@prelectronics.com Lerbakken 10 tel. +45 86 37 26 77 DK-8410 Rønde fax +45 86 37 30 85...
