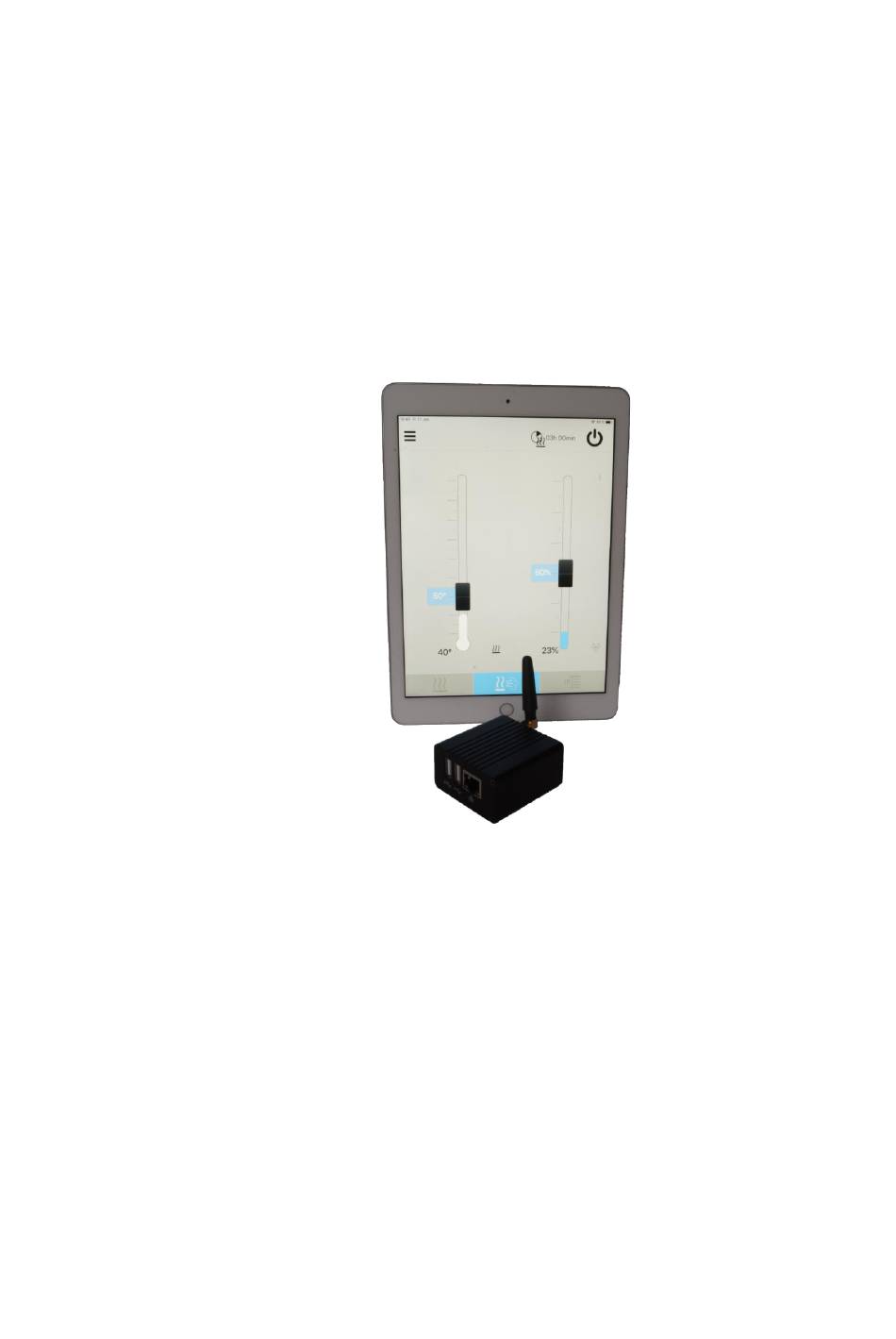

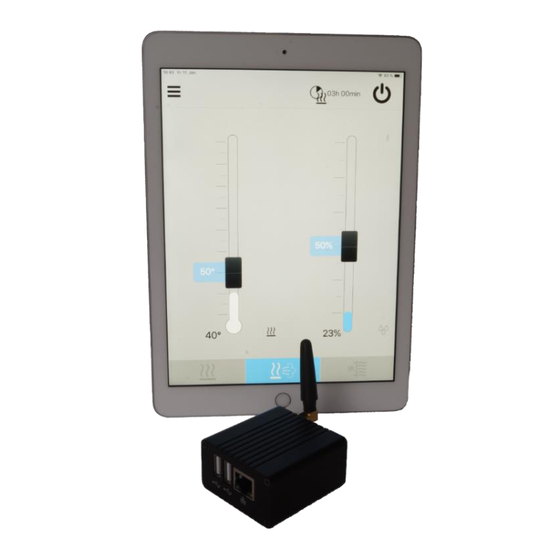

Series FCU6x00/FCU-EXT-APP
Installation and Operating Manual
FCU6x00
FCU-EXT-APP-CONTROL
can be combined with the following sauna control units in the FCU series:
Series FCU3000
Series FCU4000
Series FCU5000
Series FCU6000
Doc-ID: B_FCU-EXT-APP
Version: V 1.02
Technical changes and errors excepted, illustration similar.
FCU3200
FCU4200
FCU5200
FCU6200
FCU3400
FCU4400
FCU5400
FCU6400
Advertisement
Table of Contents
Related Manuals for Fasel Elektronik FCU6x00 Series
Summary of Contents for Fasel Elektronik FCU6x00 Series
- Page 1 Series FCU6x00/FCU-EXT-APP Installation and Operating Manual FCU6x00 FCU-EXT-APP-CONTROL can be combined with the following sauna control units in the FCU series: Series FCU3000 FCU3200 FCU3400 Series FCU4000 FCU4200 FCU4400 Series FCU5000 FCU5200 FCU5400 Series FCU6000 FCU6200 FCU6400 Doc-ID: B_FCU-EXT-APP Version: V 1.02 Technical changes and errors excepted, illustration similar.
-
Page 3: Table Of Contents
Table of contents Table of contents Safety ..........................5 Explanation of symbols ................. 5 Safety-related assembly and installation instructions........6 Intended use ....................6 Changes and alterations ................6 Requirements for the operator and technicians ........... 7 Occupational safety and special risks ............7 Information about the operating manual and installation instructions .. - Page 4 Table of contents Menu: Basic settings .................. 25 6.5.1 Info menu ....................25 6.5.2 Maximum permissible heating period ........... 25 Maintenance ........................26 Faults ..........................26 Safety ......................26 Messages and instructions on the display ..........27 Acknowledge message ................27 Error messages ..................
-
Page 5: Safety
Safety Safety Important safety instructions Read this manual carefully and keep it for future reference. Explanation of symbols Warnings Warning are marked by symbols in this manual. The instructions in this operating manual are introduced by signal words that indicate the severity of the danger. Always follow the safety notes and proceed with caution in order to avoid any accidents, personal injuries and damage to property. -
Page 6: Safety-Related Assembly And Installation Instructions
Safety Safety-related assembly and installation instructions – DANGER! – The control unit can be mounted directly on the outside of the cabin or at another location, but not inside the cabin – The control unit may be operated with a cover guard for the oven only if one of the following options is available: Timer function (can be locked in the service menu) Remote start (remote operation) via option input or WEB-/APP-... -
Page 7: Requirements For The Operator And Technicians
Safety Requirements for the operator and technicians This device can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the device and understand the hazards involved. -
Page 8: Information About The Operating Manual And Installation Instructions
Safety The following instructions are for your own safety and for the safety of the sys- tem and must be adhered to: Electric voltage DANGER! Danger to life due to electric shock. There is imminent danger to life in case of direct contact with live parts. Damage of insulation or individual parts could pose danger to life. - Page 9 Safety Adherence to all the safety and operating instructions specified in this operating manual is a basic prerequisite for safe operation and safe working. In addition, the local accident prevention regulations and general health and safety re- quirements must be adhered to wherever the control unit is in use. Read this operating manual carefully before switching on.
-
Page 10: Installation Instructions
Installation instructions Installation instructions Schematic connection of the components Sauna area: dry and frost-free room: Control unit: Sauna, Steam bath Connect Box Fig. 1: Schematic lay-out FCU-EXT-APP-CONTROL Installation and Operating Manual / Version V 1.02... -
Page 11: Installing The Interface Converter
Installation instructions Installing the interface converter Fig. 2: Installing FCU-EXT-APP-CONTROL-CONVERTER Installation and Operating Manual / Version V 1.02... -
Page 12: Connection And Initial Set-Up By Service Technician
Connection and initial set-up by service technician Connection and initial set-up by service technician Components The following components are available: Connect Box Mains adapter with USB cable Interface converter USB cable 3.1.1 Connect Box Fig. 3: Connect Box front panel Fig. -
Page 13: Mains Adapter
Connection and initial set-up by service technician 3.1.2 Mains adapter Mains adapter for supplying the Connect Box via a Micro-USB cable. 3.1.3 Interface converter Interface converter between sauna unit FCUxxxx and Connect Box. 3.1.4 USB cable USB cable (3m) for connection between Connect Box and interface converter. Connection and initial operation Connection and initial operation of the individual components: Please insert the interface converter in the FCU control. -
Page 14: Initial Set-Up With Wlan Operation
Connection and initial set-up by service technician Initial set-up with WLAN operation NOTE! Please have your personal WLAN password ready for set-up via WLAN. During initial operation, the Connect Box must be connected to the existing WLAN. Start the Connect Box by briefly disconnecting it from the power supply and plug- ging it in again. -
Page 15: Switching Off Or Restarting The Connect Box
Connection and initial set-up by service technician 3 x beeps: Server connection successfully established. Now you can connect to the App. This process can take about 5 minutes. Note: If the 3x beeps are not heard, the Connect Box has not been able to establish a connection to the server. -
Page 16: Use Of The Sub-User Function
Technical data The access code is on the supplement! For sub-user access you do not need an access code. 6. The App automatically connects to your sauna. 7. The sauna is additionally protected with a PIN. This is the same for all users. As delivered, this PIN is set to "0000". -
Page 17: Structure And Function
Structure and function Storage temperature -10 to +60 °C Rel. humidity, storage max. 80 % rel. humidity, not condensing Protection class IP20 CONNECT BOX dimensions W x H x D approx. 55mm x 30mm x 75mm Table 1: Technical data Connecting cable The LAN cable is not included in the delivery. -
Page 18: Operating Keys For App Control
Structure and function Key / Switch Description "Cleaning light ON" switch Use this switch to switch on the cleaning light. Operating keys for App Control The App is equipped with the following operating keys: Key / Switch Description Keys for bath modes Key "Bath mode Sauna"... -
Page 19: Symbols In The Status Bar
Structure and function 5.3.1 Symbols in the status bar The following symbols can appear in the status bar: Display elements Description Heating time / Remaining heating time Light is active Fan is active Fragrance pump is active ... -
Page 20: Operation
Operation Operation Safety and instructions Electric voltage DANGER! Danger to life due to electric shock. There is imminent danger to life in case of direct contact with live parts. For this reason: – The control system may be opened only by authorised electricians. –... -
Page 21: Switching The Sauna Control Unit On And Off
Operation NOTE! The temperature and humidity readings shown on the thermometers and hygrometers installed additionally in the cabin may differ from those on the control unit. This may have the following reasons: Temperature differences of between 60K and variance in humidity of up to 40% may be encountered from the floor to the ceiling or between the oven and the opposite wall, depending on the cabin Instruments with pointers do not respond as sensitively, compared to the... -
Page 22: Setting Bath Mode
Operation A bath mode is selected and active (orange) Press the key for the active bath mode. This stops the bath mode. The key is now blue. Use the "Control unit standby" or "Power Off" key to switch off the sauna control unit ... -
Page 23: Menu: Settings
Operation Menu: settings The following entries may be shown in the settings menu, depending on the configuration: Symbol Description Function Fan levels Press the key briefly to switch the fan on/off. setting Press and hold the key to open the fan levels setting. ... -
Page 24: Setting The Timer
Operation 6.4.2 Setting the timer NOTE! Your service engineer is not allowed to approve the timer without addi- tional fire protection measures (e.g., cover guard above the oven) and it may therefore be blocked (menu is not shown). The timer starts the sauna with the active bath mode at the set start time. The system time of your Smartphone/Tablet is used as the current time. -
Page 25: Menu: Basic Settings
Operation Menu: Basic settings The following entries may be shown in the basic settings menu, depending on the configuration: Symbol Description Function PIN setting Opens the menu for the Pin setting After entering the current pin, a new PIN can be entered. ... -
Page 26: Maintenance
Maintenance Maintenance The sauna control units are maintenance-free. Cleaning Aggressive WARNING! cleaning agents Device damage possible! and media Aggressive cleaning agents and media can damage or destroy compo- nents or electric cables. For this reason: – Do not use any cleaning agents or media with aggressive substances. Turn off the control unit and secure it against being switched on again (switch off the automatic circuit breakers.) Clean the housing only from outside using a damp soft cloth. -
Page 27: Messages And Instructions On The Display
Faults Messages and instructions on the display Messages and instructions may be shown on the display that require the operator to take action. Messag- Possible causes Measures To be carried es/Instruction out by Device not re- Sauna control unit is Switch on the sauna control unit. - Page 28 Faults In case of a fault during operation, the display will alternately show the cause, error number and troubleshooting option. If the cause cannot be resolved by the end user, please make a note of all displayed messages and contact your service technician. Fault Possible causes Troubleshooting...
-
Page 29: Acknowledge Error Message
Decommissioning and disposal Fault Possible causes Troubleshooting To be carried out by the service engineer if the er- neer ror occurs again. Execute the drying program or User Drying did not end Drying temperature acknowledge the error. Start correctly. was not reached, pro- the sauna program if the cabin gram cancellation by is damp. -
Page 30: Copyright Protection
General Otherwise, the obligations agreed in the delivery contract, the General Terms and Con- ditions as well as the delivery conditions of the manufacturer and the legal regulations valid at the time of entering into the contract are applicable. Warranty The warranty period of the manufacturer shall commence with the dispatch from the manufacturer’s place and is valid for 24 months. -
Page 31: 11 Settings
Settings NOTE! For quick processing, have the data of the type plate such as the type, se- ries number, variant etc. ready before making the call. 11 Settings 11.1 Adjusting range: sauna min. max. Temperature 10°C 110°C Operating time 00:15 h 06:00 (20:00*) 11.2 Adjusting range: Sauna with humidity min. -
Page 32: 12 Declaration Of Conformity
Declaration of Conformity 12 Declaration of Conformity The electronics mounted in the device series FCU6xxx is identical to the certified device series FCU4xxx. You will find the current declaration of conformity online at www.fasel-gmbh.de in the section “Wellness, Sauna and Spa control units” under “Service / Downloads”. Installation and Operating Manual / Version V 1.02... - Page 33 Declaration of Conformity Index Basic settings: ..........24 Coloured light ..........24 Bath mode Info menu ............25 Setting ............. 21 Settings ............22 Timer ...............23 Cleaning.............. 25 Messages and instructions .........26 Cleaning light ............17 Mode of operation ..........15 Components ............12 Connection ............13 Notes Control unit ............
- Page 36 Address of the installer or the dealer of the sauna sys- tem:...
