Framework And Dimension - Dahua EZ-IP TURRET Quick Start Manual

Ovner's manual
SN Port Port name
1 LAN Network port
2 DC 12V Power input
port

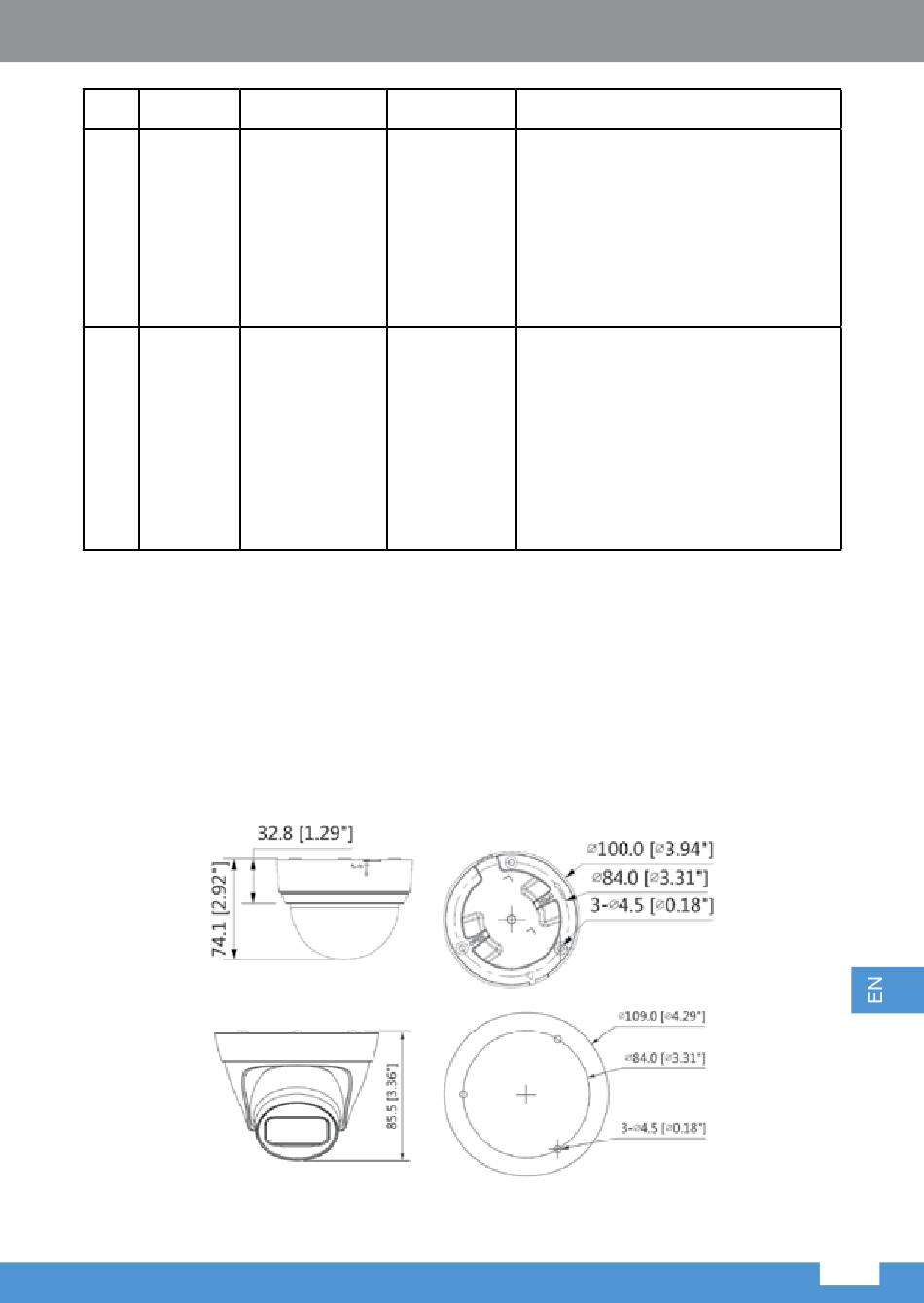

1.2 Framework and Dimension

Note
The following figures are for reference only, which are used to know the device
dimension.
Connector Function description
Ethernet Connect to standard Ethernet
port cable.
Note
Camera requires PoE (802.3
af) power supply.
- Power port. Input DC 12V.
Caution
It may cause damage to the
device if it fails to power the
device according to the label
description.
