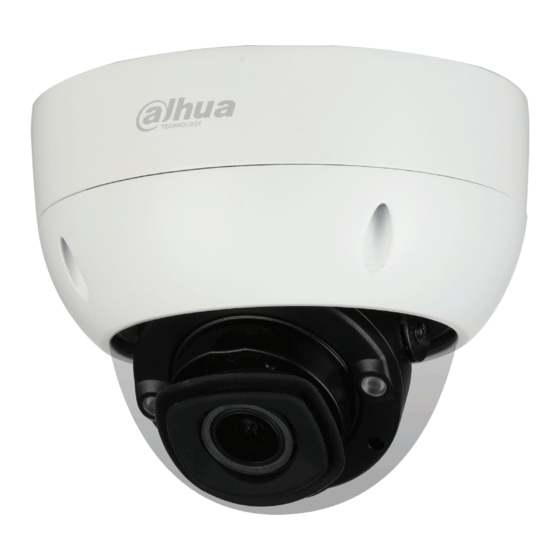

- Page 1 Dome Network Camera Quick Start Guide V1.0.1...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the functions, installation, and operations of the camera. Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury. - Page 3 Quick Start Guide occurred when using the device. If there is any uncertainty or controversy, please refer to our final explanation. ...
-
Page 4: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings Electrical Safety All installation and operation shall conform to your local electrical safety codes. The power source shall conform to the Safety Extra Low Voltage (SELV) standard, and supply power with rated voltage which conforms to Limited Power Source requirement according to IEC60950-1. Note that the power supply requirement is subject to the device label. - Page 5 Quick Start Guide It is recommended to ground the device to enhance reliability. Do not touch the image sensor (CMOS) directly. Dust and dirt can be removed with air blower, or you can wipe the lens gently with soft cloth that is moistened with alcohol. You can clean the device body with soft dry cloth, and for stubborn stains, use the cloth with mild ...
-
Page 6: Table Of Contents
Quick Start Guide Table of Contents Foreword ................................I Important Safeguards and Warnings ......................III 1 Introduction ..............................1 Cables ......................................1 Connecting Alarm Input/output ............................2 2 Network Configuration ..........................4 Initializing Device ..................................4 Modifying Device IP Address ..............................5 Logging in to Web Interface.............................. -
Page 7: Introduction
Quick Start Guide Introduction Cables Device ports might vary with different models, and the actual product shall prevail. Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and water damage. For the detailed operation, see the FAQ Manual. Figure 1-1 Cables For more information about device ports, see Table 1-1. -
Page 8: Connecting Alarm Input/Output
Quick Start Guide Includes alarm signal input and output ports, and Alarm I/O the number of I/O ports might vary on different devices. For details, see Table 1-2. For more information about I/O port, see Table 1-2. Table 1-2 Alarm information Port Port Name Function... - Page 9 Quick Start Guide Figure 1-3 Mode A Figure 1-4 Mode B Step 3 Log in to web interface, and configure alarm input and alarm output in alarm setting. The alarm input on the web interface is corresponding to the alarm input end of the I/O ...
-
Page 10: Network Configuration
Quick Start Guide Network Configuration Device initialization and IP address setting can be finished with the "ConfigTool" or on web interface. For more information, see the Web Operation Manual. Device initialization is available on select models, and it is required at first use or after the device ... -
Page 11: Modifying Device Ip Address
Quick Start Guide Select the devices that need initialization, and then click Initialize. Step 6 The password setting interface is displayed. See Figure 2-2. Figure 2-2 Password setting Step 7 Set and confirm the password of the devices, then enter a valid email address, and then click Next. -
Page 12: Logging In To Web Interface
Quick Start Guide The Modify IP Address interface is displayed. See Figure 2-3. Figure 2-3 Modify IP Address Select Static mode, and then enter start IP, subnet mask, and gateway. Step 3 IP addresses of multiple devices will be set to the same if you select the Same IP check ... - Page 13 Quick Start Guide Figure 2-4 Main interface...
-
Page 14: Installation
Quick Start Guide Installation Packing List The tool required for the installation such as electric drill is not provided in the packing. The operation manual and related tool are contained in the disk or the QR code, and the actual ... -
Page 15: Installing Device
Quick Start Guide Installing Device 3.3.1 Installation Type 3.3.2 Installing SD Card (Optional) Disconnect the power before installing or removing the SD card. Press and hold the reset button for 10 s to reset the camera. 3.3.3 Attaching Device... - Page 16 Quick Start Guide Make sure that the mounting surface is strong enough to hold at least three times of the weight of the device and bracket. Cable going through the mounting surface...
-
Page 17: Installing Waterproof Connector (Optional)
Quick Start Guide Cable going through the side cable tray 3.3.4 Installing Waterproof Connector (Optional) This part is needed only when there is waterproof connector in the package and the device is used outdoors. - Page 18 Quick Start Guide...
-
Page 19: Adjusting Lens Angle
Quick Start Guide 3.3.5 Adjusting Lens Angle... - Page 20 Dahua Technology USA 15245 Alton Parkway, Suite #100 Irvine, CA 92618 Tel: (949) 679-7777 Fax: (949) 679-5760 Support: 877-606-1590 Sales: sales.usa@dahuatech.com Support: support.usa@dahuatech.com © 2021 Dahua Technology USA. All rights reserved. Design and specifications are subject to change without notice.
