Step 6
Put the decoration cover ring on the camera (pay attention to the indentations
on the pedestal and bulges on the decoration cover ring) and rotate it clockwise
into the pedestal, it is well installed when you hear the "click" sound.
2.1.2 Dome
Step 1
Use the attached position map and mark the spots for the expansion bolts. Drill
holes on the mounting surface and then insert expansion bolts into the holes,
secure them firmly.
Step 2
Adjust the location of the mounting pedestal. Lead the cable out from the cable
exit hole of the device, you can select bottom cabling or side cabling.

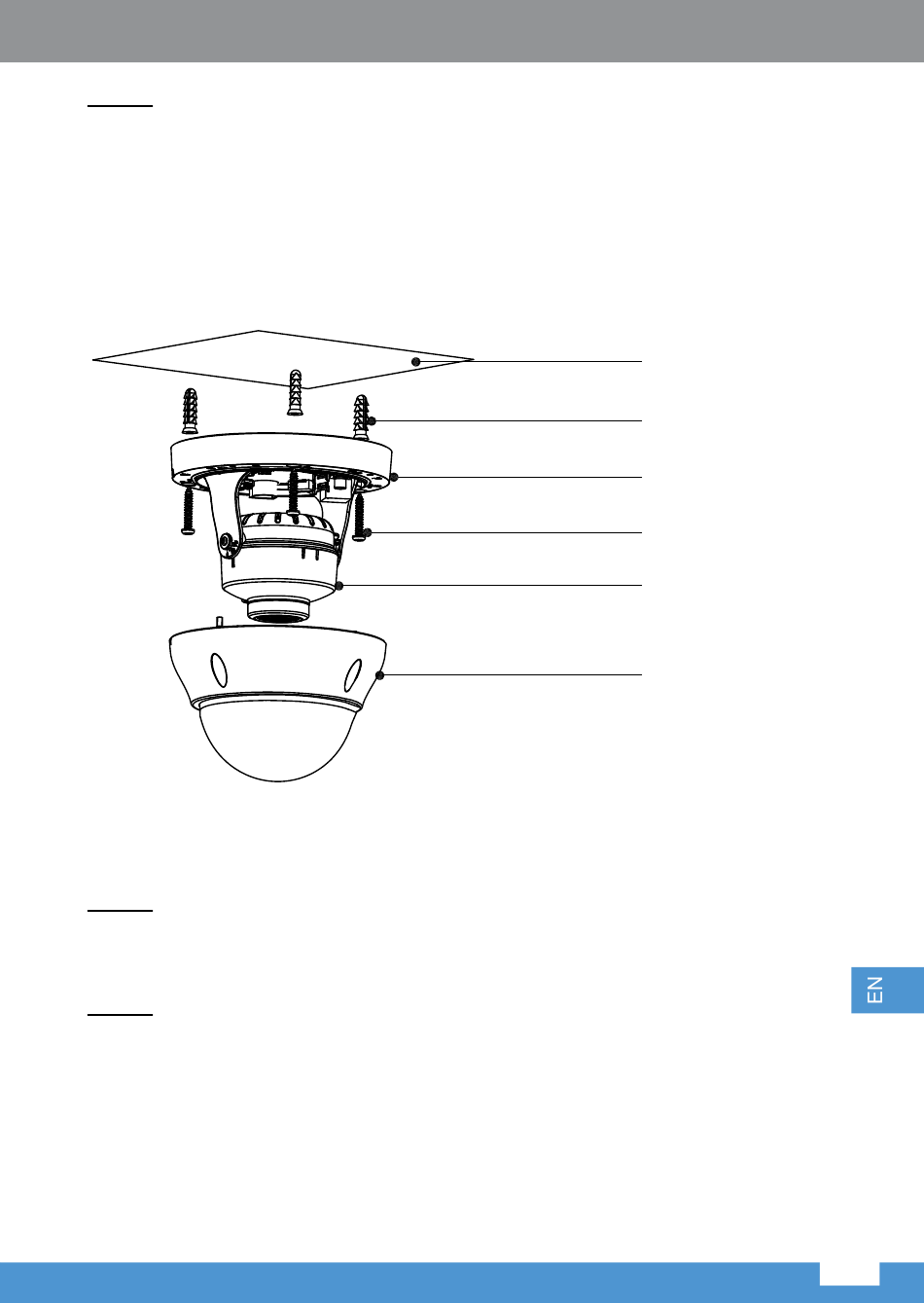

Figure 2-4
Mounting surface
Expansion bolt
Pedestal
Screw
Camera module
Enclosure
