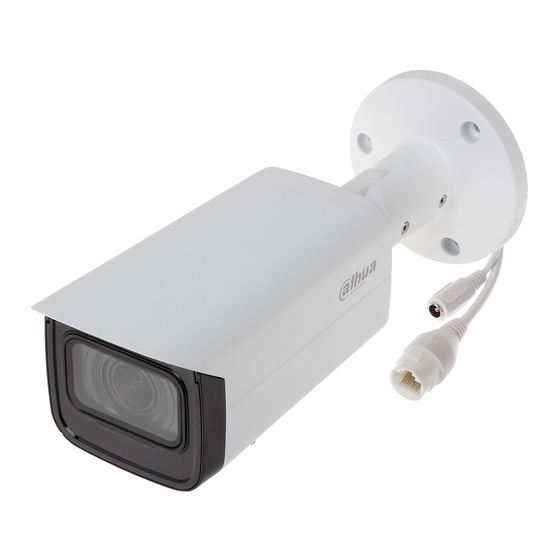

Page 1 Network Camera Web 3.0 Operation Manual ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V2.1.8...
Page 2: Foreword
Operation Manual Foreword General This manual introduces the functions, configuration, general operation, and system maintenance of network camera. Safety Instructions The following signal words might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury.
Page 3 Operation Manual Version Revision Content Release Time Updated the information of privacy masking. ● Updated "4.7.3.3 FTP". ● Updated "4.8.3.1 Adding a User" and "4.8.3.3 ONVIF User". ● V2.0.8 Updated "5.4.2 Setting Video Tampering". December 2020 ● Updated "5.11 Setting Face Detection". ●...
Page 4 Operation Manual people by implementing measures which include but are not limited: Providing clear and visible identification to inform people of the existence of the surveillance area and provide required contact information. About the Manual The manual is for reference only. Slight differences might be found between the manual and the ●...
Page 5: Important Safeguards And Warnings
Operation Manual Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, comply with the guidelines when using it. Transportation Requirements Transport the device under allowed humidity and temperature conditions. ●...
Page 6 Operation Manual We recommend you use the device with a lightning protection device for stronger protection ● against lightning. For outdoor scenarios, strictly comply with the lightning protection regulations. Ground the function earthing portion of the device to improve its reliability (certain models ●...
Page 7 Operation Manual Use the accessories suggested by the manufacturer. Installation and maintenance must be ● performed by qualified professionals. Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on ● the lens. When it is necessary to clean the device, slightly wet a soft cloth with alcohol, and gently wipe away the dirt.
Page 8: Table Of Contents
Operation Manual Table of Contents Foreword................................I Important Safeguards and Warnings......................IV 1 Overview................................1 1.1 Introduction............................1 1.2 Network Connection..........................1 1.3 Function..............................1 1.3.1 Basic Function..........................1 1.3.2 Intelligent Function........................2 2 Configuration Flow............................5 3 Device Initialization............................6 4 Basic Configuration............................9 4.1 Login............................... 9 4.2 Live................................10 4.2.1 Live View............................
Page 9 Operation Manual 4.6.7 SNMP............................93 4.6.8 Bonjour............................96 4.6.9 Multicast.............................96 4.6.10 802.1x............................97 4.6.11 QoS............................98 4.6.12 4G..............................98 4.6.13 5G............................101 4.6.14 Access Platform........................104 4.7 Storage............................... 106 4.7.1 Setting Storage Plan....................... 106 4.7.2 Setting Schedule........................106 4.7.3 Setting Destination......................... 107 4.8 System..............................112 4.8.1 General.............................112 4.8.2 Date &...
Page 10 Operation Manual 5.9.2 Rule Configuration........................168 5.10 Setting Face Recognition........................ 171 5.10.1 Setting Face Detection......................171 5.10.2 Setting Face Database......................174 5.10.3 Setting Face Recognition Alarm Linkage................183 5.10.4 Viewing Face Recognition Result..................183 5.11 Setting Face Detection........................186 5.12 Setting People Counting.........................188 5.12.1 People Counting........................188 5.12.2 Calibration Configuration....................
Page 11 Operation Manual 6 Maintenance..............................226 6.1 Requirements.............................226 6.2 Auto Maintain............................ 226 6.3 Resetting Password........................... 227 6.4 Backup and Default........................... 229 6.4.1 Import/Export..........................229 6.4.2 Default............................229 6.5 Upgrade..............................230 6.6 Information............................231 6.6.1 Version............................. 231 6.6.2 Log............................231 6.6.3 Remote Log..........................232 6.6.4 Online User..........................233 Appendix 1 Cybersecurity Recommendations...................
Page 12: Overview
Operation Manual 1 Overview 1.1 Introduction IP camera (Internet Protocol camera), is a type of digital video camera that receives control data and sends image data through internet. They are commonly used for surveillance, requiring no local recording device, but only a local area network. IP camera is divided into single-channel camera and multi-channel camera according to the channel quantity.
Page 13: Intelligent Function
Operation Manual Record Auto record as schedule. ● Play back recorded video and picture as needed. ● Download recorded video and picture. ● Alarm linked recording. ● Account Add, modify and delete user group, and manage user authorities according to user group. ●...
Page 14 Operation Manual Tripwire, intrusion, abandoned object, moving object, fast moving, parking detection, people ● gathering, and loitering detection. When an alarm is triggered, the system performs linkages such as recording, alarm output, ● sending email, and snapshot. Crowd Map View crowd distribution in real time for the timely arm to avoid accidents like stampede. ●...
Page 15 Operation Manual Stereo Analysis Include Activation Analysis, Back Detection, Fall Detection, Walking Detection, Blackboard ● Writing Detection, Violence Detection, People No. Error, Stand Detection, Running Detection, People Approaching Detection, and Strand Detection. When an alarm is triggered, the system performs linkages such as recording, alarm output, ●...
Page 16: Configuration Flow
Operation Manual 2 Configuration Flow Figure 2-1 Configuration flow Table 2-1 Description of flow Configuration Description Reference Open IE browser and enter IP address to log in to the web page, The Login "4.1 Login" camera IP address is 192.168.1.108 by default.
Page 17: Device Initialization
Operation Manual 3 Device Initialization Device initialization is required for the first use. This manual is based on the operation on the web page. You can also initialize device through ConfigTool, NVR, or platform devices. To ensure the device safety, keep the password properly after initialization and change the ●...
Page 18 Operation Manual Step 3 Click Save. Figure 3-2 End-user license agreement Select the I have read and agree to all terms checkbox, and then click Next. Step 4 Figure 3-3 Easy4ip Step 5 You can register the camera to Easy4ip, select the checkbox as needed, and then click Next.
Page 19 Operation Manual Figure 3-4 Online upgrade Step 6 Select the upgrading method as needed. If you select Auto-check for updates , the system checks new version once a day automatically. There will be system notice on Upgrade page and Version page if any new version is available.
Page 20: Basic Configuration
Operation Manual 4 Basic Configuration The chapter introduces the basic configuration, including login, live view, PTZ operation, playback, camera configuration, network configuration, storage configuration and system configuration. 4.1 Login This section introduces how to log in to and log out of the web page. This section takes IE Explorer 9 as an example.
Page 21: Live
Operation Manual Figure 4-2 Live Related Operations Product material: Click Product Material, the system will pop up thr QR code. Scan the QR code ● to check the materials. Live: Click Live to view the real-time monitoring image. ● Playback: Click Playback to play back or download recorded video or image files. ●...
Page 22: Encode Bar
Operation Manual Figure 4-3 Live Table 4-1 Description of function bar Function Description Encode bar Sets stream type and protocol. Live view Displays the real-time monitoring image. Live view function bar Functions and operations in live viewing. Window adjustment bar Adjustment operations in live viewing.
Page 23: Live View Function Bar
Operation Manual 4.2.3 Live View Function Bar Table 4-2 Description of live view function bar Icon Function Description Manually position the tracking speed dome to the selected location of corresponding panoramic camera. Click the icon and click or select randomly on the image of panoramic camera channel, the tracking speed dome will automatically position the selected location.
Page 24 Operation Manual Icon Function Description Click the icon, and select an area on the live image, the camera will automatically count the Vehicle Density number of the vehicles in the selected area, and display the number on the Live page. Displays alarm output state.
Page 25: Window Adjustment Bar
Operation Manual Icon Function Description Click the icon to record video, and it will be saved to the configured storage path. Record About viewing or configuring storage path, see "4.5.2.5 Path". Click the icon, the AF Peak (focus eigenvalue) and AF Max (max focus eigenvalue) are displayed on the video image.
Page 26 Operation Manual Table 4-3 Description of adjustment bar Icon Function Description Click the icon, and then the Image Adjustment page is displayed at the right side of the Live page. You can adjust brightness, contrast, hue, and saturation. The adjustment is only available on the web page, and it does not adjust the camera parameters.
Page 27 Operation Manual Icon Function Description Click the icon, and then select Enable to display smart rules and detection box; Rule Info select Disable to stop the display. It is enabled by default. Click the icon, and the PTZ control panel is displayed at the right side of the Live page.
Page 28 Operation Manual Icon Function Description Click the icon and select the Enable checkbox. The Crowd Map page is Crowd Map displayed. For details, see "5.9 Setting Crowd Map". 4.2.4.2 Zoom and Focus You can adjust focal length to zoom in or out video image and the image clarity. The focus would adjust automatically after zooming in or out.
Page 29 Operation Manual Parameter Description Adjusts image clarity automatically. Auto Focus Do not make any other operation during auto focus process. Restores focus to default value and corrects errors. Restore All You can restore the focus if the image has poor clarity or has been zoomed too frequently.
Page 30 Operation Manual Figure 4-6 Fisheye Table 4-5 Description of fisheye configuration Parameter Description Installation mode Includes ceiling mount, wall mount, and ground mount.
Page 31 Operation Manual Parameter Description The display mode of the current image. There are different display modes for each installation mode. Ceiling: 1P+1, 2P, 1+2, 1+3, 1+4, 1P+6, 1+8. ● Wall: 1P, 1P+3, 1P+4, 1P+8. ● Display mode Ground: 1P+1, 2P, 1+3, 1+4, 1P+6, 1+8. ●...
Page 32 Operation Manual Parameter Description Original image screen + four independent sub- screens. You can zoom or drag the image in all the ● screens. You can rotate the image on the original ● image screen to change the start point. 360°...
Page 33: Ptz Operation
Operation Manual Parameter Description Drag or cross the screen 360° to unfold the distortion panorama, and you can drag the image in left/right direction. Panorama You can drag the image in upper/lower/left/ ● right direction. Press I to display the panorama, and press O to resume the original size.
Page 34: Configuring Ptz Function
Operation Manual Figure 4-7 PTZ setting Step 2 Select the PTZ protocol. Step 3 Click Save. 4.3.2 Configuring PTZ Function 4.3.2.1 Preset Preset means a certain position that the camera can make quick orientation to. It includes PTZ pan and tilt angles, camera focus, and location. Procedure Step 1 Select Setting >...
Page 35 Operation Manual Related Operations Click to delete the preset. ● Click Remove All to remove all presets. ● 4.3.2.2 Tour Tour means a series of movements that the camera makes along several presets. Prerequisites You have set several presets. Procedure Step 1 Select Setting >...
Page 36 Operation Manual If you operate PTZ during tour, the camera will stop tour. ● Click Stop to stop touring. ● 4.3.2.3 Scan Scan means the camera moves horizontally at a certain speed between the configured left and right limits. Procedure Select Setting >...
Page 37 Operation Manual Figure 4-11 Pattern Step 2 Select the pattern number. Step 3 Click Setup , and then click Start Rec. Adjust the parameters of direction, zoom, focus and iris according to the actual situation. Click Stop Rec to stop recording. Step 4 Step 5 Click Start to start patterning.
Page 38 Operation Manual Figure 4-12 Pan Set the pan speed and click Start, and the camera starts horizontal rotation. Step 2 Click Stop to stop rotation. 4.3.2.6 PTZ Speed PTZ speed means the rotation speed of the PTZ camera during touring, pattern, or auto tracking. Procedure Select Setting >...
Page 39 Operation Manual Figure 4-13 PTZ speed Select the PTZ speed: Low , Middle, and High. Step 2 Speed under the direction buttons refers to the rotation angle of the PTZ camera for each press of the direction button. 4.3.2.7 Idle Motion Idle motion means that the PTZ camera implements the operation which is configured in advance when it does not receive any valid command within the set time.
Page 40 Operation Manual Figure 4-14 Idle motion Select the Enable check box to enable the idle motion function. Step 2 Step 3 Select the idle motion and set the idle time. You need to select the corresponding number for some selected idle motions, such as Preset001.
Page 41 Operation Manual Figure 4-15 PowerUp Select the Enable check box to enable the power up function. Step 2 Step 3 Select the power up motion. When you select Auto, the system will perform the last motion that is executed for more than 20 s before power-off.
Page 42 Operation Manual Figure 4-16 PTZ limit Adjust the direction buttons, and then click Setting ① to set the up line; click Setting② Step 2 to set the down line. Click Live to view the configured up line and down line. Select the Enable check box to enable the PTZ limit function.
Page 43 Operation Manual Figure 4-17 Time task Select the Enable check box to enable time task function. Step 2 Step 3 Select the time task number. Step 4 Select the time task action. You need to select the corresponding action number for some selected time task actions. Set the auto home time in AutoHome.
Page 44 Operation Manual Figure 4-18 PTZ restart Click PTZ Restart to restart PTZ. Step 2 4.3.2.12 Default Be careful when doing this operation. It will restore the camera to default configuration, and result in data loss. Procedure Select Setting > PTZ settings > Function > Default. Step 1...
Page 45: Calling Ptz
Operation Manual Figure 4-19 Default Step 2 Click Default and the PTZ function is restored to default. 4.3.3 Calling PTZ Click on Live page, and the PTZ configuration panel is displayed. You can control PTZ and call PTZ function. 4.3.3.1 PTZ Control You can rotate device, zoom image, and adjust iris through PTZ control or virtual joystick.
Page 46 Operation Manual Figure 4-20 PTZ control Figure 4-21 Joystick : Rotate PTZ direction through direction button. PTZ supports eight directions: left/ ● right/up/down/upper left/upper right/bottom left/bottom right. Click , and draw a box in the image, PTZ will rotate, focus and quickly position the defined scene. : Rotate PTZ direction through joystick.
Page 47 Operation Manual Zoom, focus and iris: Click to adjust zoom, focus and iris. ● 4.3.3.2 PTZ Function Select the PTZ function from the drop-down list to call the corresponding functions, including Scan, Preset, Tour, Pattern, Pan, Go to, Assistant and Light Wiper. See Figure 4-22 . For details, see Table 4-6 .
Page 48: Playback
Operation Manual 4.4 Playback This section introduces playback related functions and operations, including video playback and picture playback. Before playing back video, configure record time range, record storage method, record schedule ● and record control. For details, see "5.1.1.2.1 Setting Record Plan". Before playing back picture, configure snapshot time range, snapshot storage method, snapshot ●...
Page 49 Operation Manual Figure 4-24 Picture playback Table 4-7 Playback page description Function Description Click , you can select display mode according to the installation mode during playback. Fisheye This function is only available on fisheye cameras. Click , intelligent rules and object detection box are displayed.
Page 50 Operation Manual Function Description Controls playback. : Click the icon to play back recorded ● videos. : Click the icon to stop playing back ● recorded videos. Play control bar : Click the icon to play the next frame. ● : Click the icon to slow down the ●...
Page 51: Playing Back Video Or Picture
Operation Manual 4.4.2 Playing back Video or Picture This section introduces the operation of video playback and picture playback. This section takes video playback as an example. Procedure Step 1 Select dav from the Record Type drop-down list and SD card from the Data Src drop- down list.
Page 52 Operation Manual Figure 4-27 Specific event types Step 3 Select the month and year of the video that you want to play. Those dates with blue color indicate there were videos recorded in those days. Step 4 Play video. Click in the control bar.
Page 53: Clipping Video
Operation Manual Figure 4-29 Playback file list 4.4.3 Clipping Video Procedure Step 1 Click , the video files of the selected date are listed. Select dav or mp4 in Download Format. Step 2 Step 3 Click on the progress bar to select the start time of the target video, and then click Figure 4-30 Clipping video...
Page 54: Downloading Video Or Picture
Operation Manual Step 4 Click again on the progress bar to select the end time of the target video, and then click Step 5 Click to download the video. The system will prompt that it cannot play back and download at the same time. Click OK.
Page 55: Camera
Operation Manual Figure 4-31 Batch download Select the record type, set the start time and end time, and then click Search. Step 2 The searched files are listed. Select the files to be downloaded, select dav or mp4 from the Format drop-down list, Step 3 and then set the storage path.
Page 56 Operation Manual After switching to flowing light, the mode in the exposure menu is automatically set to manual. The shutter time is adaptive, working at a maximum speed of 333 ms. By default the backlight is off. The wide dynamic effect starts or not can be determined by identifying the overexposure in the picture.
Page 57 Operation Manual Figure 4-33 Camera conditions (PTZ camera) 4.5.1.1.2 Picture You can configure picture parameters as needed. Procedure Select Setting > Camera > Conditions > Conditions > Picture. Step 1...
Page 58 Operation Manual Figure 4-34 Picture Step 2 Configure picture parameters. Table 4-8 Description of picture parameters Parameter Description Select the picture style from soft, standard and vivid. Soft: Default image style, displays the actual color of the image. ● Style Standard: The hue of the image is weaker than the actual one, and ●...
Page 59 Operation Manual Parameter Description Select On, and the picture would display with left and right side Mirror reversed. Changes the display direction of the picture, see the options below. 0°: Normal display. ● 90°: The picture rotates 90° clockwise. ● 180°: The picture rotates 90°...
Page 60 Operation Manual Table 4-9 Description of exposure parameters Parameter Description You can select from 50 Hz, 60 Hz and Outdoor. 50 Hz: When the electric supply is 50 Hz, the system adjusts the ● exposure according to ambient light automatically to ensure that there is no stripe appears.
Page 61 Operation Manual Parameter Description This configuration is available only when the camera is equipped with auto-iris lens. When auto iris is enabled, the iris size changes automatically ● Auto Iris according to the ambient lighting condition, and the image brightness changes accordingly. When auto iris is disabled, the iris stays at full size and does not ●...
Page 62 Operation Manual Backlight Mode Description Enable BLC, the camera can get clearer image of the dark areas on the target when shooting against light. You can select Default mode or Customized mode. When in Default mode, the system adjusts exposure according to ●...
Page 63 Operation Manual Table 4-11 Description of WB parameters WB mode Description The system compensates WB according to color temperature to ensure Auto color precision. The system auto compensates WB to environments without artificial light Natural to ensure color precision. The system compensates WB to outdoor night scene to ensure color Street Lamp precision.
Page 64 Operation Manual Table 4-12 Description of day and night parameters Parameter Description You can select device display mode from Color , Auto, and B/W. Day & Night configuration is independent from profile management configuration. Mode Color : The system displays color image. ●...
Page 65 Operation Manual Table 4-13 Description of zoom and focus parameters Parameter Description Select On to enable digital zoom function. Digital Zoom After the optical zoom reached the upper limit, enable digital zoom function, you still can do digital zoom operation. Adjusts zoom speed.
Page 66 Operation Manual Warm Light Mode : The system will link the warm light in the dark environment. ● Brightness Upper Limit: Set the brightness upper limit to adjust the image. Smart Illumination : The system will link IR light in the dark environment. If the ●...
Page 67 Operation Manual When the ambient light turns darker, the system turns on the low beam lights first, if the brightness is still not enough, it turns on the high beam lights then. When the ambient light turns brighter, the system dims high beam lights until they are off, and then the low beam lights.
Page 68 Operation Manual 4.5.1.1.10 Fisheye Select install mode and record mode according to the actual installation scene. When the camera accesses the platform with corrective stream, the platform displays the corrective image. This function is only available on fisheye device. Procedure Select Setting >...
Page 69 Operation Manual 4.5.1.1.11 Image Correction Enable the image correction function to correct some bent objects (such as roads) in the image of panoramic splicing cameras, but it will influence the field of view. Figure 4-45 Image correction If the camera has multiple sensors, the image correction function will only be displayed when ●...
Page 70 Operation Manual Table 4-16 Description of floodlight settings parameters Parameter Description Change the value to adjust the floodlight brightness. The higher Brightness the value is, the brighter the floodlight will be. Color Temperature You can adjust cool or warm color temperature here. Floodlight detection modes.
Page 71 Operation Manual The Profile Management page is displayed. Step 2 Manage profile. When Profile Management is set as General, the surveillance system works under ● General configuration. Figure 4-48 General When Profile Management is set as Full Time, you can select Day or Night in the ●...
Page 72 Operation Manual Figure 4-51 Day/Night Click Save. Step 3 4.5.1.3 Zoom and Focus You can adjust image clarity through auto or manual focus; and adjust the image size through zoom. For details, see "4.2.4.2 Zoom and Focus". 4.5.1.4 Splicing When the panorama contains multiple images captured by different lenses, enable this function. Before splicing, make sure that the surveillance scene is large and there are no objects blocking the camera from taking a clear picture, otherwise, the splicing might fail.
Page 73: Setting Video Parameters
Operation Manual Some cameras restart automatically after splicing is complete, You can view the results ● of the splicing in the Live window. Some cameras display splicing live window after splicing is complete. Click OK , and ● then the default window appears. Click OK and the splicing will take effect. 4.5.2 Setting Video Parameters This section introduces video parameters, such as video, snapshot, overlay, ROI (region of interest), and path.
Page 74 Operation Manual Table 4-17 Description of video parameters Parameter Description Select the Enable check box to enable sub stream. It is enabled by default. Enable You can enable multiple sub streams simultaneously. ● When the device enables image correction, intelligent event and sub ●...
Page 75 Operation Manual Parameter Description This function is available only for sub stream 2 of some select models. Main stream ● next to Resolution. 1. Select the resolution as needed, and click 2. Clip the image on the Area page, and then click Save. Video Clip View the clipped video on Live page.
Page 76 Operation Manual Parameter Description This parameter can be configured only when Encoding Strategy is set as General or AI Codec. The number of P frames between two I frames. The smaller the value, the higher the image quality, and the range changes as Frame Rate(FPS) I Frame Interval changes.
Page 77 Operation Manual Table 4-18 Description of snapshot parameter Parameter Description You can select General and Event. General : The system takes snapshot as scheduled. For details, see ● "4.7.2 Setting Schedule". Snapshot Type Event : The system takes snapshot when the video detection, ●...
Page 78 Operation Manual Figure 4-55 Privacy masking (1) 2. Configure privacy masking. PTZ dome ● a. Select the SN. b. Adjust the live image to the proper location through PTZ, select the color, and then click Draw. Press the mouse button to draw rectangles. The configuration takes effect immediately.
Page 79 Operation Manual Procedure 1. Select Setting > Camera > Video > Overlay > Privacy Masking. 2. Select Enable. 3. Click Add, select the masking type, and then draw blocks in image as needed. Figure 4-57 Privacy masking (2) Related Operations View and edit the block ●...
Page 80 Operation Manual Figure 4-58 Channel title Select the Enable check box, enter the channel title, and then select the text align. Step 2 Click to expand the channel title, and you can expand 1 line at most. Step 3 Move the title box to the position that you want in the image. Step 4 Click Save.
Page 81 Operation Manual Figure 4-59 Time title Step 2 Select the Enable check box. Select the Week Display check box. Step 3 Step 4 Move the time box to the position that you want in the image. Step 5 Click Save. 4.5.2.3.4 Configuring Text Overlay You can enable this function if you need to display text in the video image.
Page 82 Operation Manual Figure 4-60 Text overlay Step 2 Select the Enable check box, enter the text you need, and then select alignment. The text is displayed in the video image. Click to expand the text overlay, and you can expand 9 lines at most. Step 3 Move the text box to the position that you want in the image.
Page 83 Operation Manual Figure 4-61 Font attribute Step 2 Select the font color and size. Click More Color to customize the font color. Click Save. Step 3 4.5.2.3.6 Configuring Picture Overlay You can enable this function if you need to display picture information on the video image. Text overlay and picture overlay cannot work at the same time.
Page 84 Operation Manual Select the Enable check box, click Upload Picture, and then select the picture to be Step 2 overlaid. The picture is displayed on the video image. Step 3 Move the overlaid picture to the position that you want in the image. Click Save.
Page 85 Operation Manual Figure 4-64 OSD information Step 2 Configure OSD information. Table 4-19 Description of OSD information Parameter Description Select Enable, and the preset name is displayed in the image when the Preset camera turns to the preset, and it will disappear 3 s later. Select Enable and the internal temperature of the current device is Temperature displayed.
Page 86 Operation Manual Procedure Select Setting > Camera > Video > Overlay > Counting. Step 1 Figure 4-65 Counting Select the Enable check box, and then configure counting method and alignment. Step 2 Step 3 Move the counting box to the position that you want in the image. Click Save.
Page 87 Operation Manual Step 3 Move the structured statistics box to the position that you want in the image. Click Save. Step 4 4.5.2.3.11 Configuring GPS Position The image displays GPS position. When the overlay function enabled during intelligent rules configuration, this function is enabled simultaneously. Procedure Select Setting >...
Page 88 Operation Manual Figure 4-68 Ranging Select the Enable check box, and then set the installation height and time display. Step 2 Time display: The display time of the ranging information on live image. Click Save. Step 3 4.5.2.3.13 Configuring ANPR The image displays ANPR statistics information.
Page 89 Operation Manual Select the Enable check box, select the statistics type, and then select text align. Step 2 Step 3 Move the ANPR box to the position that you want in the image. Step 4 Click Save. 4.5.2.3.14 Configuring Face Statistics The image displays face statistics information.
Page 90 Operation Manual Figure 4-71 ROI Select the Enable check box, draw the area on the image, and then configure the image Step 2 quality of ROI. You can draw four area boxes at most. ● The higher the image quality value is, the better the quality will be. ●...
Page 91: Audio
Operation Manual Figure 4-72 Path Click Browse to select the storage path for live snapshot, live record, playback snapshot, Step 2 playback download, and video clips. Table 4-20 Description of path Parameter Description The snapshot of live page. Live Snapshot The default path is C:\Users\admin \WebDownload\LiveSnapshot.
Page 92 Operation Manual Figure 4-73 Audio Select the Enable check box in Main Stream or Sub Stream. Step 2 For the camera with multiple channels, select the channel number. Please activate or deactivate the audio acquisition function based on the requirements of the scene.
Page 93: Network
Operation Manual 4.5.3.2 Configuring Alarm Audio You can record or upload alarm audio file. The audio file will be played when the alarm is triggered. Click to play the selected audio. ● Click to download the audio to local storage. ●...
Page 94: Tcp/Ip
Operation Manual 4.6.1 TCP/IP You can configure IP address and DNS (Domain Name System) server and so on according to network planning. Prerequisites The camera has connected to the network. Procedure Select Setting > Network > TCP/IP. Step 1 Figure 4-76 TCP/IP Step 2 Configure TCP/IP parameters.
Page 95 Operation Manual Parameter Description The mode that the camera gets IP: Static ● Configure IP Address , Subnet Mask, and Default Gateway manually, and then click Save, the login page with the configured Mode IP address is displayed. DHCP ● When there is DHCP server in the network, select DHCP, and the camera acquires IP address automatically.
Page 96: Port
Operation Manual Parameter Description Select the check box, get the camera MAC address, and then you can modify and configure the device IP address with ARP/ping command. This is enabled by default. During reboot, you will have no more than 2 minutes to configure the device IP address by a ping packet with certain length, the server will be turned off in 2 minutes, or it will be turned off immediately after the IP address is successfully configured.
Page 97 Operation Manual Figure 4-77 Port Step 2 Configure port parameters. 0–1024, 1900, 3800, 5000, 5050, 9999, 37776, 37780–37880, 39999, 42323 are ● occupied for specific uses. Do not use the same value of any other port during port configuration. ● Table 4-23 Description of port parameters Parameter Description...
Page 98: Pppoe
Operation Manual Parameter Description Real time streaming protocol port, and the value is 554 by default. ● If you play live view with QuickTime, VLC or Blackberry smart phone, the following URL format is available. When the URL format requiring RTSP, you need to specify channel ●...
Page 99: Ddns
Operation Manual Procedure Select Setting > Network > PPPoE. Step 1 Figure 4-78 PPPoE Select the Enable check box, and then enter user name and password. Step 2 Disable UPnP while using PPPoE to avoid possible influence. ● After making PPPoE connection, the device IP address cannot be modified through ●...
Page 100: Smtp (Email)
Operation Manual Figure 4-79 DDNS Select Type, and configure the parameters as needed. Step 2 Table 4-24 Description of DDNS parameters Parameter Description Type The name and web address of the DDNS service provider, see the matching relationship below: CN99 DDNS web address: www.3322.org ●...
Page 101 Operation Manual Figure 4-80 SMTP (Email) Step 2 Configure SMTP (Email) parameters. Table 4-25 Description of SMTP (Email) parameters Parameter Description SMTP Server SMTP server address Port The port number of the SMTP server. Username The account of SMTP server. For details, see Table 4-26 .
Page 102 Operation Manual Parameter Description Enter maximum 63 characters in Chinese, English, and Arabic numerals. Title Click to select title type, including Name , Device ID, and Event Type, and you can set maximum 2 titles. Attachment Select the check box to support attachment in the email. Mail Receiver Receiver’s email address.
Page 103: Upnp
Operation Manual Authenticatio Mailbox SMTP server Port Description You need to enable SMTP service in ● your mailbox. The authentication code is required; ● the email password is not applicable. Authentication code: the code you receive when enabling SMTP service. You need to enable SMTP service in ●...
Page 104: Snmp
Operation Manual Figure 4-81 UPnP Select the Enable check box, and there are two mapping modes: Custom and Default. Step 2 Select Custom, click and then you can modify external port as needed. ● Select Default, and then the system finishes mapping with unoccupied port ●...
Page 105 Operation Manual Figure 4-82 SNMP (1) Figure 4-83 SNMP (2)
Page 106 Operation Manual Step 2 Select SNMP version to enable SNMP. Select V1, and the system can only process information of V1 version. ● Select V2, and the system can only process information of V2 version. ● Select V3 , and then V1 and V2 become unavailable. You can configure user name, ●...
Page 107: Bonjour
Operation Manual 2. Compile the two MIB files with MIB Builder. 3. Load the generated modules with MG-SOFT MIB Browser. 4. Enter the IP address of the device you need to manage in the MG-SOFT MIB Browser, and then select version to search. 5.
Page 108 Operation Manual Figure 4-85 Multicast Select the Enable check box, and enter IP address and port number. Step 2 Table 4-28 Description of multicast parameters Parameter Description The multicast IP address of Main Stream /Sub Stream is 224.1.2.4 Multicast Address by default, and the range is 224.0.0.0–239.255.255.255.
Page 109: Qos
Operation Manual Parameter Description Username The user name that was authenticated on the server. Password Corresponding password. Click Save. Step 3 4.6.11 QoS You can solve problems such as network delay and congestion with this function. It helps to assure bandwidth, reduce transmission delay, packet loss rate, and delay jitter to improve experience.
Page 110 Operation Manual Figure 4-88 Dialing setting Table 4-31 Dialing setting parameters Parameter Description Wireless Net Type Select the wireless net type according to the carrier. Acquired from the carrier. Authorize Mode Select the authorize mode according to different carriers. The numbers are different according to different carriers, and it Dial-up Number can be acquired from the carrier.
Page 111 Operation Manual Parameter Description You can check whether the device is offline using Ping , P2P and Auto Register. When using Ping, please enter the keep-alive address. Offline Detection ● When the device is offline, the 4G module will continue to ●...
Page 112: 101
Operation Manual Figure 4-89 Mobile setting 4.6.13 5G 5G configuration includes dialing configuration and mobile configuration. Install SIM card (Subscriber Identification Module) to the camera, and connect it to 5G network through dialing configuration and mobile configuration. Dialing configuration: Connect the camera to 5G network in a specific period. ●...
Page 113 Operation Manual Figure 4-90 Dialing setting Table 4-32 Dialing setting parameters Parameter Description Wireless Net Type Select the wireless net type according to the carrier. Acquired from the carrier. Authentication Mode Select the authentication mode according to different carriers. The numbers are different according to different carriers, and it Dial-up Number can be acquired from the carrier.
Page 114 Operation Manual Click Save. Step 3 4.6.13.2 Mobile Settings Configure the mobile phone, and all alarm messages support sending messages to the configured receiver. After receiving a message, the receiver can wake up the camera and connect it to 5G network through message or call.
Page 115: Access Platform
Operation Manual 4.6.14 Access Platform 4.6.14.1 P2P P2P is a private network traversal technology which enables users to manage devices easily without requiring DDNS, port mapping or transit server. Scan the QR code with your smart phone, and then you can add and manage more devices on the mobile phone client.
Page 116 Operation Manual Procedure Select Setting > Network > Port > ONVIF. Step 1 Figure 4-93 ONVIF Select On in Authentication. Step 2 Click Save. Step 3 4.6.14.3 RTMP Through RTMP, you can access the third-party platform (such as Ali and YouTube) to realize video live view.
Page 117: Storage
Operation Manual Step 3 Configure RTMP parameters. Table 4-33 Description of RTMP parameters Parameter Description The stream for live view. Make sure that the video format is the H. Stream Type 264, H.264 B and H.264H, and the audio format is AAC. Includes Non-custom and Custom.
Page 118: Setting Destination
Operation Manual Figure 4-95 Holiday schedule Step 2 Select Record or Snapshot. Step 3 Select the days you need to set as holiday. Those days with yellow color indicate that they were set as holidays. When holiday schedule setting is not the same as the general setting, holiday schedule setting is prior to the general setting.
Page 119 Operation Manual Procedure Select Setting > Storage > Destination > Path. Step 1 Figure 4-96 Path Step 2 Select the storage method that you need for the recorded videos and snapshots of different types. Table 4-34 Description of path parameters Parameter Description Select from Scheduled , Motion Detection and Alarm.
Page 120 Operation Manual 4.7.3.3 FTP FTP can be enabled only when it was selected as a destination path. When the network does not work, you can save all the files to the internal SD card for emergency. Procedure Select Setting > Storage > Destination > FTP. Step 1 Select the Enable check box, and select the FTP type.
Page 121 Operation Manual Figure 4-98 Picture name settings Table 4-35 Description of FTP parameters Parameter Description Server Address The IP address of the FTP server. Port The port number of the FTP server. Username The username to log in to the FTP server. Password The password to log in to the FTP server.
Page 122 Operation Manual Parameter Description Click Setting to set picture name. Date&Time is required, and it is selected by default. ● Select the other fields of the name, and the corresponding ● instruction will be displayed on the screen. Double-click the symbols under Separator, you can customize ●...
Page 123: System
Operation Manual Parameter Description Username When selecting SMB protocol, you are required to enter user name and password. Enter them as needed. Password Remote Directory The destination path in the NAS server. Step 4 Click Save. 4.8 System This section introduces system configurations, including general, date & time, account, safety, PTZ settings, default, import/export, remote, auto maintain and upgrade.
Page 124: Date & Time
Operation Manual Parameter Description Select On or Off. This function is available on models with analog output. TVOut If the TV out is On , smart plans will be disabled; if the smart plans ● are enabled, the TV out will be set as Off. SDI and HDCVI are available on select models.
Page 125: Account
Operation Manual Table 4-38 Description of date and time parameters Parameter Description Date Format Configure the date format. Configure the time format. You can select from 12-Hour or 24-Hour. Time Format Time Zone Configure the time zone that the camera is at. Configure system time.
Page 126 Operation Manual 4.8.3.1 Adding a User You are admin user by default. You can add users, and configure different authorities. Procedure Select Setting > System > Account > Account > Username. Step 1 Figure 4-102 Username Step 2 Click Add User.
Page 127 Operation Manual Figure 4-103 Add user (operation permission)
Page 128 Operation Manual Figure 4-104 Add user (restricted login) Step 3 Configure user parameters. Table 4-39 Description of user parameters (1) Parameter Description User’s unique identification. You cannot use existed user Username name. Password Enter password and confirm it again. The password must consist of 8 to 32 non-blank characters and contain at least two types of characters among upper Confirm Password case, lower case, number, and special character (excluding '...
Page 129 Operation Manual Parameter Description Memo Describe the user. Select authorities as needed. Operation Permission We recommend you give fewer authorities to normal users than advance users. Set the PC address that allows the defined user to log in to the camera and the validity period and time range. You can log in to web with the defined IP in the defined time range of validity period.
Page 130 Operation Manual Figure 4-105 Change password through old password (login with non-admin account) Admin Account : Change the password through entering the admin password, and then the new password for the non-admin account to be changed. Figure 4-106 Change password through admin password (login with admin account) Delete users ●...
Page 131 Operation Manual View the authorities ● If the current account has with the permission of user management, click to view the login authorities of other accounts. If not, you can only view the login authorities of the current account. 4.8.3.2 Adding User Group You have two groups named admin and user by default, and you can add new group, delete added group or modify group authority and memo.
Page 132 Operation Manual Step 3 Enter the group name and memo, and then select group authorities. The default authorities of Admin group include live, playback, storage, file backup, user, system, system info, manual control, maintenance, peripheral, PTZ, security, network, event and AV parameters; the default authorities of User group include live and playback. Table 4-40 Description of user group parameters Group Authority Admin...
Page 133 Operation Manual Step 4 Click Save to finish configuration. The newly added group displays in the group name list. After adding group, click to modify group memo or authorities; click to delete ● the added group, admin group and user group cannot be deleted. Click in the row of admin group or user group to modify group memo.
Page 134 Operation Manual Table 4-41 Description of user parameters Parameter Description Username User’s unique identification. You cannot use existed user name. Password Enter password and confirm it again. The password must consist of 8 to 32 non-blank characters and contain Confirm Password at least two types of characters among upper case, lower case, number, and special character (excluding ' "...
Page 135 Operation Manual Figure 4-111 Change password through old password (login with non-admin account) Admin Account : Change the password through entering the admin password, and then the new password for the non-admin account to be changed. Figure 4-112 Change password through admin password (login with admin account) Delete users ●...
Page 136: Safety
Operation Manual View the authorities ● If the current account has the permission of user management, click to view the login authorities of other accounts. If not, you can only view the login authorities of the current account. 4.8.4 Safety You can configure system service, HTTPS, and firewall.
Page 137 Operation Manual Function Description Enable this function, and then other devices can access through CGI Service this service. Enable this function, and then other devices can access through Onvif Service this service. Enable this function, and then other devices can access through Genetec Service this service.
Page 138 Operation Manual Figure 4-115 HTTPS dialog box For uploading the authenticated certificate, click Browse to select the certificate and ● certificate key, click Upload to upload them, and then skip to Step 5 . Enter the required information and then click Create. Step 3 The entered IP or Domain name must be the same as the IP or domain name of the device.
Page 139 Operation Manual Figure 4-117 File download Step 7 Click Open. Figure 4-118 Certificate information Step 8 Click Install Certificate.
Page 140 Operation Manual Figure 4-119 Certificate import wizard (1) Click Next. Step 9 Figure 4-120 Certificate store Step 10 Select the storage location and click Next.
Page 141 Operation Manual Figure 4-121 Certificate import wizard (2) Step 11 Click Finish and a dialog box showing The import was successful pops up. Figure 4-122 Import succeeds 4.8.4.3 Firewall Configure Network Access , PING prohibited and Prevent Semijoin to enhance network and data security.
Page 142 Operation Manual You cannot set allowlist or blocklist for port MAC addresses. ● When the IP addresses of the camera and your PC are in the same LAN, MAC verification takes ● effect. When you access the camera through internet, the camera verifies the MAC address according ●...
Page 143: Peripheral
Operation Manual Figure 4-124 Add IP/MAC Step 3 Configure parameters. Table 4-43 Description of adding IP/MAC parameters Parameter Description Select IP address, IP segment, MAC address or all IP addresses. IP address: Select IP version and enter the IP address of the host to be ●...
Page 144 Operation Manual Figure 4-125 Serial port settings Step 2 Configure serial port settings parameters. Table 4-44 Description of serial port settings parameters Parameter Description The corresponding device address. It is 1 by default. Address Make sure that the address is the device address; otherwise you cannot control the device.
Page 145 Operation Manual Figure 4-126 External light Step 2 Configure external light work mode. Table 4-45 Description of external light parameters Parameter Description Off : Turn off the external light. ● Manual : Set the light brightness manually. ● Work Mode Auto : The camera turns on or turns off the light according to the ●...
Page 146 Operation Manual Figure 4-127 Wiper Step 2 Configure wiper work mode. Table 4-46 Description of wiper parameters Parameter Description The interval time between stop mode and start mode. For example, set Interval Time the time to10 s, and the wiper will work every 10 s. Start Set the work status of the wiper.
Page 147: Event
Operation Manual 5 Event This chapter introduces intelligent event settings, including smart track, panoramic calibration, video detection, audio detection, smart plan, IVS, face detection, face recognition, people counting, heat map, video Metadata, alarm, and abnormality. 5.1 Setting Alarm Linkage 5.1.1 Alarm Linkage When configuring alarm events, select alarm linkages (such as record, snapshot).
Page 148 Operation Manual Figure 5-1 Alarm linkage 5.1.1.1 Setting Period Set arming periods. The system only performs corresponding linkage action in the configured period. Procedure Click Setting next to Period. Step 1...
Page 149 Operation Manual Figure 5-2 Period Step 2 Set arming periods. Alarms will be triggered in the time period in green on the timeline. Method 1: Directly press and drag the left mouse button on the timeline. ● Method 2: Enter an actual time period. ●...
Page 150 Operation Manual Procedure Select Setting > Storage > Schedule > Record. Step 1 Figure 5-3 Record Step 2 Set record plan. Green represents normal record plan (such as timing recording); yellow represents motion record plan (such as recording triggered by intelligent events); red represents alarm record plan (such as recording triggered by alarm-in).
Page 151 5.1.1.2.2 Setting Record Control Set parameters such as pack duration, pre-event record, disk full, record mode, and record stream. Make sure that the SD card is authenticated before recording if you use Dahua smart card. For details, see "4.5.2.5 Path".
Page 152 Operation Manual After Record Delay is configured, alarm recording continues for an extended period after the alarm ends. Figure 5-6 Record linkage 5.1.1.3 Snapshot Linkage After snapshot linkage is configured, the system can automatically alarm and take snapshots when an alarm is triggered. After Motion is enabled in Snapshot, the system takes snapshots when an alarm is triggered.
Page 153 Operation Manual Figure 5-8 Setting (snapshot time period) 2. Select a day, and the alarm type next to a period. Then set the period. Select All or check boxes of some days to set the time period of multiple days at one time.
Page 154 Operation Manual Figure 5-11 Email linkage 5.1.1.6 PTZ Linkage When an alarm is triggered, the system links PTZ to do some operations. For example, the system links PTZ to rotate to the preset X. Figure 5-12 PTZ linkage 5.1.1.7 Warning Light Linkage When an alarm is triggered, the system can automatically enable the warning light.
Page 155: Subscribing Alarm
Operation Manual 5.1.2 Subscribing Alarm 5.1.2.1 About Alarm Types Table 5-2 Description of alarm types Alarm Type Description Preparation Motion detection is enabled. For The alarm is triggered when Motion Detection details, see "5.4.1 Setting Motion moving object is detected. Detection".
Page 156: Setting Smart Track
Operation Manual 5.1.2.2 Subscribing Alarm Information You can subscribe alarm event. When a subscribed alarm event is triggered, the system records detailed alarm information at the right side of the page. Functions of different devices might vary. Procedure Click the Alarm tab. Step 1 Figure 5-15 Alarm (subscription) Select Alarm Type according to the actual need.
Page 157 Operation Manual Auto calibration mode is available on some select models. Procedure Step 1 Select Setting > Event > Smart Track > Smart Track. Step 2 Configure calibration parameters. Auto calibration ● Select Auto in Calibration Mode, and then click Start Calibration. Figure 5-16 Auto calibration Manual calibration ●...
Page 158 Operation Manual Figure 5-17 Manual calibration (1)
Page 159: Enabling Alarm Track
Operation Manual Figure 5-18 Manual calibration (2) 1. Adjust the speed dome lens and turn it to the same view as the chosen lens, and then click The calibration boxes are displayed in both images. 2. Pair each box in the two images, and keep the paired boxes at the same spot of the live view.
Page 160 Operation Manual Figure 5-19 Alarm track Select the Enable check box to enable track linkage. Step 2 After enabling the function, manual positioning, manual tacking and auto tracking take effect. Step 3 Set parameters. Table 5-3 Description of alarm track parameters Parameter Description Select On, and the speed dome automatically links to a corresponding...
Page 161: Setting Panoramic Calibration
Operation Manual 5.3 Setting Panoramic Calibration The device has calibration parameters by default, and you can modify the parameters manually when the effect is not good with default setting. Before manually calibrating a channel, clear all default calibration parameters. Channel 1 is a PTZ camera. You should calibrate the scene coordinates of Channel 1 and other channels.
Page 162: Setting Video Detection
Operation Manual 1. Adjust the PTZ angle of channel 1 through the PTZ control page to rotate the center of channel 1 to a position aligned with the green point in Calibrate 1 image, and then click Calibration box is displayed in images of Channel 1 and Calibrate 1 2.
Page 163 Operation Manual Figure 5-22 Motion detection Step 2 Select the Enable check box to enable motion detection function. Step 3 Set the area for motion detection. 1. Click Setup next to Area.
Page 164: Setting Video Tampering
Operation Manual Figure 5-23 Area 2. Select a color and set the region name. Select an effective area for Motion Detection in the image and set Sensitivity and Threshold. Select a color on to set different detection parameters ● for each region. Sensitivity : Sensitive degree of outside changes.
Page 165: Setting Scene Changing
Operation Manual Video Tampering : When the percentage of the tampered image and the duration ● exceed the configured values, an alarm will be triggered. Defocus Detection : When the image is blurred, an alarm will be triggered. This ● function is available on some select models.
Page 166: Setting Smart Motion Detection
Operation Manual Procedure Select Setting > Event > Video Detection > Scene Changing. Step 1 Figure 5-25 Scene changing Step 2 Set arming periods and alarm linkage action. For details, see "5.1.1 Alarm Linkage". Click Save. Step 3 5.5 Setting Smart Motion Detection The system performs alarm linkage when human, non-motorized vehicle, or motor vehicle appear on the image and its moving speed reaches the preset sensitivity.
Page 167: Setting Audio Detection
Operation Manual Figure 5-26 Smart motion detection Step 2 Select the Enable check box to enable the smart motion detection function. Step 3 Set effective object and sensitivity. Effective object: Includes Human and Motor vehicle. When you select Human, the ●...
Page 168 Operation Manual Figure 5-27 Audio detection Step 2 Set parameters. Input abnormal: Select the Enable Input Abnormal check box, and the alarm is ● triggered when the system detects abnormal sound input. Intensity change: Select the Enable Intensity Change check box and then set ●...
Page 169: Setting Smart Plan
Operation Manual Click Save. Step 4 5.7 Setting Smart Plan Smart plan includes face detection, heat map, IVS, people counting, face detection, video metadata, stereo analysis and schedule. The intelligent function can be enabled only after the corresponding smart plan is enabled. 5.7.1 Basic Smart Plan Procedure Select Setting >...
Page 170: Schedule
Operation Manual 2. Click the corresponding icon to enable a smart function. The selected smart function is highlighted. Click it again to cancel the selection. Click Save. Step 3 5.7.2 Schedule After enabling this function, you can configure different smart plans at different periods for your camera.
Page 171 Operation Manual Figure 5-29 Add plan (1) Figure 5-30 Add plan (2) Step 4 Configure the time settings. 1. Click Settings. 2. Configure the period. In the Smart Plan list, select the type as needed. 3. Click Save. 4. (Optional) Repeat step 1-4 to add more plans for different time. You can set up to 6 different plans for one day.
Page 172: Setting Ivs
Operation Manual Figure 5-32 Time settings (2) Click Save. Step 5 The Schedule function is only available on single-channel cameras. 5.8 Setting IVS This section introduces scene selection requirements, rule configuration, and global configuration for IVS (intelligent video surveillance). Basic requirements on scene selection are as follows. The target should occupy no more than 10% of the whole image.
Page 173 Operation Manual Applicable Scene Medium or distant view with installation height of more than three meters. Scenes with parallel ● view or ceiling-mounted are not supported. Calibrate horizontal plane, not vertical walls or sloping surfaces. ● This function is not applicable to scenes with distorted view, such as the distorted views ●...
Page 174: Rule Configuration
Operation Manual Table 5-6 Description of global setup (IVS) parameters Parameter Description Anti-Disturb Enable A reserved function. Adjust the filter sensitivity. With higher value, it is easier to trigger Sensitivity an alarm when low-contrast object and small object are captured, and the false detection rate is higher.
Page 175 Operation Manual Rule Description Applicable Scene Scenes with sparse targets and without obvious and frequent light change. Simple scene in the detection area is recommended. Missed alarms might ● increase in the scenes with When an object is abandoned in the dense targets, frequent Abandoned object detection area over the set time, the...
Page 176 Operation Manual Rule Description Applicable Scene When the target loiters over the shortest alarm time, the system performs alarm linkages. After alarm is Loitering detection Scenes such as park and hall. triggered, if the target stays in the area within the time interval of alarm, then alarm will be triggered again.
Page 177 Operation Manual Rule Description Intrusion Draw a detection area. Abandoned object During the detection of abandoned object, the alarm is also ● triggered if pedestrian or vehicle stays for a long time. If the Missing object abandoned object is smaller than pedestrian and vehicle, set the target size to filter pedestrian and vehicle or properly extend the Fast moving duration to avoid false alarm triggered by transient staying of...
Page 178: Setting Crowd Map
Operation Manual Parameter Description Select Alarm Track and set the tracking time. When alarm is Track linkage triggered, the camera automatically tracks the person or object that triggers the alarm. Tracking time is the duration that the camera automatically tracks the object. Before enabling this function, you need to enable or disable the Track Time Alarm Track function under Smart Track as needed.
Page 179: Rule Configuration
Operation Manual Calibration Purpose Determine corresponding relationship between 2D image captured by the camera and 3D actual object according to one horizontal ruler and three vertical rulers calibrated by the user and the corresponding actual distance. Notes When drawing calibration ruler, keep the ruler length consistent with the actual length of the object.
Page 180 Operation Manual Procedure Select Setting > Event > Crowd Map > Crowd Map. Step 1 Figure 5-36 Crowd map Select the Enable check box, and then the crowd map function is enabled. Step 2 Step 3 Click Draw Detection Area to draw global area for detecting crowd distribution in the image.
Page 181 Operation Manual Table 5-10 Description of crowd map parameters Parameter Description Select the Global check box and set the crowd density threshold. Global The system detects crowd distribution in the global area. When the crowd density exceeds the configured threshold, the system Crowd Density performs alarm linkages.
Page 182: Setting Face Recognition
Operation Manual Figure 5-38 Crowd map (2) 5.10 Setting Face Recognition When a face is detected or recognized in the detection area, the system performs alarm linkage and supports searching face detection and recognition results. Face Detection: When a face is detected in the area, the system performs alarm linkage, such as ●...
Page 183 Operation Manual Figure 5-40 Face detection Select the Enable check box to enable the face detection function. Step 2 (Optional) Click Draw next to Detect Region to draw a face detection area in the image. Step 3 (Optional) Click Draw next to Exclude Region to draw a non-face detection area in the Step 4 Detect Region.
Page 184 Operation Manual Parameter Description Set a range for snapping face image, including face picture, one-inch picture, and custom. When selecting Custom , click Setting, configure the parameters on the prompt page, and then click OK. Customized width: Set snapshot width; enter the times of the ●...
Page 185: Setting Face Database
Operation Manual 5.10.2 Setting Face Database By setting face database, the face database information can be used to compare with the face detected. Face database configuration includes creating face database, adding face picture, and face modeling. 5.10.2.1 Creating Face Database Face database includes face picture, face data and other information.
Page 186 Operation Manual Figure 5-43 Face database successfully added Step 5 Set parameters. Table 5-12 Description of face database parameters Parameter Description Select the Deploy check box, and the face database deployment is Deploy enabled. The captured face picture is compared to the armed face database.
Page 187 Operation Manual Procedure Select Setting > Event > Face Recognition > Face Database Config. Step 1 Step 2 Click next to the face database to be set. Figure 5-44 Face database configuration Step 3 Click Registration. Figure 5-45 Registration (1) Click Upload Picture , select a face picture to be uploaded, and then click Open.
Page 188 Operation Manual Figure 5-46 Registration (2) Step 5 Enter the information about face picture according to the actual situation. Click Add to task list. Step 6 , and then click OK. Step 7 Click The Task List page is displayed. See Figure 5-47 . Click Remove All to remove all tasks by one click.
Page 189 Operation Manual Parameter Error Description The quality of the added pictures is to the 0x1134000E upper limit. The space of the face database exceeds the 0x11340019 upper limit. The picture format is not correct. Import the picture in JPG format. No face in the picture or the face is not clear.
Page 190 Operation Manual Step 2 Click next to the face database that you want to set. Click Batch Registration. Step 3 Figure 5-48 Batch add Step 4 Click to select file path. Figure 5-49 Batch import Step 5 Click Browse. Figure 5-50 Imported successfully...
Page 191 Operation Manual 5.10.2.3 Managing Face Picture Add face pictures to face database, and then manage and maintain face pictures to ensure correct information. 5.10.2.3.1 Modifying Face Information Procedure Step 1 Go to the Face Database Config page, set filtering condition as needed, and click Search.
Page 192 Operation Manual Batch delete: Select at the upper right corner of the face picture or of the row where the ● personnel information is located. Select the information, click Add to Deletion List , and then click OK to delete the selected face picture. Delete all: When viewing face pictures in a list, click of the row where the serial number is ●...
Page 193 Operation Manual Figure 5-53 Successful modeling Failed modeling. ● Figure 5-54 Failed modeling Click Search, and the face details are displayed. Click to view the face picture in list format. See Figure 5-55 . Click to view the face picture in thumbnail format. See Figure 5-56 .
Page 194: Setting Face Recognition Alarm Linkage
Operation Manual Figure 5-56 Modeling status (thumbnail) 5.10.3 Setting Face Recognition Alarm Linkage When face recognition succeeded or failed, the device links alarm out. Procedure Select Setting > Event > Face Recognition > Alarm. Step 1 Figure 5-57 Alarm (face recognition) Step 2 Select a face database and an alarm rule.
Page 195 Operation Manual 5.10.4.1 Viewing Result on the Live Page View face recognition result on the Live page. Face recognition result is displayed at the left side and the captured face pictures and attribute ● information at the right side. Click a face picture in the display area, and the information is displayed. ●...
Page 196 Operation Manual Figure 5-60 Search results (face recognition) Figure 5-61 MoreInfo (face recognition)
Page 197: Setting Face Detection
Operation Manual 5.11 Setting Face Detection When a face is detected in the detection area, the system performs an alarm linkage. Prerequisites Select Setting > Event > Smart Plan, and then enable Face Detection. Procedure Step 1 Select Setting > Event > Face Detection. Figure 5-62 Face detection Step 2 Select the Enable check box to enable the face detection function.
Page 198 Operation Manual Parameter Description Select the Face Enhancement check box to preferably guarantee clear Face Enhancement face with low stream. Select the Non-living Filtering check box to add a target box to the face in the captured picture to highlight the face. Target Box Overlay The captured face picture is saved in SD card.
Page 199: Setting People Counting
Operation Manual Parameter Description Click Draw Target next to Pixel Counter, and then press and hold the left mouse button to draw a rectangle, the Pixel Counter then displays Pixel Counter its pixel. Step 7 Set arming periods and alarm linkage actions. For details, see "5.1.1 Alarm Linkage". Step 8 Click Save.
Page 200 Operation Manual Procedure Select Setting > Event > People Counting. Step 1 Figure 5-64 People counting...
Page 201 Operation Manual Figure 5-65 In area No. Step 2 Click to add the people counting function. Step 3 Double-click the name to modify the rule name. Select People Counting or In Area No. People Counting : The system counts the people entering and leaving the detection ●...
Page 202 Operation Manual Table 5-16 Description of people counting parameters Parameter Description Select the OSD check box or select the Enter No. or Leave No. check box under OSD to display the people counting data in the image. Click Clear to clear the count. Set the viewing angle of the image as Inclined or Vertical.
Page 203: Calibration Configuration
Operation Manual Figure 5-66 Counting result 5.12.2 Calibration Configuration After configuring the rule for people counting, set the installation height and angle of the camera through calibration configuration. Prerequisites You have set at least one rule in Setting > Event > People counting > People Counting. Procedure Select Setting >...
Page 204: Queuing
Operation Manual Figure 5-67 Calibration configuration (stereo analysis) Click Clear to clear the default calibration box. Step 2 Step 3 Click Ground to draw a rectangular box in the image. Ground should be on the same plane and as big as possible for calibration. Click Save, and then the camera calculates its height above the ground and the angle it Step 4 forms with the ground.
Page 205 Operation Manual Figure 5-68 Queuing Step 2 Click to add the queuing function. You can add 4 rules at most. Step 3 Double-click the name to modify the rule name. Click Draw Rule to draw a detection area in the image, and right-click to complete the drawing. Step 4 Set parameters.
Page 206: Viewing People Counting Diagram
Operation Manual Parameter Description Set the alarm-triggered sensitivity. The higher the sensitivity is, the Sensitivity easier the alarm will be triggered. Set the maximum height of the people in detection area. The unit Max Height is cm, and the range is 0–300. Set the minimum height of the people in detection area.
Page 207 Operation Manual Procedure Select Setting > Event > People Counting > Diagram. Step 1 Figure 5-70 Diagram Select the Enable check box to enable diagram function. And then you can search the Step 2 diagram during the set period. Step 3 Set the searching criteria.
Page 208: Viewing People Counting Report
Operation Manual Figure 5-71 Diagram With the ruler on the right, you can read the diagram clearly. 5.12.5 Viewing People Counting Report Generate people counting data in report form. Procedure Step 1 Select Setting > Event > People Counting > People Counting Report. Figure 5-72 People counting report Step 2 Set search conditions.
Page 209: Setting Heat Map
Operation Manual Table 5-19 Description of people counting report parameters Parameter Description Select the rule of the report from In Area No and Queuing. Rule The statistical type of people counting report. When you select Number of people, the system generates the ●...
Page 210: Viewing Heat Map Report
Operation Manual Figure 5-73 Heat map Step 2 Select the Enable check box to enable the heat map function. Step 3 Set the arming period. For details, see "5.1.1.1 Setting Period". Click Save. Step 4 5.13.2 Viewing Heat Map Report The system can export heat map data as a report.
Page 211: Setting Vehicle Density
Operation Manual 5.14 Setting Vehicle Density Configure the rules for traffic congestion and parking upper limit, and view the counting data on the Live page. Prerequisites Select Setting > Event > Smart Plan, and then enable Vehicle Density. Procedure Select Setting > Event > Vehicle Density. Step 1 Figure 5-75 Vehicle density (traffic congestion)
Page 212 Operation Manual Figure 5-76 Vehicle density (parking upper limit) Step 2 Click to add the vehicle density function. Double-click the name to modify the rule name. Select Traffic Congestion or Parking Step 3 Upper Limit. Traffic Congestion : The system counts the vehicles in the detection area. When the ●...
Page 213 Operation Manual Parameter Description Select the check box, and set the Threshold and Continuous Congestion Time. Vehicle Congestion Alarm When the counted vehicle and the continuous congestion time exceed the configured values, an alarm is triggered. Select the check box, and set the Threshold. Upper Limit Vehicle Quantity When the counted vehicle exceeds the configured values, an alarm Alarm...
Page 214: Setting Stereo Analysis
Operation Manual Figure 5-78 Parking upper limit 5.15 Setting Stereo Analysis Stereo analysis includes rule configuration and calibration configuration. 5.15.1 Setting Rules for Stereo Analysis The rules for stereo analysis include Activation Analysis , Back Detection, Fall Detection, Walking Detection, Blackboard Writing Detection, Violence Detection, People No. Error, Stand Detection, Running Detection, People Approaching Detection, and Strand Detection.
Page 215 Operation Manual Rule Function Applicable Scene When the camera that monitors the front of the classroom works with a Walking Detection recording & broadcasting server, and Classrooms detects a working target, an alarm will be triggered. When the camera that monitors the front of the classroom works with a recording &...
Page 216 Operation Manual Rule Function Applicable Scene When the distance between two People Approaching walking/standing people reaches the Banks and educational Detection configured value, an alarm will be institutions triggered. When people in the detection area stay longer than the configured Strand Detection Banks and parks stranding time, an alarm will be...
Page 217 Operation Manual When configuring Activation Analysis, draw the front of a classroom as the detection ● area. When configuring Back Detection, draw the front of a classroom as the detection ● area. When configuring Blackboard Writing Detection , draw the blackboard as the ●...
Page 218: Calibration Configuration
Operation Manual Parameter Description After the alarm is triggered, if the status lasts for the configured time in Repeat Alarm Time, the alarm will be triggered again. Repeat Alarm Time 0 indicates that the function is disabled. When configuring Strand Detection, you need to set the strand Strand Time Threshold time threshold.
Page 219: Zoom Calibration
Operation Manual Click Ground to draw a rectangular box in the image. Step 3 Ground should be on the same plane and as big as possible for calibration. Click Save, and then the camera calculates its height above the ground and the angle it Step 4 forms with the ground.
Page 220: Viewing Report
Operation Manual Figure 5-81 Calibration configuration (stereo analysis) Step 3 Click Save. 5.15.4 Viewing Report Working with a recording & broadcasting server, the camera monitors the target's positions in the front of the classroom and analyzes the data, and then generates a report. Prerequisites You have set at least one rule in Setting >...
Page 221: Setting Anpr
Operation Manual Figure 5-82 Report 5.16 Setting ANPR Extract information of motor vehicles and display related attributes on the Live page. 5.16.1 Scene Configuration Configure non-motor vehicle detection. Prerequisites Select Setting > Event > Smart Plan, and then enable ANPR. Procedure Select Setting >...
Page 222 Operation Manual Figure 5-83 Scene set (ANPR) Click Draw to draw a detect region and an exclude region in the image. Step 2 Detect region: The region that needs to be detected. ● Exclude region: The region that does not need to be detected. Click Modify to modify ●...
Page 223: Setting Picture Overlay
Operation Manual Results The ANPR result is displayed on the live page. The plate no. and attribute information of vehicle are displayed at the right side. ● Click the picture in the display area, and the detailed information is displayed. ●...
Page 224: Viewing Anpr Report
Operation Manual Figure 5-85 Picture Select Motor Vehicle from the Type drop-down list. Step 2 Step 3 Set overlay information and box position, such as plate no., time, car color, car type, and car logo. Click Save. Step 4 5.16.3 Viewing ANPR Report Generate data of ANPR in report form.
Page 225: Setting Video Metadata
Operation Manual Figure 5-87 Statistical results 5.17 Setting Video Metadata Classify people, non-motor vehicles and motor vehicles in the captured video, and display the relevant attributes on the live page. 5.17.1 Scene Configuration Set the detection scenes and rules, including rules for people, non-motor vehicles and motor vehicles.
Page 226 Operation Manual Figure 5-88 Scene set (video metadata) , and double-click the name to modify the rule name, and select People in Rule Step 2 Click Type list. Click Draw to draw a detect region and an exclude region in the image. Step 3 Click Draw Target next to Target Filter to draw the maximum size and minimum size for Step 4...
Page 227 Operation Manual Parameter Description Select the OSD check box, and the numbers of motor vehicles, non-motor vehicles and people in the detection area are displayed. Click Reset to recount. Click Draw Target next to Pixel Counter, and then press and hold the left mouse button to draw a rectangle, the Pixel Pixel Counter Counter then displays its pixel.
Page 228: Setting Picture Information
Operation Manual Figure 5-89 Video metadata result 5.17.2 Setting Picture Information Set overlay of motor vehicle, non-motor vehicle and people and the box position. This section takes the configuration of motor vehicle overlay as an example. Procedure Select Setting > Event > Video Metadata > Picture. Step 1 Figure 5-90 Picture (video metadata) Select Motor Vehicle from the Type drop-down list.
Page 229: Viewing Video Metadata Report
Operation Manual Select Non-motor Vehicle or People, and set non-motor vehicle and people overlay. Step 3 Set overlay information and box position, such as plate No., time, car color, car type, and car logo. Click Save. Step 4 5.17.3 Viewing Video Metadata Report Generate data of video metadata recognition in report form.
Page 230: Relay-In (2)
Operation Manual Figure 5-92 Alarm linkage Select the Enable check box to enable the alarm linkage function. Step 2 Step 3 Select a relay-in port and a sensor type. Sensor Type: NO or NC. ● Anti-Dither: Only record one alarm event during the anti-dither period. ●...
Page 231: Setting Abnormality
Operation Manual Procedure Select Enable check box to enable the alarm function. Step 1 Step 2 Select a relay-in port, for details, see "5.18.1 Relay-in (1)". In the Mode list, select Arming/Disarming. Step 3 Figure 5-94 Arming/Disarming The arming/disarming check box is selected by default. Do not cancel the selection; otherwise the configuration is invalid.
Page 232: Setting Network
Operation Manual Figure 5-95 SD card Select the event type from the Event Type drop-down list, and then select the Enable Step 2 check box to enable the SD card detection function. When setting Capacity Warning as Event Type, set Capacity Limit. When the remaining space of SD card is less than this value, the alarm is triggered.
Page 233: Setting Illegal Access
Operation Manual Step 2 Select the event type from the Event Type drop-down list, and then select the Enable check box to enable the network detection function. Step 3 Set alarm linkage actions. For details, see "5.1.1 Alarm Linkage". Step 4 Click Save.
Page 234: Setting Security Exception
Operation Manual Figure 5-98 Voltage detection Select the Enable check box to enable the voltage detection function. Step 2 Select Overlay, and the alarm icon is displayed by overlapping when the alarm is triggered. indicates undervoltage and indicates overvoltage. Step 3 Set alarm linkage actions.
Page 235: Setting Disarming
Operation Manual Step 3 Select the event to be monitored as needed. Table 5-25 Security exception description Parameter Description Monitors the programs that run in trusted environment to detect whether there are program running without trusted Trusted environment detected signature. program Select it to prevent the program with trojan and virus.
Page 236 Operation Manual Figure 5-100 Disarming Select the Enable check box to disarm. Step 2 (Optional) Select the Enable check box next to Disarm by Period to enable the Disarm Step 3 by Period function, and then you can disarm by period. For setting disarm period, see "5.1.1.1 Setting Period".
Page 237: Maintenance
Operation Manual 6 Maintenance 6.1 Requirements To make sure the system runs normally, maintain it as the following requirements: Check surveillance images regularly. ● Clear regularly user and user group information that are not frequently used. ● Modify the password every three months. For details, see "4.8.3 Account". ●...
Page 238: Resetting Password
Operation Manual 6.3 Resetting Password When you need to reset the password for the admin account, there will be a security code sent to the entered email address which can be used to reset the password. Prerequisites You have enabled password reset service. For details, see "4.8.4.1 System Service". Procedure Step 1 Open IE browser, enter the IP address of the device in the address bar and press Enter.
Page 239 Operation Manual Figure 6-4 Reset the password (1) Step 4 Reset the password. Step 5 Scan the QR code, and there will be a security code sent to the email address you entered. Enter the security code as instructed. Please use the security code within 24 hours after you receive it. Otherwise, it will ●...
Page 240: Backup And Default
Operation Manual Step 7 Reset and confirm the password. The password must consist of 8 to 32 non-blank characters and contain at least two types of characters among upper case, lower case, number, and special character (excluding ' " ; : &). Click Save.
Page 241: Upgrade
Operation Manual Figure 6-7 Default 6.5 Upgrade Upgrading to the latest system can perfect camera functions and improve stability. If wrong upgrade file has been used, restart the device; otherwise some functions might not work properly. Procedure Select Setting > System > Upgrade. Step 1 Figure 6-8 Upgrade Step 2...
Page 242: Information
Operation Manual 2. If there is any upgrade available, click Upgrade, and then the system starts upgrading. Click Manual Check to check for upgrade manually. 6.6 Information You can view the information, including version, log and online user, and back up or clear log. 6.6.1 Version You can view device information such as hardware, system version, and web version.
Page 243: Remote Log
Operation Manual System : Includes program start, abnormal close, close, program reboot, device ● closedown, device reboot, system reboot, and system upgrade. Setting : Includes saving configuration and deleting configuration file. ● Data : Includes configuring disk type, clearing data, hot swap, FTP state, and record ●...
Page 244: Online User
Operation Manual Figure 6-11 Remote log Step 2 Select the Enable check box to enable remote log function. Step 3 Set address, port and device number. Click Save. Step 4 6.6.4 Online User View all the current users logging in to web. Select Setting >...
Page 245: Appendix 1 Cybersecurity Recommendations
