Dahua EZ-IP TURRET Quick Start Manual page 28

Ovner's manual
• Side cabling: It is to lead out cable from housing of the camera.

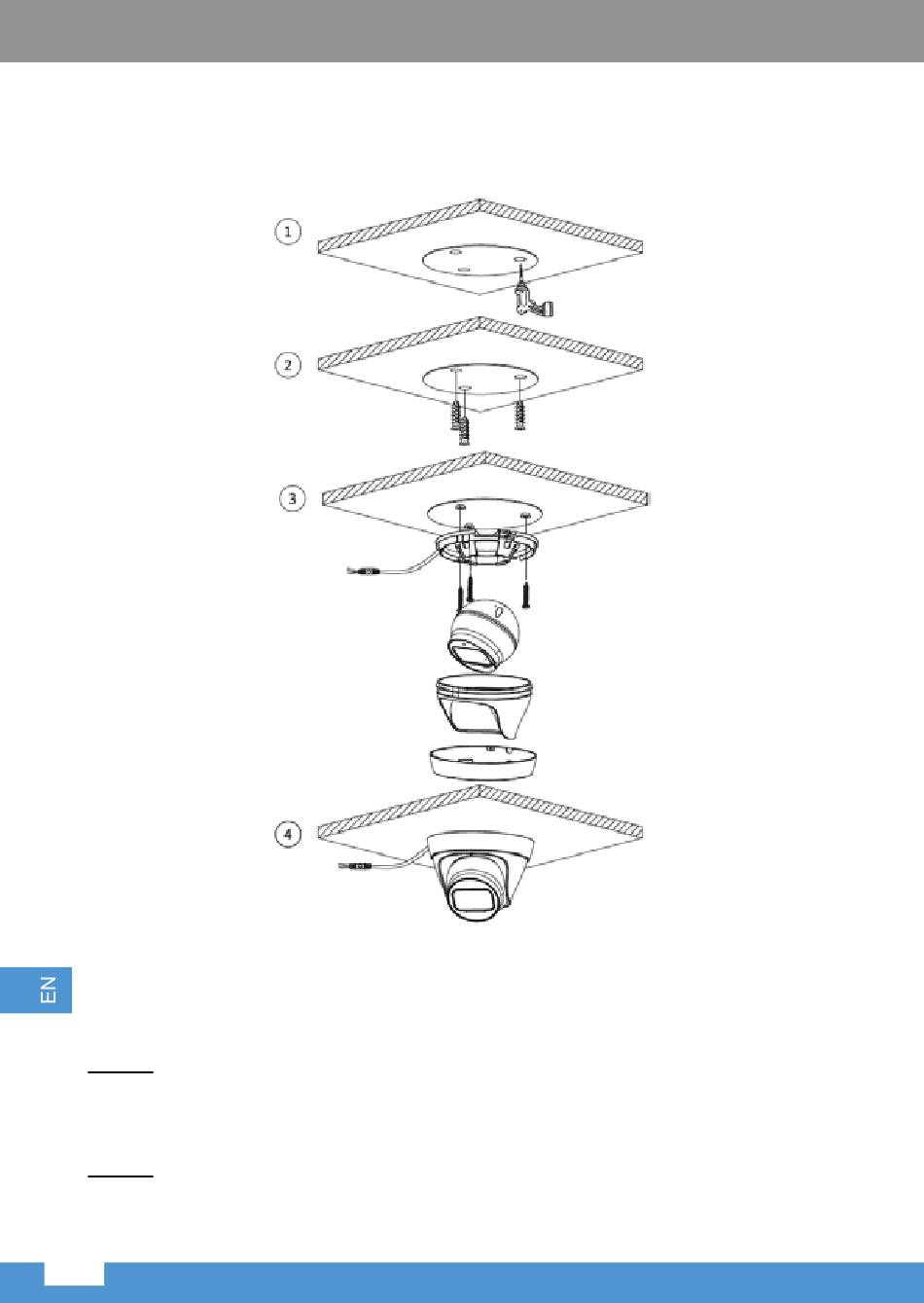

Figure 2-3
Step 4
Adjust the device pedestal to a proper position and line up the screw holes on
the device pedestal to the fixing holes of expansion bolt holes, and then twist
the screws into the expansion bolts and fix them firmly.
Step 5
Place the camera module into an enclosure and put it into the pedestal until
it is firmly locked with the latches.
28
