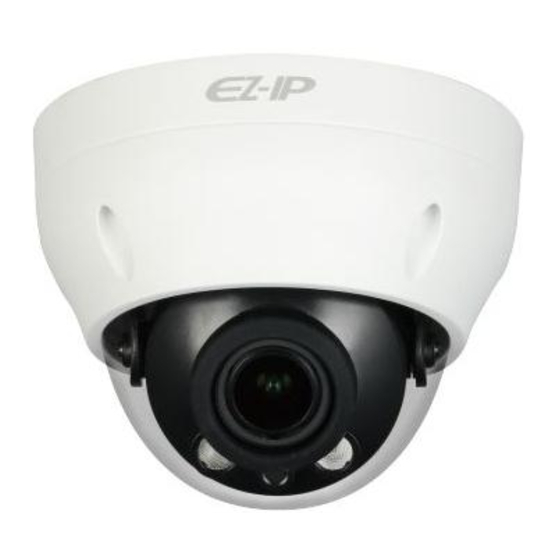

Dahua EZ-IPC-D2B20P-ZS Quick Start Manual

Outdoor dome network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EZ-IP
Outdoor Dome Network Camera
Quick Start Guide
V1.0.0

Advertisement

Table of Contents
loading

Related Manuals for Dahua EZ-IPC-D2B20P-ZS

Summary of Contents for Dahua EZ-IPC-D2B20P-ZS

  • Page 1 EZ-IP Outdoor Dome Network Camera Quick Start Guide V1.0.0...

  • Page 2: Foreword

    Foreword General This Quick Start Guide (hereinafter referred to be "the Guide") introduces the functions, installation and operations of the camera. Safety Instructions The following categorized signal words with defined meaning might appear in the Guide. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury.
  • Page 3 All the designs and software are subject to change without prior written notice. The product  updates might cause some differences between the actual product and the Guide. Please contact the customer service for the latest program and supplementary documentation. There still might be deviation in technical data, functions and operations description, or ...

  • Page 4: Important Safeguards And Warnings

    Important Safeguards and Warnings Electrical Safety All installation and operation should conform to your local electrical safety codes.  The power source shall conform to the Safety Extra Low Voltage (SELV) standard, and  supply power with rated voltage which conforms to Limited power Source requirement according to IEC60950-1.
  • Page 5 protection effect. It is recommended to ground the device to enhance reliability.  Do not touch the image sensor (CMOS) directly. Dust and dirt could be removed with air  blower, or you can wipe the lens gently with soft cloth that moistened with alcohol. Device body can be cleaned with soft dry cloth, which can also be used to remove ...

  • Page 6: Regulatory Information

    Regulatory Information FCC Information Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC conditions: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference.

  • Page 7: Table Of Contents

    Table of Contents Foreword ..............................I Important Safeguards and Warnings ....................III Regulatory Information ..........................V 1 Introduction ............................1 2 Network Configuration.......................... 2 2.1 Initializing Device .......................... 2 2.2 Modifying Device IP Address ......................3 2.3 Logging in Web Interface ......................4 3 Installation ..............................

  • Page 8: Introduction

    Introduction Cable type might vary with different devices, and the actual product shall prevail.  Please waterproof all the cable joints with insulating tape and waterproof tape to avoid  short circuit and water damage. For the detailed operation, see the FAQ manual. Cable list For more information about cable ports, see Table 1-1.

  • Page 9: Network Configuration

    Network Configuration Device initialization and IP setting can be finished with the "ConfigTool" or in web interface. For more information, please scan the QR code on the sticker to download the WEB operation manual. Device initialization is available on select models, and it is required at first use or after ...

  • Page 10: Modifying Device Ip Address

    devices, and then click OK. All the devices found in the network segment are listed. Select one or several devices which Status are Uninitialized, and then click Initialize. The Device initialization interface is displayed. Select the devices that need initialization, and then click initialize. The password setting interface is displayed.

  • Page 11: Logging In Web Interface

    After clicking Search setting, please enter the username and password, and please make sure they are the same as what you set during initialization, otherwise there will be "wrong password" notice. Select the devices which IP addresses need to be modified, and then click Modify IP. The Modify IP Address interface is displayed.
  • Page 12 Main interface Network Configuration 5...

  • Page 13: Installation

    Installation 3.1 Packing List The tool required for the installation such as electric drill is not provided in the packing. 3.2 Dimension Following figures are for reference only, and the actual product shall prevail. Device dimension (mm[in]) 3.3 Installing Device 3.3.1 Installation Type Hang-mounted Ceiling-mounted...

  • Page 14: Installing Sd Card (Optional)

    Pole-mounted Wall-mounted 3.3.2 Installing SD Card (Optional)

  • Page 15: Attaching Device

    3.3.3 Attaching Device Make sure the mounting surface is strong enough to hold at least three times of the device weight.
  • Page 16 Cable going through the mounting surface...

  • Page 17: Installing Waterproof Connector (Optional)

    Cable going through the side cable tray 3.3.4 Installing Waterproof Connector (Optional) This part is needed only when there is waterproof connector come with the device and the device is used outdoor.

  • Page 18: Adjusting Lens Angle

    3.3.5 Adjusting Lens Angle You can adjust the lens angle without loosening the screws.
