Step 1
Pull the network cable through waterproof fastening cover and waterproof
connector successively, keep the convex groove outward and install the rubber
ring onto the network port.
Step 2
Insert the cable into the network port, rotate the waterproof connector clockwise
to make it firmly locked with network port.
Step 3
Lay the fastening rubber ring onto the cable between waterproof fastening
cover and waterproof connection, and then stuff it into the main body
of waterproof connector.
Step 4
Cover the waterproof fastening cover on the main body of waterproof connector,
rotate the waterproof fastening cover clockwise to make it firmly locked with
main body of waterproof connector. So far, the installation has been completed.

2.2 Adjust Device Angle

TURRET

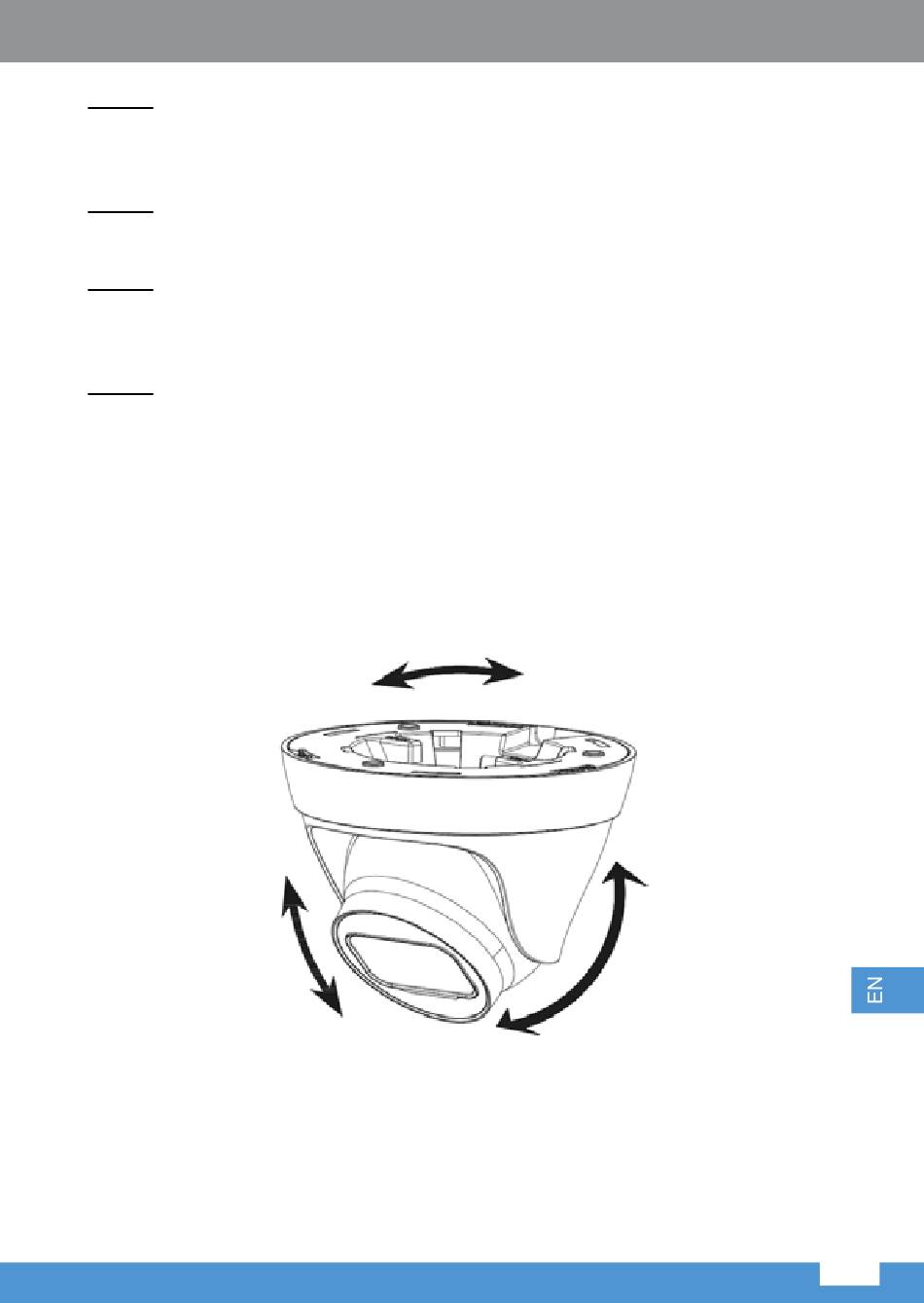

Figure 2-12
Adjust the position of the camera manually.
Note: The range of angle adjustment for lens: horizontal rotation direction
(0~360°), vertical rotation direction (0~90°), image rotation direction (0~+360°).
