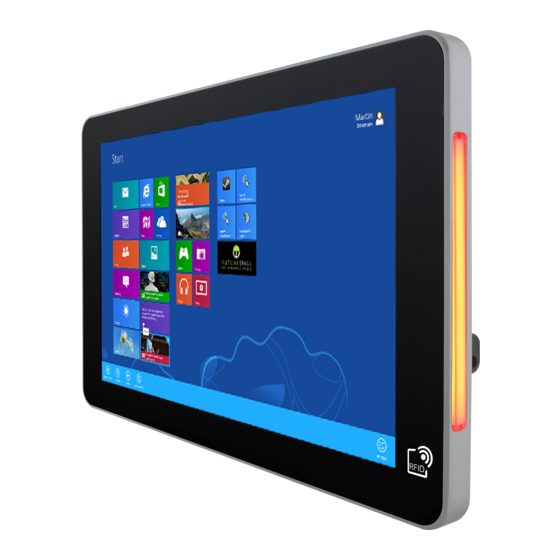

7~15" S-Series HMI
User Manual
Document Version 1.0
Document Part No. 9152111I1141
Please read these instructions carefully before using this product, and save this manual for future use.
Intel® Celeron® Bay Trail-M N2930, 1.83 GHz
Model No. W07IB3S-PCO1-POE
W07IB3S-PCO1AC-POE
W10IB3S-PCH2-POE
W10IB3S-PCH2AC-POE
R15IB3S-PCC3-POE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W07IB3S-PCO1-POE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winmate W07IB3S-PCO1-POE

Summary of Contents for Winmate W07IB3S-PCO1-POE

  • Page 1 7~15” S-Series HMI Intel® Celeron® Bay Trail-M N2930, 1.83 GHz Model No. W07IB3S-PCO1-POE W07IB3S-PCO1AC-POE W10IB3S-PCH2-POE W10IB3S-PCH2AC-POE R15IB3S-PCC3-POE User Manual Document Version 1.0 Document Part No. 9152111I1141 Please read these instructions carefully before using this product, and save this manual for future use.

  • Page 2: Table Of Contents

    7~15" S-Series HMI User Manual Contents Preface ............................. 5 About This User Manual ......................9 Chapter 1: Introduction ......................10 1.1 Introduction ......................11 1.2 Product Features ....................11 1.3 Package Contents ....................12 1.4 Mechanical Dimensions ..................13 1.5 Physical Buttons and LED Indicators ..............15 1.6 Connector Description ..................
  • Page 3 Preface 4.2.3 Brightness ....................35 4.2.4 Volume ..................... 35 4.2.5 LED Light Bar ................... 35 4.2.6 Performance ..................... 36 4.2.7 Touch Lock ....................36 4.3 Using HF RFID Reader ..................36 4.3.1 HF RFID Reader Location ................ 36 4.3.2 Trigger Setting ..................37 4.3.3 Settings.....................
  • Page 4 7~15" S-Series HMI User Manual 7.1 Introduction ......................83 7.2 Problem Report Form ..................- 83 - Appendix..........................84 Appendix A: Product Specifications................84 Appendix B: HF RFID Reader Specifications ............85 Appendix C: LED Light Bar Adjustment ..............86 Appendix D: Changing Screen Resolution ...............

  • Page 5: Preface

    Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners.

  • Page 6: Safety Information

    7~15" S-Series HMI User Manual Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. Note: A note is used to emphasize helpful information Important:...
  • Page 7 Preface For your safety carefully read all the safety instructions before using the device. Keep this user manual for future reference.  Always disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth. ...

  • Page 8: Important Information

    7~15" S-Series HMI User Manual  Cover workstations with approved anti-static material. Use a wrist strap connected to a work surface and properly grounded tools and equipment.  Use anti-static mats, heel straps, or air ionizer for added protection.  Avoid contact with pins, leads, or circuitry. ...

  • Page 9: About This User Manual

    About This User Manual About This User Manual This User Manual provides information about using the Winmate® Series HMI. This User Manual applies to the S-Series HMI – W07IB3S-PCO1-POE, W07IB3S-PCO1AC-POE, W10IB3S-PCH2-POE, W10IB3S-PCH2AC-POE, and R15IB3S-PCC3-POE. The documentation set for the S-Series HMI with Intel® Celeron® Bay Trail-M N2930 processors provides information for specific user needs, and includes: ...

  • Page 10: Chapter 1: Introduction

    7~15" S-Series HMI User Manual Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the HMI in the packing list. Mechanical dimensions and drawings included in this chapter.

  • Page 11: Introduction

    Chapter 1: Introduction 1.1 Introduction Congratulations on purchasing Winmate® S-Series HMI. Winmate multi-touch S-Series HMI is suitable for home automation and room management systems. Flat surface is easy-to-clean and delivers aesthetically pleasing look for any interior. The device provides real time update for booking status and available schedule, or performs as a synchronous display in meetings.

  • Page 12: Package Contents

    7~15" S-Series HMI User Manual 1.3 Package Contents Carefully remove the box and unpack your HMI device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard factory shipment list: ...

  • Page 13: Mechanical Dimensions

    This section describes appearance, connectors’ layout and mechanical dimensions of S-Series HMI. Notice that this is a simplified drawing and some components are not marked in detail. Please contact our sales representative if you need further product information. 7-inch, W07IB3S-PCO1-POE/ W07IB3S-PCO1AC-POE Unit: mm Dimensions:189.4 x 145.4 x 36.1...
  • Page 14 7~15" S-Series HMI User Manual 10.1-inch, W10IB3S-PCH2-POE/ W10IB3S-PCH2AC-POE Unit: mm Dimensions:263.48 x 172 x 35.7 № № Description Description ① ⑥ GPIO (Optional)* RJ-45 (LAN/ PoE)** ② ⑦ RJ-45 (LAN) 2MP Front Camera (Optional) ③ ⑧ USB 2.0, USB 3.0 HF RFID Reader (Optional) LED Status Light Bar ④...

  • Page 15: Physical Buttons And Led Indicators

    Chapter 1: Introduction 15-inch, R15IB3S-PCC3-POE Unit: mm Dimensions:363.4 x 277 x 86 x 44.5 № № Description Description ① ⑥ RJ-45 (LAN) Digital I/O (Optional) ② ⑦ USB 3.0 x 1 , USB 2.0 x 1 HF RFID Reader (Optional) ③...

  • Page 16: Connector Description

    7~15" S-Series HMI User Manual Physical Buttons Icon Button Description Reset Press to reset the system Press to power on or power off the Power On/ Off device LED Indicators LED Type Status Description Power is on Power is off Storage activity Blinking (Data is being read or written)

  • Page 17: Chapter 2: Getting Started

    Chapter 2: Getting Started Chapter 2: Getting Started This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations.

  • Page 18: Powering On

    7~15" S-Series HMI User Manual 2.1 Powering On 2.1.1 AC Adapter Components  3 Pin Terminal Block  Power Cord  AC Adapter to DC Jack Safety Precautions:  Do not use the adapter in a high moisture environment  Never touch the adapter with wet hands or foot ...

  • Page 19: Connecting The Power

    Chapter 2: Getting Started 2.1.3 Connecting the Power Installation Instruction: Connect a 3-pin terminal block to the HMI connector. Connect the other side of the terminal block to the AC adapter. Connect the AC adapter to the power cord. Plug in the power cord to a working AC wall outlet. The device will boot automatically. Note: Based on the model, terminal block connector may be located either on the bottom or on the rear side of the HMI device.

  • Page 20: Ethernet Connector

    7~15" S-Series HMI User Manual 2.2.2 Ethernet Connector The HMI device has one RJ45 10/100/1000 Mbps Ethernet interface (LAN)for connecting to the internet and one RJ45 10/100/1000 Mbps Ethernet interface (LAN or PoE based on your order). Pin assignment and connector description of RJ45 connector. Pin №...

  • Page 21: Gpio Connector

    Chapter 2: Getting Started 2.2.5 GPIO Connector Notice that GPIO is an optional connector and may not be present in your model. Pin № Pin № Signal Name Signal Name 2.3 Configuring Serial Port Setting Serial port COM1 can be configured for RS-232, RS-422 or RS-485.Jumpers are located on the motherboard.

  • Page 22: Turning On And Off The Device

    7~15" S-Series HMI User Manual The picture below shows RS-232/422/485 (J8/J9) jumper setting. Example: To makeRS-232 Settings, set the Jumper 8 Pin 1-2 to the SHORT position, and Jumper 9 Pin1-2, 4-5, 7-8, 10-11 to the SHORT position. 2.4 Turning On and Off the Device The unit is configured to Power ON when is connected to the power source.

  • Page 23: Chapter 3: Mounting

    Chapter 3: Mounting Chapter 3: Mounting This chapter provides mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages.

  • Page 24: Cable Mounting Considerations

    7~15" S-Series HMI User Manual 3.1 Cable Mounting Considerations For a nice look and safe installation, make sure cables are neatly hidden behind the HMI device. Refer to Chapter 2, section 2.1 for the cable installation instruction. Caution/ Attention Observe all local installation requirements for connection cable type and protection level.

  • Page 25: Panel Mount

    Chapter 3: Mounting 3.3.1 Panel Mount Panel mount mounting solutions is suitable for many applications where HMI should be embedded in the machine. With this mounting solution flat surface leave no bezel in the front. Size Wall Cutout Screw 7” 249 x 157.6 mm M3 x 4mm 10.1”...

  • Page 26: Vesa Mount

    7~15" S-Series HMI User Manual 3.3.2 VESA Mount 3.3.2.1 VESA Desk Stand PCVS-V1 The S-Series HMI device can be installed on a desk with the stand. You can purchase desk stand as an optional accessory. Model Name PCVS-V1 Part No. 99KK00A0000E Installation Instruction Use provided Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device.
  • Page 27 Chapter 3: Mounting 3.3.2.2 VESA Desk Stand LA-100 The S-Series HMI device can be installed on a desk with the stand. You can purchase desk stand as an optional accessory. Model Name: LA-100 Part No. 9B0000000128 Installation Instruction Use provided Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device.
  • Page 28 7~15" S-Series HMI User Manual 3.3.2.3 VESA Wall Mount Bracket LA-106 The S-Series HMI device can be installed on a desk with the stand. You can purchase desk stand as an optional accessory. Model Name LA-106 Part No. 9B0000000412 Installation Instruction...
  • Page 29 Chapter 3: Mounting Accessories Dimensions...

  • Page 30: Front Side Wall Mount

    7~15" S-Series HMI User Manual 3.3.3 Front Side Wall Mount The Front Side Wall Mount is only available for 10.1” S-Series HMI. You can purchase Front Side Wall Mount Bracket from Winmate. Model Name PCFW-V1 Part No. 99KK00A0000C Mounting Instruction 1.
  • Page 31 Chapter 3: Mounting Dimensions...

  • Page 32: Glass Wall Mount

    The Glass Wall Mounting is only available for 10.1” S-Series HMI. The HMI device can be installed in a glass wall either from right side or from the left. You can purchase Winmate Glass Wall Mount Kit as an optional accessory.

  • Page 33: Chapter 4: Operating The Device

    Chapter 4: Operating the Device Chapter 4: Operating the Device In this chapter you will find instructions on how to operate the HMI device.

  • Page 34: Operating System

    7~15" S-Series HMI User Manual 4.1 Operating System S-series HMI support several versions of Windows OS: Windows 10 IoT, Windows Embedded 8.1 Industry Pro, Windows Embedded 8 Standard, Windows 7 Pro for Embedded Systems, and Windows Embedded Standard 7– WS7P. Important: The device is shipped with the OS System according to your order.

  • Page 35: Brightness

    Chapter 4: Operating the Device 4.2.3 Brightness Tap Brightness button to show current brightness level. To reduce the brightness, drag by touch to the left. To enhance the brightness, drag by touch to the right. Tap Close to save the changes and exit the interface. 4.2.4 Volume Tap Volume button to show your current volume level.

  • Page 36: Performance

    7~15" S-Series HMI User Manual 4.2.6 Performance User can adjust the performance level of the HMI device. There are four options available:  Extreme performance  Office Document  High performance  Power Saving 4.2.7 Touch Lock To LOCK touch screen, double-click the Hot Tab icon on the Windows desktop, and tap Touch Lock.

  • Page 37: Trigger Setting

    Chapter 4: Operating the Device To scan the card, bring it close to the right bottom front side of device with RFID icon. Tap on the Disconnect button to stop the connection with built-in HF RFID reader. 4.3.2 Trigger Setting ...

  • Page 38: Settings

    7~15" S-Series HMI User Manual  Single Scan User can also define the RFID Reader scanning as Single Scan. Under this setting, the RFID Reader will be triggered only when user click on “Send”. 4.3.3 Settings  Sound The Sound check box defines whether a beep sound will come with the data scanning. ...
  • Page 39 Chapter 4: Operating the Device User can also tap on the Settings button for further details settings. Item Description Prefix User can type in this field to define the characters BEFORE the data scanned. Suffix User can type in this field to define the characters AFTER the data scanned.

  • Page 40: Rfid Output Settings

    7~15" S-Series HMI User Manual 4.3.4 RFID Output Settings Select RFID Output Type The default setting for built-in HF RFID Reader is to Read UID. For some applications, user might need to read or write further block data; the drop-down menu under this section can do this change.
  • Page 41 Chapter 4: Operating the Device The Camera Screen Item Description Tap to record videos Video Tap to capture photos Photo Tap to select the destination folder to save captured photos and videos, enable preview, and select picture Settings resolution and quality Tap to close the camera Close Capture Screen...

  • Page 42: Shooting Photos

    7~15" S-Series HMI User Manual 4.4.2 Shooting Photos 1. Open the Camera. 2. Focus on the object. 3. Tap to capture the object. 4. By default, the photo preview is displayed briefly on the screen. The preview screen automatically closes after 3 seconds. Alternatively, do one of the following: - Tap to delete the photo and return to the camera screen.

  • Page 43: Recording Videos

    Chapter 4: Operating the Device 4.4.3 Recording Videos 1. Open the Camera. 2. Focus on the object. 3. Tap to record the video. The video recording screen appears. 4. Tap to stop recording and return to the camera screen. 5. To playback the video, browse for the video file and play using a media player application on your device.

  • Page 44: Camera Settings

    7~15" S-Series HMI User Manual 4.4.4 Camera Settings 1. Tap to open the setting page. 2. Modify necessary settings. Item Description Check one of the check boxes to show the preview screen right after capturing a photo. • Show Preview: Check this box and enter the preview duration on Close preview after.

  • Page 45: How To Enable Watchdog

    Chapter 4: Operating the Device 4.5 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Ch.7, “Technical Support”...

  • Page 46: Chapter 5: Bios Setup

    7~15" S-Series HMI User Manual Chapter 5: BIOS Setup BIOS Setup Utility is a program for configuration basic Input/ Output system settings of the HMI for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu.

  • Page 47: When And How To Use Bios Setup

    Chapter 5: BIOS Setup 5.1 When and How to Use BIOS Setup To enter the BIOS setup, you need to connect an external USB keyboard, press <Del> key when the prompt appears on the screen during start up. The prompt screen shows only few seconds, you need to press <Del>...

  • Page 48: Bios Settings

    7~15" S-Series HMI User Manual Note: You can press the F1, F2, F3, F4, –/+, and Esc keys by connecting a USB keyboard to your device. 5.3 BIOS Settings 5.3.1 Main Menu When you enter BIOS setup, the first menu that appears on the screen is the main menu.It contains the system information including BIOS version, processor RC version, system language, time, and date.

  • Page 49: Advanced Menu

    Chapter 5: BIOS Setup 5.3.2 Advanced Menu The advanced menu also uses to set configuration of the CPU and other system devices. There are sub menus on the left frame of the screen. Important: Handle advanced BIOS settings page with caution. Any changes can affect the operation of your computer.
  • Page 50 7~15" S-Series HMI User Manual BIOS Setting Description Setting Effect Option ACPI Settings Configures ACPI settings Enter Opens submenu F81866 Super IO Configures IO settings Enter Opens Configuration submenu Hardware Monitor Configures Hardware Monitor Enter Opens settings submenu S5 RTC Wake Settings Configures RTC Wake parameters Enter Opens...
  • Page 51 Chapter 5: BIOS Setup 5.3.2.1 ACPI Settings Advanced Configuration and Power Interface (ACPI) settings allow to control how the power switch operates. The power supply can be adjusted for power requirements. You can use the screen to select options of ACPI configuration. A description of the selected items will appear on the right side of the screen.
  • Page 52 7~15" S-Series HMI User Manual 5.3.2.2 F81866 Super IO Configuration You can use the screen to select options for Super IO Configuration, and change the value of the option selected. A description of the selected item appears on the right side of the screen. For items marked with ►, please press <Enter>...
  • Page 53 Chapter 5: BIOS Setup Watch Dog Time Select You can either disable Watch Dog Timer or set up the time.Use <Arrow> keys to navigate and please press <Enter>to select the item. GPI0 Port Configuration You can use the screen to change GPI0 Port setting. Use these items to set parameters related to PIN3-PIN14 Control.
  • Page 54 7~15" S-Series HMI User Manual 5.3.2.3 Hardware Monitor You can check PC Health Status parameters such as system temperature, fan speed etc. 5.3.2.4 S5 RTC Wake Settings Wake system from S5 enables or disables system wake on alarm event. It allows you to wake up the system in a certain time.
  • Page 55 Chapter 5: BIOS Setup Wake System from S5 with fixed time setting Select Fixed Time to set the system to wake on the specified time. or example: If you want the system to start up automatically at 15:30:30, the 10th day of each month, then you should enter 10, 15, 30, and 30 from top to bottom.
  • Page 56 7~15" S-Series HMI User Manual 5.3.2.5 CPU Configuration BIOS Setting Description Setting Effect Option Socket CPU This item contains socket specific Enter Open sub-menu Information CPU information. CPU Thermal Thermal control Enter Open sub-menu Configuration Limit CPUID Limits CPIID Maximum Disabled/E Enable/Disable Maximum...
  • Page 57 Chapter 5: BIOS Setup 5.3.2.6 PPM Configuration BIOS Setting Description Setting Effect Option CPU C State Shows CPU C State Report Enabled/ Enable or Disable Report Disabled CPU C state report to Max CPU C- Allows to enter power-saving C1E, C3, Enable or Disable State mode in order to save energy...
  • Page 58 7~15" S-Series HMI User Manual 5.3.2.7 Thermal Configuration This menu allows controlling thermal settings of the computer. Refer to the descriptions on the top right side of the screen for detailed information about each setting. BIOS Setting Description Setting Option Effect Critical Trip Point Specifies the 90C, 87C, 85C, 79C,...
  • Page 59 Chapter 5: BIOS Setup 5.3.2.8 IDE Configuration...
  • Page 60 7~15" S-Series HMI User Manual BIOS Setting Description Setting Effect Option Serial- ATA Responsible for Enabled/ Enable or disable this (SATA) supporting chipset drives Disabled function with SATA interface. SATA Speed Allows forcing the speed Gen1 The maximum speed will be Support limit SATA II ports limited to 150 MB/s...
  • Page 61 Chapter 5: BIOS Setup 5.3.2.9 Miscellaneous Configuration OS Selection This item allows users to select the proper Operating System. BIOS Setting Description Setting Option Effect Windows 8.X Allows user to choose the Enter Use Windows 8.X proper OS. Windows 7 Allows user to choose the Enter Use Windows 7...
  • Page 62 7~15" S-Series HMI User Manual 5.3.2.10 CSM Configuration BIOS Setting Description Setting Effect Option CSM Support The Compatibility Support Module Enabled/ Enable or disable the is a component of the UEFI Disabled Compatibility Support firmware that provides legacy Module BIOS compatibility by emulating a BIOS environment, allowing legacy OS and some option ROMs that do not support UEFI to still be used.
  • Page 63 Chapter 5: BIOS Setup 5.3.2.11 USB Configuration...
  • Page 64 7~15" S-Series HMI User Manual BIOS Setting Description Setting Effect Option Legacy USB User can enable or disable USB Disable Will keep USB devices Support port. available only for EFI applications. Enable Enable all the USB devices USB 3.0 User can enable or disable USB Enable Enable USB 3.0 is Support...
  • Page 65 Chapter 5: BIOS Setup 5.3.2.12 Security Configuration BIOS Setting Description Setting Effect Option Trusted Execution Technology Enabled/ Enables or disables parameters Disabled this function TXE HMRFPO TXE HMRFPO parameters Enabled/ Enables or disables Disabled this function TXE Firmware TXE Firmware Update Enabled/ Enables or disables Update...

  • Page 66: Chipset Menu

    7~15" S-Series HMI User Manual 5.3.3 Chipset Menu For items marked with ►, please press <Enter> for more options. BIOS Description Setting Effect Setting Option High Allow to set up High Precious Timer Enabled/ Enables/Disable Precious settings Disabled s this function Timer Restore AC This function allows to set up booting...

  • Page 67: Security Menu

    Chapter 5: BIOS Setup 5.3.4 Security Menu In the Security menu, users can set administrator password, user password, and HDD security configuration. BIOS Setting Description Setting Effect Option Administrator Displays whether or not an Enter Enter Password administrator password has been password set.

  • Page 68: Boot Configuration

    7~15" S-Series HMI User Manual 5.3.5 Boot Configuration The Boot menu sets the sequence of the devices to be searched for the operating system.The bootable devices will be automatically detected during POST and shown here,allowing you to set the sequence that the BIOS uses to look for a boot device from which to load the operating system.
  • Page 69 Chapter 5: BIOS Setup BIOS Setting Description Setting Effect Option Setup Prompt Allows user to configure the number Enter Set the prompt Timeout of seconds to stay in BIOS setup timeout prompt screen. Boot NumLock Enables or disables NumLock feature Remains On State on the numeric keypad of the...

  • Page 70: Save& Exit

    7~15" S-Series HMI User Manual 5.3.6 Save& Exit The Exit menu displays a way how to exit BIOS Setup utility. After finishing your settings, you must save and exit for changes to be applied.
  • Page 71 Chapter 5: BIOS Setup BIOS Setting Description Setting Effect Option Save This saves the changes to the Enter Save changes Changes and CMOS and exits the BIOS Setup <YES> Exit program. Discard This exits the BIOS Setup without Enter Saves the changes Changes and saving the changes made in BIOS <YES>...

  • Page 72: Using Recovery Wizard To Restore Computer

    7~15" S-Series HMI User Manual 5.4 Using Recovery Wizard to Restore Computer Note: Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process. To enable quick one-key recovery procedure: ...

  • Page 73: Chapter 6: Driver Installation

    Chapter 6: Driver Installation Chapter 6: Driver Installation This chapter describes how to install all necessary drivers.

  • Page 74: Installing Chipset Driver

    7~15" S-Series HMI User Manual 6.1 Installing Chipset Driver Step 1 Insert the CD that comes with the motherboard. Open the file document “Chipset Driver” and click “infinst_auto.exe” to install driver. Step 2 Click Next to continue.
  • Page 75 Chapter 6: Driver Installation Step 3 Click Yes to agree the license terms. Step 4 Click Next to install the driver. Step 5 Software setup progress window will appear, click Next to continue. Step 6 Click “Yes, I want to restart this computer now” to finish the installation.

  • Page 76: Installing Graphics Driver

    7~15" S-Series HMI User Manual 6.2 Installing Graphics Driver Step 1 Insert the CD that comes with the motherboard. Open the file document “Graphics Driver” and click Setup to execute the setup. Step 2 Setup Welcome Window will appear, click Next to continue the process. Step 3 Carefully read the license terms and click Yes to agree.

  • Page 77: Installing Intel Sideband Fabric Device (Intel Mbi) Driver

    Chapter 6: Driver Installation 6.3 Installing Intel Sideband Fabric Device (Intel MBI) Driver Only for Windows 8.1. Step 1 Insert the CD that comes with the motherboard. Open the file document “MBI” and click “Setup.exe” to install the driver. Step 2 Welcome to the setup program window will appear, click Next to start the installation. Step 3 Carefully read the License Agreement terms and click Yes to agree.

  • Page 78: Installing Intel Trusted Engine Interface (Intel Txe) Driver

    7~15" S-Series HMI User Manual 6.4 Installing Intel Trusted Engine Interface (Intel TXE) Driver Step 1 Insert the CD that comes with the motherboard. Open the file document “TXE” and click “Setup TXE.exe” to install the driver. Step 2 Welcome to the setup program window will appear, click Next to start the installation. Step 3 Carefully read the license terms and click Yes to agree.

  • Page 79: Installing Intel Network Connections

    Chapter 6: Driver Installation 6.5 Installing Intel Network Connections User must confirm the type of operating system is being used before installing Intel Network Connections. Follow the steps below to complete the installation. Step 1 Click “PROWin64.exe” Step 2 Click Yes to start the installation. Step 3 Welcome window will appear, click Next to install the driver.

  • Page 80: Installing Audio Driver

    7~15" S-Series HMI User Manual 6.6 Installing Audio Driver The ALC886 series are high-performance 7.1+2 channel high definition audio codecs that provide ten DAC channels for simultaneous support of 7.1 sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. The series integrates two stereo ADCs that can support a stereo microphone, and feature Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technology.

  • Page 81: Installing Usb 3.0 Driver

    Chapter 6: Driver Installation 6.7 Installing USB 3.0 Driver Only for Windows 7. Note: If your operation system is Windows Embedded 8.1 Industry or Windows Embedded 8 Standard, you should skip the USB 3.0 driver installation. This HMI features Intel Celeron Trail-M N2930CPU with the Intel®...

  • Page 82: Chapter 7: Technical Support

    7~15" S-Series HMI User Manual Chapter 7: Technical Support This chapter includes the directory for technical support. Free technical support is available from our engineers every business day. We are always ready to give advice on application requirements or specific information on the installation and operation of any of our products.

  • Page 83: Introduction

    7.1 Introduction To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us. Also, you can download drivers from Winmate Download Center. Winmate provides the following Drivers for S-Series HMI: Item...

  • Page 84: Appendix

    7~15" S-Series HMI User Manual Appendix Appendix A: Product Specifications Model Name W07IB3S-PCO1- W07IB3S-PCO1AC- W10IB3S-PCH2- W10IB3S- R15IB3S- PCH2AC-POE PCC3-POE Display Size/ Type 7" TFT (Wide) 7" TFT (Wide) 10.1" TFT (Wide) 10.1" TFT (Wide) 15" Resolution 1024 x 600 1024 x 600 1280 x 800 1280 x 800 1024 x 768...

  • Page 85: Appendix B: Hf Rfid Reader Specifications

    Appendix Model Name W07IB3S-PCO1- W07IB3S- W10IB3S-PCH2- W10IB3S- R15IB3S- PCO1AC-POE PCH2AC-POE PCC3-POE Input / Output Connectors 3-pin terminal 3-pin terminal 3-pin terminal 3-pin terminal 3-pin terminal Power block block block block block 1 x RJ 45- 1 x RJ 45- 1 x RJ 45- 1 x RJ 45- 1 x RJ 45- 10/100/1000...

  • Page 86: Appendix C: Led Light Bar Adjustment

    7~15" S-Series HMI User Manual Appendix C: LED Light Bar Adjustment Note: PoE Hub requires the power of more than 25 Watt. This section describes how to adjust LED Light Bar with RS-232 settings. Baud Rate 9600 Data Bits Parity: None Stop Bits Reading Version...

  • Page 87: Appendix D: Changing Screen Resolution

    Appendix Setting Function NO. Function Length Command index Value Checksum(*1) Supplement Load Default 0x05 0x40 0x21 0x00 0x9A LED_RED 0x05 0x61 0x10 0x00-0xFF 0x8A~0x8B Default 0xFF LED_GREEN 0x05 0x61 0x11 0x00-0xFF 0x89~0x8A Default 0xFF LED_BLUE 0x05 0x61 0x12 0x00-0xFF 0x88~0x89 Default 0xFF LED_ALL 0x05...
  • Page 88 7~15" S-Series HMI User Manual 2. Select Extend these displays, click Apply. 3. Whether to keep the display settings message appears, click Keep changes.
  • Page 89 Appendix 4. Right-click on the Windows icon and select Control Panel. 5. Select Tablet PC Settings.
  • Page 90 7~15" S-Series HMI User Manual 6. Select Setup, the window will jump out Touch this screen to identify it as the touchscreen, click the Touch and press ok.
  • Page 91 Appendix 7. Go back to Display settings again, Extend these displays have been changed to Duplicate these displays, click Apply. 8. Select Keep changes.
