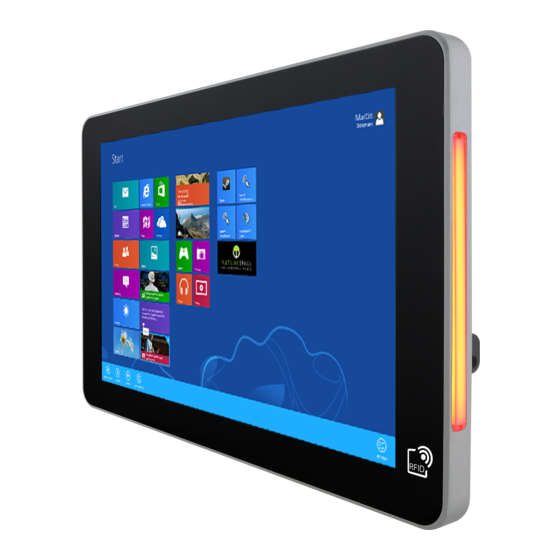

10.1" S-Series HMI
W10IB3S-PCH2AC-PoE (with LED light bar)
W10IB3S-PCH2-PoE (without LED light bar)
Slim-line

User Manual

Version 1.4
Document Part Number: 9152111I100M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W10IB3S-PCH2AC-PoE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winmate W10IB3S-PCH2AC-PoE

Summary of Contents for Winmate W10IB3S-PCH2AC-PoE

  • Page 1: User Manual

    10.1" S-Series HMI W10IB3S-PCH2AC-PoE (with LED light bar) W10IB3S-PCH2-PoE (without LED light bar) Slim-line User Manual Version 1.4 Document Part Number: 9152111I100M...
  • Page 2 Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners.

  • Page 3: Customer Service

    Warranty Our warranty guarantees that each of its products will be free from material and workmanship defects for a period of one year from the invoice date. If the customer discovers a defect, we will, at his/her option, repair or replace the defective product at no charge to the customer, provide it is returned during the warranty period of one year, with transportation charges prepaid.
  • Page 4 Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. NOTE: A note is used to emphasize helpful information IMPORTANT:...

  • Page 5: Safety Information

    Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis. Toujours débrancher le cordon d’alimentation du chassis lorsque vous travaillez sur celui-ci.
  • Page 6 Safety Precautions For your safety carefully read all the safety instructions before using the device. Keep this user manual for future reference.  Always disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth. ...
  • Page 7 CAUTION/ATTENTION Use the recommended mounting apparatus to avoid risk of injury. Utiliser l’appareil de fixation recommandé pour éliminer le risque de blessure. WARNING!/AVERTISSEMENT! Only use the connection cords that come with the product .When in doubt, please contact the manufacturer. Utiliser seulement les cordons d’alimentation fournis avec le produit.

  • Page 8: Important Information

    Important Information Countries/ Area Symbol This equipment complies with essential requirements European Union Electromagnetic Compatibility Directive(2014/30/EU) Low Voltage Directive (2014/35/EU) Restrictions of the use of certain hazardous substances (RoHS) Directive (2011/65/EU) FCC Part 15 Subpart B Regulations Class B Federal Communications Commission Radio Frequency Interface Statement This device complies with part 15 FCC rules.
  • Page 9 European Union This equipment is in conformity with the requirement of the following EU legislations and harmonized standards. Product also complies with the Council directions. Electromagnetic Compatibility Directive (2014/30/EU)  EN55024: 2010 EN 55022: 2010 Class B o IEC61000-4-2: 2009 o IEC61000-4-3: 2006+A1: 2007+A2: 2010 o IEC61000-4-4: 2012 o IEC61000-4-5: 2014...

  • Page 10: About This User Manual

    About This User Manual This User Manual provides information about using the Winmate® 10.1” S-Series HMI. The documentation set for the 10.1” S-Series HMI provides information for specific user needs, and includes:  10.1” S-Series HMI Quick Start Guide - describes how to get the HMI up and running.

  • Page 11: Table Of Contents

    Contents Preface ............................ii About This User Manual ....................... x 1 Introduction ..........................1 1.1 Product Features ........................1 1.2 Hardware Specifications ...................... 2 1.3 Software Support ......................... 3 1.4 Packing List ........................... 4 1.4.1 Standard Accessories ....................4 1.4.2 Optional Accessories ....................5 1.5 Appearance ..........................
  • Page 12 3.2.3 Brightness ........................ 10 3.2.4 Volume ........................10 3.2.5 LED Light Bar (Easy-Testing) ..................10 3.2.6 Performance ......................11 3.2.7 Touch Lock ....................... 11 3.3 Using HF RFID Reader ......................12 3.3.1 Reading Mode ......................13 3.3.2 Writing Mode ......................13 3.4 Using Front Camera ......................
  • Page 13 5.3 Using Recovery Wizard to Restore Computer ..............55 6 Mounting Solutions ......................... 58 6.1 Cable Mounting Considerations ..................58 6.2 Safety Precautions ......................58 6.3 Mounting Guide ......................... 59 6.3.1 VESA Mount ......................59 6.3.2 Flush Mount / Panel Mount ..................60 6.4 Optional Mounting Solutions .....................

  • Page 14: Introduction

    Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the HMI device in the packing list. Mechanical dimensions and drawings included in this chapter. 10.1” S-Series HMI...

  • Page 15: Product Features

    LED indicators you can see the status of the machine or processes afar. It significantly reduces power consumption by keeping the display turned off. 1.1 Product Features Winmate® 10.1” S-Series HMI with Intel ® Celeron ® Bay Trail-M N2930 processor features:  10.1” 1280 x 800 Resolution with P-Cap multi-touch screen ...

  • Page 16: Hardware Specifications

    User Manual Chapter 1 Introduction 1.2 Hardware Specifications HMI Device: Model Name W10IB3S-PCH2AC-PoE/ W10IB3S-PCH2-PoE Size 10.1" TFT (widescreen) Resolution 1280 x 800 Brightness ( ) 300 cd/m (typ.) Display Contrast Ratio 800:1 (typ.) Specifications Viewing Angle -89~89 (H); -89~89 (V)

  • Page 17: Software Support

    0 °C to +50 °C Environmental Humidity 30% to 90% (non-condensing) Considerations Front: IP65 water and dust proof IP Rating Rear: IP22 1.3 Software Support Winmate provides the following drivers S-Series HMI. Item Driver Windows 7 Windows 8 Windows 10 Chipset Driver ☑ ☑...

  • Page 18: Packing List

    User Manual Chapter 1 Introduction Winmate provides the following Software Development Kits (SDK) for S-Series HMI. Item File Type Description Watchdog SDK & AP Watchdog SDK and AP Digital I/O SDK Digital I/O SDK LED Porting Guide LED Light Bar...

  • Page 19: Optional Accessories

    User Manual Chapter 1 Introduction 1.4.2 Optional Accessories Package may include optional accessories based on your order. VESA Desk Stand Model Name: PCVS-V1 Part Number: 99KK00A0000E Dimensions 10.1” S-Series HMI...
  • Page 20 User Manual Chapter 1 Introduction Front Side In-Wall Mount Model Name: PCFW-V1 Part Number: 99KK00A0000C Dimensions 10.1” S-Series HMI...

  • Page 21: Appearance

    Chapter 1 Introduction 1.5 Appearance This section describes physical appearance of the HMI device. W10IB3S-PCH2AC-PoE (with LED Light Bar) W10IB3S-PCH2-PoE (without LED Light Bar) *Digital I/O is an optional connector and may not be present in your model. 10.1” S-Series HMI...

  • Page 22: Dimensions

    User Manual Chapter 1 Introduction 1.6 Dimensions This section describes mechanical dimensions of the HMI device. Dimensions (W x L x H): 263.28 x 171 x 35.7 mm *Note: Measurements shown in mm. **Note: this is a simplified drawing and some components are not marked in detail. 10.1”...

  • Page 23: Getting Started

    Getting Started This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations. 10.1” S-Series HMI...

  • Page 24: Powering On

    User Manual Chapter 2 Getting Started 2 Getting Started This chapter provides information on how to connect the HMI device to the source of power, connector pinouts and the guideline to turn on/off the HMI device. 2.1 Powering On 2.1.1 AC Adapter Components AC Adapter Power Cord Terminal Block to DC Jack...

  • Page 25: Connecting The Power

    User Manual Chapter 2 Getting Started HMI device operates on external DC power. Use the AC adapter included in the package. CAUTION/ATTENTION Use only the AC adapter (12V/ 50W) included in your package (Rating: Output4.2 A). Using other AC adapters may damage the device.

  • Page 26: Connector Pinouts

    User Manual Chapter 2 Getting Started 2.2 Connector Pinouts 2.2.1 DC in Terminal Block Connector DC power source input is a 3 pin terminal block connector. Minimum Voltage 11.4V Maximum Voltage 12.6V Maximum Current 4.2A Voltage 2.2.2 POE/LAN Connector The 10.1” S-Series HMI supports one RJ45 10/100/1000 Mbps Ethernet interface for connecting to the internet.

  • Page 27: Hdmi Connector

    User Manual Chapter 2 Getting Started Pin № Name Pin № Name USB_D- USB_D+ STDA_SSRX- STDA_SSRX+ GND_DRAIN STDA_SSTX- STDA_SSTX+ USB_D- USB_D+ 2.2.5 HDMI Connector Pin № Name Pin № Name TMDS_DATA2+ TMDS_DATA2- TMDS_DATA1+ TMDS_DATA1- TMDS_DATA0+ TMDS_DATA0- TMDS_CLOCK+ TMDS_CLOCK- DDC_CLOCK DDC_DATA Hot Plug Detect 2.2.6 Digital I/O Connector Pin №...

  • Page 28: Turning On/ Off The Device

    User Manual Chapter 2 Getting Started 2.3 Turning On/ Off the Device The unit is configured to Power ON when is connected to the power source. You can Turn OFF the HMI device with the Windows power settings. To shut down the device: 1.

  • Page 29: Configuring Serial Port Settings

    User Manual Chapter 2 Getting Started 2.4 Configuring Serial Port Settings Serial port COM1 can be configured for RS-232, RS-422 or RS-485.Jumpers are located on the motherboard. You need to open the housing in order to access the jumpers. CAUTION/ ATTENTION It is recommended to use factory jumper settings.
  • Page 30 Operating the Device This chapter provides detailed information on how to operate the device. If you have been using touch-screen Panel PCs before, the interface may look familiar. Sections include system settings parameters. 10.1” S-Series HMI...

  • Page 31: Operating The Hmi Device

    User Manual Chapter 3 Operating the HMI Device 3 Operating the HMI Device In this chapter you will find instructions on how to operate the HMI device with Hot Tab. 3.1 Operating System S-series HMI support several versions of Windows OS: Windows 10 IoT, Windows Embedded 8.1 Industry Pro, Windows Embedded 8 Standard, Windows 7 Pro for Embedded Systems, and Windows Embedded Standard 7–...

  • Page 32: Utilities

    User Manual Chapter 3 Operating the HMI Device 3.2.2 Utilities Utilities category allows automatically changing orientation from landscape to portrait mode or rotating the desktop to a different degree as 0°,90°, 180°, and 270°. 3.2.3 Brightness Tap Brightness button to show current brightness level. To reduce the brightness, drag by touch to the left.

  • Page 33: Performance

    User Manual Chapter 3 Operating the HMI Device 3.2.6 Performance User can adjust the performance level of the HMI device. There are four options available:  Extreme performance  Office Document  High performance  Power Saving 3.2.7 Touch Lock To LOCK touch screen, double-click the Hot Tab icon on the Windows desktop, and tap Touch Lock.

  • Page 34: Using Hf Rfid Reader

    User Manual Chapter 3 Operating the HMI Device 3.3 Using HF RFID Reader Notice that HF RFID Reader is an optional feature for 10.1” S-Series HMI and may not be present in your device. HF RFID is commonly used for ticketing, payment, and data transfer applications. The RFID Reader is located on the bottom right front side of the HMI device.

  • Page 35: Reading Mode

    User Manual Chapter 3 Operating the HMI Device 3.3.1 Reading Mode Select the default RFID Reader COM14or press Search on the upper left corner of the screen. The system will automatically find RFID COM port, show the Version. Item № Key button Function E1- Version...

  • Page 36: Using Front Camera

    User Manual Chapter 3 Operating the HMI Device 3.4 Using Front Camera Notice that 2MP Front Camera is an optional feature for 10.1” S-Series HMI and may not be present in your device. NOTE: You camera screen may differ from the pictures in thus user manual. 3.4.1 Opening the Camera Perform one of the following to open the camera: 1.

  • Page 37: Shooting Photos

    User Manual Chapter 3 Operating the HMI Device Item Description Tap to record videos Video Tap to capture photos Photo Tap to select the destination folder to save captured photos and videos, enable preview, and select picture Settings resolution and quality Tap to close the camera Close Capture Screen...

  • Page 38: Recording Videos

    User Manual Chapter 3 Operating the HMI Device 3.4.3 Recording Videos 1. Open the Camera 2. Focus on the object 3. Tap to record the video. The video recording screen appears 4. Tap to stop recording and return to the camera screen 5.
  • Page 39 User Manual Chapter 3 Operating the HMI Device Item Description Check one of the check boxes to show the preview screen right after capturing a photo. • Show Preview: Check this box and enter the preview duration on Close preview after. When the duration Preview Setting ends, the preview screen will automatically close.

  • Page 40: How To Enable Watchdog

    Operating the HMI Device 3.3 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. Refer to the Ch.7, “Technical Support”...

  • Page 41: Driver Installation

    Driver Installation This chapter describes how to install all necessary drivers. 10.1” S-Series HMI...

  • Page 42: Installing Chipset Driver

    User Manual Chapter 4 Driver Installation 4 Driver Installation This chapter provides guideline to driver installations. 4.1 Installing Chipset Driver Step 1 Insert the CD that comes with the motherboard. Open the file document “Chipset Driver” and click “infinst_auto.exe” to install driver. 10.1”...
  • Page 43 User Manual Chapter 4 Driver Installation Step 2 Click Next to continue. Step 3 Click Yes to agree the license terms. 10.1” S-Series HMI...
  • Page 44 User Manual Chapter 4 Driver Installation Step 4 Click Next to install the driver. Step 5 Software setup progress window will appear, click Next to continue. Step 6 Click “Yes, I want to restart this computer now” to finish the installation. 10.1”...

  • Page 45: Installing Graphics Driver

    User Manual Chapter 4 Driver Installation 4.2 Installing Graphics Driver Step 1 Insert the CD that comes with the motherboard. Open the file document “Graphics Driver” and click Setup to execute the setup. Step 2 Setup Welcome Window will appear, click Next to continue the process. Step 3 Carefully read the license terms and click Yes to agree.

  • Page 46: Installing Intel Sideband Fabric Device (Intel Mbi) Driver (Windows 8)

    User Manual Chapter 4 Driver Installation 4.3 Installing Intel Sideband Fabric Device (Intel MBI) Driver (Windows 8) Step 1 Insert the CD that comes with the motherboard. Open the file document “MBI” and click “Setup.exe” to install the driver. Step 2 Welcome to the setup program window will appear, click Next to start the installation.

  • Page 47: Installing Intel Trusted Engine Interface (Intel Txe) Driver

    User Manual Chapter 4 Driver Installation 4.4 Installing Intel Trusted Engine Interface (Intel TXE) Driver Step 1 Insert the CD that comes with the motherboard. Open the file document “TXE” and click “Setup TXE.exe” to install the driver. Step 2 Welcome to the setup program window will appear, click Next to start the installation.

  • Page 48: Installing Intel Network Connections

    User Manual Chapter 4 Driver Installation 4.5 Installing Intel Network Connections User must confirm the type of operating system is being used before installing Intel Network Connections. Follow the steps below to complete the installation. Step 1 Click “PROWin64.exe” Step 2 Click Yes to start the installation. Step 3 Welcome window will appear, click Next to install the driver.

  • Page 49: Installing Audio Driver

    User Manual Chapter 4 Driver Installation 4.6 Installing Audio Driver The ALC886 series are high-performance 7.1+2 channel high definition audio codecs that provide ten DAC channels for simultaneous support of 7.1 sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs.

  • Page 50: Installing Usb 3.0 Driver (Windows 7)

    User Manual Chapter 4 Driver Installation 4.7 Installing USB 3.0 Driver (Windows 7) NOTE: If your operation system is Windows Embedded 8.1 Industry or Windows Embedded 8 Standard, you should skip the USB 3.0 driver installation. This HMI features Intel Celeron Trail-M N2930CPU with the Intel®...

  • Page 51: Bios Setup

    BIOS Setup BIOS Setup Utility is a program for configuration basic Input/ Output system settings of the HMI for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu. 10.1” S-Series HMI...

  • Page 52: When And How To Use Bios Setup

    User Manual Chapter 5 BIOS Setup 5 BIOS Setup This chapter provides information on how to use BIOS setup, its functions and menu. 5.1 When and How to Use BIOS Setup To enter the BIOS setup, you need to connect an external USB keyboard, press <Del> key when the prompt appears on the screen during start up.

  • Page 53: Bios Functions

    User Manual Chapter 5 BIOS Setup 5.2 BIOS Functions BIOS Navigation Keys BIOS navigation keys for keyboard control are listed below. The following keys are enabled during POST: Function Enters the BIOS setup menu. Display the boot menu. Lists all bootable devices that are connected to the system.

  • Page 54: Main Menu

    User Manual Chapter 5 BIOS Setup 5.2.1 Main Menu When you enter BIOS setup, the first menu that appears on the screen is the main menu.It contains the system information including BIOS version, processor RC version, system language, time, and date. Immediately after the [DEL] key is pressed during startup, the main BIOS setup menu appears: 10.1”...

  • Page 55: Advanced Menu

    User Manual Chapter 5 BIOS Setup BIOS Description Setting Option Effect Setting System Displays the system Adjustment of the Set the language in Language language. [English] is language other language. The set up by default. language in this device is English. System This is current date Date and time...
  • Page 56 User Manual Chapter 5 BIOS Setup BIOS Setting Description Setting Option Effect ACPI Settings Configures ACPI settings Enter Opens submenu F81866 Super IO Configures IO settings Enter Opens Configuration submenu Hardware Monitor Configures Hardware Monitor Enter Opens settings submenu S5 RTC Wake Settings Configures RTC Wake Enter Opens...
  • Page 57 User Manual Chapter 5 BIOS Setup USB Configuration Configures USB Settings Enter Opens submenu Platform Trust Configures Platform Trust Enter Opens Technology Technology parameters submenu Security Configuration Configures Security Enter Opens parameters submenu For items marked ► press <Enter> for more options. 5.2.2.1 ACPI Settings Advanced Configuration and Power Interface (ACPI) settings allow to control how the power switch operates.
  • Page 58 User Manual Chapter 5 BIOS Setup 5.2.2.2 F81866 Super IO Configuration You can use the screen to select options for Super IO Configuration, and change the value of the option selected. A description of the selected item appears on the right side of the screen.
  • Page 59 User Manual Chapter 5 BIOS Setup Watch Dog Time Select You can either disable Watch Dog Timer or set up the time.Use <Arrow> keys to navigate and please press <Enter>to select the item. GPI0 Port Configuration You can use the screen to change GPI0 Port setting. Use these items to set parameters related to PIN3-PIN14 Control.
  • Page 60 User Manual Chapter 5 BIOS Setup 5.2.2.3 Hardware Monitor You can check PC Health Status parameters such as system temperature, fan speed etc. 5.2.2.4 S5 RTC Wake Settings Wake system from S5 enables or disables system wake on alarm event. It allows you to wake up the system in a certain time.
  • Page 61 User Manual Chapter 5 BIOS Setup Wake System from S5 with fixed time setting Select Fixed Time to set the system to wake on the specified time. Use Navigation Keys to switch among the items: Day, Hour, Minute and Second. Type the desired value in the selected item. or example: If you want the system to start up automatically at 15:30:30, the 10th day of each month, then you should enter 10, 15, 30, and 30 from top to bottom.
  • Page 62 User Manual Chapter 5 BIOS Setup Wake system from S5 after dynamic time setting Select Dynamic Time to set the system to wake on the current time + increase minute (s). 5.2.2.5 CPU Configuration 10.1” S-Series HMI...
  • Page 63 User Manual Chapter 5 BIOS Setup BIOS Setting Description Setting Effect Option Socket CPU This item contains socket Enter Open sub-menu Information specific CPU information. CPU Thermal Thermal control Enter Open sub-menu Configuration Limit CPUID Limits CPIID Maximum Disabled/E Enable/Disable Maximum nabled this function...
  • Page 64 User Manual Chapter 5 BIOS Setup BIOS Setting Description Setting Effect Option CPU C State Shows CPU C State Report Enabled/ Enable or Disable CPU Report Disabled C state report to OS Max CPU C- Allows to enter power- C1E, C3, Enable or Disable CPU State saving mode in order to...
  • Page 65 User Manual Chapter 5 BIOS Setup 5.2.2.8 IDE Configuration BIOS Setting Description Setting Effect Option Serial- ATA Responsible for Enabled/ Enable or disable this (SATA) supporting chipset Disabled function drives with SATA interface. SATA Speed Allows forcing the speed Gen1 The maximum speed will be Support limit SATA II ports...
  • Page 66 User Manual Chapter 5 BIOS Setup [IDE] SATA controllerwill operate in a mechanism similar to a conventional IDE-controller [RAID] Allows combining hard drives in RAID-arrays in order to improve the reliability of data storage, or to increase the speed. Serial- ATA The option turns on or Enabled/ Turn on (Enabled) or turn off...
  • Page 67 User Manual Chapter 5 BIOS Setup 5.2.2.9 Miscellaneous Configuration OS Selection This item allows users to select the proper Operating System. BIOS Setting Description Setting Option Effect Windows 8.X Allows user to choose Enter Use Windows 8.X the proper OS. Windows 7 Allows user to choose Enter...
  • Page 68 User Manual Chapter 5 BIOS Setup 5.2.2.10 CSM Configuration BIOS Description Setting Effect Setting Option The Compatibility Support Enabled/ Enable or disable the Support Module (CSM) is a component of Disabled Compatibility Support the UEFI firmware that provides Module legacy BIOS compatibility by emulating a BIOS environment, allowing legacy operating systems and some option ROMs...
  • Page 69 User Manual Chapter 5 BIOS Setup ROMs are booted Video Specifies which Video option UEFI Only UEFI option ROMs ROM is booted are booted Legacy Only Legacy option ROMs are booted Other PCI Specifies which option ROM is UEFI Only UEFI option ROMs Devices booted for devices other than the are booted...
  • Page 70 User Manual Chapter 5 BIOS Setup Enable Enables this function EHCI Hand‐off This is a workaround for OSs Disable Disables this function without ECHI hand‐ off support. Enable Enables this function USB mass User can Enable or disable USB Disable Disables this function storage driver mass storage driver support.
  • Page 71 User Manual Chapter 5 BIOS Setup BIOS Setting Description Setting Option Effect fTPM Trusted Platform Module Enabled/Disabled Enables or parameters disables this function 5.2.2.13 Security Configuration BIOS Setting Description Setting Effect Option Trusted Execution Technology Enabled/D Enables or disables this parameters isabled function...

  • Page 72: Chipset Menu

    User Manual Chapter 5 BIOS Setup 5.2.3 Chipset Menu For items marked with ►, please press <Enter> for more options. BIOS Description Setting Effect Setting Option High Allow to set up High Precious Timer Enabled/ Enables/Disable Precious settings Disabled s this function Timer Restore AC This function allows to set up...

  • Page 73: Security Menu

    User Manual Chapter 5 BIOS Setup 5.2.4 Security Menu In the Security menu, users can set administrator password, user password, and HDD security configuration. BIOS Setting Description Setting Effect Option Administrator Displays whether or not an Enter Enter Password administrator password has been password set.

  • Page 74: Boot Configuration

    User Manual Chapter 5 BIOS Setup 5.2.5 Boot Configuration The Boot menu sets the sequence of the devices to be searched for the operating system.The bootable devices will be automatically detected during POST and shown here,allowing you to set the sequence that the BIOS uses to look for a boot device from which to load the operating system.

  • Page 75: Save& Exit

    User Manual Chapter 5 BIOS Setup (Default: Disabled). Enabled Enables this function Boot Mode Specifies which mode will be used Legacy Only Legacy option Select for booting is booted UEFI Only UEFI option is booted Boot Option Specifies the overall boot order Ex: Boot Hard drive as the #1~#6...
  • Page 76 User Manual Chapter 5 BIOS Setup BIOS Setting Description Setting Effect Option Save This saves the changes to the Enter Save changes Changes and CMOS and exits the BIOS Setup <YES> Exit program. Discard This exits the BIOS Setup without Enter Saves the changes Changes and...

  • Page 77: Using Recovery Wizard To Restore Computer

    User Manual Chapter 5 BIOS Setup 5.3 Using Recovery Wizard to Restore Computer Note: Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process. To enable quick one-key recovery procedure: ...
  • Page 78 User Manual Chapter 5 BIOS Setup 10.1” S-Series HMI...

  • Page 79: Mounting Solutions

    Mounting Solutions This chapter provides step-by-step mounting guide for all available mounting options. 10.1” S-Series HMI...

  • Page 80: Cable Mounting Considerations

    User Manual Chapter 6 Mounting Solutions 6 Mounting Solutions This chapter provides mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. 6.1 Cable Mounting Considerations For a nice look and safe installation, make sure cables are neatly hidden behind the HMI device.

  • Page 81: Mounting Guide

    User Manual Chapter 6 Mounting Solutions 6.3 Mounting Guide S-series HMI devices come with different mounting options suitable for most of the industrial and commercial applications. The main mounting approach is chassis – very user-friendly in terms of installation. Refer to sub-sections below for more details. 6.3.1 VESA Mount VESA Mount compatible with swing arm mounting kits.

  • Page 82: Flush Mount / Panel Mount

    User Manual Chapter 6 Mounting Solutions 6.3.2 Flush Mount / Panel Mount S-Series HMI supports Panel Mount that allows mounting the device into an aperture. Wall cutout Screw Hole Diameter 157.6 x 249 mm M3 x 4 mm Mounting Steps: Prepare a fixture for the specific dimensions of the device.

  • Page 83: Optional Mounting Solutions

    User Manual Chapter 6 Mounting Solutions 6.4 Optional Mounting Solutions 6.4.1 Front Side Wall Mount The device can be mounted in the wall with Winmate® Wall Mount Bracket. Wall cutout Screw Hole Diameter 275 x 184mm M4 x 5 mm Mounting Steps: 1.

  • Page 84: Desk Stand

    User Manual Chapter 6 Mounting Solutions 6.4.2 Desk Stand The device can be installed on a desk with the stand. You can purchase desk stand as an optional accessory.  Screw Hole Diameter: M4 x 5 mm Mounting Steps:  Use provided M4 screws to fix the desk stand to VESA holes on the back cover of the device.

  • Page 85: Technical Support

    Technical Support This chapter includes information where to find technical support. 10.1” S-Series HMI...

  • Page 86: Software Developer Support

    User Manual Chapter 8 Certificates 7 Technical Support This chapter includes information where to find technical support and Winmate’s Software Developing Kit (SDK). If any problem occurs fill in Problem Report Form enclosed and immediately contact us. 7.1 Software Developer Support We provide the SDK in the User Manual and SDK CD, or you can download the SDK from Winmate Download Center or Winmate Partner Portal.

  • Page 87: Problem Report Form

    User Manual Chapter 8 Certificates 7.2 Problem Report Form 10.1" S-Series HMI (Slim-line) Customer name: Company: Tel.: Fax: E-mail: Date: Product Serial Number: ____________________________________________________ Problem Description: Please describe the problem as clearly as possible. Detailed description of the occurred problem will allow us to find the best solution to solve the problem as soon as possible.

  • Page 88: Appendix A: Led Light Bar Adjustment

    LED Light Bar Adjustment This section describes how to adjust LED Light Bar with RS-232 settings Appendix 10.1” S-Series HMI...
  • Page 89 Appendix A: LED Light Bar Adjustment This section describes how to adjust LED Light Bar with RS-232 settings. Baud Rate: 9600 Data Bits: Parity: None Stop Bits: Reading Version NO. Function Length Command Index Checksum(*1) Note Return ASCII Part Part Number 0x04 0xA0 0x00...
  • Page 90 Reading Function PC command Comman NO. Function Length CKS(*1) Length index Data CKS(*1) supplement 0x00- 0xEC~0 LED_RED 0x04 0x60 0x8C 0x04 0x10 Default 0xFF 0xFF LED_GRE 0x00- 0xEB~0 0x04 0x60 0x8B 0x04 0x11 Default 0xFF 0xFF LED_BLU 0x00- 0xEA~0 0x04 0x60 0x8A 0x04...
  • Page 91 Setting Function NO. Function Length Command index Value Checksum(*1) Supplement Load 0x05 0x40 0x21 0x00 0x9A Default LED_RED 0x05 0x61 0x10 0x00-0xFF 0x8A~0x8B Default 0xFF LED_GREEN 0x05 0x61 0x11 0x00-0xFF 0x89~0x8A Default 0xFF LED_BLUE 0x05 0x61 0x12 0x00-0xFF 0x88~0x89 Default 0xFF LED_ALL 0x05 0x61...

  • Page 92: Appendix B: Hf Rfid Reader Specifications

    HF RFID Reader Specifications This section includes the HF RFID Reader specifications Appendix 10.1” S-Series HMI...
  • Page 93 Appendix B: HF RFID Reader Specifications This section includes the HF RFID Reader specifications. The RFID Reader can read and write data according to different HF RFID standards. HF RFID Standard Purpose ISO-14443 A Standard for MIFARE technology, which used in smart cards and proximity cards ISO-15693 Standard for tracking items...
