Winmate W10IB3S-PCH2AC-PoE S-Series User Manual

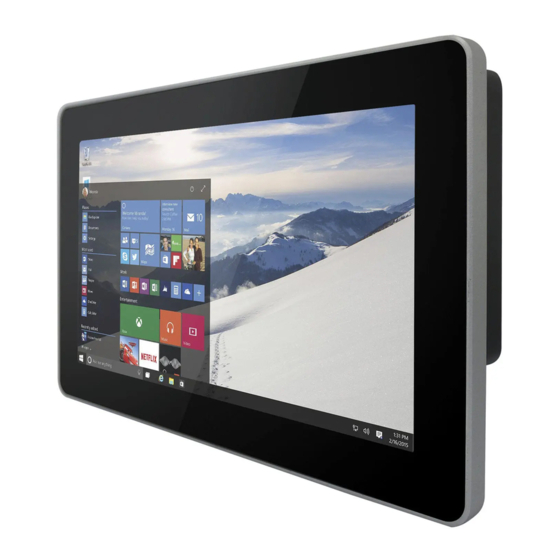

10.1" rugged tablet pc with/without led light bar slim-line
Hide thumbs Also See for W10IB3S-PCH2AC-PoE S-Series:
Table of Contents

Advertisement

Quick Links

Download this manual
10.1"S-Series HMI
W10IB3S-PCH2AC-PoE (with LED light bar)
W10IB3S-PCH2-PoE (without LED light bar)
Slim-line

User Manual

Version 1.1
Manual Part Number: 9152111I100M

Advertisement

Table of Contents
loading

Related Manuals for Winmate W10IB3S-PCH2AC-PoE S-Series

Summary of Contents for Winmate W10IB3S-PCH2AC-PoE S-Series

  • Page 1: User Manual

    10.1"S-Series HMI W10IB3S-PCH2AC-PoE (with LED light bar) W10IB3S-PCH2-PoE (without LED light bar) Slim-line User Manual Version 1.1 Manual Part Number: 9152111I100M...
  • Page 2 Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners.
  • Page 3 Warranty Our warranty guarantees that each of its products will be free from material and workmanship defects for a period of one year from the invoice date. If the customer discovers a defect, we will, at his/her option, repair or replace the defective product at no charge to the customer, provide it is returned during the warranty period of one year, with transportation charges prepaid.
  • Page 4 Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory.

  • Page 5: Safety Information

    Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.

  • Page 6: Safety Precautions

    Safety Precautions For your safety carefully read all the safety instructions before using the device. Keep this user manual for future reference.  Always disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth. ...
  • Page 7 *Let service personnel to check the equipment in case any of the following problems appear: o The power cord or plug is damaged. o Liquid has penetrated into the equipment. o The equipment has been exposed to moisture. o The equipment does not work well or you cannot get it to work according to the user manual.
  • Page 8  Cover workstations with approved anti-static material. Use a wrist strap connected to a work surface and properly grounded tools and equipment.  Use anti-static mats, heel straps, or air ionizer for added protection.  Handle electrostatic-sensitive components, PCB’s and assemblies by the case or the edge of the board.

  • Page 9: Important Information

    Important Information Countries/ Symbol This equipment complies with essential Area requirements of: European Electromagnetic Compatibility Union Directive(2014/30/EU) Low Voltage Directive (2014/35/EU) Restrictions of the use of certain hazardous substances (RoHS) Directive (2011/65/EU) FCC Part 15 Subpart B Regulations Class B Federal Communications Commission Radio Frequency Interface Statement This device complies with part 15 FCC rules.
  • Page 10 EC Declaration of Conformity [English] The object of the declaration described above [A] is in conformity with the requirement of the following EU legislations [B] and harmonized standards [C]. Product also complies with the Council directions [D]. [German] Das oben beschriebene Objekt [A] entspricht den Anforderungen der nachfolgend aufgeführten EU-Vorgben [B] und den harmonisierten Normen [C].

  • Page 11: Revision History

    Revision History Version Date Note Author Update BIOS Setup, 15-Jan-2016 mounting solutions, Kent Ou-Yong connector pinouts 10.1" S-Series HMI User Manual...

  • Page 12: Table Of Contents

    Contents Preface ........................ii 1 Introduction ......................2 1.1 Product Features ..................3 1.2 Hardware Specifications ................3 1.3 Software Support ..................4 1.4 Packing List ....................5 1.4.1 Accessories ..................5 1.4.2 Options ....................6 1.5 Appearance ....................8 1.5.1 W10IB3S-PCH2AC-PoE ................
  • Page 13 2.3 Turning On ....................6 2.4 Configuring Serial Port COM1 ..............6 2.5 Turning Off ....................8 3 Operating the HMI Device ................... 10 3.1 System Settings ..................10 3.1.1 Hot Tab Menu ................... 10 3.1.2 Utilities ..................... 10 3.1.3 Brightness ..................10 3.1.4 Volume .....................
  • Page 14 5.2.3 Chipset Menu ................... 52 5.2.4 Security Menu ................... 53 5.2.5 Boot Configuration ................54 5.2.6 Save & Exit ..................56 5.3 Using Recovery Wizard to Restore Computer ..........58 6 Mounting Solutions .................... 61 6.1 Cable Mounting Considerations ..............61 5.2 Safety Precautions ..................
  • Page 15 8.2.2 W10IB3S-PCH2AC-POE ..............73 10.1" S-Series HMI User Manual...

  • Page 16: Introduction

    Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the HMI device in the packing list. Mechanical dimensions and drawings included in this chapter. 10.1" S-Series HMI User Manual...
  • Page 17 1 Introduction Interactive and smart automation systems of intelligent buildings are in a fast growing phase. Winmate multi-touch S-Series HMI is suitable for home automation and room management systems. Flat surface is easy-to-clean and delivers aesthetically pleasing look for any interior. The device provides real time update for booking status and available schedule, or performs as a synchronous display in meetings.

  • Page 18: Product Features

    1.1 Product Features Model Name W10IB3S-PCH2AC-PoE W10IB3S-PCH2-PoE Product Line 10.1” S-Series HMI (Slim-line) Resolution 1280 x 800 Windows 10 IoT Windows Embedded 8.1 Industry Pro Operating System Windows Embedded 8 Standard Windows 7 Pro for Embedded Systems Windows Embedded Standard 7 – WS7P Ultra-low power consumption with Intel®...
  • Page 19 USB Ports 1 x USB 3.0, 1 x USB 2.0 Ethernet 2 x RJ 45-10/100/1000 Mbps HDMI 1 x HDMI Speaker 1 x 1 watt speaker *Digital I/O 1 x 1 digital I/O Mechanical Specification: Cooling System Fanless design Mounting VESA Mount (75 x 75mm) Dimensions 263.28 x 171 x 35.7 (mm)
  • Page 20 1.4 Packing List Carefully remove the box and unpack your HMI device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. 1.4.1 Accessories Standard factory shipment list: 10.1”...
  • Page 21 1.4.2 Options Package may include optional accessories based on your order. 1.4.2.1 VESA Desk Stand Model Name: PCVS-V1 Part Number: 99KK00A0000E Dimensions 10.1" S-Series HMI User Manual...
  • Page 22 1.4.2.2 Front Side In-Wall Mount Model Name: PCFW-V1 Part Number: 99KK00A0000C Dimensions 10.1" S-Series HMI User Manual...
  • Page 23 1.5 Appearance 1.5.1 W10IB3S-PCH2AC-PoE Front View Rear and Top View Bottom View 10.1" S-Series HMI User Manual...
  • Page 24 1.5.2 W10IB3S-PCH2-PoE Front View Rear and Top View Bottom View *optional 10.1" S-Series HMI User Manual...
  • Page 25 1.6 Dimensions 1.6.1 W10IB3S-PCH2AC-PoE Front, Top and Side Rear and Bottom 10.1" S-Series HMI User Manual...
  • Page 26 1.6.2 W10IB3S-PCH2-PoE Front, Top and Side Rear and Bottom 10.1" S-Series HMI User Manual...

  • Page 27: Getting Started

    Getting Started This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations. 10.1" S-Series HMI User Manual...

  • Page 28: Getting Started

    2 Getting Started This chapter provides information on how to connect the HMI device to the source of power, connector pinouts and the guideline to turn on/off the HMI device. 2.1 Powering On 2.1.1 AC Adapter Components 3. Terminal Block 2.

  • Page 29: Power Considerations

    ALTERNATING CURRENT / MISE À LE TERRE! This product must be grounded. Use only a grounded AC outlet. Install the additional PE ground wire if the local installation regulations require it. *If you do not use a grounded outlet while using the device, you may notice an electrical tingling sensation when the palms of your hands touch the device.

  • Page 30: Connecting The Source Of Power

    2.1.3 Connecting the Source of Power Cable Mounting Steps: 1. Connect HMI device (1) to a thermal block (2) 2. Connect thermal block (2) to the AC adapter (3) 3. Connect the AC adapter (3) to the power cord (4) Power cords vary in appearance by region and country.

  • Page 31: Poe/Lan (Rj45) Connector

    2.2.2 POE/LAN (RJ45) Connector Pin № Name Pin № Name TX1+ TX1- TX2+ TX2- TX3+ TX3- TX4+ TX4- 2.2.3 COM1 Serial Port (RS-232) Connector Pin № RS232 RS422 RS485 TxD- TxD+ RxD+ RxD- 2.2.4 USB 2.0/ USB 3.0 Connector Pin № Name Pin №...

  • Page 32: Hdmi Connector

    2.2.5 HDMI Connector Pin № Name Pin № Name TMDS_DATA2+ TMDS_DATA2- TMDS_DATA1+ TMDS_DATA1- TMDS_DATA0+ TMDS_DATA0- TMDS_CLOCK+ TMDS_CLOCK- DDC_CLOCK DDC_DATA Hot Plug Detect 2.2.6 Digital I/O Connector Pin № Name Pin № Name Digital output: Open drain to 40V ; Maximum load 2.0A Digital input: Voltage Level 0: close to GND;...
  • Page 33 CAUTION/ ATTENTION It is recommended to use factory jumper settings. Opening the housing when it is sealed may damage the device and its parts. Il est recommandé d’utiliser la configuration d’usine de cavalier. Ouvrir le chassis lorsqu’il est scellé peut endommagé l’appareil et ses pièces.

  • Page 34: Turning Off

    The picture below shows RS-232/422/485 (J8/J9) jumper setting. Example: To make RS-232 Settings, set the Jumper 8 Pin 1-2 to the SHORT position, and Jumper 9 Pin1-2, 4-5, 7-8, 10-11 to the SHORT position. 2.5 Turning Off You can Turn OFF the HMI device with the Windows power settings. To shut down the device: 1.

  • Page 35: W10Ib3S-Pch2-Poe

    Operating the Device This chapter provides detailed information on how to operate the device. If you have been using touch-screen Panel PCs before, the interface may look familiar. Sections include system settings parameters. 10.1" S-Series HMI User Manual...

  • Page 36: Dimensions

    3 Operating the HMI Device In this chapter you will find instructions on how to operate the HMI device with Hot Tab. 3.1 System Settings 3.1.1 Hot Tab Menu 1. Double-click the Hot Tab icon on the Windows desktop. 2. The Hot Tab main menu will appear on the screen as shown below. 3.1.2 Utilities Utilities category allows automatically changing orientation from landscape to portrait mode or rotating the desktop to a different degree as 0°, 90°,...

  • Page 37: W10Ib3S-Pch2-Poe

    To enhance the brightness, drag by touch to right. Tap Close to save the changes and exit the interface. 3.1.4 Volume Tap this button to show your current volume level. To decrease the volume, drag by touch to left side. To increase the volume, drag by touch to right side.

  • Page 38: Performance

    3.1.6 Performance User can adjust the performance level of the HMI device. There are four options available:  Extreme performance  Office Document  High performance  Power Saving 3.1.7 Touch Lock To LOCK touch screen, double-click the Hot Tab icon on the Windows desktop, and tap Touch Lock.
  • Page 39 1. Double-click the RFID icon on the Windows desktop. 2. Reader menu appears on the screen as shown below. Note: The picture below of Reader Demo Version 1.4 is for illustration purposes only. Your Reader version may differ from the picture below.
  • Page 40 standards. HF RFID Standard Purpose ISO-14443 A Standard for MIFARE technology, which used in smart cards and proximity cards ISO-15693 Standard for tracking items ISO-18092 Standard for Near Field Communication (NFC), a short range technology that is commonly used for data exchange between devices P2P/NDEF NFC Data Exchange Format Read Mode...
  • Page 41 To scan the card, bring it close to the right bottom front side of device with RFID icon. № Data 32 Function XXXXXXXXXXXXXABCDEF Display the information written in the card 10.1" S-Series HMI User Manual...

  • Page 42: Operating System

    Write Mode Refer to the RFID Porting Guide SDK to configure Write Mode parameters. 3.2 Operating System S-series HMI support several versions of Windows OS: Windows 10 IoT, Windows Embedded 8.1 Industry Pro, Windows Embedded 8 Standard, Windows 7 Pro for Embedded Systems, and Windows Embedded Standard 7 –...
  • Page 43 Driver Installation This chapter describes how to install all necessary drivers. 10.1" S-Series HMI User Manual...

  • Page 44: Driver Installation

    4 Driver Installation This chapter provides guideline to driver installations. 4.1 Installing Chipset Driver Step 1 Insert the CD that comes with the motherboard. Open the file document “Chipset Driver” and click “infinst_auto.exe” to install driver. 10.1" S-Series HMI User Manual...
  • Page 45 Step 2 Click Next to continue. Step 3 Click Yes to agree the license terms. 10.1" S-Series HMI User Manual...
  • Page 46 Step 4 Click Next to install the driver. Step 5 Software setup progress window will appear, click Next to continue. Step 6 Click “Yes, I want to restart this computer now” to finish the installation. 10.1" S-Series HMI User Manual...

  • Page 47: Installing Graphics Driver

    4.2 Installing Graphics Driver Step 1 Insert the CD that comes with the motherboard. Open the file document “Graphics Driver” and click Setup to execute the setup. Step 2 Setup Welcome Window will appear, click Next to continue the process. Step 3 Carefully read the license terms and click Yes to agree.

  • Page 48: Installing Intel Sideband Fabric Device (Intel Mbi) Driver (Windows 8)

    4.3 Installing Intel Sideband Fabric Device (Intel MBI) Driver (Windows 8) Step 1 Insert the CD that comes with the motherboard. Open the file document “MBI” and click “Setup.exe” to install the driver. Step 2 Welcome to the setup program window will appear, click Next to start the installation.

  • Page 49: Installing Intel Trusted Engine Interface (Intel Txe) Driver

    4.4 Installing Intel Trusted Engine Interface (Intel TXE) Driver Step 1 Insert the CD that comes with the motherboard. Open the file document “TXE” and click “Setup TXE.exe” to install the driver. Step 2 Welcome to the setup program window will appear, click Next to start the installation.

  • Page 50: Installing Intel Network Connections

    4.5 Installing Intel Network Connections User must confirm the type of operating system is being used before installing Intel Network Connections. Follow the steps below to complete the installation. Step 1 Click “PROWin64.exe” Step 2 Click Yes to start the installation. Step 3 Welcome window will appear, click Next to install the driver.

  • Page 51: Installing Audio Driver

    4.6 Installing Audio Driver The ALC886 series are high-performance 7.1+2 channel high definition audio codecs that provide ten DAC channels for simultaneous support of 7.1 sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. The series integrates two stereo ADCs that can support a stereo microphone, and feature Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technology.

  • Page 52: Installing Usb 3.0 Driver (Windows 7)

    4.7 Installing USB 3.0 Driver (Windows 7) NOTE: If your operation system is Windows Embedded 8.1 Industry or Windows Embedded 8 Standard, you should skip the USB 3.0 driver installation. This HMI features Intel Celeron Trail-M N2930 CPU with the Intel® USB 3.0 extensible Host Controller.
  • Page 53 Step 3 Welcome window will appear, Click Next to install the driver. Step 4 Carefully read the license terms and click Yes to agree. Step 5 Review Readme file information and click Next to continue the installation. Step 6 When the Setup Progress is complete click Next to continue. Step 7 Click “Yes, I want to restart this computer now”...

  • Page 54: Bios Setup

    BIOS Setup BIOS Setup Utility is a program for configuration basic Input / Output system settings of the HMI for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu. 10.1" S-Series HMI User Manual...

  • Page 55: Bios Setup

    5 BIOS Setup 5.1 When and How to Use BIOS Setup To enter the BIOS setup, you need to connect an external USB keyboard, press <Del> key when the prompt appears on the screen during start up. The prompt screen shows only few seconds, you need to press <Del> key quickly.

  • Page 56: Bios Functions

    5.2 BIOS Functions BIOS Navigation Keys BIOS navigation keys for keyboard control are listed below. The following keys are enabled during POST: Function Enters the BIOS setup menu. Display the boot menu. Lists all bootable devices that are connected to the system. With cursor ↑and cursor ↓and by pressing <ENTER>, select the device used for the boot.

  • Page 57: Main Menu

    5.2.1 Main Menu When you enter BIOS setup, the first menu that appears on the screen is the main menu.It contains the system information including BIOS version, processor RC version, system language, time, and date. Immediately after the [DEL] key is pressed during startup, the main BIOS setup menu appears: 10.1"...

  • Page 58: Advanced Menu

    BIOS Description Setting Option Effect Setting System Displays the system Adjustment of the Set the language in Language language. [English] language other language. The is set up by default. language in this device is English. System This is current date Date and time Set the date in the Date/Time...
  • Page 59 BIOS Setting Description Setting Effect Option ACPI Settings Configures ACPI settings Enter Opens submenu F81866 Super IO Configures IO settings Enter Opens Configuration submenu Hardware Monitor Configures Hardware Enter Opens Monitor settings submenu S5 RTC Wake Configures RTC Wake Enter Opens Settings parameters...
  • Page 60 IDE Configuration Configures IDE Enter Opens Parameters submenu Miscellaneous Configures Enter Opens Configuration Miscellaneous submenu Parameters CSM Configuration Configures CSM Enter Opens Parameters submenu USB Configuration Configures USB Settings Enter Opens submenu Platform Trust Configures Platform Enter Opens Technology Trust Technology submenu parameters Security...
  • Page 61 BIOS Setting Description Setting Effect Option Enable ACPI Auto BIOS ACPI Enable/ Enables or Configuration Auto Disable Disables this Configuration function Enable Control Enable/ Enables or Hibernation hibernation Disable Disables this function 10.1" S-Series HMI User Manual...
  • Page 62 5.2.2.2 F81866 Super IO Configuration You can use the screen to select options for Super IO Configuration, and change the value of the option selected. A description of the selected item appears on the right side of the screen. For items marked with ►, please press <Enter> for more options. Serial Port 1~5 Use these items to set parameters related to serial port 1~5.
  • Page 63 Watch Dog Time Select You can either disable Watch Dog Time Select, or set up the time.Use <Arrow> keys to navigate and please press <Enter> to select the item. GPI0 Port Configuration You can use the screen to change GPI0 Port setting. Use these items to set parameters related to PIN3-PIN14 Control.
  • Page 64 5.2.2.3 Hardware Monitor You can check PC Health Status parameters such as system temperature, fan speed etc. 5.2.2.4 S5 RTC Wake Settings Wake system from S5 enables or disables system wake on alarm event. It allows you to wake up the system in a certain time. 10.1"...
  • Page 65 Wake System from S5 with fixed time setting Select Fixed Time to set the system to wake on the specified time. Use Navigation Keys to switch among the items: Day, Hour, Minute and Second. Type the desired value in the selected item. or example: If you want the system to start up automatically at 15:30:30, the 10th day of each month, then you should enter 10, 15, 30, and 30 from top to bottom.
  • Page 66 Wake system from S5 after dynamic time setting Select Dynamic Time to set the system to wake on the current time + increase minute (s). 5.2.2.5 CPU Configuration 10.1" S-Series HMI User Manual...
  • Page 67 BIOS Setting Description Setting Effect Option Socket CPU This item contains socket Enter Open sub- Information specific CPU information. menu CPU Thermal Thermal control Enter Open sub- Configuration menu Limit CPUID Limits CPIID Maximum Disabled/ Enable/Disable Maximum Enabled this function Execute Execute Disable Bit Disabled/...
  • Page 68 BIOS Setting Description Setting Effect Option CPU C State Shows CPU C State Enabled/ Enable or Disable Report Report Disabled CPU C state report to OS Max CPU C- Allows to enter power- C1E, C3, Enable or Disable State saving mode in order C6, C7, CPU C Max CPU S- to save energy...
  • Page 69 5.2.2.7 Thermal Configuration This menu allows controlling thermal settings of the computer. Refer to the descriptions on the top right side of the screen for detailed information about each setting. BIOS Description Setting Option Effect Setting Critical Specifies the 90C, 87C, 85C, Select the disable Trip Point temperature at...
  • Page 70 5.2.2.8 IDE Configuration BIOS Description Setting Effect Setting Option Serial- ATA Responsible for Enabled/ Enable or disable this (SATA) supporting chipset Disabled function drives with SATA interface. SATA Speed Allows forcing the Gen1 The maximum speed will Support speed limit SATA II be limited to 150 MB/s ports standard IDE / Gen2...
  • Page 71 connected drives) SATA Mode This option specifies [AHCI] Selecting this option the operation mode allows you to take full of modern IDE / advantage of the SATA-controller extended host controller chipset SATA II [IDE] SATA controller will operate in a mechanism similar to a conventional IDE-controller [RAID]...
  • Page 72 5.2.2.9 Miscellaneous Configuration OS Selection This item allows users to select the proper Operating System. BIOS Setting Description Setting Effect Option Windows 8.X Allows user to choose the Enter Use Windows 8.X proper OS. Windows 7 Allows user to choose the Enter Use Windows 7 proper OS.
  • Page 73 5.2.2.10 CSM Configuration BIOS Description Setting Effect Setting Option The Compatibility Support Enabled/ Enable or disable Support Module (CSM) is a Disabled the Compatibility component of the UEFI Support Module firmware that provides legacy BIOS compatibility by emulating a BIOS environment, allowing legacy operating systems and some option ROMs that...
  • Page 74 Network Specifies which Network UEFI Only UEFI option option ROM is booted ROMs are booted Legacy Storage Specifies which Storage UEFI Only UEFI option option ROM is booted ROMs are booted Legacy Only Legacy option ROMs are booted Video Specifies which Video option UEFI Only UEFI option ROM is booted...
  • Page 75 BIOS Description Setting Effect Setting Option Legacy USB User can enable or Disable Will keep USB devices Support disable USB port. available only for EFI applications. Enable Enable all the USB devices USB 3.0 User can enable or Enable Enable USB 3.0 is Support disable USB 3.0 (XHCI) enable...
  • Page 76 5.2.2.12 Platform Trust Technology BIOS Setting Description Setting Option Effect fTPM Trusted Platform Module Enabled/Disabled Enables or parameters disables this function 10.1" S-Series HMI User Manual...
  • Page 77 5.2.2.13 Security Configuration BIOS Setting Description Setting Effect Option Trusted Execution Enabled/ Enables or disables Technology parameters Disabled this function TXE HMRFPO TXE HMRFPO parameters Enabled/ Enables or disables Disabled this function TXE Firmware TXE Firmware Update Enabled/ Enables or disables Update parameters Disabled...

  • Page 78: Chipset Menu

    5.2.3 Chipset Menu For items marked with ►, please press <Enter> for more options. BIOS Description Setting Effect Setting Option High Allow to set up High Precious Enabled/ Enables/Disa Precious Timer settings Disabled bles this Timer function Restore This function allows to set up Power on/ Boot AC Power...

  • Page 79: Security Menu

    Security Menu 5.2.4 In the Security menu, users can set administrator password, user password, and HDD security configuration. BIOS Setting Description Setting Effect Option Administrator Displays whether or not an Enter Enter Password administrator password has password been set. User Password Display whether or not a user Enter Enter...

  • Page 80: Boot Configuration

    5.2.5 Boot Configuration The Boot menu sets the sequence of the devices to be searched for the operating system. The bootable devices will be automatically detected during POST and shown here, allowing you to set the sequence that the BIOS uses to look for a boot device from which to load the operating system.
  • Page 81 BIOS Setting Description Setting Effect Option Setup Allows user to configure the Enter Set the prompt Prompt number of seconds to stay in timeout Timeout BIOS setup prompt screen. Boot Enables or disables NumLock Remains On NumLock feature on the numeric State keypad of the keyboard after Remains OFF...

  • Page 82: Save & Exit

    5.2.6 Save & Exit The Exit menu displays a way how to exit BIOS Setup utility. After finishing your settings, you must save and exit for changes to be applied. BIOS Description Setting Effect Setting Option Save This saves the changes to Enter Save changes Changes...
  • Page 83 Menu Discard Reset system setup without Enter Saves the Changes saving any changes <YES> changes and Reset Enter Return to the <NO> BIOS Setup Main Menu Save Save changes done so far to Enter Saves the Changes any of the setup options. <YES>...

  • Page 84: Using Recovery Wizard To Restore Computer

    5.3 Using Recovery Wizard to Restore Computer Note: Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process. To enable quick one-key recovery procedure:  Plug-in the AC adapter to Bay Trail series computer. Make sure the computer stays plugged in to power source during the recovery process.
  • Page 85 Wait the recovery process to complete. During the recovery process, a command prompt will show up to indicate the percent of recovery process complete. The system will restart automatically after recovery completed. 10.1" S-Series HMI User Manual...
  • Page 86 Mounting Solutions This chapter provides step-by-step mounting guide for all available mounting options. 10.1" S-Series HMI User Manual...

  • Page 87: Mounting Solutions

    6 Mounting Solutions This chapter provides mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. 6.1 Cable Mounting Considerations For a nice look and safe installation, make sure cables are neatly hidden behind the HMI device.

  • Page 88: Safety Precautions

    5.2 Safety Precautions Observe the following common safety precautions before installing any electronic device: • Use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must be crossed make sure the wires are perpendicular at the intersection point.

  • Page 89: Flush Mount / Panel Mount

    Mounting Steps: Screw VESA Bracket to the fixture (ex. wall) with M4 flat-head screws. Place the device on VESA bracket. NOTE: Please notice that both hooks on bracket should lock the notches on the back cover of the device. 5.3.2 Flush Mount / Panel Mount •...

  • Page 90: Optional Mounting Solutions

    5.4 Optional Mounting Solutions 5.4.1 Front Side Wall Mount The device can be mounted in the wall.  Wall cut-out: 275 x 184mm  Screw hole diameter: M4 x 5mm Mounting Steps: 1. Cut a hole in the wall according to the cut-out dimensions 275 x 184mm 2.

  • Page 91: Desk Stand

    5.4.2 Desk Stand The device can be installed on a desk with the stand. You can purchase desk stand as an optional accessory.  Screw Hole Diameter: M4 x 5 mm Mounting Steps:  Use provided M4 screws to fix the desk stand to VESA holes on the back cover of the device.
  • Page 92 Technical Support This chapter includes information where to find technical support. 10.1" S-Series HMI User Manual...

  • Page 93: Technical Support

    7 Technical Support This chapter includes information where to find technical support and Winmate’s Software Developing Kit (SDK). If any problem occurs fill in Problem Report Form enclosed and immediately contact us. 7.1 Software Developer Support We provide the SDK in the User Manual and SDK CD , or you can download the SDK from Winmate Download Center or Winmate Partner Portal.

  • Page 94: Problem Report Form

    7.2 Problem Report Form 10.1" S-Series HMI (Slim-line) Customer name: Company: Tel.: Fax: E-mail: Date: Product Serial Number: __________________________________________ Problem Description: Please describe the problem as clearly as possible. Detailed description of the occurred problem will allow us to find the best solution to solve the problem as soon as possible.
  • Page 95 Certificates This chapter includes FCC and EC Declarations of Conformity. 10.1" S-Series HMI User Manual...

  • Page 96: Certificates

    8 Certificates This chapter includes FCC and EC Declarations of Conformity. 8.1 FCC Declaration of Conformity 8.1.1 W10IB3S-PCH2AC-PoE 10.1" S-Series HMI User Manual...

  • Page 97: W10Ib3S-Pch2Ac-Poe

    8.1.2 W10IB3S-PCH2AC-POE 10.1" S-Series HMI User Manual...

  • Page 98: Ec Declaration Of Conformity

    8.2 EC Declaration of Conformity 8.2.1 W10IB3S-PCH2AC-PoE Refer to Preface for letters abbreviations in English and other languages. 10.1" S-Series HMI User Manual...
  • Page 99 8.2.2 W10IB3S-PCH2AC-POE Refer to Preface for letters abbreviations in English and other languages. 10.1" S-Series HMI User Manual...
  • Page 100 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung City, Taipei 241, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: http://www.winmate.com.tw...
