- Page 1 10.1"S-Series HMI W10IB3S-PCH2AC-PoE (with LED light bar) W10IB3S-PCH2-PoE (without LED light bar) Slim-line Quick Start Guide Version 1.0 Document Part Number: 9154111I100A...
-
Page 2: Table Of Contents
Contents Regulations and Safety Notice ...................... 3 Advisory Conventions ........................4 1 Introduction ..........................5 1.1 Product Features ........................5 1.2 Hardware Specifications ...................... 6 1.3 Software Support ......................... 7 2 Appearance ..........................8 3 Hot Tab ............................. 9 3.1 Hot Tab Menu ........................9 3.2 Utilities .......................... -
Page 3: Regulations And Safety Notice
10.1” S-Series HMI Regulations and Safety Notice European Union This equipment is in conformity with the requirement of the following EU legislations and harmonized standards. Product also complies with the Council directions. Electromagnetic Compatibility Directive (2014/30/EU) EN55024: 2010 EN 55022: 2010 Class B o IEC61000-4-2: 2009 o IEC61000-4-3: 2006+A1: 2007+A2: 2010 o IEC61000-4-4: 2012... -
Page 4: Advisory Conventions
10.1” S-Series HMI Advisory Conventions Four types of advisories are used throughout the user guide to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. -
Page 5: Introduction
1 Introduction Interactive and smart automation systems of intelligent buildings are in a fast growing phase. Winmate multi-touch S-Series HMI is suitable for home automation and room management systems. Flat surface is easy-to-clean and delivers aesthetically pleasing look for any interior. The device provides real time update for booking status and available schedule, or performs as a synchronous display in meetings. -
Page 6: Hardware Specifications
10.1” S-Series HMI 1.2 Hardware Specifications System: Processor Intel ® Celeron ® Bay Trail-M N2930 1.83GHz System Chipset Intel® ATOM SoC Integrated System Memory 2GB DDR3L 1066/1333 SO-DIMM (optional 4GB) Storage 64GB mSATA SSD Dual Intel® WG82574L GbE LAN Display: Size/Type 10.1"... -
Page 7: Software Support
10.1” S-Series HMI 1.3 Software Support Drivers: Chipset Driver Graphics Driver Intel Sideband Fabric Device (Intel MBI) Driver (Windows 8) Intel Trusted Engine Interface (Intel TXE) Driver Audio Driver USB 3.0 Driver (Windows 7) SDK: Watchdog SDK Digital I/O SDK LED Light Bar Porting Guide RFID Porting Guide Quick Start Guide... -
Page 8: Appearance

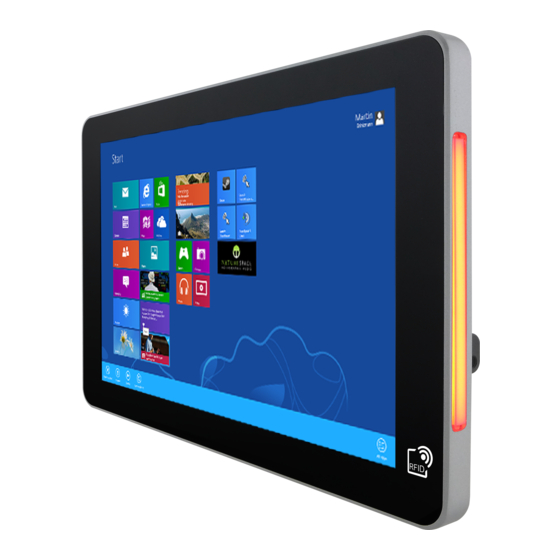

10.1” S-Series HMI 2 Appearance In this section you can see the appearance of the HMI and its I/O connectors. Front View W10IB3S-PCH2AC-PoE W10IB3S-PCH2-PoE (with LED Light Bar) (without LED Light Bar) Rear and Top View Bottom View *Digital I/O is an optional connector... -
Page 9: Hot Tab
10.1” S-Series HMI 3 Hot Tab In this section you will find instructions on how to operate the HMI device with Hot Tab. 3.1 Hot Tab Menu 1. Double-click the Hot Tab icon on the Windows desktop. 2. The Hot Tab main menu will appear on the screen as shown below. 3.2 Utilities Utilities category allows automatically changing orientation from landscape to portrait mode or rotating the desktop to... -
Page 10: Volume
10.1” S-Series HMI 3.4 Volume Tap Volume button to show your current volume level. To decrease the volume, drag by touch to left. To increase the volume, drag by touch to right. 3.5 Performance User can adjust the performance level of the HMI device. There are four options available: ... -
Page 11: Led Light Bar (Only For Models With Led Light Bar)
10.1” S-Series HMI 3.7 LED Light Bar (Only for models with LED Light Bar) 3.7.1 Easy-Testing Tap this button to access the LED light bar control panel, and select Red / Green / Blue/ Orange color to be displayed on the LED Bar. 3.7.2 LED Light Bar Adjustment This section describes how to adjust LED Light Bar with RS-232 settings. - Page 12 10.1” S-Series HMI PC command PC command 0x04 0xA0 0x00 0x5C 0x04 0xA0 0x01 0x5b Target Board Return Target Board Return 93I30000WN0A IBMC100-LED000000-000-VV100-WN Reading Function PC command NO. Function Length Command index Length index Data CKS(*1) supplement (*1) 0x00- 0xEC~0 LED_RED 0x04 0x60 0x10 0x8C 0x04...
-
Page 13: Hf Rfid (Only For Models With Rfid)
10.1” S-Series HMI Setting Function NO. Function Length Command index Value Checksum(*1) Supplement Load 0x05 0x40 0x21 0x00 0x9A Default LED_RED 0x05 0x61 0x10 0x00-0xFF 0x8A~0x8B Default 0xFF LED_GREEN 0x05 0x61 0x11 0x00-0xFF 0x89~0x8A Default 0xFF LED_BLUE 0x05 0x61 0x12 0x00-0xFF 0x88~0x89 Default 0xFF... - Page 14 10.1” S-Series HMI Reader Demo Version 1.00 The RFID Reader can read and write data according to different HF RFID standards. HF RFID Standard Purpose ISO-14443 A Standard for MIFARE technology, which used in smart cards and proximity cards ISO-15693 Standard for tracking items ISO-18092 Standard for Near Field Communication (NFC), a short...
-
Page 15: Reading Mode
10.1” S-Series HMI 3.8.2 Reading Mode Select the default RFID Reader COM14or press Search on the upper left corner of the screen. The system will automatically find RFID COM port, show the Version. Item Key button Function № E1- Version Displays the current version of RFID Reader system E2- Reset Reset all settings... -
Page 16: Writing Mode
10.1” S-Series HMI 3.8.3 Writing Mode *Refer to the RFID Porting Guide SDK to configure Writing Mode parameters. **Refer to file RF-521L V1 02_Spec sheet_140430.pdf in our CD if user needs more RFID SDK instruction. IMPORTANT: Use PoE Hub for more than 25 Watt Quick Start Guide... - Page 17 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung Dist., New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: http://www.winmate.com.tw...
