4. INSTRUMENT DESCRIPTION

4.1.

FRONT PANEL

4.2.

INPUT AND OUTPUT LEADS

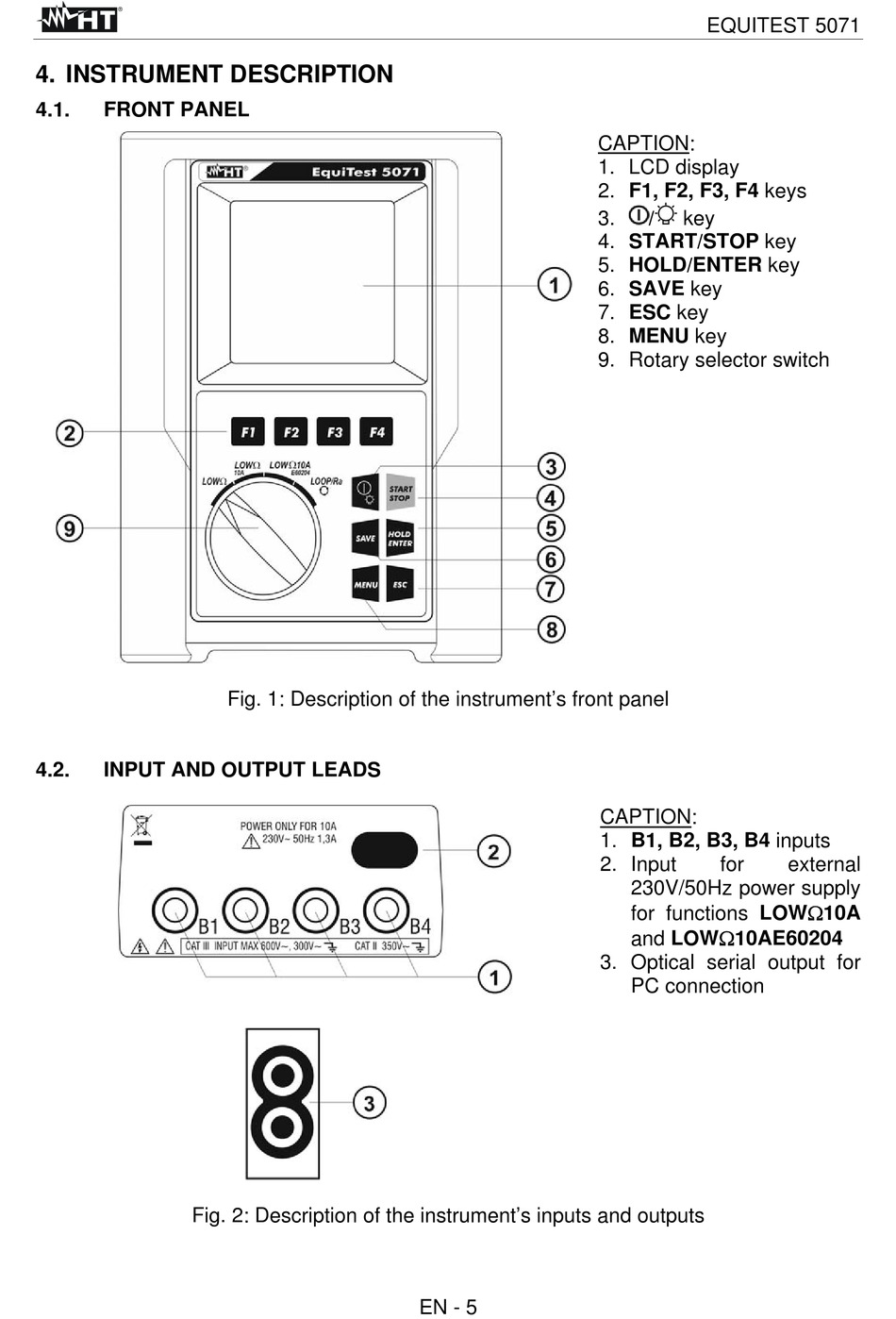

Fig. 2: Description of the instrument's inputs and outputs
Fig. 1: Description of the instrument's front panel
EN - 5
EQUITEST 5071
CAPTION:
1. LCD display
2. F1, F2, F3, F4 keys
3. / key
4. START/STOP key
5. HOLD/ENTER key
6. SAVE key
7. ESC key
8. MENU key
9. Rotary selector switch
CAPTION:
1. B1, B2, B3, B4 inputs
2. Input for
230V/50Hz power supply
for functions LOW10A
and LOW10AE60204
3. Optical serial output for
PC connection
external
