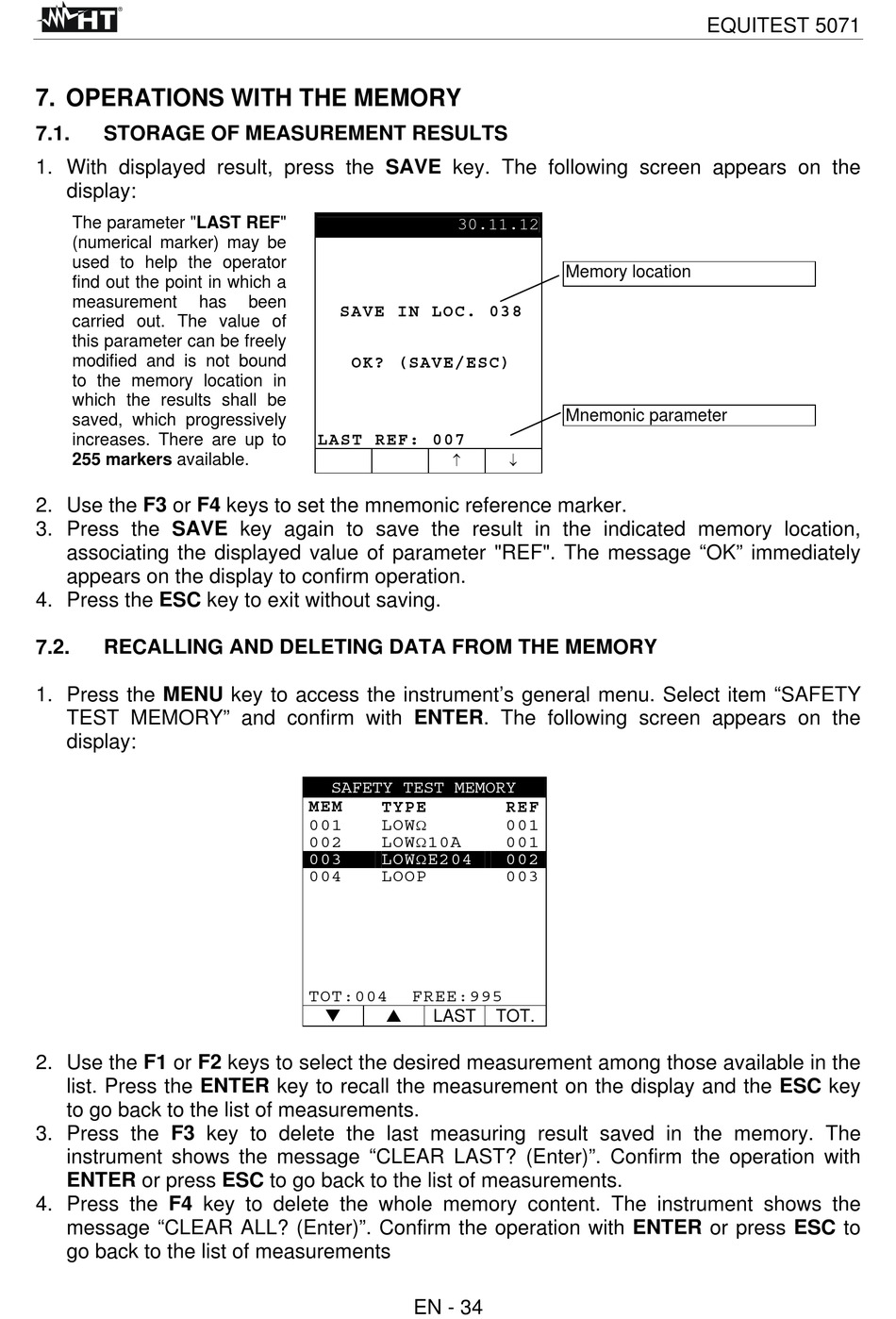

7. OPERATIONS WITH THE MEMORY

7.1.

STORAGE OF MEASUREMENT RESULTS

1. With displayed result, press the SAVE key. The following screen appears on the
display:
The parameter "LAST REF"
(numerical marker) may be
used to help the operator
find out the point in which a
measurement has
carried out. The value of
this parameter can be freely
modified and is not bound
to the memory location in
which the results shall be
saved, which progressively
increases. There are up to
255 markers available.
2. Use the F3 or F4 keys to set the mnemonic reference marker.
3. Press the SAVE key again to save the result in the indicated memory location,
associating the displayed value of parameter "REF". The message "OK" immediately
appears on the display to confirm operation.
4. Press the ESC key to exit without saving.
7.2.

RECALLING AND DELETING DATA FROM THE MEMORY

1. Press the MENU key to access the instrument's general menu. Select item "SAFETY
TEST MEMORY" and confirm with ENTER. The following screen appears on the
display:
2. Use the F1 or F2 keys to select the desired measurement among those available in the
list. Press the ENTER key to recall the measurement on the display and the ESC key
to go back to the list of measurements.
3. Press the F3 key to delete the last measuring result saved in the memory. The
instrument shows the message "CLEAR LAST? (Enter)". Confirm the operation with
ENTER or press ESC to go back to the list of measurements.
4. Press the F4 key to delete the whole memory content. The instrument shows the
message "CLEAR ALL? (Enter)". Confirm the operation with ENTER or press ESC to
go back to the list of measurements
been
SAVE IN LOC. 038
OK? (SAVE/ESC)
LAST REF: 007
SAFETY TEST MEMORY
MEM TYPE

001 LOW

002 LOW

003 LOW
004 LOOP
TOT:004 FREE:995
 
EN - 34
30.11.12
Memory location
Mnemonic parameter
 
REF
001
10A 001
E204 002
003
LAST TOT.
