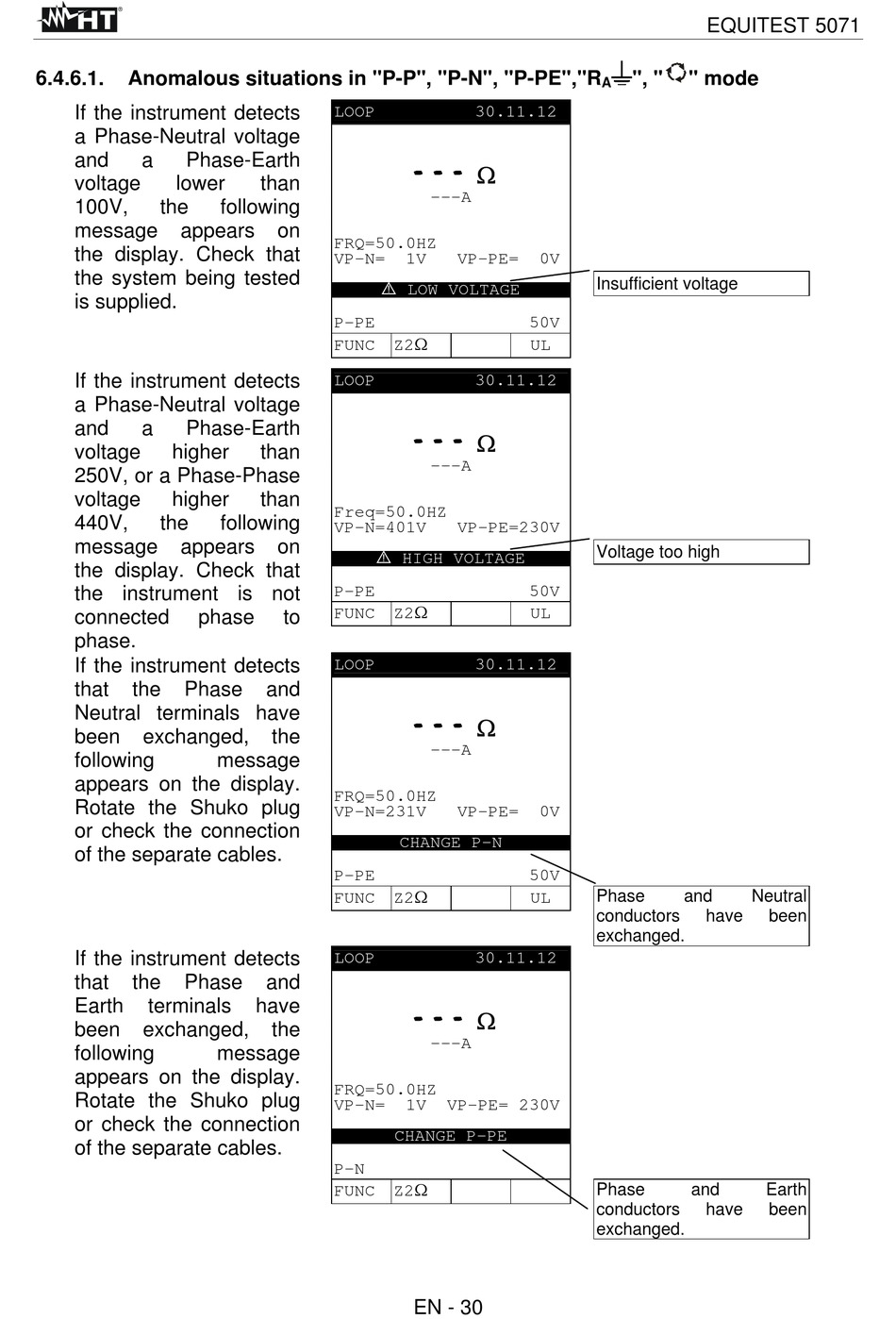

6.4.6.1.

Anomalous situations in "P-P", "P-N", "P-PE","R

If the instrument detects
a Phase-Neutral voltage
and a Phase-Earth
voltage lower
100V, the
message appears
the display. Check that
the system being tested
is supplied.
If the instrument detects
a Phase-Neutral voltage
and a Phase-Earth
voltage higher
250V, or a Phase-Phase
voltage higher
440V, the
message appears
the display. Check that
the instrument is not
connected phase
phase.
If the instrument detects
that the Phase
Neutral terminals have
been exchanged,
following
appears on the display.
Rotate the Shuko plug
or check the connection
of the separate cables.
If the instrument detects
that the Phase
Earth terminals
been exchanged,
following
appears on the display.
Rotate the Shuko plug
or check the connection
of the separate cables.
