07.2019
New as of:

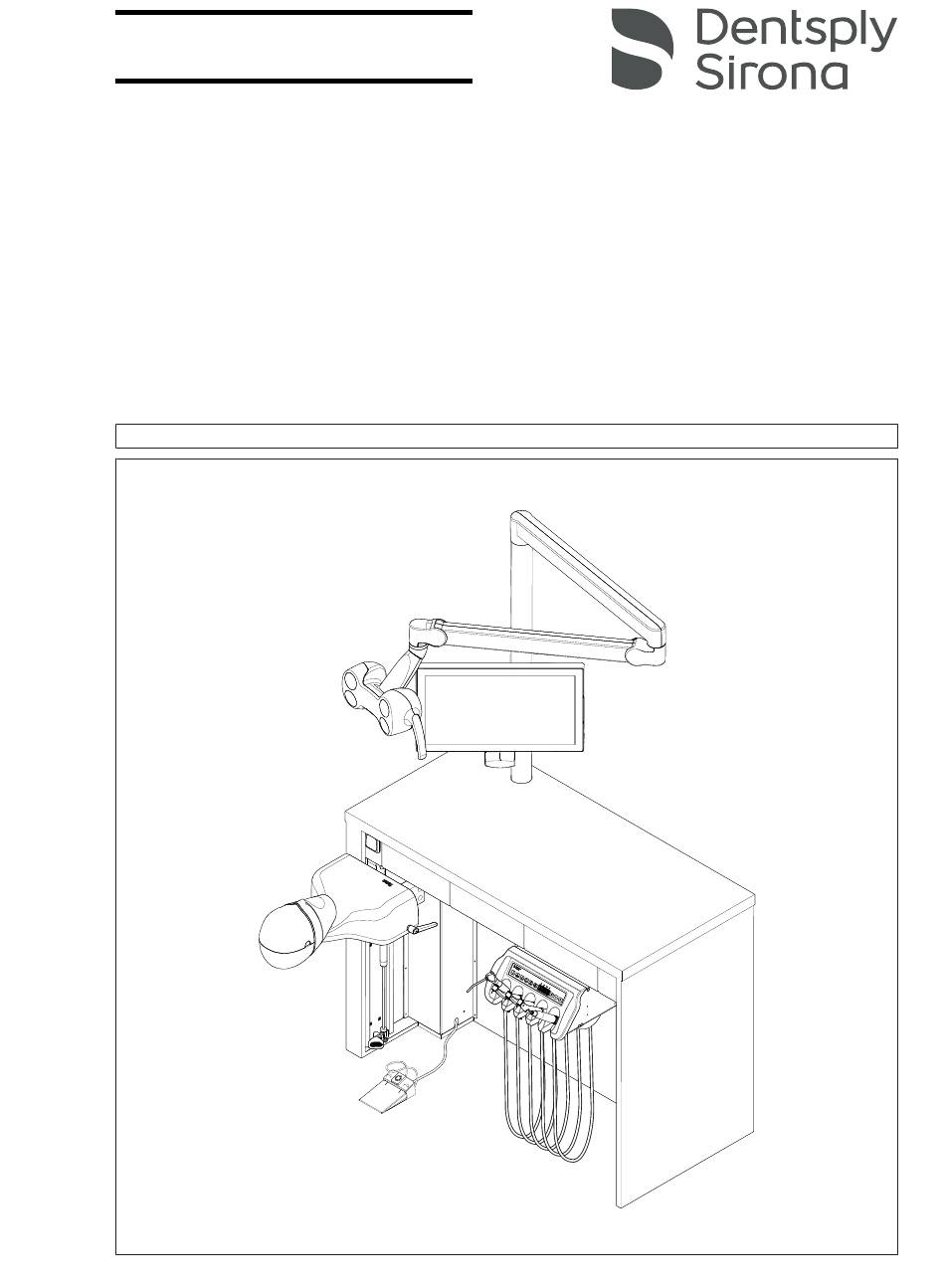

Simulation Unit
Sim Multi Bench
Operating Instructions (USA, Canada)
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sim Multi Bench and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dentsply Sirona Sim Multi Bench

Summary of Contents for Dentsply Sirona Sim Multi Bench

  • Page 1 07.2019 New as of: Simulation Unit Sim Multi Bench Operating Instructions (USA, Canada) English...

  • Page 2: Table Of Contents

    Table of Contents Dentsply Sirona Operating Instructions Simulation Unit Sim Multi Bench Table of Contents General Information ....................Dear customer, ................... Contact information..................Notes on these operating instructions............1.3.1 General information about these operating instructions ....1.3.2 Scope of these operating instructions..........
  • Page 3 Dentsply Sirona Table of Contents Operating Instructions Simulation Unit Sim Multi Bench 3.4.3 Dentist element ‒ user interface ............ 3.4.3.1 Overview - Fixed keys ..........3.4.4 Suction handpiece holder .............. 3.4.5 External device connection ............Operation ........................ Putting the simulation unit into operation .............
  • Page 4 Table of Contents Dentsply Sirona Operating Instructions Simulation Unit Sim Multi Bench 4.4.8.5 Switching AutoReverse ON/OFF........4.4.8.6 Changing direction of rotation........4.4.9 SiroSonic L scaler ................4.4.9.1 Safety instructions ............4.4.9.2 Setting intensity on the SIM dentist element ....4.4.10 Cavitron scaler ................
  • Page 5 Dentsply Sirona Table of Contents Operating Instructions Simulation Unit Sim Multi Bench Instruments and instrument hoses............... 5.3.1 Rinse water paths ................5.3.2 Purging water paths ............... 5.3.2.1 Purge function .............. 5.3.2.2 Purging water paths manually ........5.3.3 Lubricate, disinfect/sterilize the treatment instruments ....

  • Page 6: General Information

    The new hub of your training center is tailored to your personal needs. With Sim Multi Bench, you have selected a simulation unit that stands for easy operation, high-quality design, and cost effectiveness. These operating instructions are designed to assist you prior to initial use and whenever you require information later on.

  • Page 7: Notes On These Operating Instructions

    Dentsply Sirona 1 General Information Operating Instructions Simulation Unit Sim Multi Bench 1.3 Notes on these operating instructions Notes on these operating instructions 1.3.1 General information about these operating instructions Follow the operating instructions Please familiarize yourself with the unit by reading through these Operating Instructions before putting it into operation.

  • Page 8: Intended Use

    1 General Information Dentsply Sirona 1.4 Intended use Operating Instructions Simulation Unit Sim Multi Bench Intended use The simulation workstation is used for education and training of dental students and for further training at universities, clinics, and continuing education institutes.

  • Page 9: Safety Instructions

    Dentsply Sirona 2 Safety instructions Operating Instructions Simulation Unit Sim Multi Bench 2.1 Identification of the danger levels Safety instructions Identification of the danger levels To prevent personal injury and material damage, please observe the warning and safety information provided in these operating instructions.

  • Page 10: On-Site Installation

    2 Safety instructions Dentsply Sirona 2.3 On-site installation Operating Instructions Simulation Unit Sim Multi Bench On-site installation The on-site installation must be carried out according to our requirements. Details are described in the document "Installation Instructions". Installing the simulation unit Installation must be carried out by authorized technicians in accordance with the installation instructions.

  • Page 11: Warranty And Liability

    Dentsply Sirona 2 Safety instructions Operating Instructions Simulation Unit Sim Multi Bench 2.6 Warranty and Liability Warranty and Liability Maintenance and Maintenance must be performed to ensure the operational and repair functional reliability of your product and to protect the safety and health of users or third parties.

  • Page 12: Vacuum System

    2 Safety instructions Dentsply Sirona 2.9 Vacuum system Operating Instructions Simulation Unit Sim Multi Bench Vacuum system The suction removal of aluminum and other metal oxides from blasting devices via the automatic separator built into the simulation unit is prohibited! This would result in extreme wear and clogging of the vacuum and drain lines.

  • Page 13: User Interface

    Dentsply Sirona 2 Safety instructions Operating Instructions Simulation Unit Sim Multi Bench 2.12 User interface User interface 2.12 The dentist element of your simulation unit is equipped with a control panel with seven-segment displays (dentist element SIM). Care, cleaning, and disinfecting agents 2.13...

  • Page 14: Modifications And Extensions To The Device

    For reasons of product safety, this product may be operated only with original Dentsply Sirona parts or parts expressly approved by Dentsply Sirona. The user assumes the risk of unforeseen modifications and of using non-approved parts and accessories.

  • Page 15: Electrostatic Discharge

    Dentsply Sirona 2 Safety instructions Operating Instructions Simulation Unit Sim Multi Bench 2.16 Electrostatic discharge Electrostatic discharge 2.16 Protective measures ESD stands for ElectroStatic Discharge. Electrostatic discharge from people can damage electronic components when the components are touched. Damaged components usually have to be replaced.
  • Page 16 2 Safety instructions Dentsply Sirona 2.16 Electrostatic discharge Operating Instructions Simulation Unit Sim Multi Bench Note: nanosecond = 1/1,000,000,000 second = 1 billionth of a second Voltage differentials exceeding 30,000 volts per centimeter may lead to a charge transfer (electrostatic discharge, lightning, spark-over).

  • Page 17: Dismantling/Installation

    Dismantling or installation must be done by technicians authorized by Dentsply Sirona. Before dismantling, disconnect the simulation unit from the grid (e.g. by removing the building fuse). 66 82 384 D3684...

  • Page 18: Unit Description

    3 Unit description Dentsply Sirona 3.1 Technical data Operating Instructions Simulation Unit Sim Multi Bench Unit description Technical data Model designation Simulation workstation Sim Multi Bench Power connection 100-240 V AC ± 10% 50/60 Hz Rated current 3.3 A - 1.5 A at 100 - 240 V Main building fuse Type B automatic circuit...
  • Page 19 Dentsply Sirona 3 Unit description Operating Instructions Simulation Unit Sim Multi Bench 3.1 Technical data Transport and storage conditions Temperature -40°C-+70°C (-40°F-+158°F) Relative humidity 10%-95% 1060 Air pressure 500hPa-1060hPa Degree of protection against ingress of Ordinary device (without protection against ingress of water)
  • Page 20 3 Unit description Dentsply Sirona 3.1 Technical data Operating Instructions Simulation Unit Sim Multi Bench Sim Multi Bench simulation workstation rating plate TYP: D3684 XXXXXXX REF: XXXXXXX YYYY 100 - 240 V ~ 3,3 - 1,5 A 50/60 Hz Sirona Dental Systems GmbH Fabrikstr.

  • Page 21: System Overview

    Operating Instructions Simulation Unit Sim Multi Bench 3.2 System overview System overview The Sim Multi Bench simulation workplace comprises the following main components: Overview of Sim Multi Bench with movable dentist element, monitor, LEDview Plus, and patient simulator on a track...

  • Page 22: Foot Control

    3 Unit description Dentsply Sirona 3.3 Foot control Operating Instructions Simulation Unit Sim Multi Bench Foot control The simulation unit can be operated with a pneumatic foot control or a C electronic foot control. 3.3.1 Pneumatic foot switch With a pneumatic foot control, the compressed air valve for activating the highspeed handpieces is integrated into the foot control.

  • Page 23: C+ Electronic Foot Control

    Dentsply Sirona 3 Unit description Operating Instructions Simulation Unit Sim Multi Bench 3.3 Foot control 3.3.2 C+ electronic foot control The C+ electronic foot control can be set as a speed control switch or direct starter for electric motors and the scaler. The compressed air for turbines cannot be adjusted.

  • Page 24: Dentist Element

    3.4 Dentist element Operating Instructions Simulation Unit Sim Multi Bench Dentist element Sim Multi Bench is equipped with a dentist element (with hanging hoses). All functions of the simulation unit can be operated by the user interface on the dentist element.

  • Page 25: Instrument Positions

    BL E motor BL E motor Scaler SiroSonic L or Cavitron The Sim Multi Bench simulation unit can be fitted with a maximum of two motors. Changes in the instrument positions can be made only by your service technician. 66 82 384 D3684...

  • Page 26: Dentist Element - User Interface

    3 Unit description Dentsply Sirona 3.4 Dentist element Operating Instructions Simulation Unit Sim Multi Bench 3.4.3 Dentist element ‒ user interface Setup Purge Clean Dentist element SIM display Status displays Fixed keys (membrane keyboard) Favorite key pad (membrane keyboard) SIM display of the dentist element For indicating speed, intensity, and torque and for configuring and servicing the simulation unit.

  • Page 27: Overview - Fixed Keys

    Dentsply Sirona 3 Unit description Operating Instructions Simulation Unit Sim Multi Bench 3.4 Dentist element 3.4.3.1 Overview - Fixed keys Operating light Switches the operating light on, to the composite function, or off. The composite function is used to prevent premature curing of composite materials.

  • Page 28: Suction Handpiece Holder

    Dentsply Sirona 3.4 Dentist element Operating Instructions Simulation Unit Sim Multi Bench 3.4.4 Suction handpiece holder The Sim Multi Bench simulation unit is equipped with a holder for suction handpieces. Holder 1 to 2 Spray aspirator Saliva ejector Instrument holder for suction handpieces...

  • Page 29: External Device Connection

    Dentsply Sirona 3 Unit description Operating Instructions Simulation Unit Sim Multi Bench 3.4 Dentist element 3.4.5 External device connection External accessories can be connected to the external device connection. They must comply with the requirements of Directive 2006/42/EC. Quick coupling for air...

  • Page 30: Operation

    Switching on the main switch (I) The display on the dentist element lights up. Switching off the main switch (O) CAUTION For safety reasons, always switch the Sim Multi Bench simulation workstation off (O) after completing work. Manual height and tilt adjustment Adjusting the height 1.

  • Page 31: Selecting A User Profile

    Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.1 Putting the simulation unit into operation Adjusting the tilt 1. Release the clamping lever. 2. Move the patient simulator to the desired position. 3. Tighten the clamping lever.

  • Page 32: Concept Of The User Interface

    4 Operation Dentsply Sirona 4.2 Concept of the user interface Operating Instructions Simulation Unit Sim Multi Bench Concept of the user interface 4.2.1 SIM display of the dentist element The user interface features seven-segment displays. Each display can show five digits or letters. Depending on the operating context, they are used to display speed, intensity, and torque and for configuration and maintenance of the simulation unit.
  • Page 33 Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.2 Concept of the user interface Terminating processes Depending on the operating context, you can use the Counterclockwise rotation/User profile button to terminate a process that is in progress.

  • Page 34: Foot Control

    4 Operation Dentsply Sirona 4.3 Foot control Operating Instructions Simulation Unit Sim Multi Bench Foot control 4.3.1 Pneumatic foot control The simulation unit can be operated with a pneumatic foot control. When the instrument is removed from the holder, the speeds or intensities are automatically displayed on the dentist element SIM display.

  • Page 35: C+ Electronic Foot Control

    Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.3 Foot control 4.3.2 C+ electronic foot control The C+ electronic foot control can be set as a speed foot control or direct starter for electric motors and the scaler. The compressed air for the turbines is not adjustable.
  • Page 36 4 Operation Dentsply Sirona 4.3 Foot control Operating Instructions Simulation Unit Sim Multi Bench ü The electric motor or the scaler is removed. ➢ Slide the 4-way foot switch plate to the right. Ä The instrument settings assigned to the favorite key, such as speed or intensity, can be accessed consecutively.

  • Page 37: Dentist Element

    Operating Instructions Simulation Unit Sim Multi Bench 4.4 Dentist element Dentist element Sim Multi Bench is equipped with a dentist element (with hanging hoses). All functions of the simulation unit can be operated by the user interface on the dentist element.

  • Page 38: Fixed Keys And Displays

    4 Operation Dentsply Sirona 4.4 Dentist element Operating Instructions Simulation Unit Sim Multi Bench 4.4.2 Fixed keys and displays Operating light Switches the operating light on, to the composite function, or off. The composite function is used to avoid premature curing of the composite materials.
  • Page 39 Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.4 Dentist element Endodontics / Purge When the ultrasonic handpiece is taken from the holder: ➢ Switches the Endo mode on/off (limiting power). The set ultrasonic intensity (ultrasonic mode) is displayed on the SIM display of the dentist element.
  • Page 40 4 Operation Dentsply Sirona 4.4 Dentist element Operating Instructions Simulation Unit Sim Multi Bench ü With motor removed and the Endo function switched on: Switch Autoreverse function on/off. (The Endo function status display is lit.) ➢ Press and hold the Counterclockwise/user profile key (> 2 s).
  • Page 41 Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.4 Dentist element This function is to protect them from interference from HF fields, e.g. from an external HF device, so that no functions are unintentionally triggered during cleaning.

  • Page 42: Placing The Instruments In Their Holders

    4 Operation Dentsply Sirona 4.4 Dentist element Operating Instructions Simulation Unit Sim Multi Bench 4.4.3 Placing the instruments in their holders Automatic opening of instrument programs On the SIM display of the dentist element, the speed or intensity is displayed automatically depending on which instrument is removed from the holder.

  • Page 43: General Instrument Functions

    Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.4 Dentist element 4.4.4 General instrument functions 4.4.4.1 Switch spray on/off ‒ activated chip blower CAUTION Instrument can be operated without coolant. The material to be processed can be damaged by frictional heat.
  • Page 44 4 Operation Dentsply Sirona 4.4 Dentist element Operating Instructions Simulation Unit Sim Multi Bench 4.4.4.1.2 On the C+ electronic foot control 4.4.4.1.2.1 Switching spray ON/OFF ü An instrument is removed. ➢ Activate the left button of the C+ electronic foot control.
  • Page 45 Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.4 Dentist element 4.4.4.1.4 Setting the amount of spray water The amount of spray air or water is factory preset for the instruments. This basic setting and the compressed air for the turbines can be changed by the service technician.

  • Page 46: Standard And Sprayvit E 3-Way Syringe

    4 Operation Dentsply Sirona 4.4 Dentist element Operating Instructions Simulation Unit Sim Multi Bench 4.4.5 Standard and Sprayvit E 3-way syringe The 3-way syringe is used to clean and blow the areas being worked on dry. It makes the air and water media available.

  • Page 47: Operating The Sprayvit E 3-Way Syringe

    Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.4 Dentist element 4.4.5.3 Operating the Sprayvit E 3-way syringe The following instructions apply to the standard version (water on the right) of the Sprayvit E 3-way syringe. A Sprayvit E with inverted media (water on the left) is available as an option.

  • Page 48: Turbine / Air Motor / Other Air-Driven Instruments

    Setting the light of the highspeed handpiece The instrument light supply is optional in Sim Intego. Halogen lamps cannot be operated with the Sim Multi Bench simulation unit. The voltage or current can be limited for the LED lamp of the high- speed handpiece.
  • Page 49 Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.4 Dentist element Limiting voltage ü The selection focus Voltage (U) flashes. 1. Press the function key 2 / Setup . Setup Ä The setting focus Setting the voltage flashes.
  • Page 50 4 Operation Dentsply Sirona 4.4 Dentist element Operating Instructions Simulation Unit Sim Multi Bench Switching instrument light off ü The selection focus Voltage (U) flashes. 1. Press the favorite key 3 twice. Ä The selection focus Light off (–) flashes.

  • Page 51: Electric Motor

    Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.4 Dentist element 4.4.7 Electric motor IMPORTANT Also observe the operating instructions for the motor. 4.4.7.1 Motor versions Depending on the handpiece coupling, the BL E and BL ISO E brushless motors are available. Brushless motors are designed as three-phase motors (without carbon brushes).

  • Page 52: Setting The Speed On The Sim Dentist Element

    4 Operation Dentsply Sirona 4.4 Dentist element Operating Instructions Simulation Unit Sim Multi Bench 4.4.7.2 Setting the speed on the SIM dentist element Speeds are stored on the favorite keys 1, 2, and 3 that can be accessed by pressing them. Individual speeds can be saved for each user profile on the favorite keys.

  • Page 53: Setting The Direction Of Rotation

    Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.4 Dentist element Saving the speed ü The desired speed is set. ü With the C+ electronic foot control: The spray is switched on or off (also saved). 1. Press and hold the favorite key 2 / Setup (> 2 s).

  • Page 54: Endo Function

    Fatigued files can break off. ➢ Use files only for the service life specified by the manufacturer. CAUTION Only the Dentsply Sirona Endo 6:1 (SN 6407 and above / July 2010) and Endo 6 L contra-angle handpieces may be used for the Endo function.

  • Page 55: Switching Endo Function On/Off

    This includes a measurement of motor current at different speeds to assess the properties of the system. CAUTION To ensure proper calibration, use only Dentsply Sirona instruments. ü The Endo function is switched on. The Endo function status display is lit.

  • Page 56: Setting The Torque

    4 Operation Dentsply Sirona 4.4 Dentist element Operating Instructions Simulation Unit Sim Multi Bench 1. Attach the contra-angle handpiece that you wish to use with Endo function to the electric motor. 2. Insert a file in the contra-angle handpiece. This ensures that the file is taken into account in the measurement.
  • Page 57 Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.4 Dentist element Accessing saved torque ü The electric motor is removed from its holder with torque control switched on. ü The set torque is displayed on the SIM display of the dentist element.

  • Page 58: Setting The Speed

    4 Operation Dentsply Sirona 4.4 Dentist element Operating Instructions Simulation Unit Sim Multi Bench 4.4.8.4 Setting the speed When the Endo function is switched on, the SIM display of the dentist element can be toggled between torque and speed to set the speed.

  • Page 59: Changing Direction Of Rotation

    Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.4 Dentist element 4.4.8.6 Changing direction of rotation The direction of rotation can be changed only with the motor stopped. Counterclockwise rotation is performed without torque limitation. Tip: After starting the electric motor with the foot switch, an audible warning signal sounds 6 times if counterclockwise rotation is activated.

  • Page 60: Sirosonic L Scaler

    4 Operation Dentsply Sirona 4.4 Dentist element Operating Instructions Simulation Unit Sim Multi Bench 4.4.9 SiroSonic L scaler The SiroSonic L scaler is used for removing plaque and rinsing the root canal for endodontic treatments. IMPORTANT See also the SiroSonic L operating instructions.
  • Page 61 Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.4 Dentist element Changing the intensity ➢ Press and hold the favorite key 1 or 3 (> 1 s). Setup Ä The intensity is increased or reduced. The intensity can also be increased or reduced by moving the 4-way switch plate of the C+ electronic foot control up or down.
  • Page 62 4 Operation Dentsply Sirona 4.4 Dentist element Operating Instructions Simulation Unit Sim Multi Bench 1. Press the Endo/ Purge key. Purge Ä The endodontics intensity (Endo mode) is displayed instead of ultrasonic intensity (ultrasonic mode). 2. Use favorite keys 1 and 3 to set the desired endodontics intensity (En 1 to En 5).
  • Page 63 Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.4 Dentist element 4.4.10.2 Setting spray The spray is set using the adjustment ring at the end of the Cavitron handpiece. The spray can be switched on/off using the tilting level on the pneumatic foot control.
  • Page 64 4 Operation Dentsply Sirona 4.4 Dentist element Operating Instructions Simulation Unit Sim Multi Bench Changing the intensity ➢ Press and hold the favorite key 1 or 3 (> 1 s). Setup Ä The intensity is increased or reduced. The intensity can also be increased or reduced by moving the 4-way switch plate of the C+ electronic foot control up or down.
  • Page 65 Operating Instructions Simulation Unit Sim Multi Bench 4.5 Suction handpiece holder Suction handpiece holder The Sim Multi Bench simulation unit is equipped with a holder for suction handpieces. It can be equipped with a maximum of one spray aspirator and one saliva ejector.

  • Page 66: D3684

    4 Operation Dentsply Sirona 4.6 Operating light Operating Instructions Simulation Unit Sim Multi Bench Operating light The operating light is mounted on a multi-joint support arm. It can be easily adjusted to the operating field using the handles. Brakes in the support arm hold the operating light in the position to which it has been adjusted.

  • Page 67: Switching The Operating Light On/Off

    Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.6 Operating light 4.6.1 Switching the operating light on/off Repeatedly pressing the Operating light fixed key on the dentist element can set the following conditions: 1. Switched on: The operating light is switched on at the preset brightness level.

  • Page 68: Setting The Brightness, Color Temperature, And Sensor Control Of The Ledview Plus

    4 Operation Dentsply Sirona 4.6 Operating light Operating Instructions Simulation Unit Sim Multi Bench 4.6.3 Setting the brightness, color temperature, and sensor control of the LEDview Plus The operating light is always switched on with the programmed brightness level. It is programmed on the user interface of the dentist element.
  • Page 69 Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.6 Operating light Switching the Clean mode on and off on the user interface The non-contact sensor can be made inoperable using the Clean mode for the dentist element.

  • Page 70: Configurating The Simulation Unit (Setup)

    4 Operation Dentsply Sirona 4.7 Configurating the simulation unit (setup) Operating Instructions Simulation Unit Sim Multi Bench Configurating the simulation unit (setup) Using the Setup settings, various functions of the simulation unit can be individually configured. This means the simulation unit can be adapted to the personal working methods of each user .

  • Page 71: Setting The Time And Date

    Dentsply Sirona 4 Operation Operating Instructions Simulation Unit Sim Multi Bench 4.7 Configurating the simulation unit (setup) 4.7.2 Setting the time and date Set the time The time is displayed in the hour. minute format. ü The hour setting focus flashes.

  • Page 72: Presetting The Timer

    4 Operation Dentsply Sirona 4.7 Configurating the simulation unit (setup) Operating Instructions Simulation Unit Sim Multi Bench 4.7.3 Presetting the timer The maximum setting for the timer is 9 hours 30 seconds. ü The timer function setting focus is displayed.

  • Page 73: Care, Cleaning And Maintenance By The User

    Dentsply Sirona 5 Care, cleaning and maintenance by the user Operating Instructions Simulation Unit Sim Multi Bench 5.1 Basics Care, cleaning and maintenance by the user Basics Handling mainly involves the following steps: ● Cleaning ● Disinfection ● Sterilization if possible It is recommended to clean the unit as soon as possible after use.

  • Page 74: Care, Cleaning, And Disinfecting Agents

    5 Care, cleaning and maintenance by the user Dentsply Sirona 5.1 Basics Operating Instructions Simulation Unit Sim Multi Bench Daily Purge the water lines (auto-purge function, purge function) or purge the water lines manually Flush water lines Clean the suction system using an external tank...

  • Page 75: Conduct A Microbiological Water Test

    Dentsply Sirona 5 Care, cleaning and maintenance by the user Operating Instructions Simulation Unit Sim Multi Bench 5.1 Basics 5.1.3 Conduct a microbiological water test Perform microbiological tests of the water from the simulation unit at regular intervals and after longer periods of disuse > 1 week (see also “Media quality”).

  • Page 76: Biofilm Removal By The Service Technician

    5 Care, cleaning and maintenance by the user Dentsply Sirona 5.1 Basics Operating Instructions Simulation Unit Sim Multi Bench 7. Count all colonies found on the surface of the tester. If the bacterial count is well over 100, the water must be treated, see"Biofilm removal by the service technician and sanitization".
  • Page 77 Dentsply Sirona 5 Care, cleaning and maintenance by the user Operating Instructions Simulation Unit Sim Multi Bench 5.1 Basics Machine disinfection Thermal disinfection at up to 93°C (200°F) according to ISO 15883-1 is possible for all marked components. Use an alkaline cleaning agent. A laboratory dishwasher (e.g.

  • Page 78: Inspection, Maintenance And Testing

    5 Care, cleaning and maintenance by the user Dentsply Sirona 5.1 Basics Operating Instructions Simulation Unit Sim Multi Bench Sterilization 134°C 274°F Sterilization may be conducted for components that are marked 3 min accordingly. Dentsply Sirona recommends sterilization in a steam sterilizer (autoclave) according to ISO 13060, Class B (e.g., DAC...

  • Page 79: Surfaces

    Dentsply Sirona 5 Care, cleaning and maintenance by the user Operating Instructions Simulation Unit Sim Multi Bench 5.2 Surfaces Surfaces 5.2.1 Clean/disinfect surfaces The surfaces can be disinfected by spraying and wiping with surface disinfectants. NOTE Drugs have a chemical reaction with the surface of the unit.

  • Page 80: Disinfect User Interfaces

    NOTE Approved care, cleaning, and disinfecting agents Use only care, cleaning, and disinfecting agents that have been approved by Dentsply Sirona, see "Care, cleaning, and disinfecting agents". Making user interfaces inoperable This function provides additional protection to the simulation unit of the Sivision monitor from interference from HF fields.

  • Page 81: Instruments And Instrument Hoses

    Dentsply Sirona 5 Care, cleaning and maintenance by the user Operating Instructions Simulation Unit Sim Multi Bench 5.3 Instruments and instrument hoses Instruments and instrument hoses 5.3.1 Rinse water paths Microorganisms can grow in the water paths of the simulation unit. Use a large amount of water to rinse the lines prior to the use.

  • Page 82: Purge Function

    5 Care, cleaning and maintenance by the user Dentsply Sirona 5.3 Instruments and instrument hoses Operating Instructions Simulation Unit Sim Multi Bench 5.3.2.1 Purge function Setting the purging time The purging time of the removed instruments can be set between 20 and 120 seconds in the setup for the simulation unit, see “Setting the...
  • Page 83 Dentsply Sirona 5 Care, cleaning and maintenance by the user Operating Instructions Simulation Unit Sim Multi Bench 5.3 Instruments and instrument hoses Stopping the purging process ➢ Press the foot pedal to interrupt the purging process. If the instrument is not put back in the holder, the purging process can be continued by pressing the foot pedal again up to the end of the set purging time.

  • Page 84: Purging Water Paths Manually

    5 Care, cleaning and maintenance by the user Dentsply Sirona 5.3 Instruments and instrument hoses Operating Instructions Simulation Unit Sim Multi Bench 5.3.2.2 Purging water paths manually The purge function is optional on the simulation unit. If this function is not available, the water paths must be purged manually.
  • Page 85 Dentsply Sirona 5 Care, cleaning and maintenance by the user Operating Instructions Simulation Unit Sim Multi Bench 5.3 Instruments and instrument hoses 5. Set a low speed and intensity for the instrument. Press favorite key 1. 6. Press and hold the foot pedal for at least 60 seconds.

  • Page 86: Lubricate, Disinfect/Sterilize The Treatment Instruments

    5 Care, cleaning and maintenance by the user Dentsply Sirona 5.3 Instruments and instrument hoses Operating Instructions Simulation Unit Sim Multi Bench 5.3.3 Lubricate, disinfect/sterilize the treatment instruments 5.3.3.1 Treatment instruments The procedures required for the following treatment instruments are described in the following separate operating instructions: ●...

  • Page 87: Cleaning, Disinfecting/Sterilizing The Cavitron Scaler

    Dentsply Sirona 5 Care, cleaning and maintenance by the user Operating Instructions Simulation Unit Sim Multi Bench 5.3 Instruments and instrument hoses 5.3.3.3 Cleaning, disinfecting/sterilizing the Cavitron scaler IMPORTANT The work steps for sterilizing the Cavitron scaler are described in the operating instructions for the "Cavitron Built-In Ultrasonic Scaler,...

  • Page 88: Vacuum System

    5 Care, cleaning and maintenance by the user Dentsply Sirona 5.4 Vacuum system Operating Instructions Simulation Unit Sim Multi Bench Vacuum system 5.4.1 Purge the vacuum system. To ensure that the suction system is always ready for operation, a large glass of clear, cold water should be aspirated at regular intervals.

  • Page 89: Cleaning Suction Hoses And Suction System

    NOTE Approved care, cleaning, and disinfecting agents Use only care, cleaning, and disinfecting agents that have been approved by Dentsply Sirona, see "Care, cleaning, and disinfecting agents". NOTE Domestic cleaning agents foam up. Foaming cleaning agents often cause foam and water to be sucked into the dry suction system.
  • Page 90 5 Care, cleaning and maintenance by the user Dentsply Sirona 5.4 Vacuum system Operating Instructions Simulation Unit Sim Multi Bench Preparation for cleaning 1. Prepare 1 liter of cleaning solution in a separate container according to the manufacturer's instructions and mix it thoroughly.
  • Page 91 Dentsply Sirona 5 Care, cleaning and maintenance by the user Operating Instructions Simulation Unit Sim Multi Bench 5.4 Vacuum system Cleaning procedure 1. Fill 1 liter of cleaning solution into a suitable container. 2. Remove the suction hoses from their holders and aspirate the cleaning solution from the container as simultaneously as possible.
  • Page 92 5 Care, cleaning and maintenance by the user Dentsply Sirona 5.4 Vacuum system Operating Instructions Simulation Unit Sim Multi Bench Rinsing the cleaning agent 1. Following the cleaning process, pour at least 1 liter of water into the container. 2. Remove the suction hoses from their holders and aspirate the water from the container as simultaneously as possible.

  • Page 93: Sterilize/Disinfect The Suction Handpieces

    Dentsply Sirona 5 Care, cleaning and maintenance by the user Operating Instructions Simulation Unit Sim Multi Bench 5.4 Vacuum system 5.4.4 Sterilize/disinfect the suction handpieces Sterilization/disinfection All parts of the suction handpieces can be sterilized and thermally disinfected. Suction tip 134°C 274°F...

  • Page 94: Components Of The Supply Module

    5 Care, cleaning and maintenance by the user Dentsply Sirona 5.5 Components of the supply module Operating Instructions Simulation Unit Sim Multi Bench Components of the supply module 5.5.1 Service block 5.5.1.1 Change the water and air filters If you notice any changes in media flows, check the water and air filters for permeability.
  • Page 95 Dentsply Sirona 5 Care, cleaning and maintenance by the user Operating Instructions Simulation Unit Sim Multi Bench 5.5 Components of the supply module 5. Put the sealD back on the filter E. Then insert both into the screw cap B, C as shown.

  • Page 96: Maintenance By The Service Engineer

    On the display of the simulation dentist element, the text "Sr." and the number of days until the servicing date will appear. You should now contact your dental depot or Dentsply Sirona Sirona and make an appointment. The work steps to be performed as well as the parts which must be replaced are specified in the document "Maintenance Certificate".

  • Page 97: Spare Parts And Consumables

    Dentsply Sirona 7 Spare parts and consumables Operating Instructions Simulation Unit Sim Multi Bench Spare parts and consumables Use only original accessories and original spare parts from Dentsply Sirona. Please order the materials listed below from a specialized dental dealer.

  • Page 98: Disposal

    8 Disposal Dentsply Sirona Operating Instructions Simulation Unit Sim Multi Bench Disposal On the basis of the Directive 2012/19/EU and the country-specific disposal regulations on waste electrical and electronic equipment, we would like to stress that such equipment must be disposed of accordingly within the European Union (EU).
  • Page 100 We reserve the right to make any alterations which may be required due to technical improvements. © Sirona Dental Systems GmbH Sprache: englisch Printed in Germany D3684.201.01.02.02      07.2019 Ä.-Nr.:  126 402 Sirona Dental Systems GmbH 66 82 384 D3684 Fabrikstr. 31 Order No   ...
