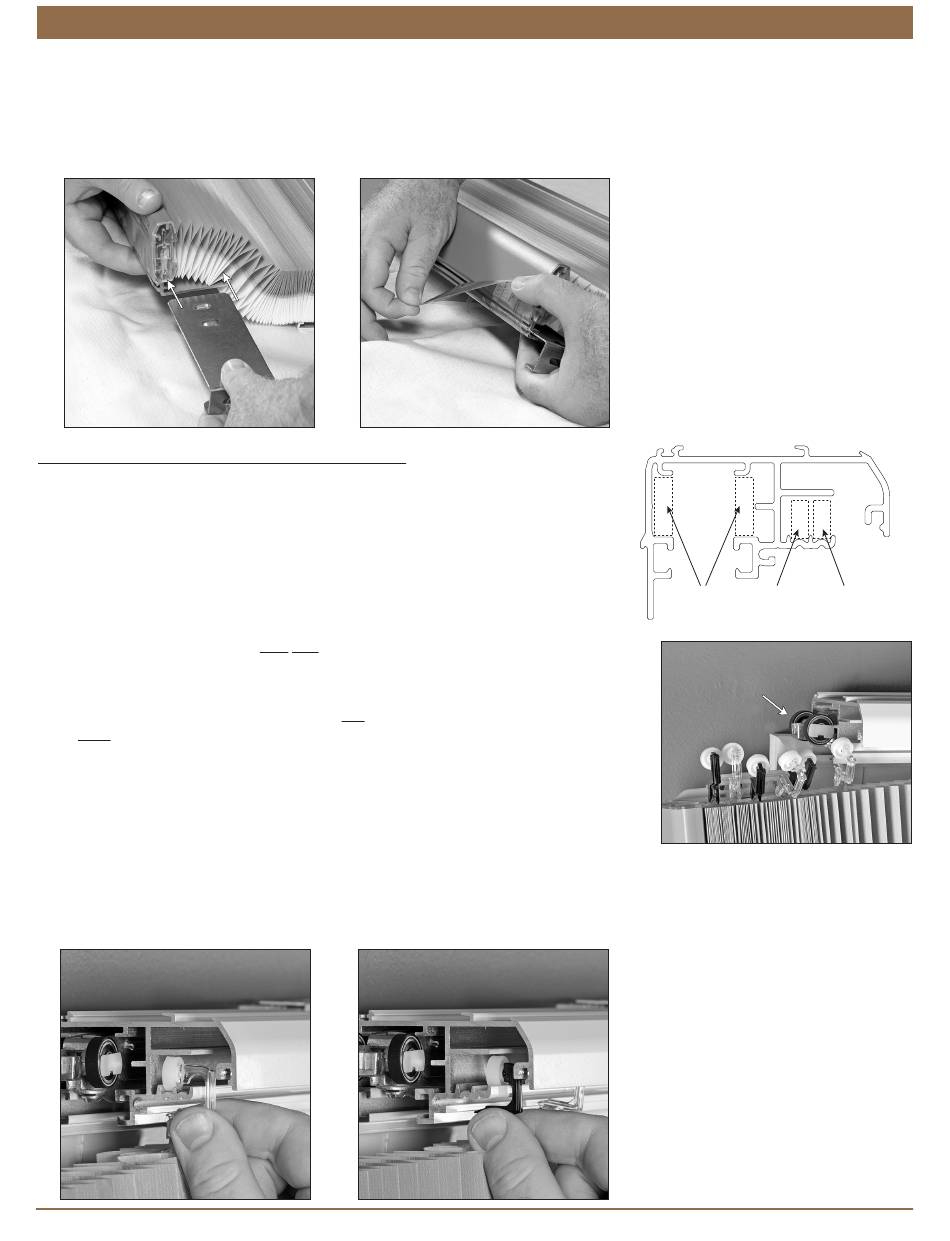

Insert the stationary rail bottom bracket into the bottom of the stationary rail.
■ ■
The bracket fits into grooves at the bottom of the rail.
➤ ■
Insert the bracket with the mounting flanges to the back, away from the fabric stack as shown in the photos. Do not seat
➤ ■
the bracket; about ⁄
1
4
After inserting the bracket, peel off the red label.
➤ ■
Install the Rails and Fabric Stack into the Headrail
Review the diagram at right to familiarize yourself with where the moving rail
■ ■
rollers and fabric carrier wheels fit inside the headrail.
Insert the moving rail bracket part way into the rear of the headrail.
■ ■
Allow the bracket to move all the way into the headrail as you install the fabric
➤ ■
carrier wheels.
Insert the moving rail bracket from the left side for a left stack design or from the
➤ ■
right side for a right stack design.
Insert the fabric carrier wheels into the headrail. (Unwrap a small amount of cord from the orange cord organizer if you need
■ ■
more slack.)
The wheels with clear stems fit into the rear channel and the wheels with black stems into the front channel.
➤ ■
NOTE: The fabric carrier wheels only fit into the rail the correct way; it is not possible to install them into the wrong channel.
Clear Stem = Rear Channel
" should extend from the rail.
Black Stem = Front Channel
INSTALLATION
INSTALLATION
7
Moving Rail Clear Stem Black Stem
Rollers Fabric Carriers Fabric Carriers
Left Stack Shown
Moving Rail
Bracket
FRONT
